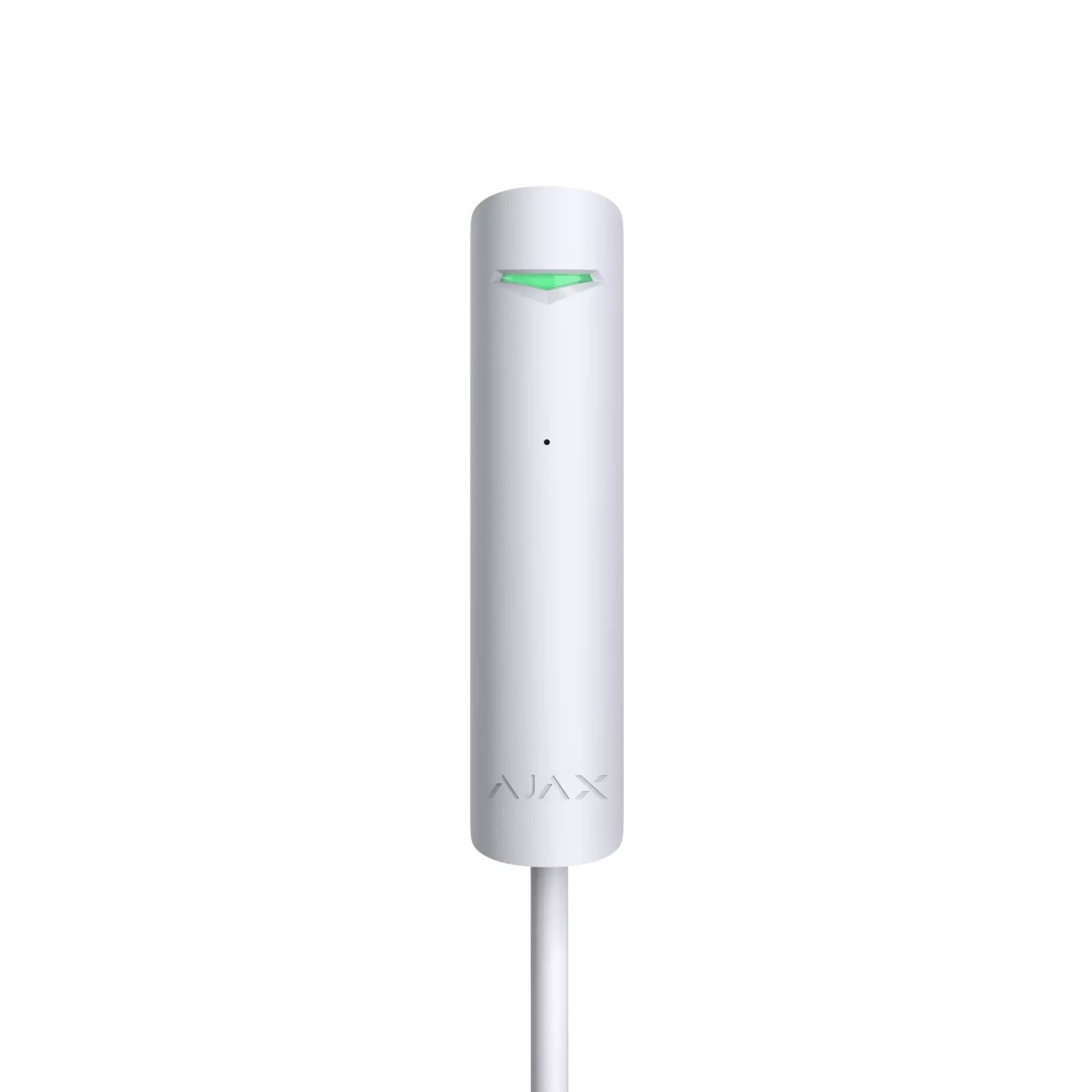

AJAX FIBRA GlassProtect White - Requires License

• ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
• GlassProtect Fibra is a wired glass break detector. Designed for indoor use. Supports connection of a third-party detector with a normally closed (NC) contact type
• GlassProtect Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5
• GlassProtect Fibra is part of the wired Fibra devices line. The installation, sale, and configuration of these devices are performed only by accredited Ajax partners

Compatibility

• Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)
• Compatible range extenders : Range extenders with Fibra devices support will be soon added to the Ajax product line

Communication

• Fibra communication technology : Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
• Bus connection : 4-core cable
• Encrypted communication
• Bus line length : up to 2,000 meters when using the U/UTP cat.5 twisted pair

Detection

• Sensing element : 1 × electret microphone

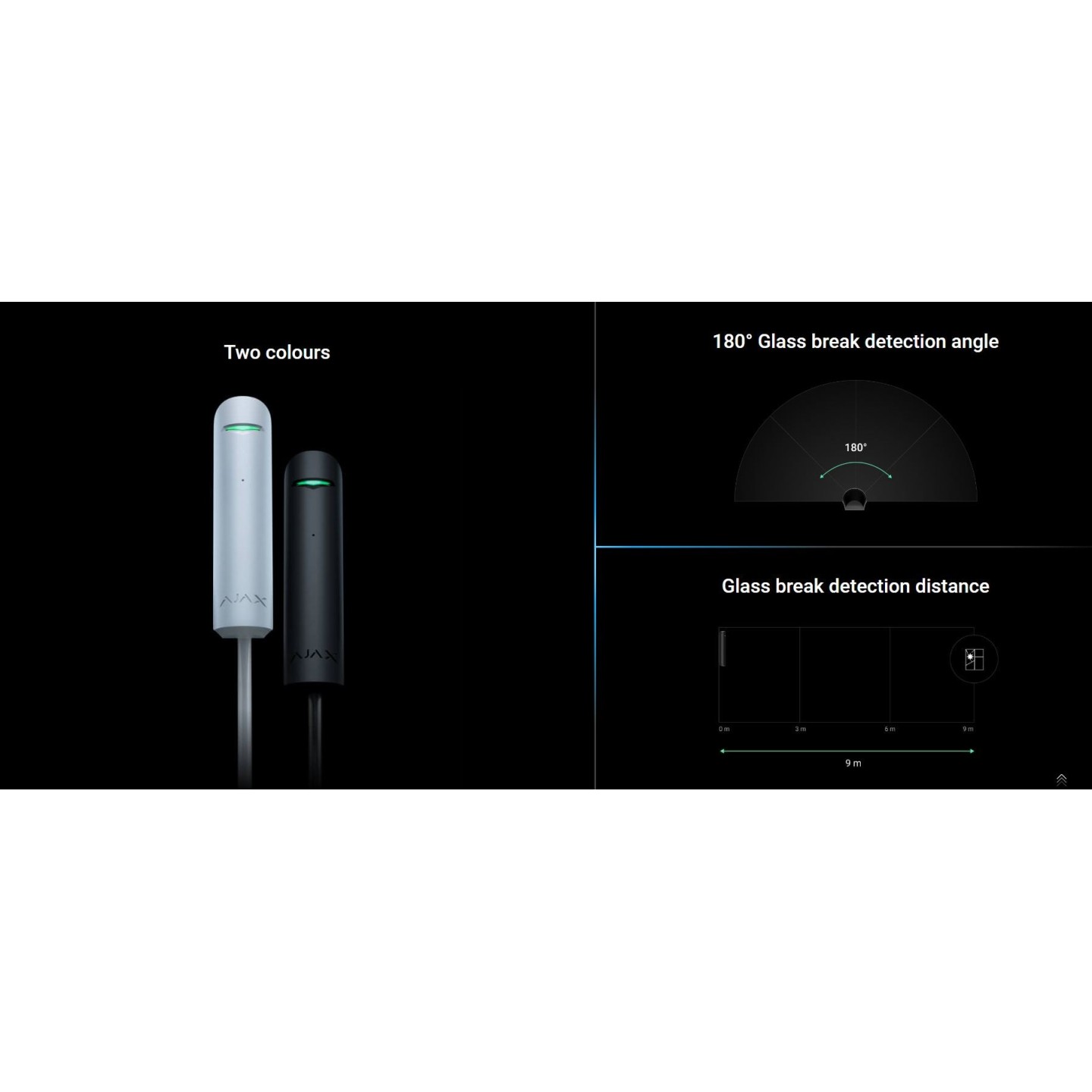

• Glass break detection distance : up to 9 meters
• Glass break detection angles : horizontal — 180° / vertical — N/A
• Sensitivity : 3 levels
• False alarm prevention : Two-factor glass break verification by low and high frequencies

Anti-sabotage protection

• Tampering alarm
• Protection against forgery : Device authentication

Power supply

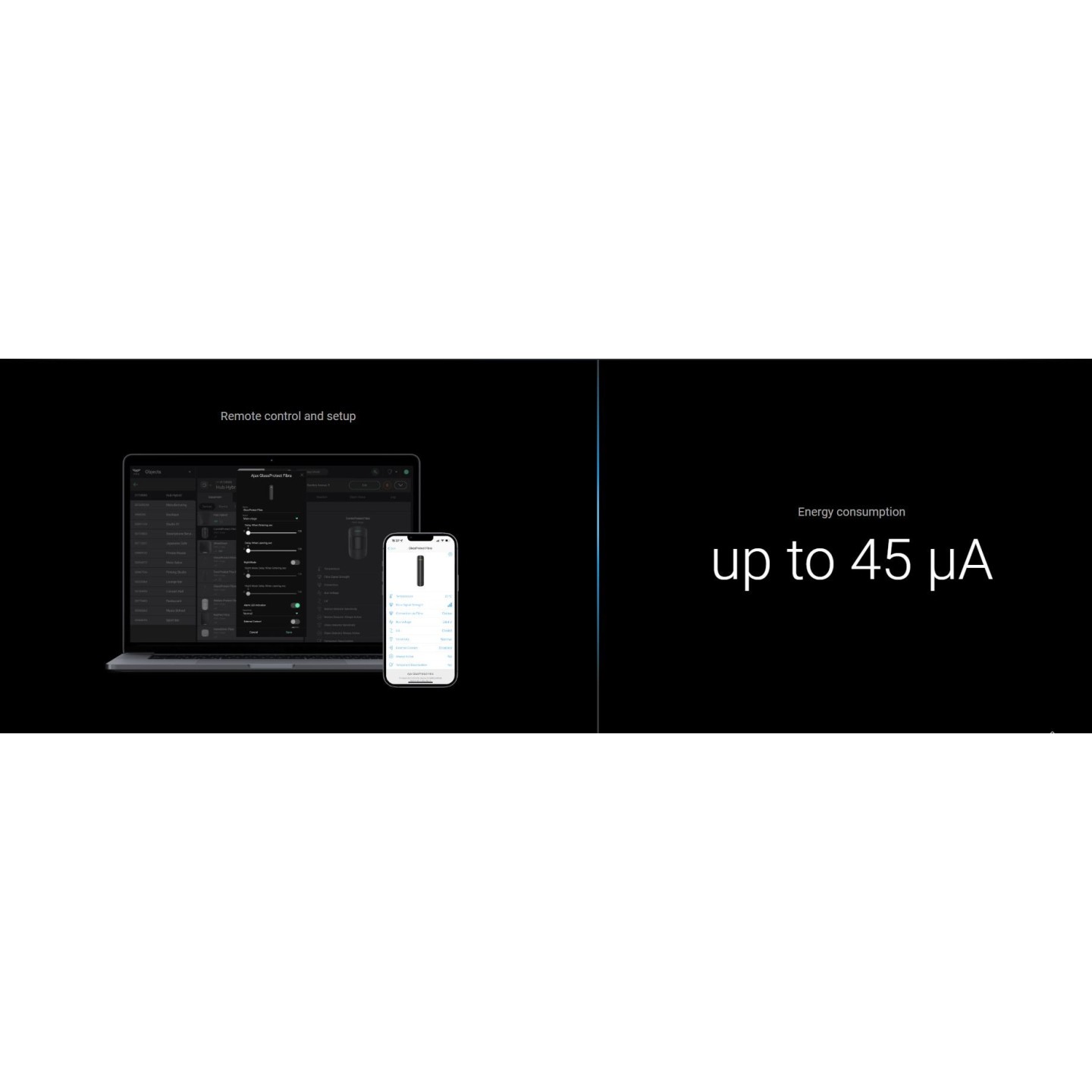

• Fibra line power supply : 24 V⎓, up to 45 µA

Enclosure

• Dimensions : 90.5 × 21 × 18.5 mm
• Weight : 54 g
• Operating temperature range : from −10°C to +40°C
• Operating humidity : up to 75%
• Protection class : IP50
