Adastra 1U Mic Line Rack Mixer - ML622 - 953.026UK - 1U Mic Line Rack Mixer
Rack-mountable 1U mixer with 6 mic/line inputs and 2 aux inputs; phantom power on mic/line channels; outputs include stereo XLR, mono jack, and REC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

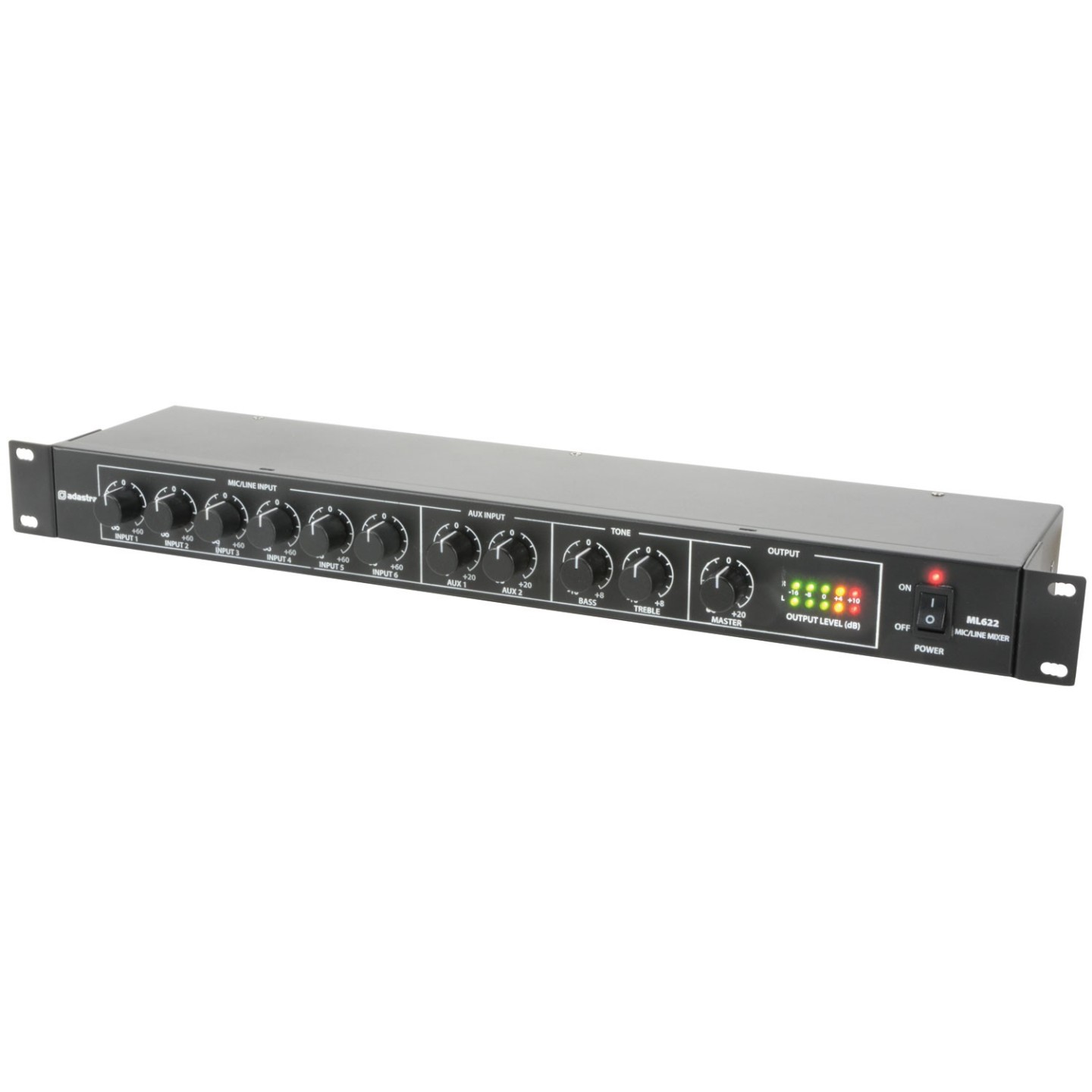

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
- 6 switchable mic or line inputs
- 2 stereo aux inputs
- Individually switchable phantom power
- 24Vdc power option
- Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
- Fuse: T1AL 250V (mains) or F500mA (24Vdc)
- Phantom power: +20Vdc (switchable)
- Inputs : mic/line6 x balanced XLR
- Inputs : aux2 x L+R RCA

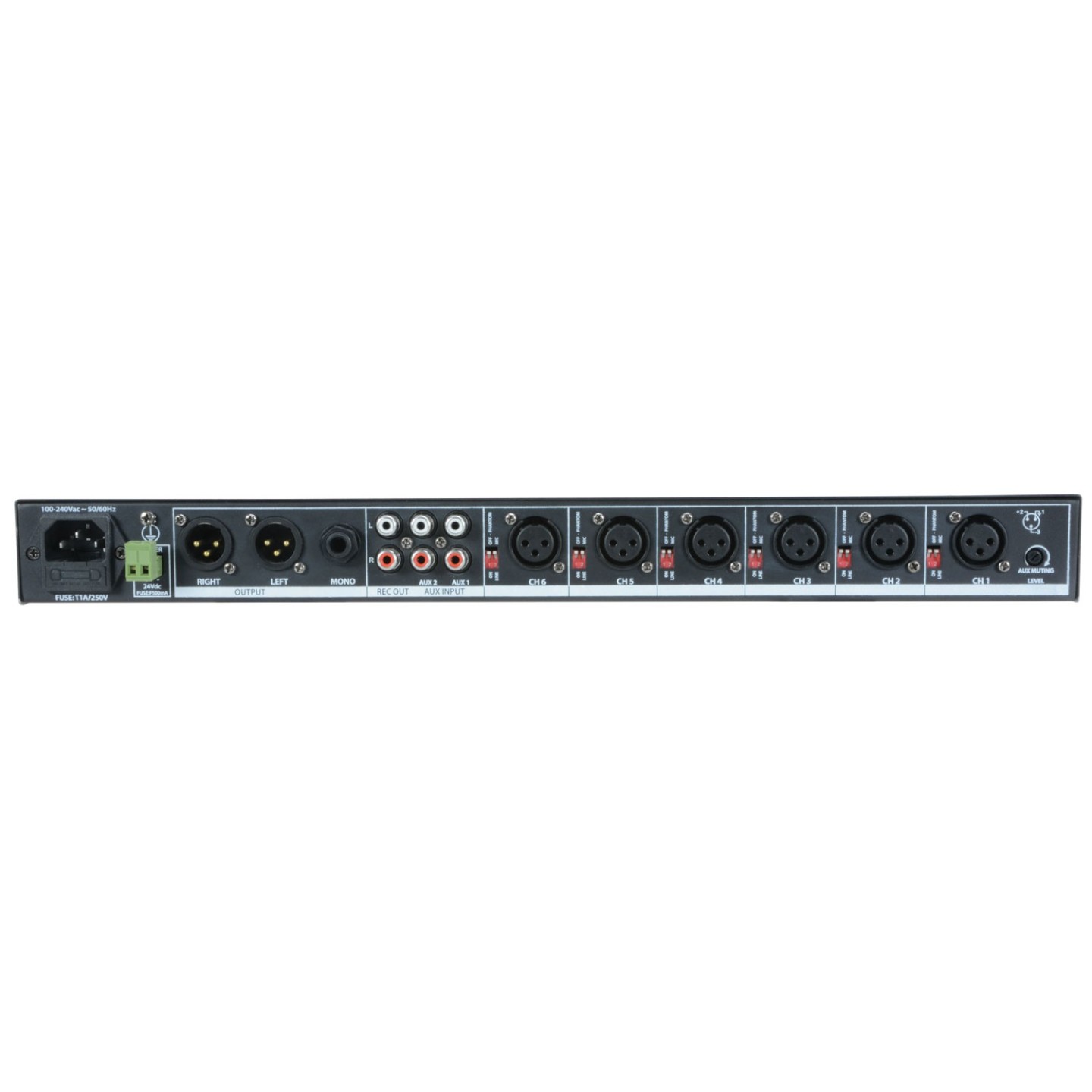

- Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)

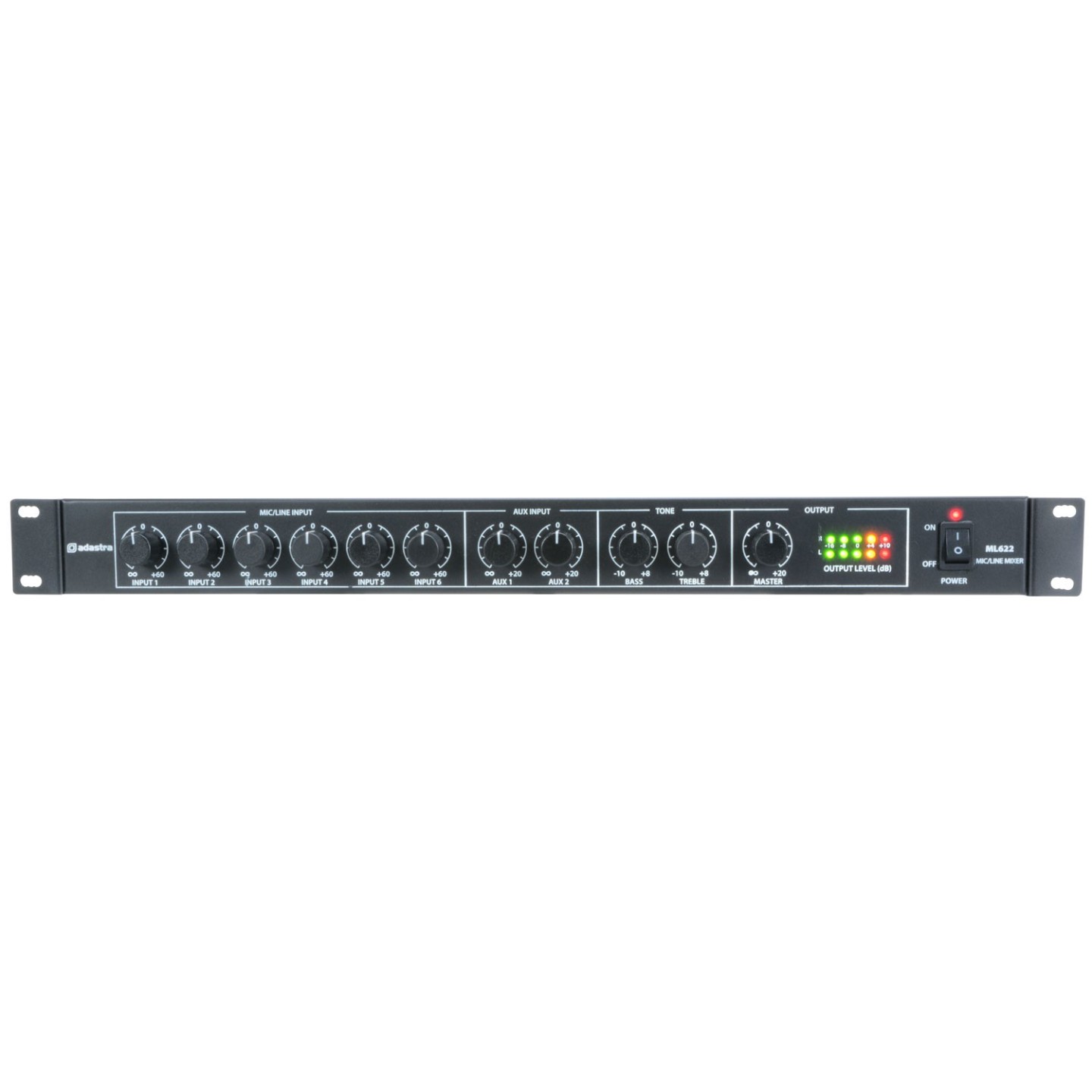

- Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
- Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic 20Hz - 18kHz
- Frequency response : line14Hz - 20kHz
- Frequency response : aux10Hz - 23kHz
- Input sensitivity : mic-45dBV
- Input sensitivity : aux/line-10dBV
- Signal to noise ratio : mic55dB
- Signal to noise ratio : aux/line60dB
- THD: 0.05%
- Dimensions: 482 x 130 x 44mm
- Weight: 1.43kg
| Channels | 2 |
| USB | Yes |
