Brateck LDT66-C012 Single Arm Monitor Mount 17-32" up to 9kg (Boxed)
Brateck LDT66-C012 single-arm desktop monitor mount supports 17-32" screens up to 9kg. Features tilt ±45°, swivel ±90°, 360° rotation, height adjustment, VESA 75x75/100x100, clamp/grommet install, cable management.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitor Stands & Mounts - Supported Devices | Monitor |
|---|---|
| Monitor Stands & Mounts - Screen Capacity | 1 Screen |
| Monitor Stands & Mounts - Max Screen Size | Up to 32 inch |
| Monitor Stands & Mounts - Mount Type | Desk Clamp Grommet |
| Monitor Stands & Mounts - VESA Compatibility | 100x100 mm 75x75 mm |
| Monitor Stands & Mounts - Weight Capacity | Heavy Duty (8-12 kg) |
| Monitor Stands & Mounts - Adjustment Type | Mechanical Arm |
| Monitor Stands & Mounts - Special Features | Cable Management Quick Release |

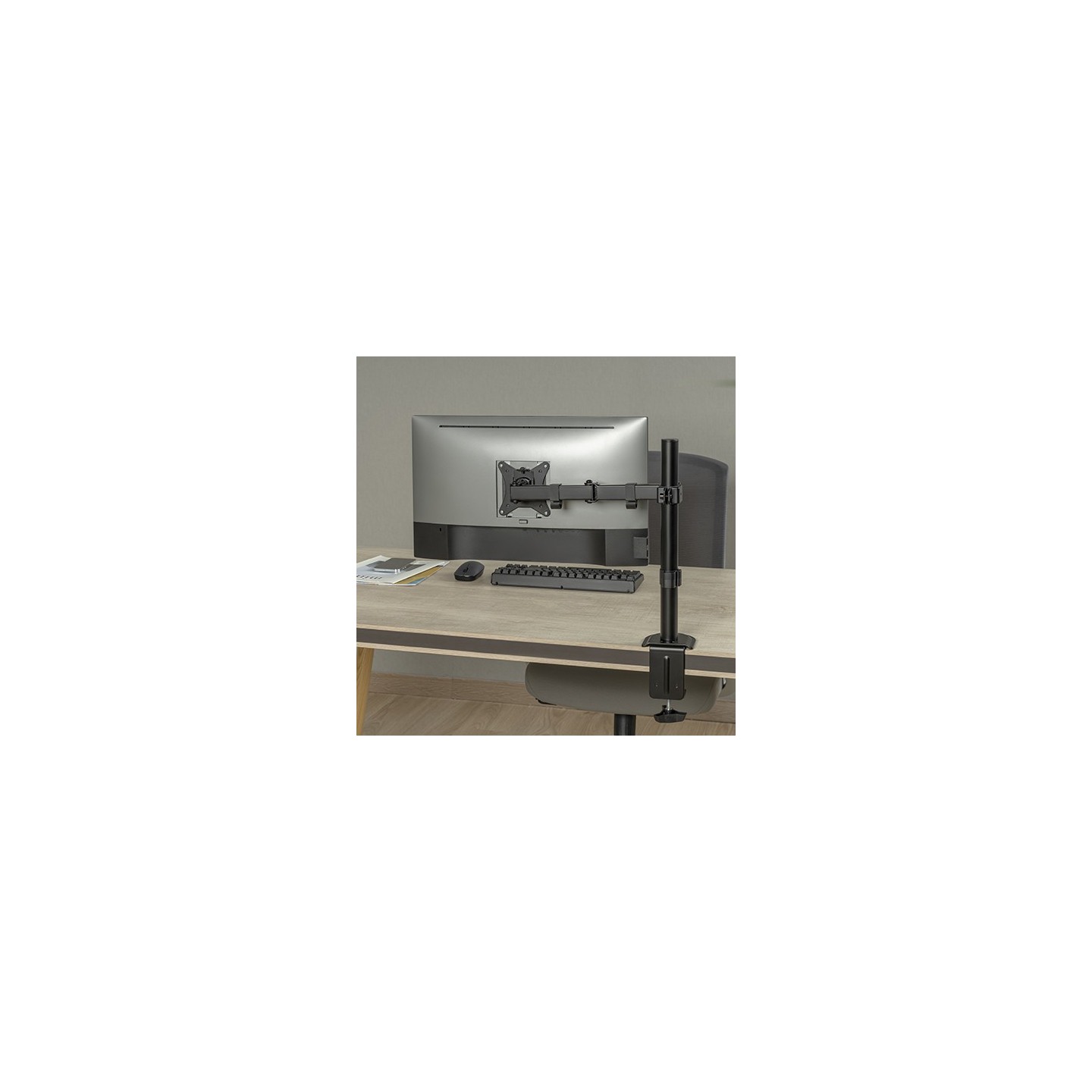

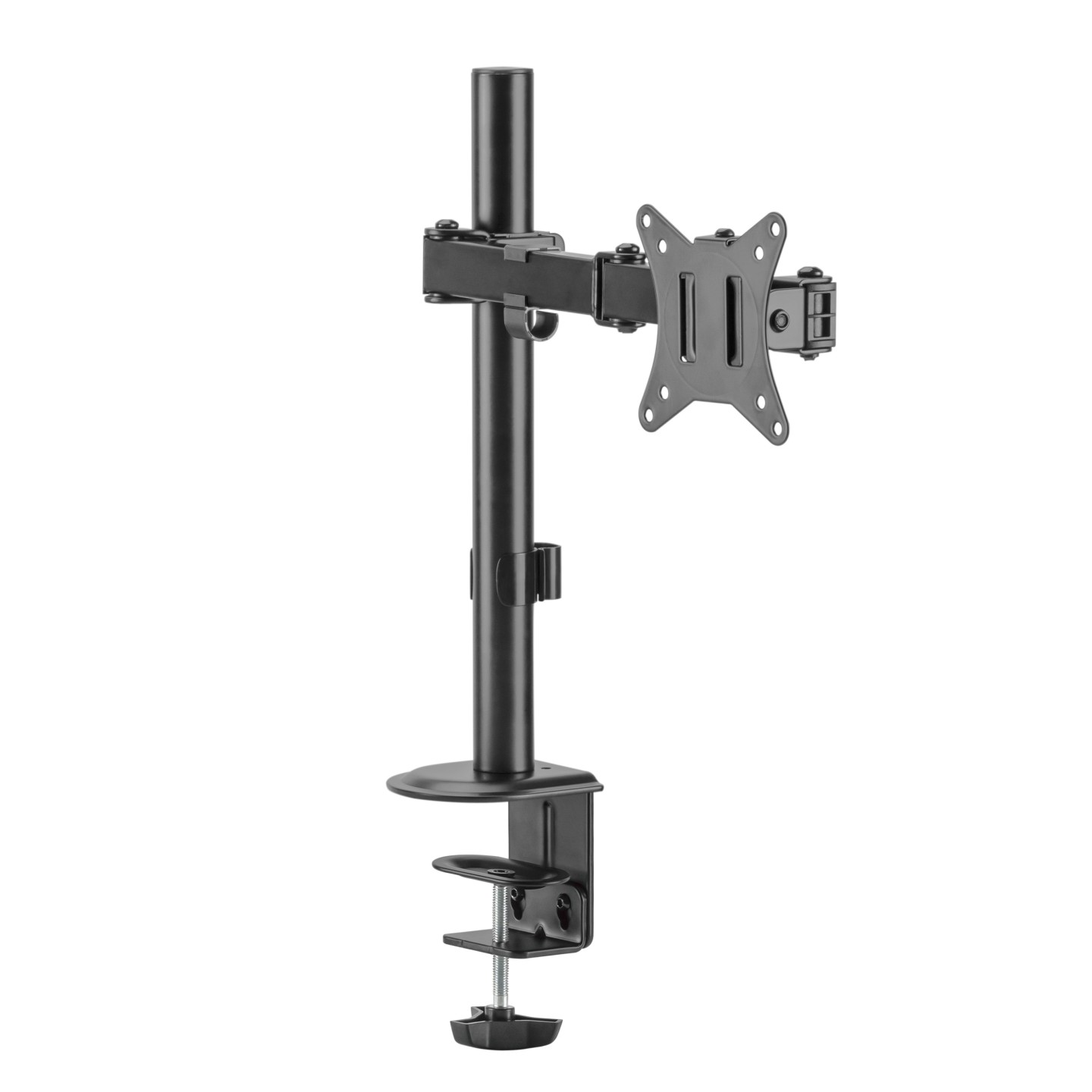

The Brateck LDT66-C012 is a robust single-arm articulating monitor mount designed for optimal workspace ergonomics. Constructed from durable steel with plastic components and a matte black powder-coated finish, it securely supports one monitor from 17" to 32" with a maximum weight capacity of 9kg. Its flexible design allows for extensive adjustments including +45°/-45° tilt, +90°/-90° swivel, and +180°/-180° screen rotation, enabling portrait or landscape orientation to suit any viewing preference.

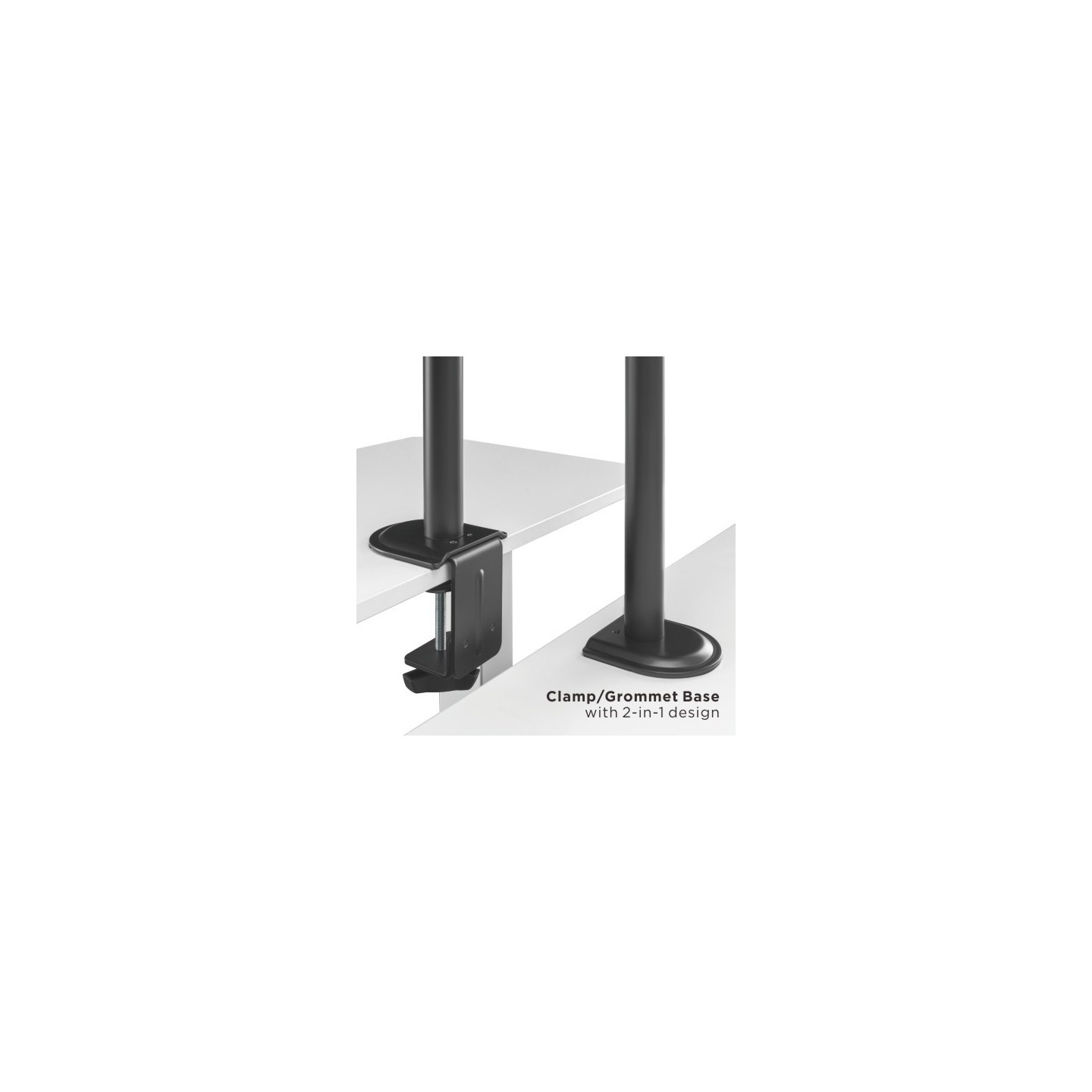

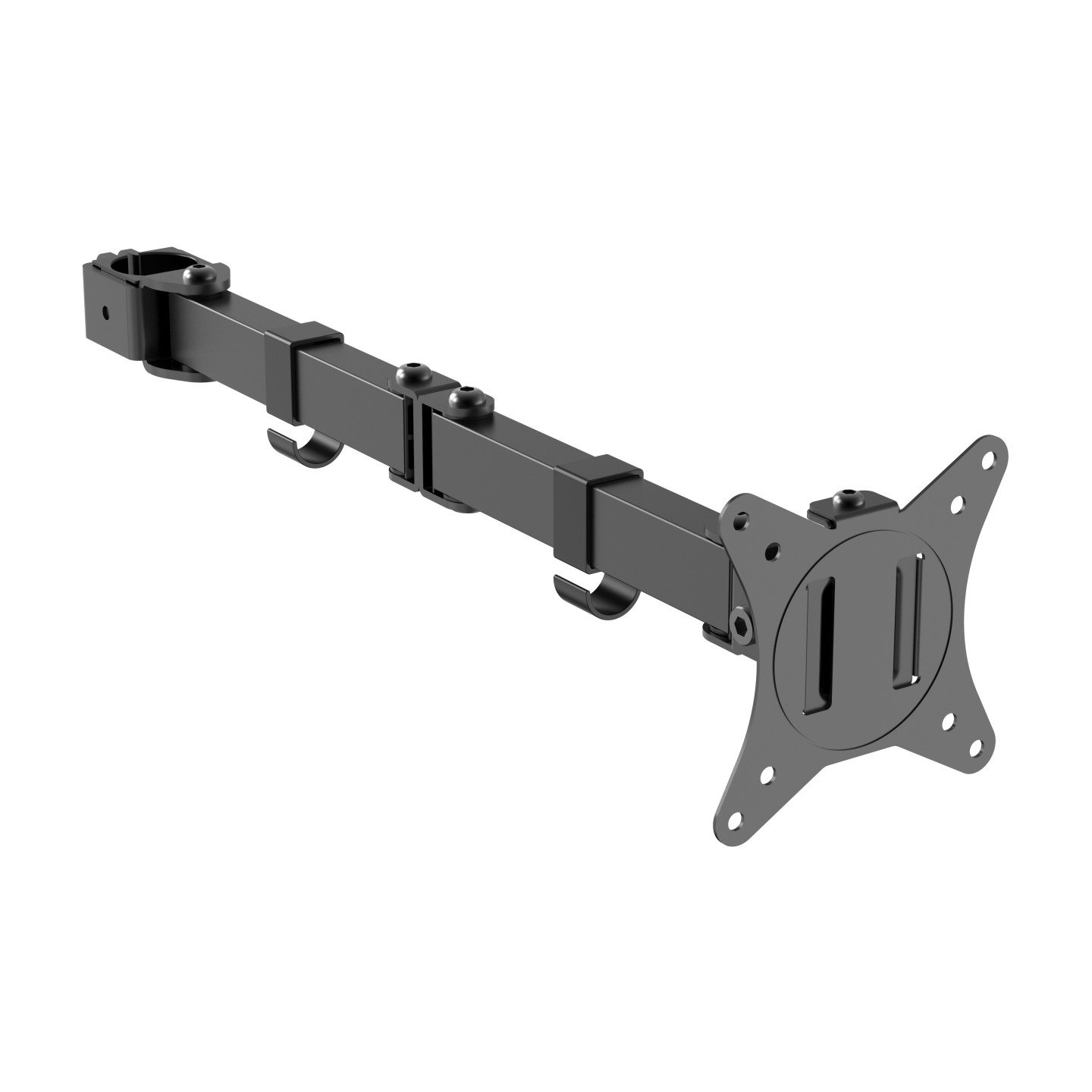

Installation is versatile with included desk clamp (for 10-85mm thickness) and grommet (10-40mm) options. The freely adjustable height via 407mm pole and 376mm arm extension ensures an ergonomic position. Additional features include a detachable quick-release VESA plate for easy setup and integrated cable clips for a clutter-free desk.
- Free-Tilting Design: Easy forward/backward adjustment to reduce glare
- Height Adjustment: Optimal ergonomic positioning
- Swiveling Arm: Maximum viewing flexibility
- Detachable VESA Plate: User-friendly installation
- Two Mounting Options: Clamp and grommet included
- Cable Management: Clean and organized workspace
| Product Category | Articulating Monitor Arm |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |

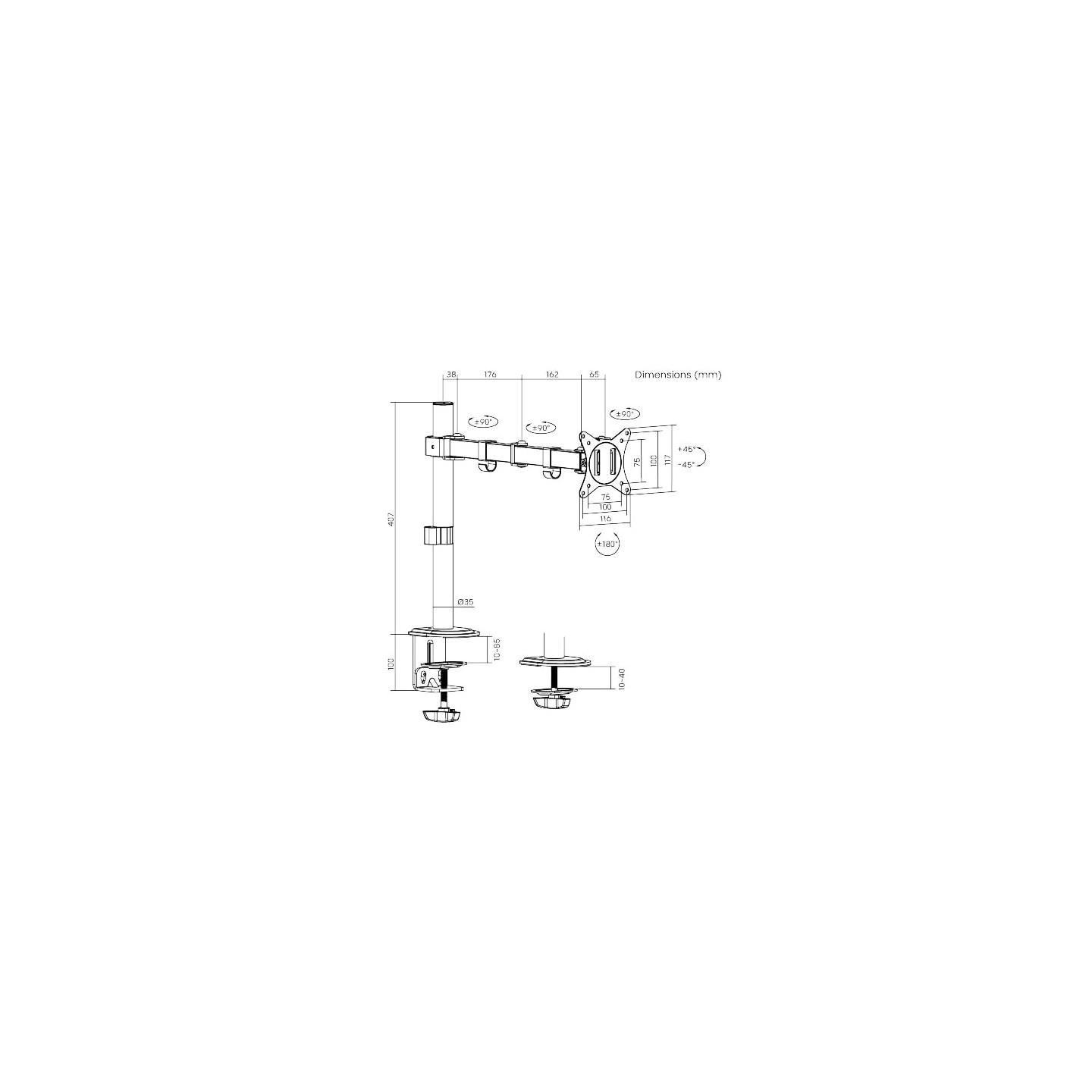

| Dimensions | 116x484x561mm |
| Fit Screen Size | 17\ |
| Screen Quantity | 1 |
| Weight Capacity (per screen) | 9kg |
| VESA Compatible | 75x75,100x100 |
| Tilt Range | +45°~-45° |
| Swivel Range | +90°~-90° |
| Screen Rotation | +180°~-180° |
| Arm Full Extension | 376mm |
| Pole Height | 407mm |
| Installation | Clamp,Grommet |
| Suggested Desktop Thickness | Clamp:10~85mm Grommet:10~40mm |
| Quick Release VESA Plate | Yes |
| Cable Management | Yes |
| Net Weight | 2.6kg |
