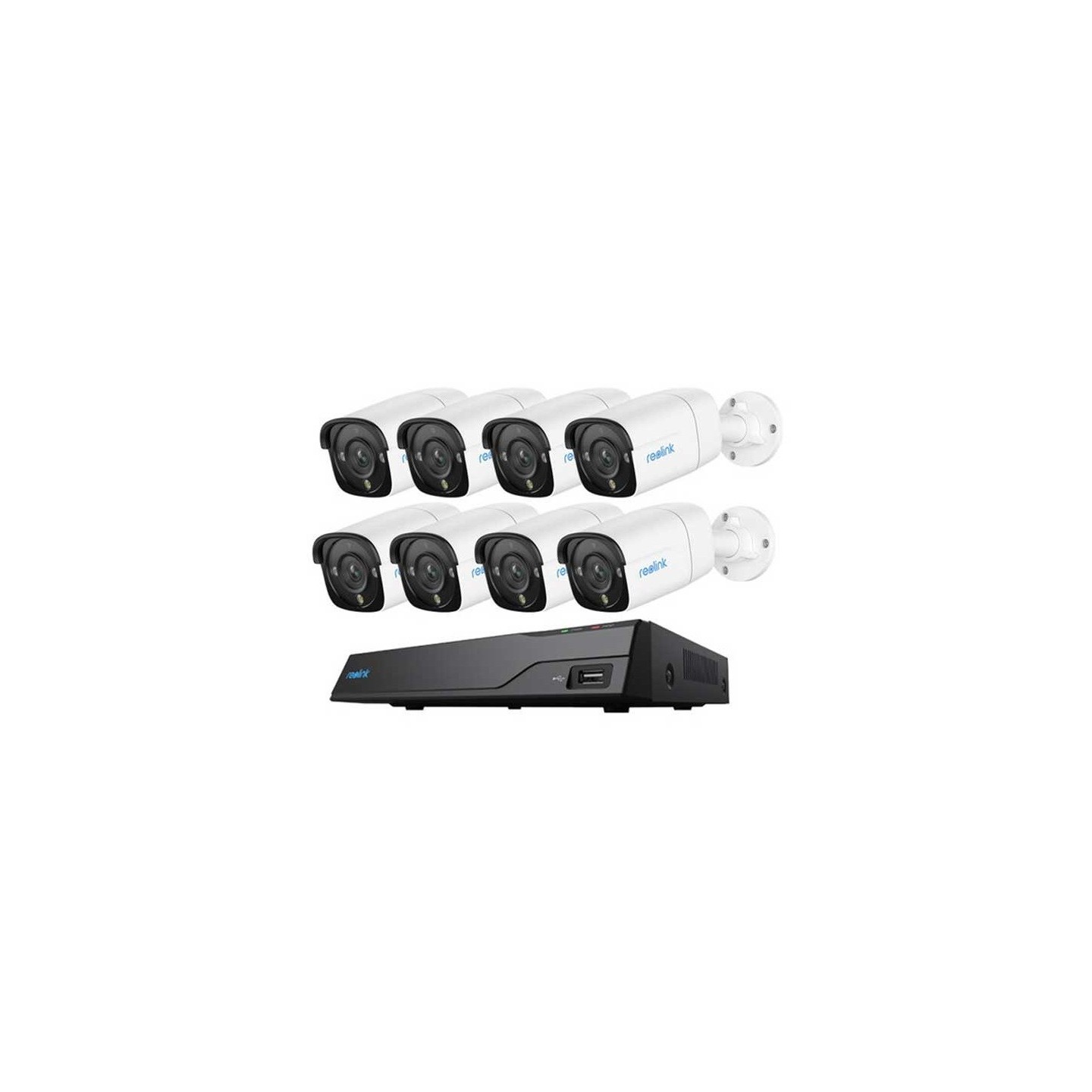

Reolink KIT - NVS16-12MB8 - 16xChNVR+8x12MP Bullet+4TB
AI-based Person, Vehicle, and Pet Detection; 12MP Ultra HD; PoE; 16-channel NVR with 4TB HDD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | NVR Only |
- Person/Vehicle/Pet Detection
- 12MP Ultra HD
- Power over Ethernet
- 16-Channel NVR with 4TB HDD
Recorder
Hardware
- N6MB01
Video/Audio Input
- IP Video Input : PoE IP Camera x 16
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
- Audio output : 1-channel, RCA
Decoding
- Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Video Format : H.265, H.264
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 2 x SATA interface (1 x 4TB HDD included)
- Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
- External HDD : No
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
- PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3 af/at
Network
- Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported : Edge, Firefox, Chrome, Safari
- OS Supported : Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~54V
- Power Consumption : <10W (without HDD&PoE)
- Working Environment : Temperature: -10°C~+45°C Humidity: 10%~90%
- Dimensions : 330 x 45 x 285mm
- Weight : 2.4kg
Camera
- Video & Audio
- Image Sensor : 1/2.49" CMOS Sensor
- Video Resolution : Default: 4512X2512 (12 megapixels) at 20 fps
- Lens : f=4.0mm; F=1.6, with IR-cut filter
- Videoformat : H.265
- Field of View : Horizontal: 93°; / Vertical: 49°
- Day & Night : Auto-switching with IR-cut filter
- Infrared Night Vision : 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision : Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio : Two-way audio (via Reolink App/Client)
Power
- PoE : IEEE 802.3af, 48V Active
- DC Power : DC 12.0V⎓1A, <12W
Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps; RJ45
- Audio : Built-in microphone and speaker
Software Features
- Frame Rate : Mainstream: 2fps - 20fps (default: 20fps); / Substream: 4fps - 20fps (default: 10fps)
- Code Rate : Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps); / Substream: 128Kbps - 1024Kbps (default: 768Kbps)
- Smart Alarm : Motion detection; person detection; vehicle detection; pet detection
Working Environment
- Temperature : Operating temperature: -10°C to +55°C (14°F~131°F)
- Humidity : Operating humidity: 10% – 90%
- Weatherproof : IP67
Size & Weight
- Dimension : Φ67*187mm
- Weight : 460g
| AI Features | Person,Vehicle Detection |
| Camera Resolution | 12.0MP |
| Housing Type | Bullet |
| Channels | 16 |
| Compression | H.265 |
| Full-Color | Yes |
| Illumination Distance | Up to 30m |
| Lens | Fixed |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| Audio | Two-Way |
