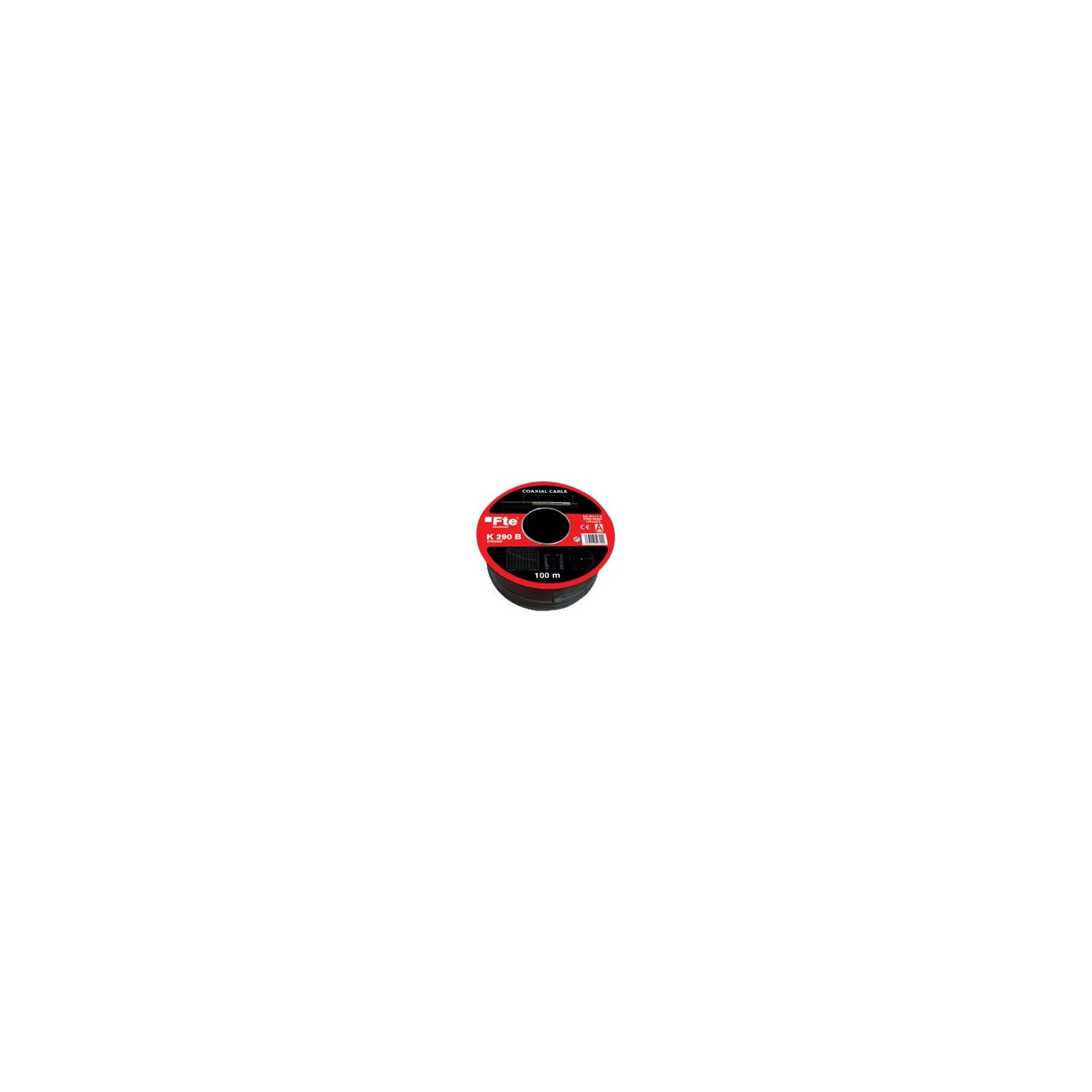

FTE Coaxial Cable - K290B - Coaxial Cable Black PE RG6 100m
Impedance 75 Ω ±3; length 100 m; RG6 coaxial cable; CCS; dielectric diameter 4.6 mm; foil Al/PET/Al; braid Al; 128 shielding wires; shielding >90 dB (30–900 MHz); jacket PE black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Antenna Cables - Shielding | High (90 dB) |
|---|
- Impedance (Ω): 75 +/- 3
- Inner conductor (mm): 1,13 CCS
- Dielectric diameter (mm): 4,6
- Foil: Al / Pet / Al
- Braid: Al
- Nº of wires: 128
- Screening factor 30-900 MHz (dB): >90
- Jacket: PE black
- Jacket outer diameter (mm): 6,8 / 47 MHz 3,7 / 175 MHz 6,7 / 470 MHz 11,2 / 862 MHz 16,2
- Nominal attenuation (dB/100m): 950 MHz 17,5 / 1350 MHz 21,8 / 1750 MHz 25,0 / 2150 MHz 28,2
- Presentation: 100 m / reel cardboard
| Cable Type | RG6 |
| Material | CCS |
| For Outdoor Use | Yes |
| Length | 100m |
| Cable Diameter | 6.8mm |
| Screening Wires | 128 |
