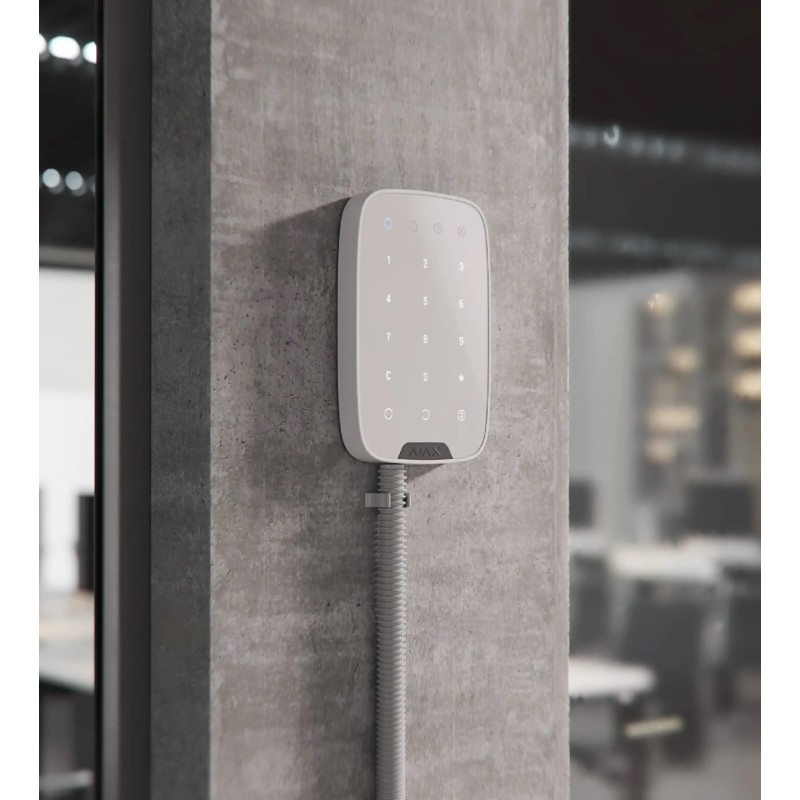

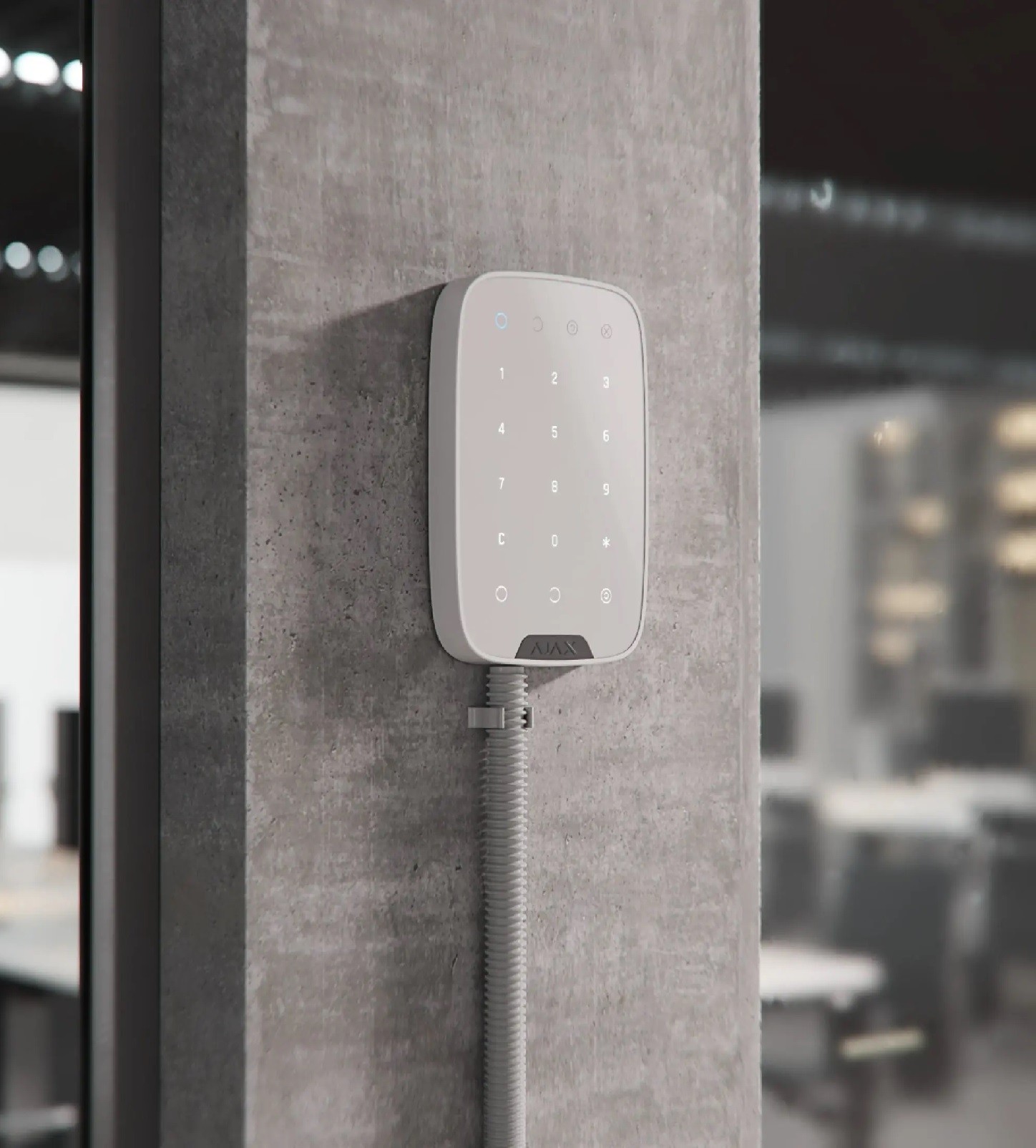

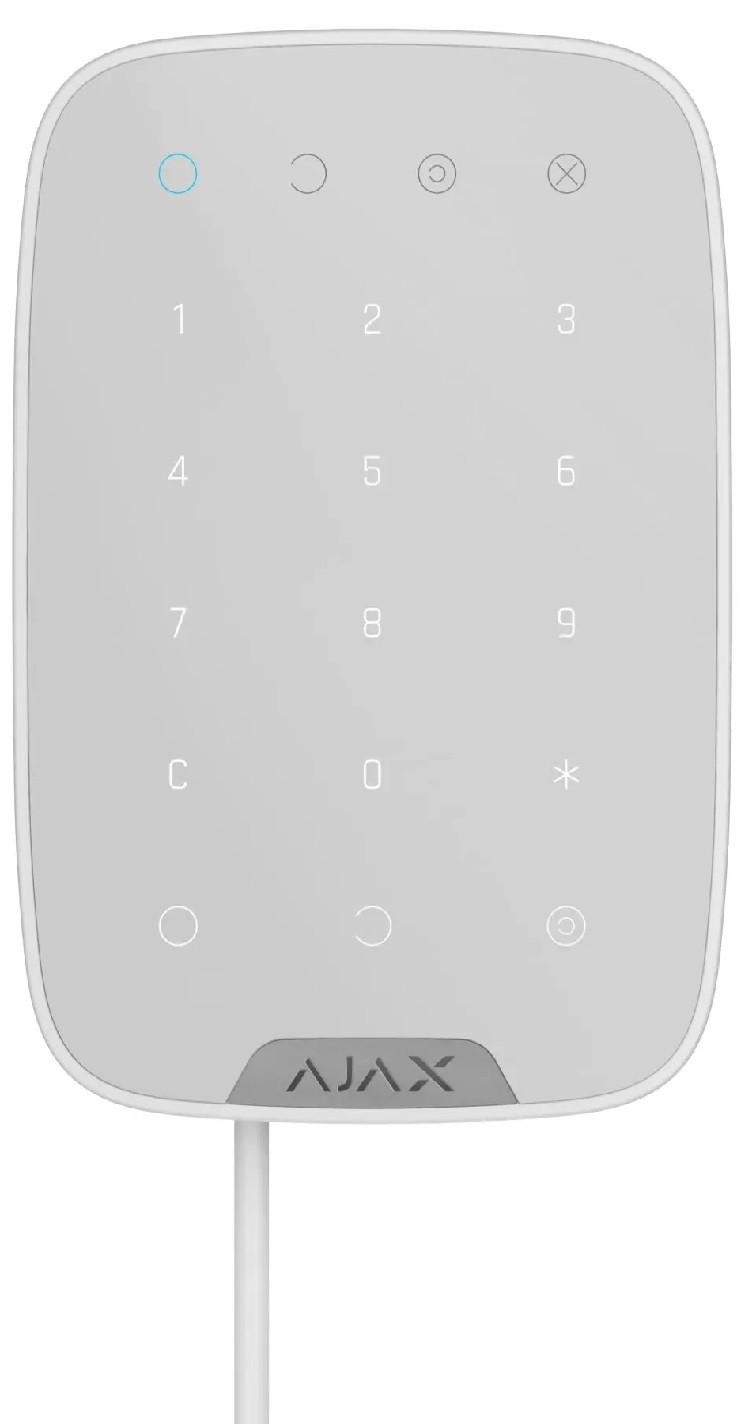

AJAX FIBRA Keypad White - FIBRA, Keypad, White
AJAX FIBRA Keypad is a wired touch keypad for the Ajax system, controls security modes (Night mode) and duress; uses Fibra wired protocol; installation requires authorised certification; Hub Hybrid (2G/4G) compatible; contact security@mstronics.com.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Alarm Kits - System Type | Wired |
|---|
- ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
- KeyPad Fibra is a wired touch keypad of the Ajax security system. Controls the security modes and Night mode. Supports duress code and protected from access code guessing. When it is active, the LED indication notifies about the security mode
- KeyPad Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
- KeyPad Fibra is part of the wired Fibra devices line. The installation, sale, and administration of these devices are performed only by accredited Ajax partners
The keypad is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided. Integration with other security systems is not provided either
Compatibility
- Hub Hybrid (2G)
- Hub Hybrid (4G)
Communication
- Fibra communication technology : Two-way communication, Advanced anti-sabotage , Instant notifications, Remote configuration via the app
- Line connection : 4-core cable
- Fibra line length : up to 2,000 meters (When using the U/UTP cat.5 twisted pair)
- Encrypted communication
Key features
- Sensor type : Capacitive
- Security mode indication : Only when KeyPad Fibra is active.
- Duress code : 50 personal codes (One per each user)
- 1 general code : One per KeyPad Fibra
- Functional button : Panic button / Mute fire alarms
- ACE Type : Type B
Anti-sabotage protection
- Code guessing protection
- Tampering alarm
- Protection against forgery : device authentication
Power supply
- Keypad’s operating voltage range : 5−27 V⎓, up to 230 mW (The detector is powered by the control panel)
- Keypad’s nominal operating voltage : 24 V⎓
Enclosure
- Dimensions : 150 × 103 × 19 mm
- Weight : 148 g
- Operating temperature range : from −10°C to +40°C
- Operating humidity : up to 75%
- Protection class : IP50
