Mercury RG59B U Coaxial Cable Foam 100m - 808.101UK - Coaxial Cable Foam 100m
75 Ohm RG59 coaxial cable with solid OFC conductor, foam-filled PE dielectric, aluminium foil screen, OFC braid, and PVC sheath; ideal for video signals such as CCTV.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| BNC/PoE Cables - Type | RG59 + Power (BNC) |
|---|---|
| BNC/PoE Cables - Length | 100 m |
| BNC/PoE Cables - Shielding | Foil Shielded |
| BNC/PoE Cables - Conductor | Solid Copper |

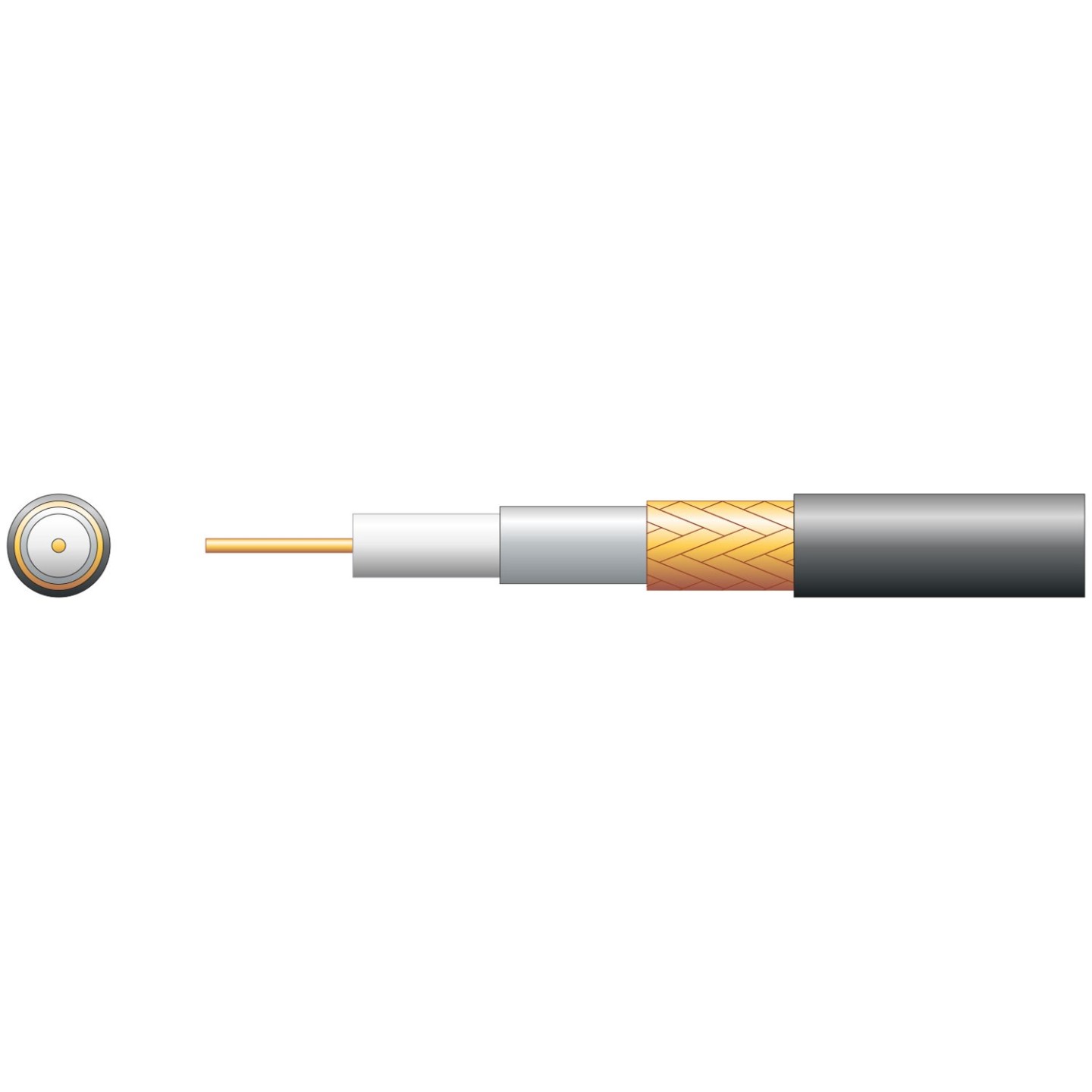

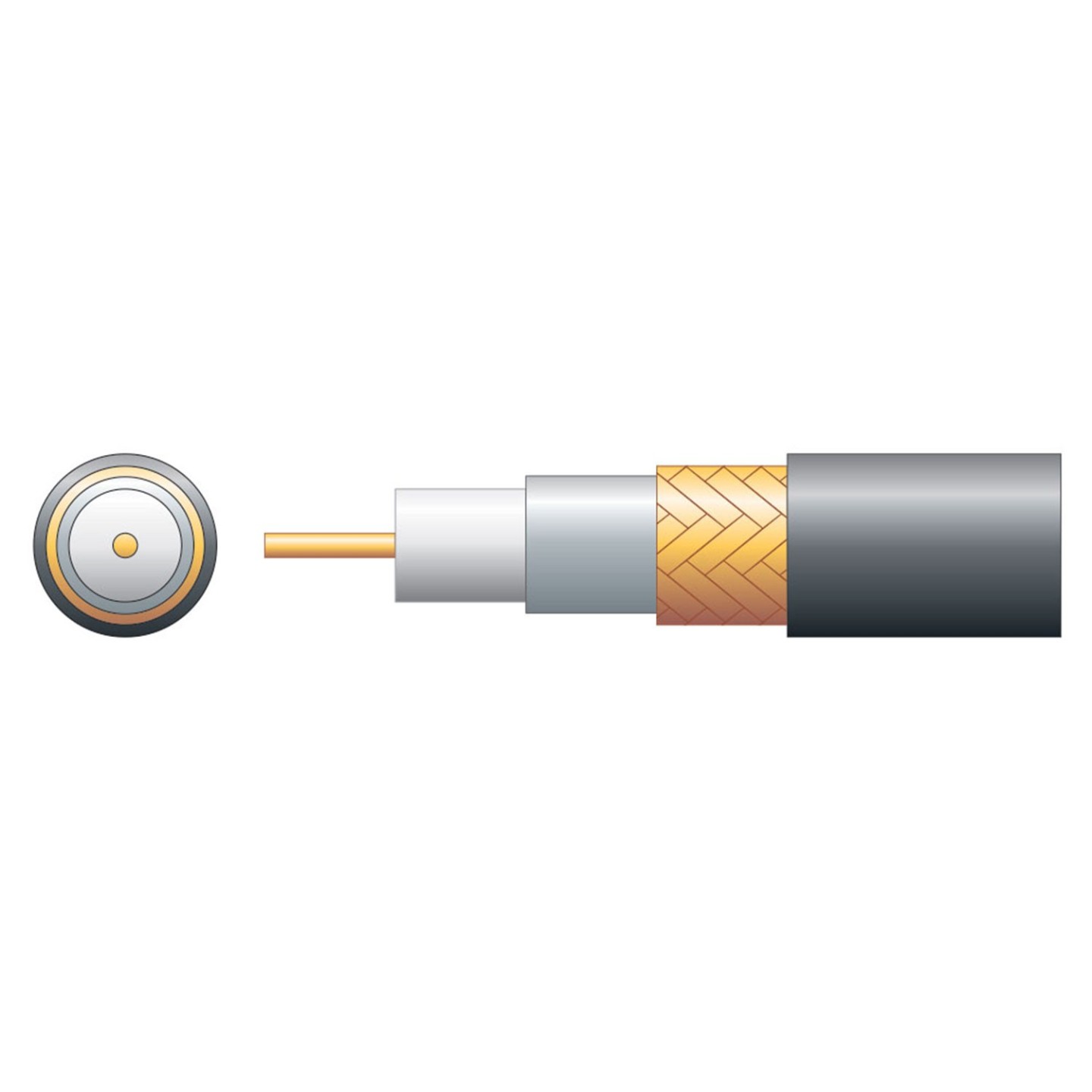

75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video signal transmission such as CCTV.
- Solid OFC conductor
- Foam filled PE dielectric
- Binded aluminium foil screen
- OFC braid
- Supplied in 100m reel with metric cut markers
- CSA: 0.5mm²
- Conductor diameter: 0.8mmØ
- Conductor material: Solid OFC
- Braid: 48 x 0.12mmØ
- Braid material: OFC
- Screen: Aluminium / PET foil
- Dielectric: 3.7mmØ foam PE
- Cable : diameter: 6mmØ
- Impedance75 Ohms
- Capacitance: 67pF/m
- Velocity factor: 83%
- Return loss 5-400MHz: 24dB min./100m
- Return loss 450-1000MHz: 20dB min./100m
- Return loss 1000-2150MHz: 16dB min./100m
- Attenuation @ 5MHz: 2.8dB max./100m
- Attenuation @ 50MHz: 5.1dB max./100m
- Attenuation @ 100MHz: 7.3dB max./100m
- Attenuation @ 200MHz: 10.1dB max./100m
- Attenuation @ 400MHz: 14.9dB max./100m
- Attenuation @ 860MHz: 22.1dB max./100m
- Attenuation @ 1000MHz: 24.7dB max./100m
- Attenuation @ 1750MHz: 34.1dB max./100m
- Attenuation @ 2150MHz: 38.1dB max./100m
- Colour: Black
- Length: 100m
- Weight: 3.5kg
