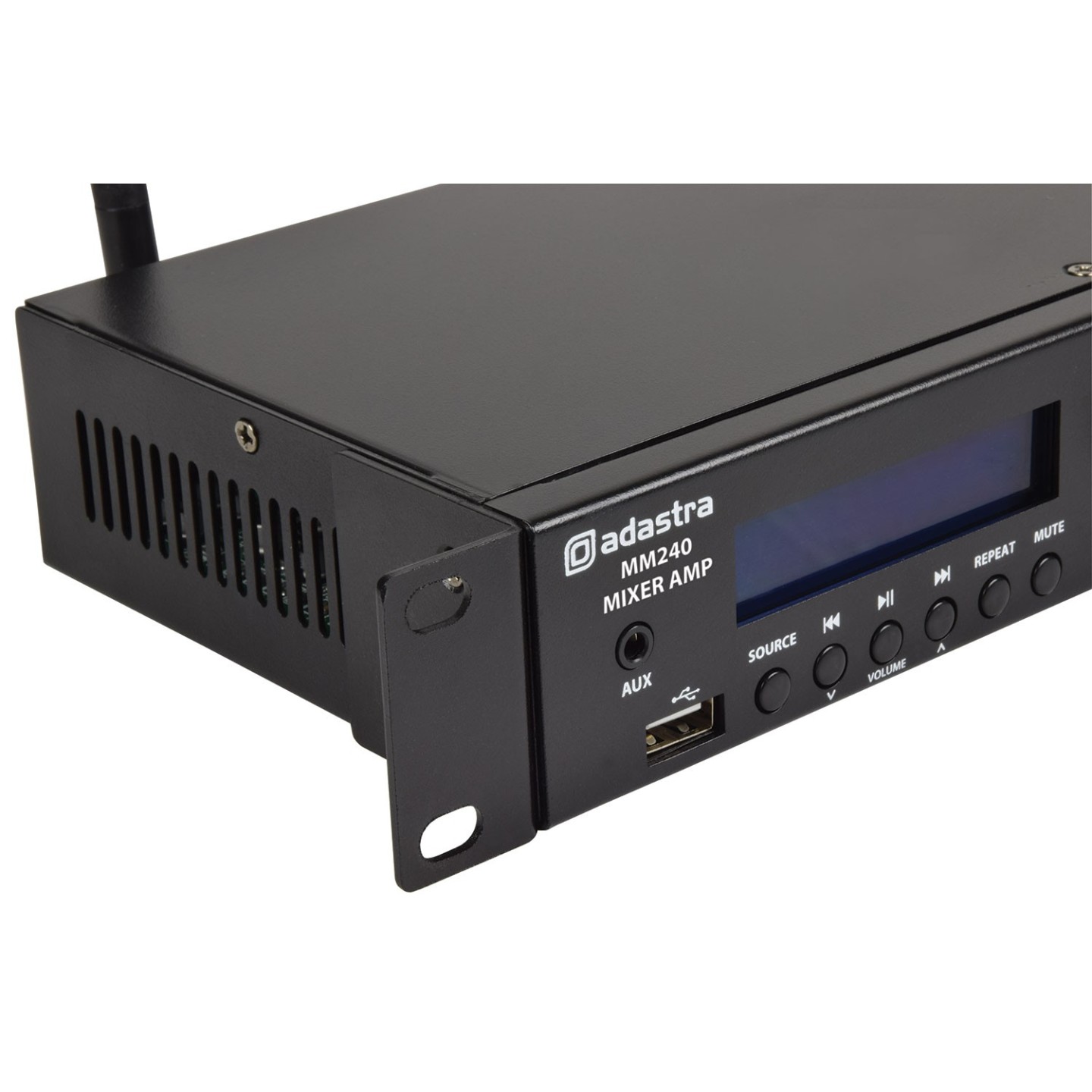

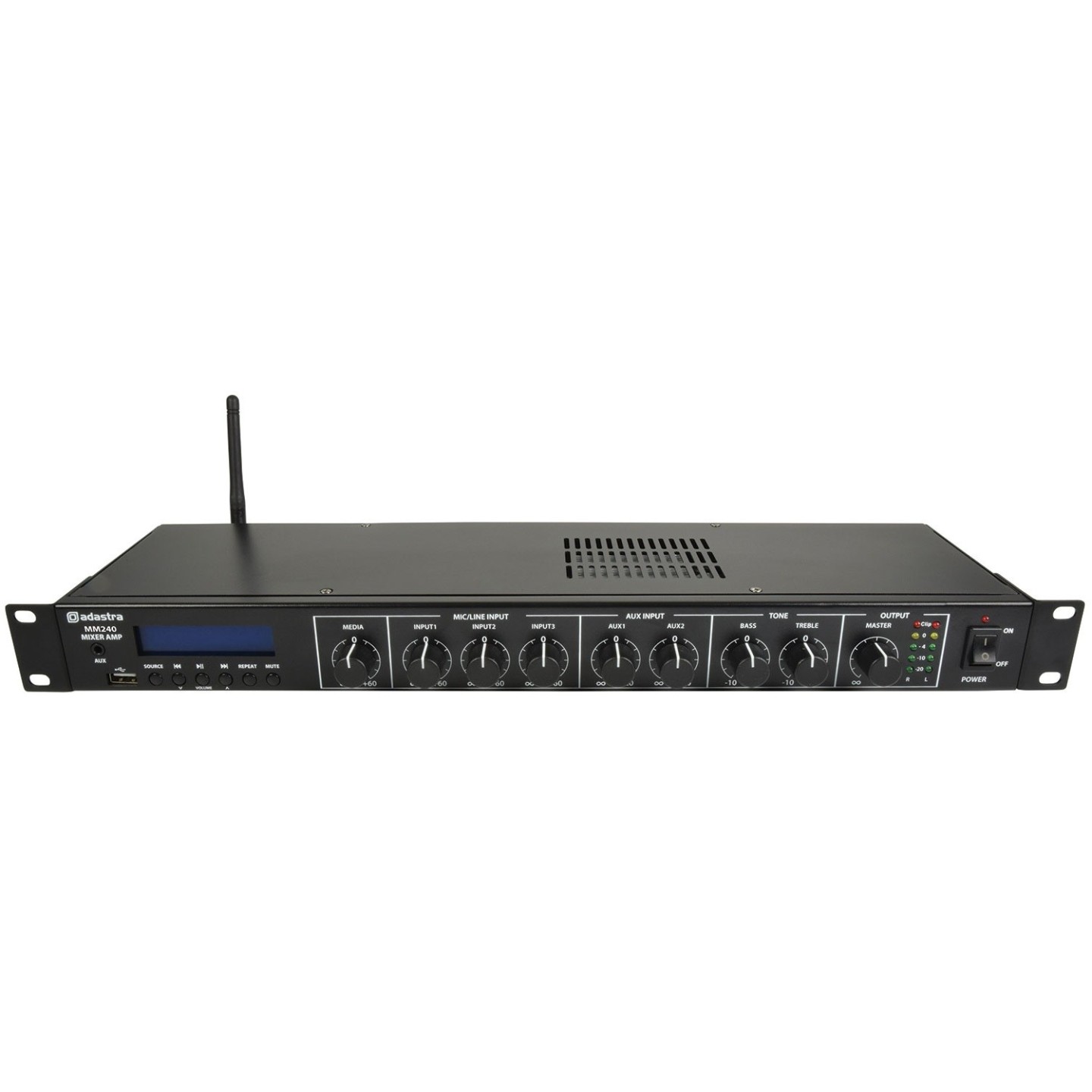

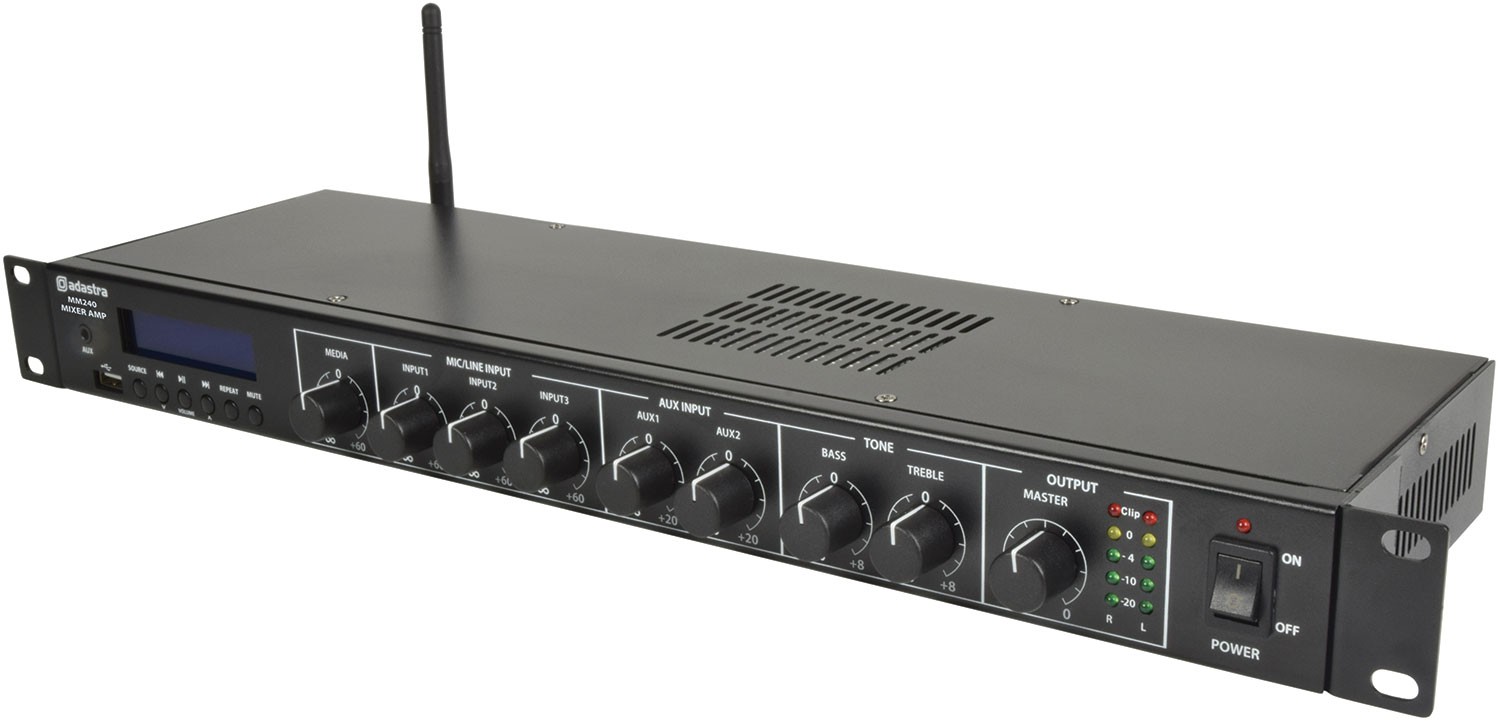

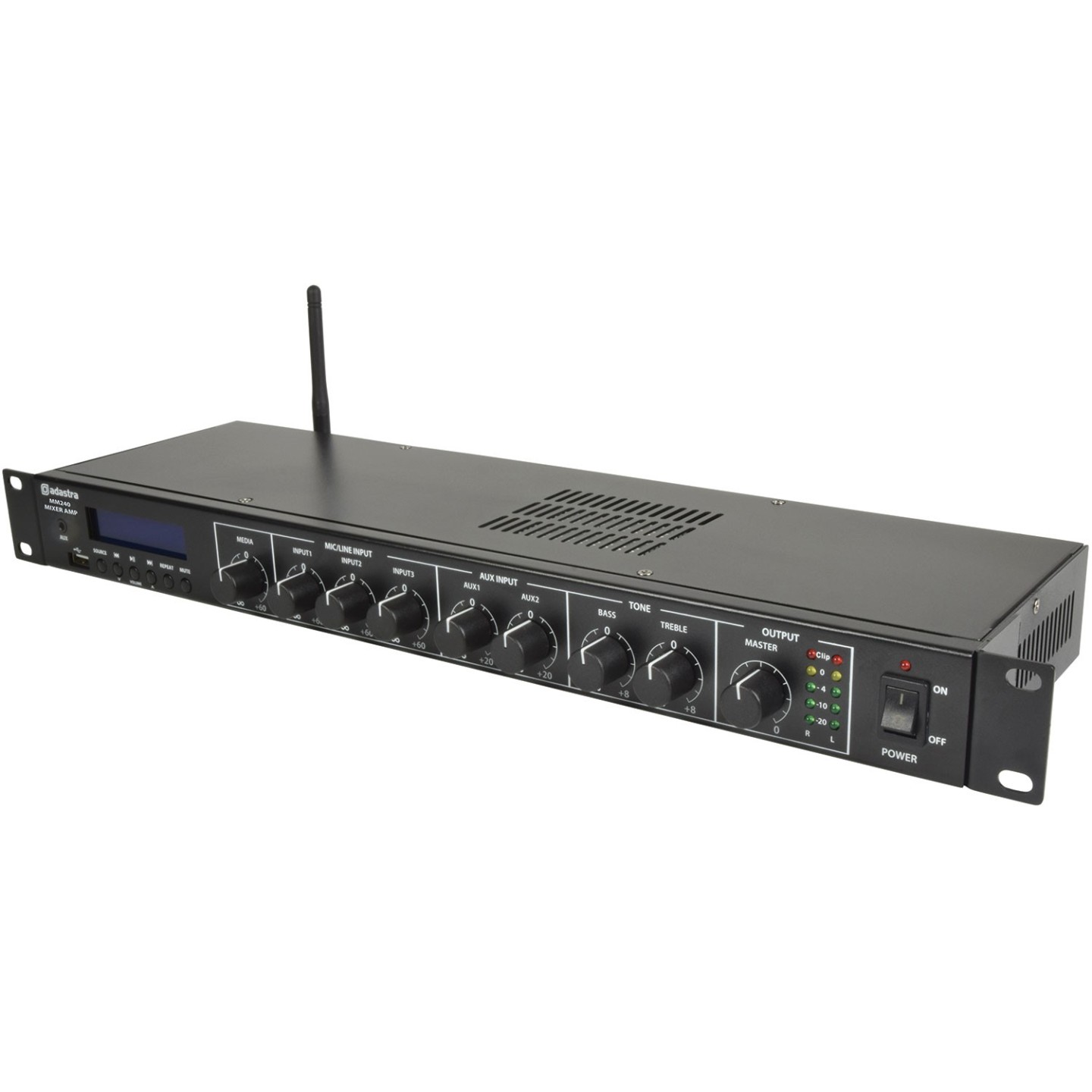

Adastra MM240 Rackmount Amplifier - 953.030UK - 2x120W@4ohms USB BT FM
Compact 1U rackmount amplifier with built-in media player, DAB+ and Bluetooth; USB and FM radio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.
- DAB+/FM radio tuner
- Bluetooth receiver with unique serial ID
- USB audio player
- Switchable +20V phantom power
- Variable priority muting for channel 1
- 24V emergency mute contacts
- Power supply: 100-240Vac, 50/60Hz (IEC)
- Fuse: T3.15A
- Output power : 4 Ohms: 2 x 120Wrms
- Inputs : mic/line: 3 x XLR (bal/unbal)
- Inputs : aux: 2 x L+R RCA
- Input : line: 3.5mm jack to media player
- Audio source: DAB+/FM tuner, USB player, Bluetooth receiver
- Line output: L+R RCA

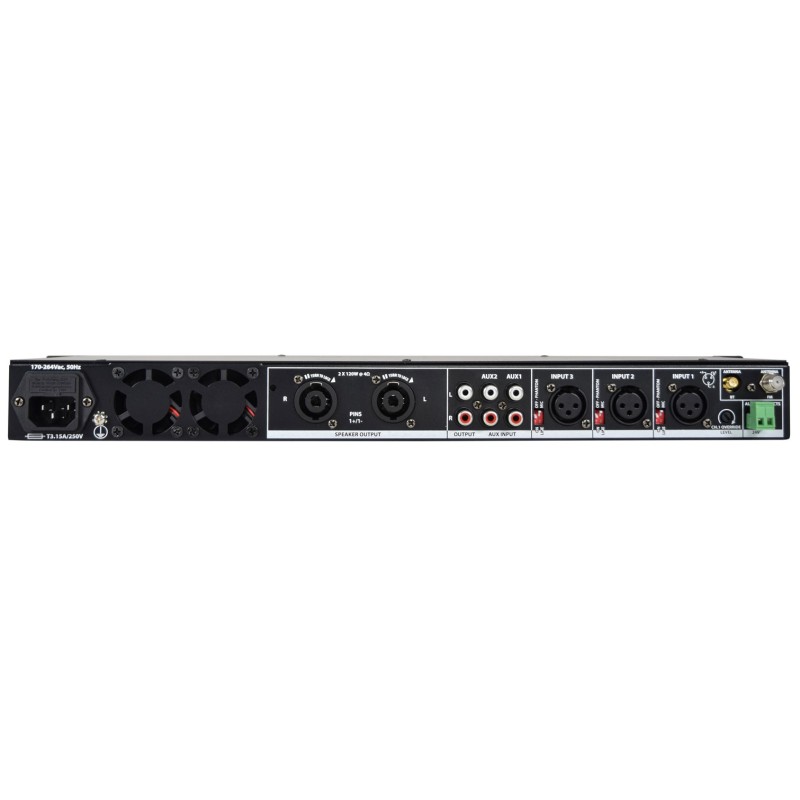

- Speaker outputs: L+R SPK connector
- Emergency control: 24V contacts mute all except channel 1
- Phantom power: +20V (switchable channels 1-3)
- Bluetooth version: 5.0
- Controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
- Rear panel controls: Priority muting level, mic/line and phantom DIP switches
- Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic: 20Hz - 18kHz
- Frequency response : line: 14Hz - 20kHz
- Frequency response : aux: 10Hz - 23kHz
- Input sensitivity : mic/line : 45dBV
- Input sensitivity : aux/line : 10dBV
- Signal to noise ratio : mic: 55dB
- Signal to noise ratio : aux/line: 60dB
- Dimensions: 482 x 123 x 44mm
- Weight: 1.96kg
| Power (RMS) 8ohm | 120W |
| USB/MP3 | Yes |
| FM Radio | Yes |
| Bluetooth | Yes |
| Line In | Yes |
| Line Out | Yes |
| Microphone Input | Yes |
| Rackmount | Yes |
| Extras | Phantom Power |
