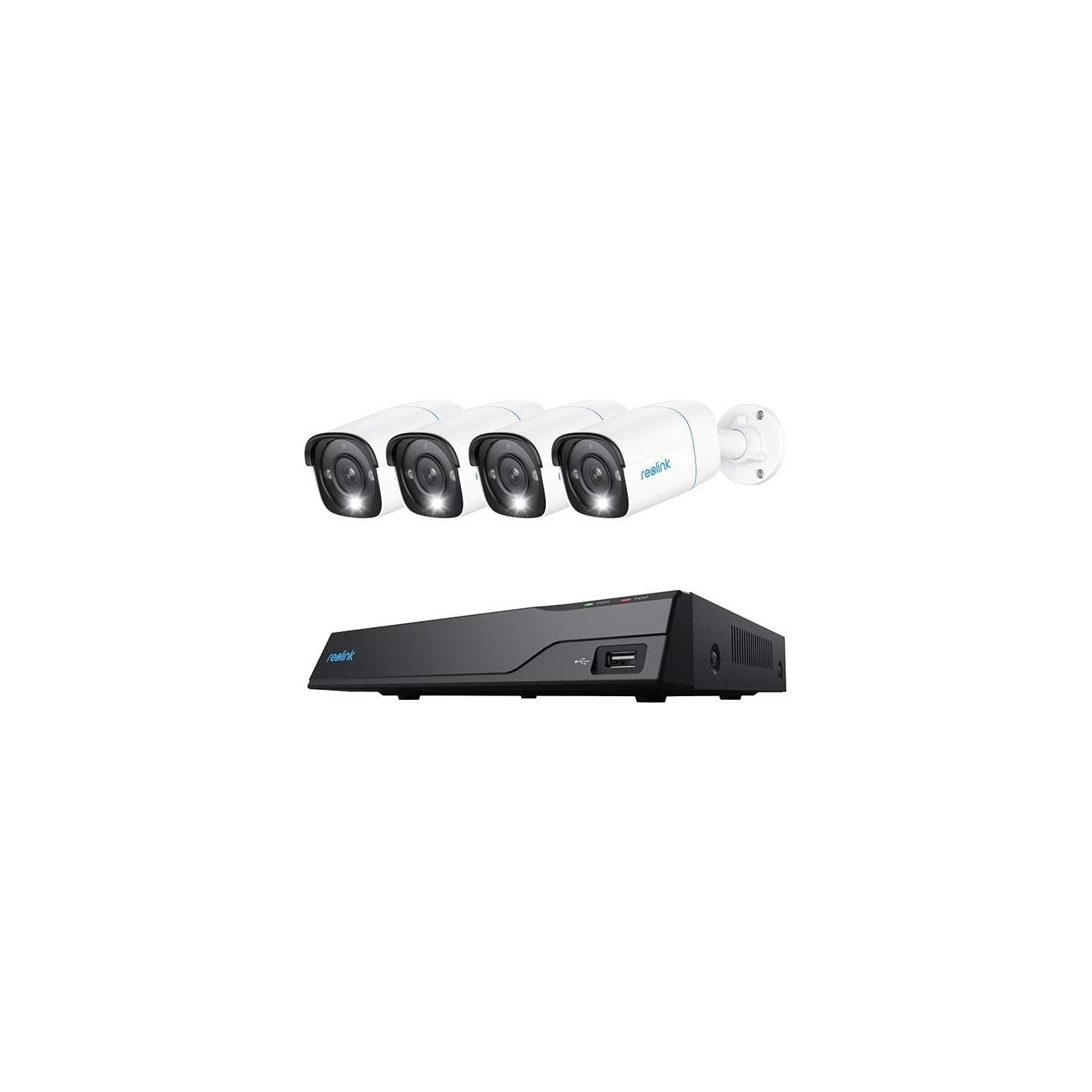

Reolink KIT 8xChNVR+4x8MP Bullet+2TB NVR - NVS8-8MB4 - 8xChNVR+4x8MP Bullet+2TB NVR
4K Ultra HD security kit with smart detection; 8-channel PoE NVR with 4x 8MP bullet cameras and built-in 2TB HDD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic |
| IP Cameras - Storage | NVR Only |
4K Ultra HD Security System with Smart Detection
- Power over Ethernet
- Person/Vehicle Detection
- With 8-Channel NVR
- 2TB HDD Built-In
Hardware
- N7MB01
Video/Audio Input
- IP Video Input : PoE IP Camera x 8
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
- Audio output : 1-channel, RCA
Decoding
- Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Video Format : H.265, H.264
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 1 x SATA interface (1 x 2TB HDD included)
- Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
- External HDD : 1 eSATA Interface for HDD
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
- PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3 af/at
Network
- Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported : Edge, Firefox, Chrome, Safari
- OS Supported : Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~53V
- Power Consumption : <10W (without HDD&PoE)
- Working Environment : Temperature: -10°C~+45°C Humidity: 10%~90%
- Dimensions : 255 x 49.5 x 232mm
- Weight : 1.4kg
Camera
Video & Audio
- Image Sensor : 1/2.49" CMOS Sensor
- Video Resolution : 3840X2160 (8 megapixels) at 20 frames/sec
- Lens : f=4.0mm; F=2.0, with IR-cut filter
- Video Format : H.265
- Field of View : Horizontal: 87° / Vertical: 44°
- Day & Night : Auto-switching with IR-cut filter
- Infrared Night Vision : 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision : Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio : Two-way audio
Power
- POE : IEEE 802.3af, 48V Active
- DC Power : DC 12.0V⎓1A, <12W
Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps; RJ45
- Storage : Micro SD card slot (Max. 256GB)
- Audio : Built-in microphone and speaker
Software Features
- Frame Rate : Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 15fps (default: 10fps)
- Code Rate : Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Smart Alarm : Motion detection/person detection/vehicle detection
Working Environment
- Temperature : Operating temperature: -10°C~+55°C
- Humidity : Operating humidity: 10% ~ 90%
- Waterproof : IP67
Size & Weight
- Dimension : Φ66*192mm
- Weight : 485g
| AI Features | Person,Vehicle Detection |
| Camera Resolution | 8.0MP |
| Housing Type | Bullet |
| Channels | 8 |
| PoE Ports | 8 |
| Compression | H.265/H.264 |
| HDD | 2 Disk Up to 6TB |
| Lens | Fixed |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| Audio | Built-in Mic |
