Citronic Multi-UHF Neckband Lavalier System - RU105-N - 171.973UK
Single-channel PLL-tunable UHF wireless system with beltpack transmitter and neckband or lavalier mics; rack-mountable receiver.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Headsets & Microphones - Microphone Type | Lavalier |
|---|

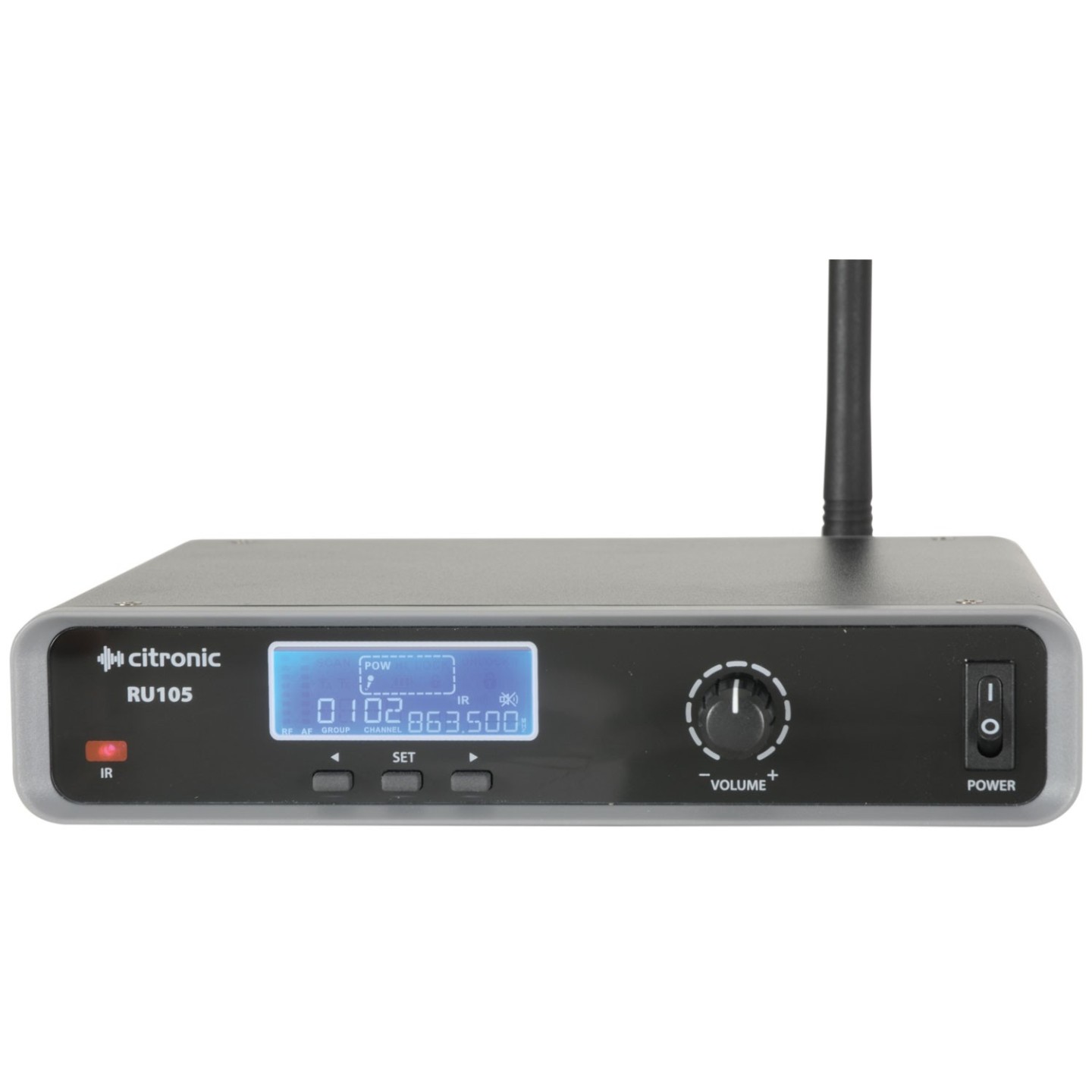

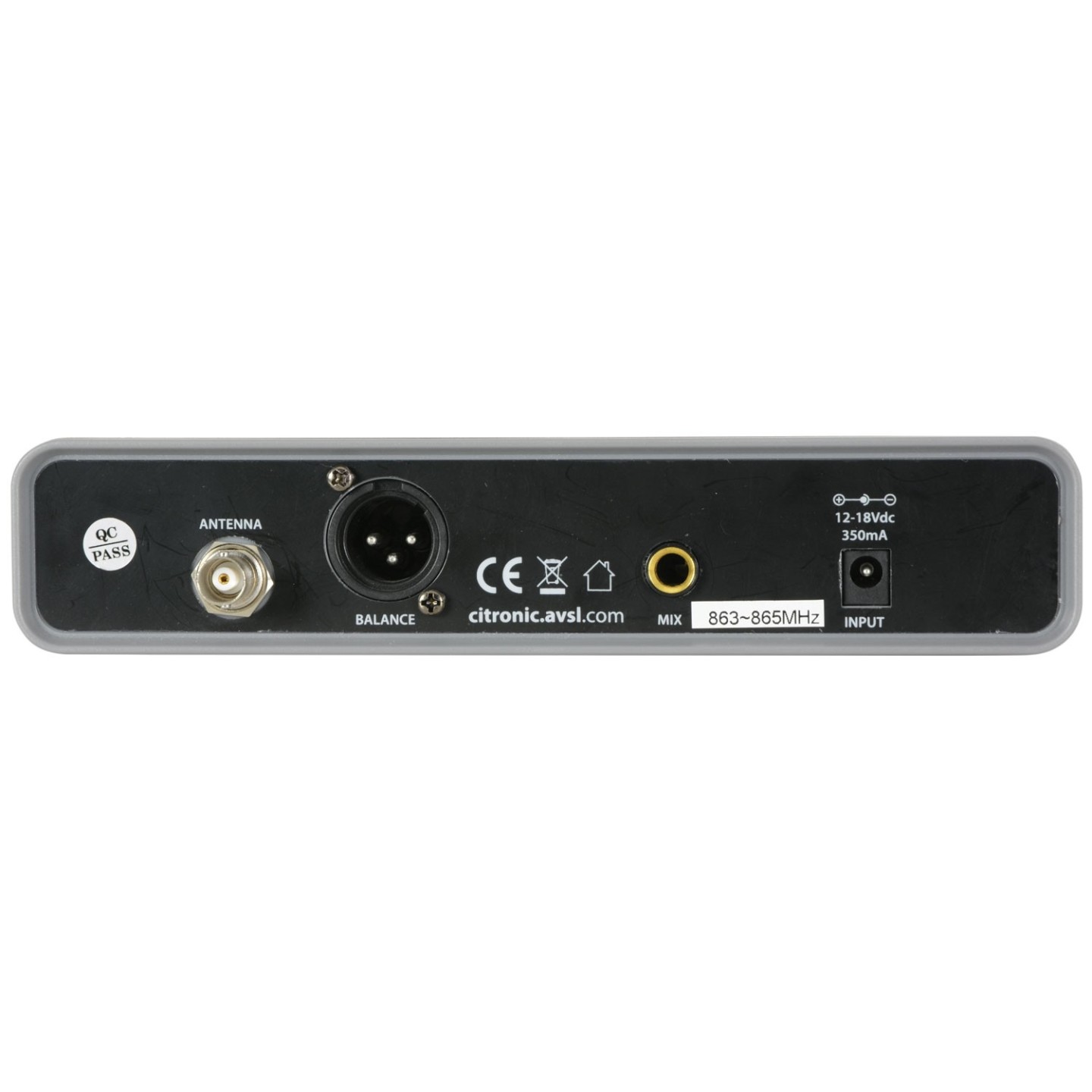

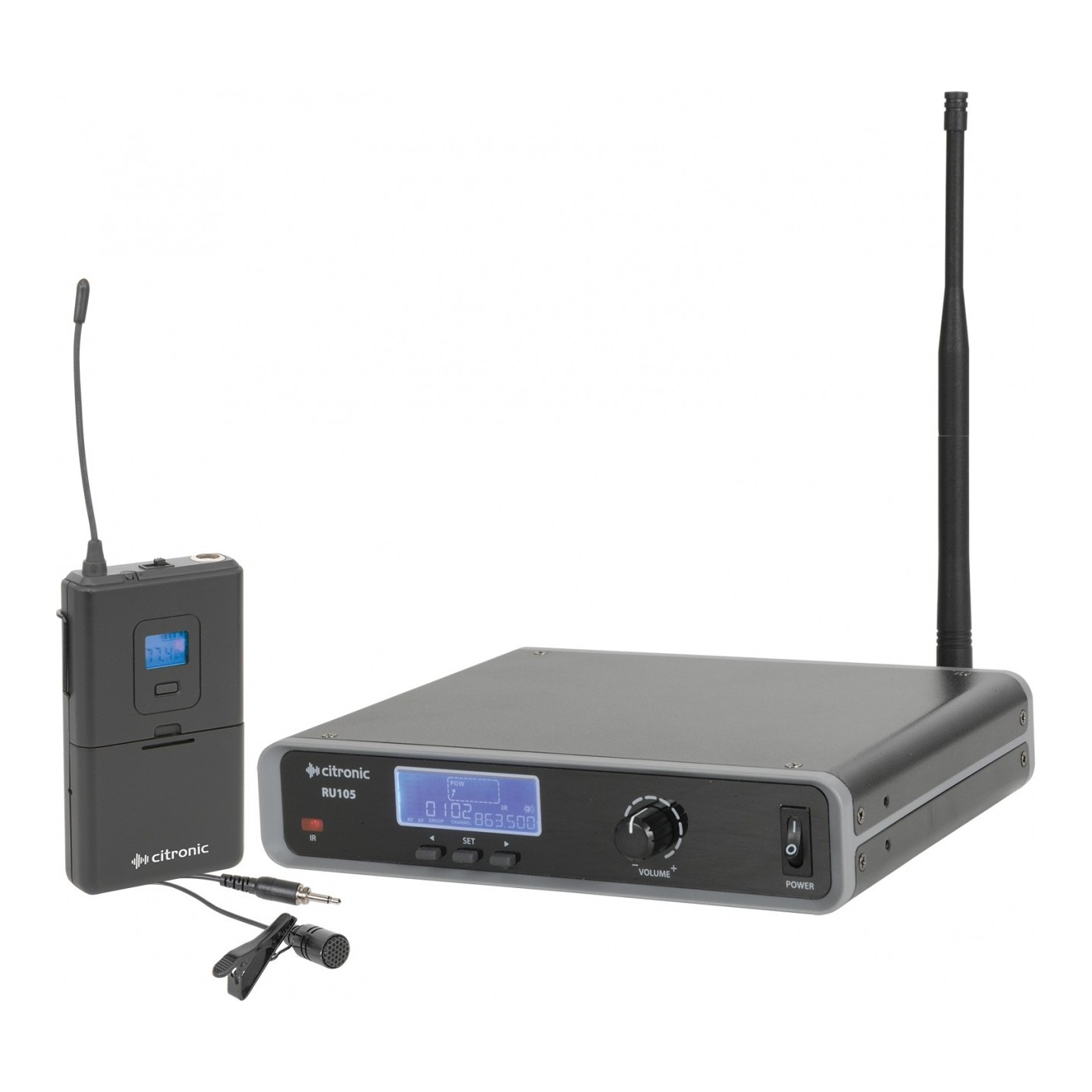

Single channel PLL tuneable UHF wireless system with beltpack transmitter and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.
- PLL tunable with 81 UHF frequencies
- Licence free operation in EU
- Pilot tone & mute circuit for stable signal
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
- Power supply 12-18Vdc, 350mA (mains adaptor included)
- Batteries 2 x AA (for transmitter - included)
- Carrier frequency 863 - 865MHz (81 selectable frequencies)
- Range 60m
- Signal to noise ratio >105dB
- THD <0.5% @ 1KHz
- Frequency response 50Hz-18KHz ±1 dB
- Image rejection >85dB
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver 44 x 198 x 190mm
- Weight : receiver 710g
- Dimensions : transmitter 110 x 67 x 24mm
- Weight : transmitter 75g (no battery)
The box for this item contains :
- UHF receiver
- Beltpack transmitter

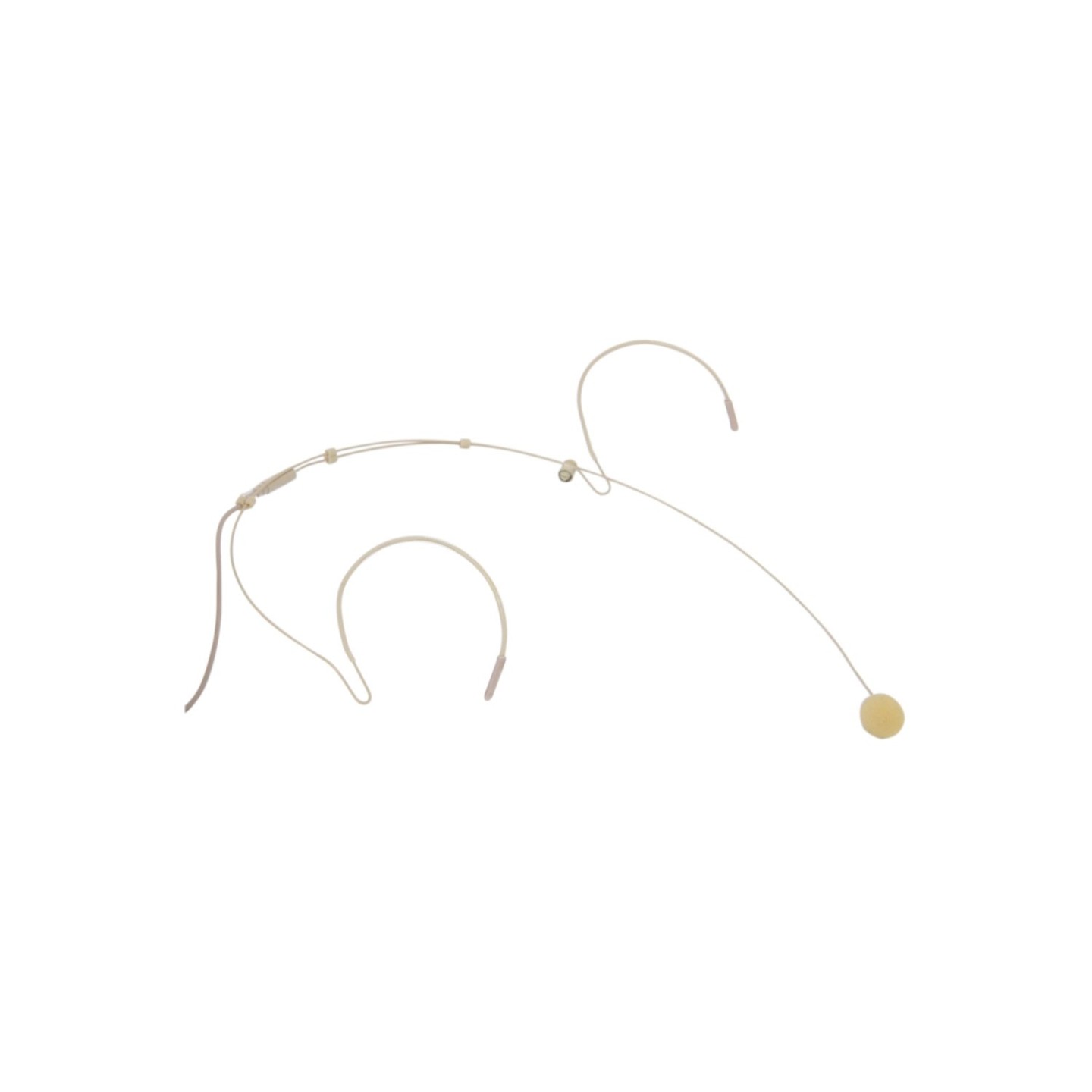

- Neckband microphone
- Lavalier microphone
- 2 x AA batteries
- UHF antenna
- Antenna lead
- Rack-mounting kit
- Mains power adaptor
| Type | Beltpack |
| Band | UHF |
| Channels | Single |
| Frequencies | 81 |
| Neckband | Yes |
| Lavalier | Yes |
| Rack Mounted | Yes |
