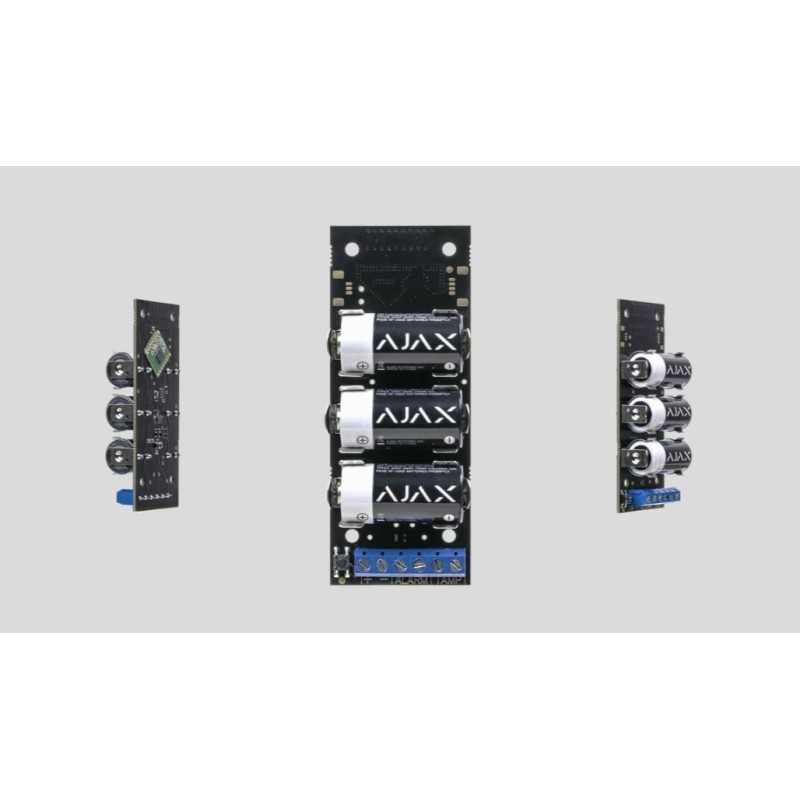

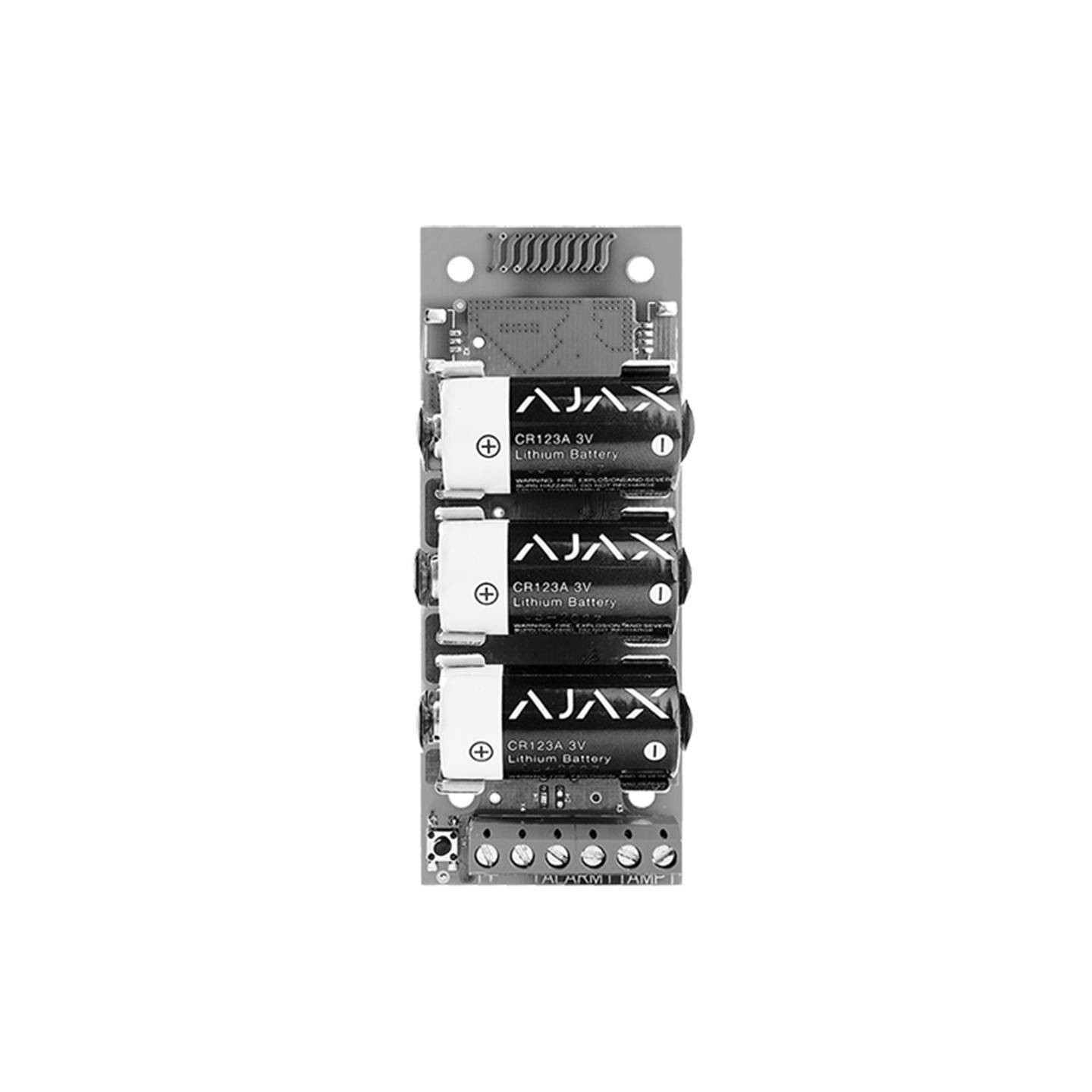

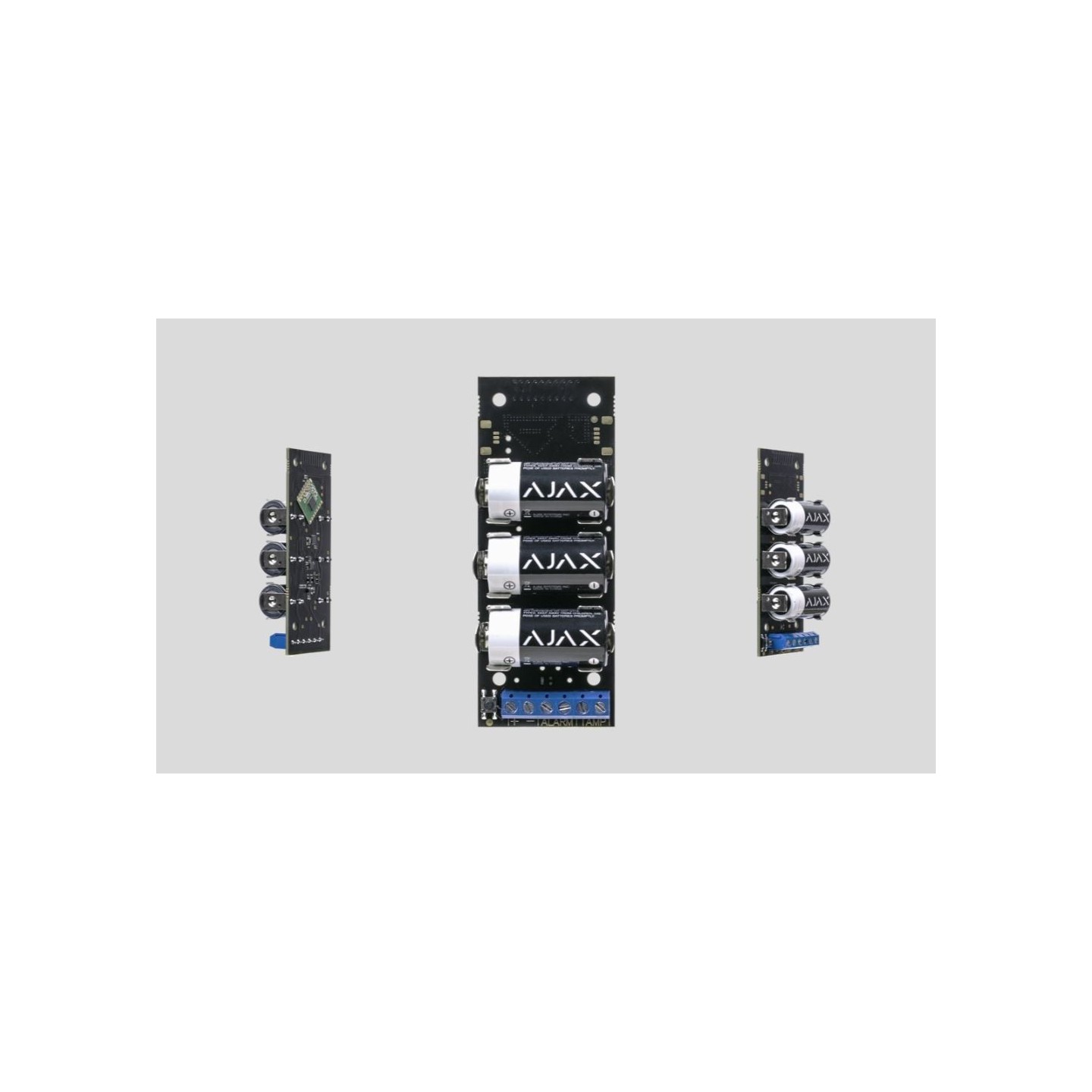

AJAX Transmitter - Wireless Integration
Wireless module to connect wired detectors (outdoor motion detectors, IR barriers, liquid level detectors, gas detectors, thermal relays, and other third-party devices) to the Ajax security system.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system

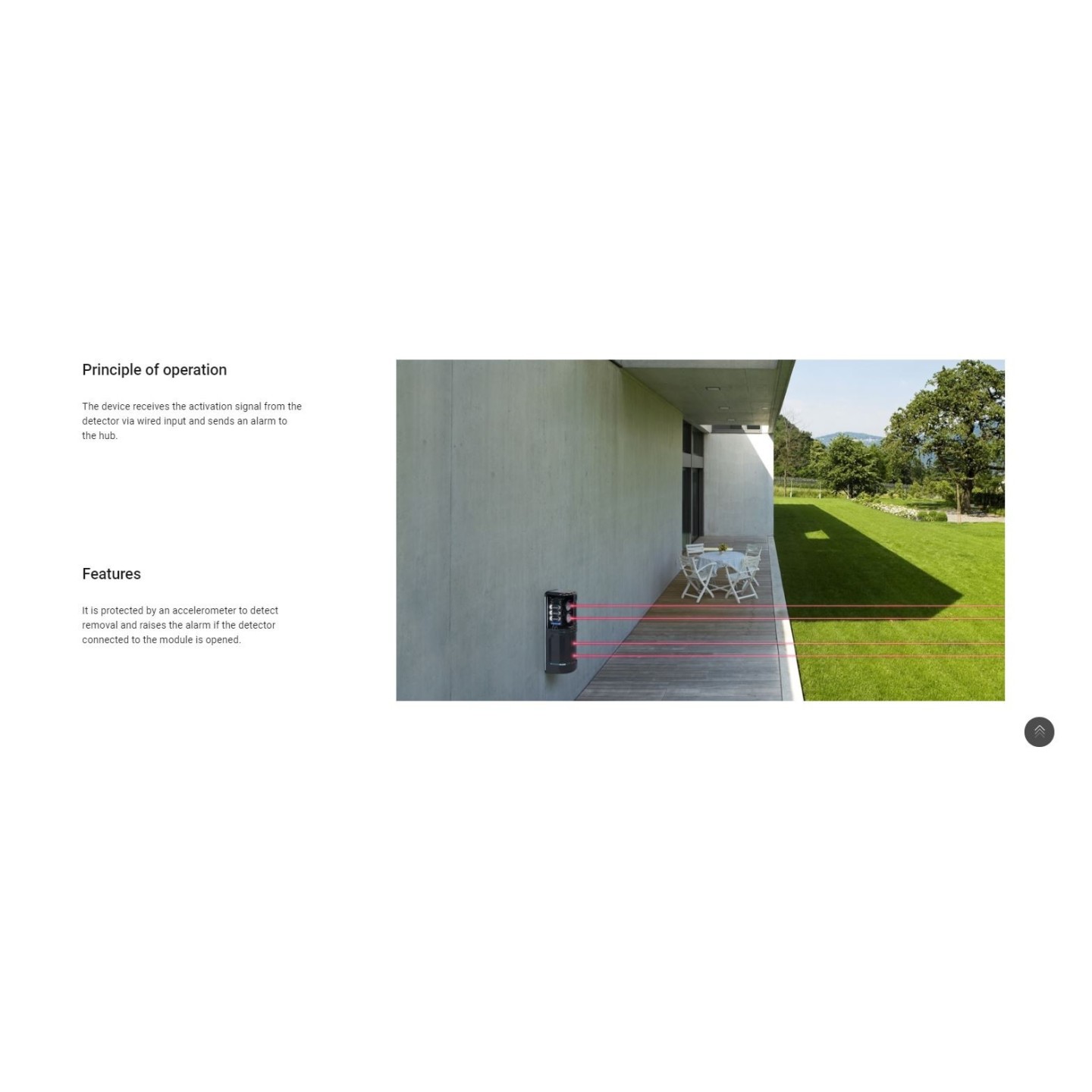

- The device receives the activation signal from the detector via wired input and sends an alarm to the hub
- It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened
- Connecting a detector : Alarm and Tamper (NO/NC) terminals
- Mode for processing alarm signals from the detector : Pulse or Bistable
- Power : 3 x CR123A, 3V batteries
- Capability to power the connected detector : Yes, 3.3V
- Protection from dismounting : Accelerometer
- Frequency band : 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales region
- Compatibility : Operates only with Hub, Hub Plus, Hub 2 and ReX
- Maximum RF output power : Up to 20 mW
- Modulation : GFSK
- Communication range : Up to 1,600 m (any obstacles absent)
- Ping interval for the connection with the receiver : 12–300 sec
- Operating temperature : From -25°? to +50°?
- Operating humidity : 1 Up to 75%
- Dimensions : 100 x 39 x 22 mm
- Weight : 74 g
