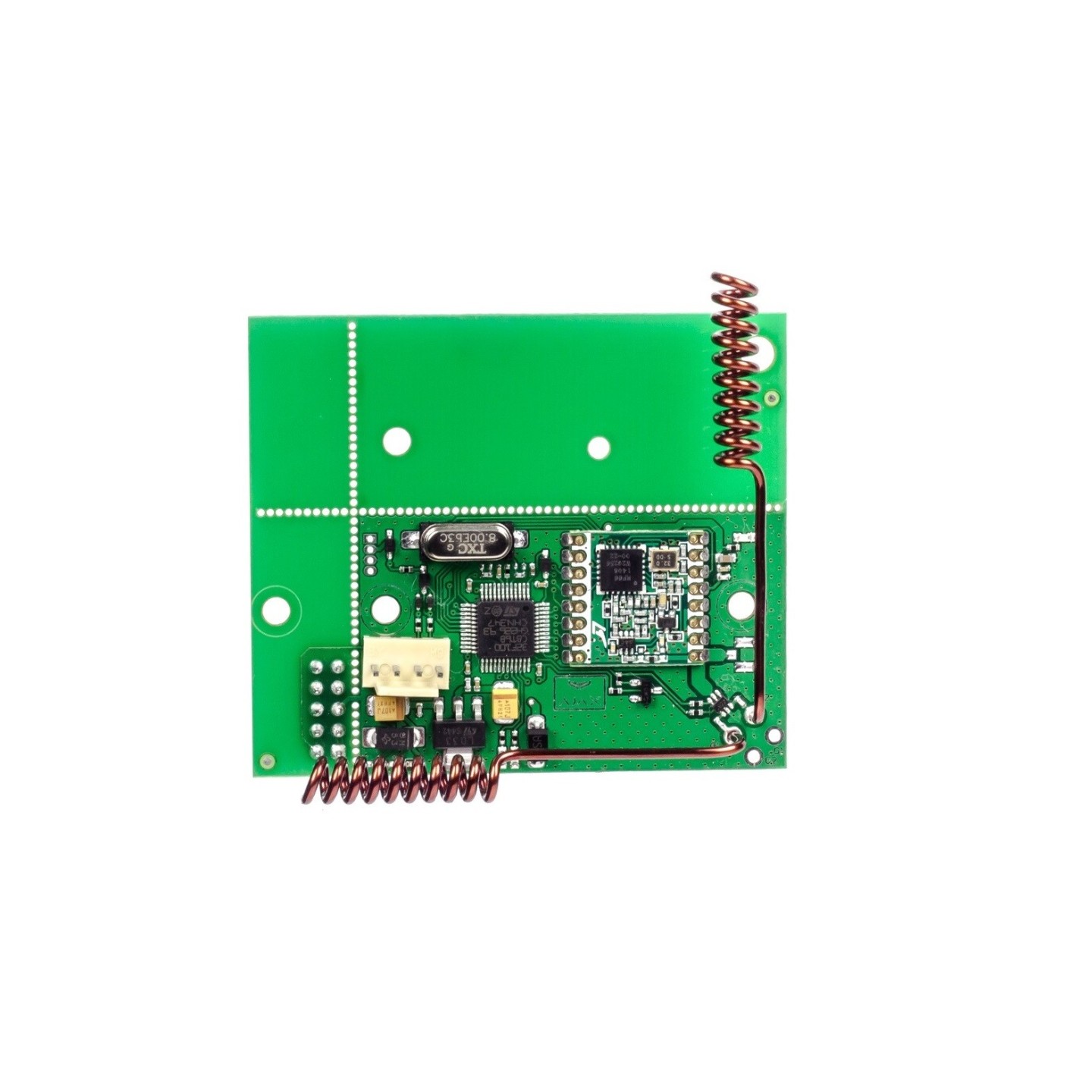

AJAX uartBridge Wireless Integration - Wireless Integration

• Receiver module for connecting Ajax detectors to wireless security systems and smart home solutions

Principle of operation

• When the detector activates, the device sends the information to the central unit, which raises an alarm

Features

• The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas

Installation and set up

• The device is installed into the body of the wired central units and hubs of smart home systems

• Classification : Receiver of wireless detectors' signal
• Device type : Wireless
• Installation method : Indoors
• Compatibility : Wired security systems and smart home systems
• Maximum number of detectors : 85
• Supported devicesMotionProtect / MotionProtect Plus / CombiProtect / DoorProtect  / FireProtect / FireProtect Plus / LeaksProtect / SpaceControl / GlassProtect
• Alarm signal delivery time : 0.15 s
• Power supply voltage : 5 V DC
• Communication range with detectors — up to 2,000 m in an open space
• Two-way communication with detectors
• Operating frequencies — 868.0 - 868.6 MHz
• Self-adjusting RF output power — up to 25 mW
• Block encryption based on AES algorithm
• Device polling period — 12 - 300 s
• Operating temperature range : From –10°С to +40°С
• Permissible humidity : Up to 90%
• Anti-sabotage : Protection against fraud / Jamming detection
• Interface : UART
• Dimensions : 64 × 55 × 13 mm
• Weight : 32 g
• Certification : CE
• Warranty : Replacement and repair within 24 months of the date of sale
