AV:Link HDMI Matrix - HDX44 - 4x4 v2.0 128.850UK
4x4 HDMI matrix switches 4 sources to 4 displays, supports 4K@30/60Hz, SPDIF/3.5mm audio outputs, EDID switch, RS232, and IR remote.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

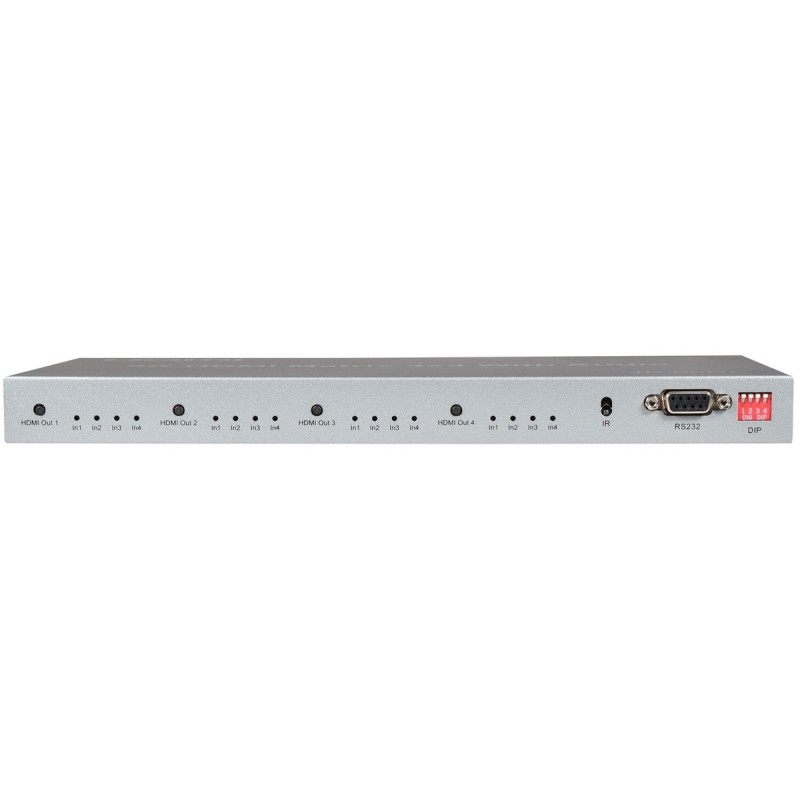

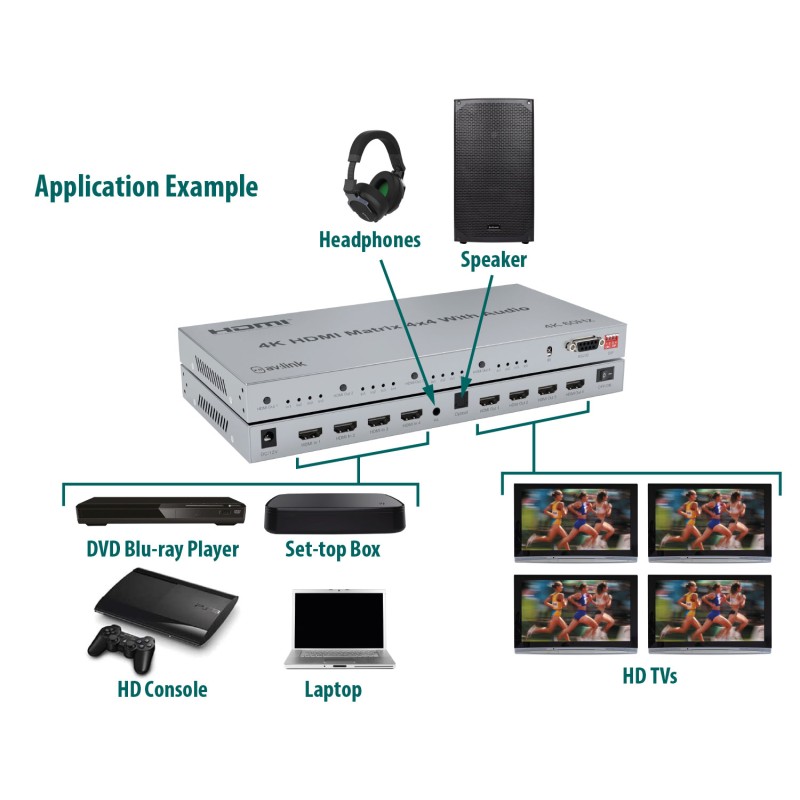

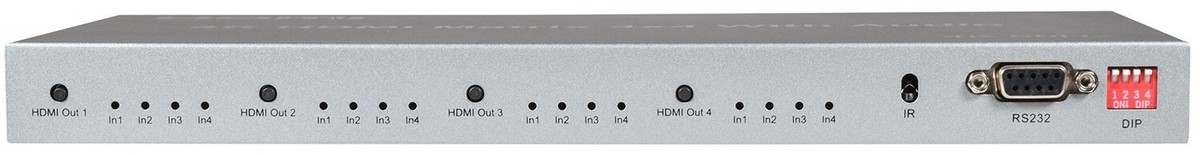

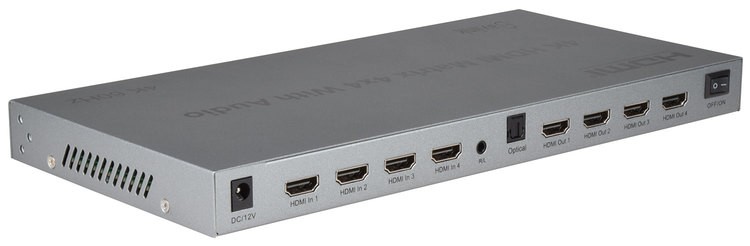

A 4K HDMI matrix to switch between 4 source devices and 4 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal from HDMI output #1 to be simultaneously channelled through a separate sound system and/or headphones. Robust metal chassis incorporates an EDID switch panel for specific video and sound requirements and an RS232 port for serial data communication with a connected PC or laptop. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues and supplied with IR remote to switch between sources for all outputs.
- Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
- Simple setup and operation
- Gold plated HDMI connectors for optimum signal transfer
- Supports DTS-HD, Dolby TrueHD , LPCM7.1, DTS, Dolby-AC3 and DSD audio formats
- Digital SPDIF and analogue 3.5mm jack audio outputs
- Smart EDID management for precise video and audio settings
- Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays
- IR remote control and UK power adaptor supplied
- Max. resolution : 3840 x 2160 @ 60Hz
- Display colours : 8/10/12bit deep colour
- HDCP version : 2.2
- Audio format : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

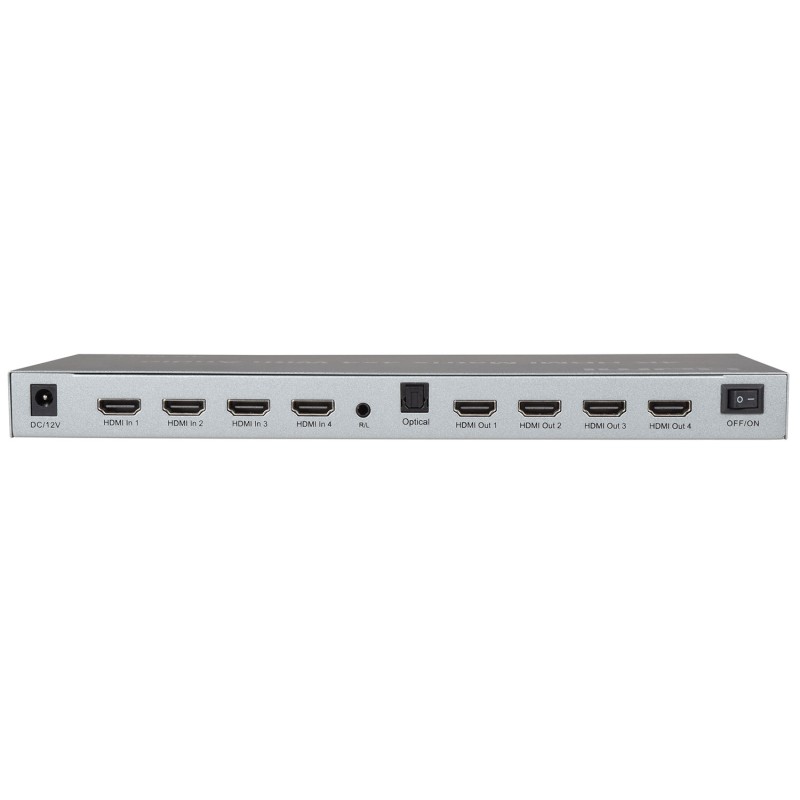

- Input connections : 4x HDMI
- Output connections : 4x HDMI, Optical (Toslink), 3.5mm Stereo
- Max. baud rate : 18Gbps
- Transmission distance : 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
- Max. working current : 800mA
- Operating temperature range : -15°C to +55°C
- Battery : remote : 2x AAA (not supplied)
- Power adaptor : Input: AC (50Hz, 60Hz) 100-240V, Output: DC12V/1A
- Dimensions : 276x143x26mm
- Weight : 720g
In the Box
- 4K HDMI matrix

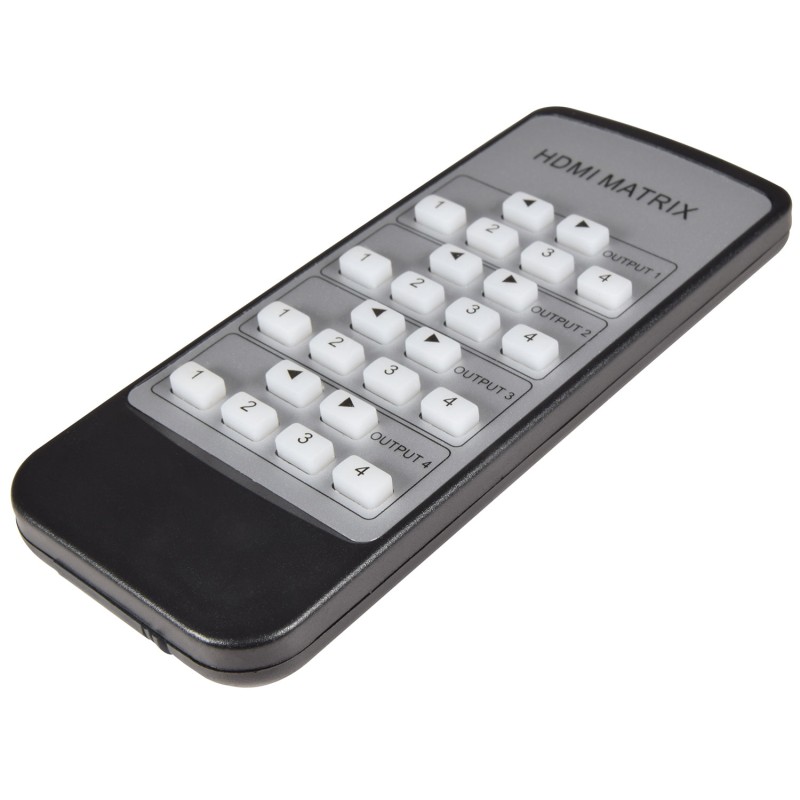

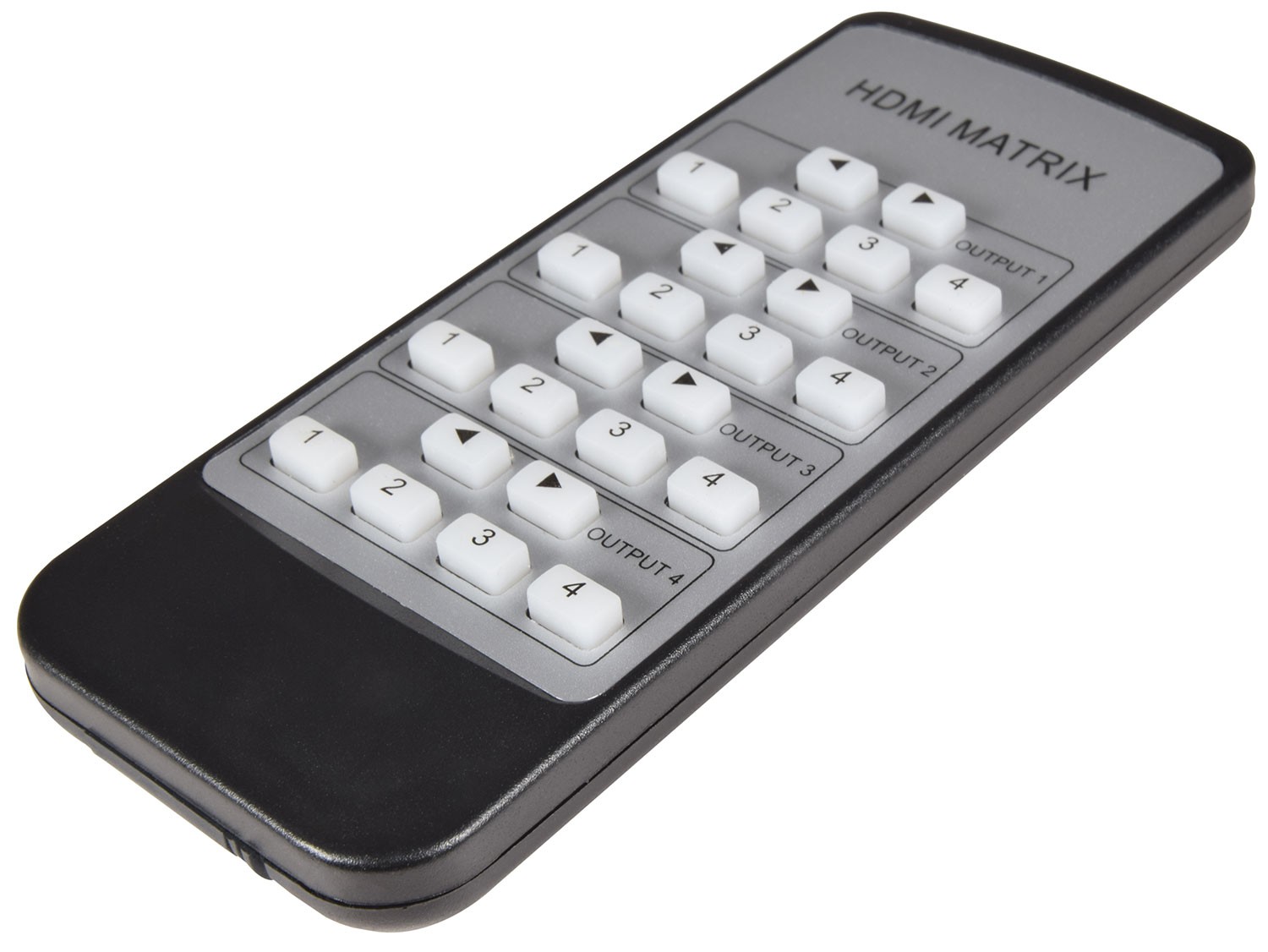

- IR remote control

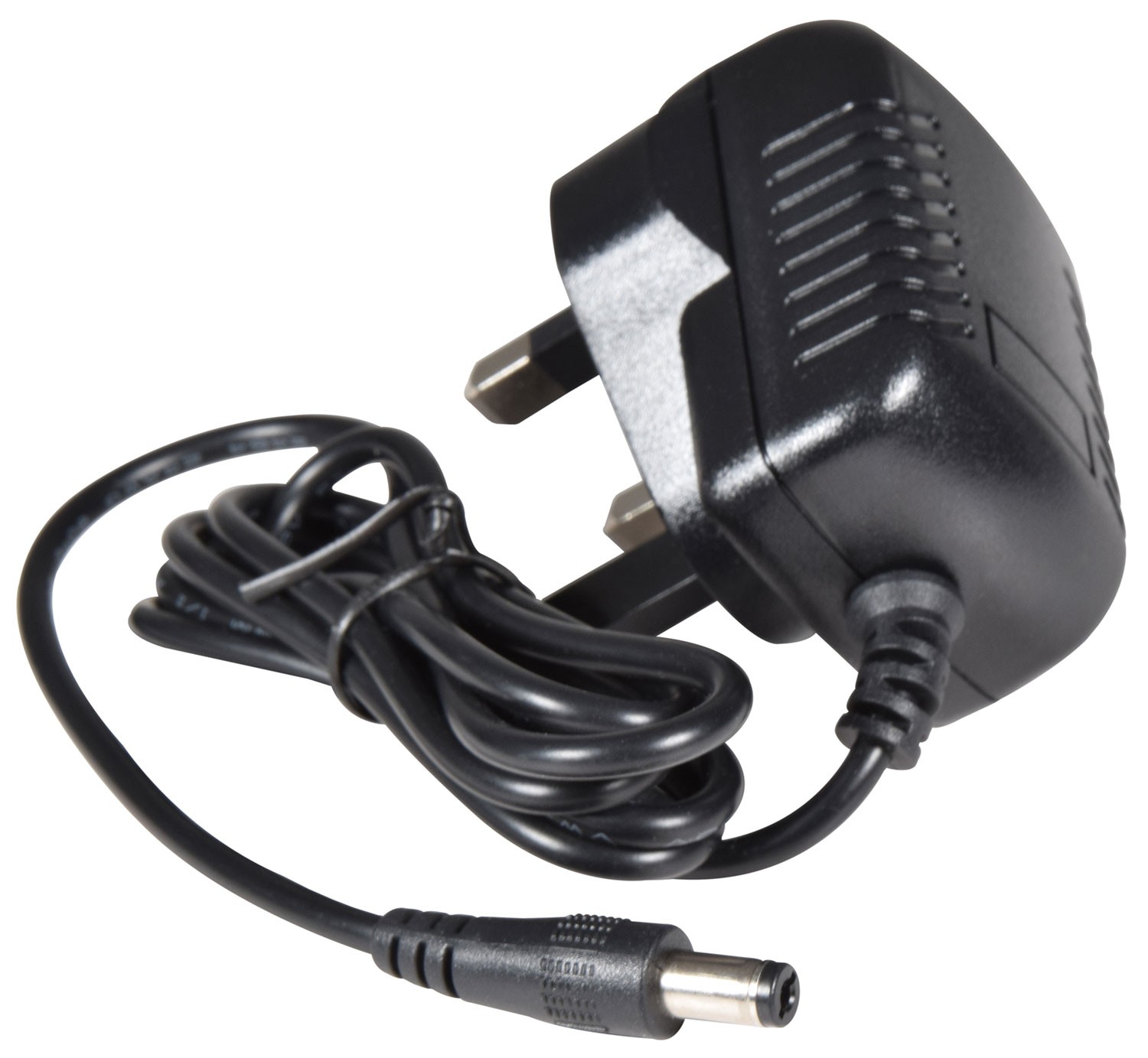

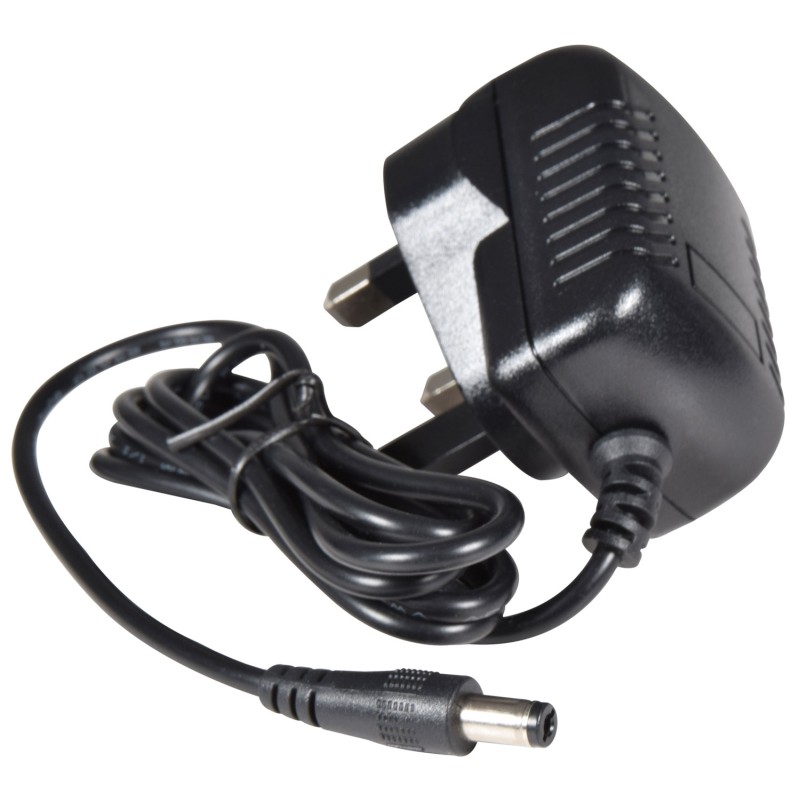

- UK power adaptor
- User guide
