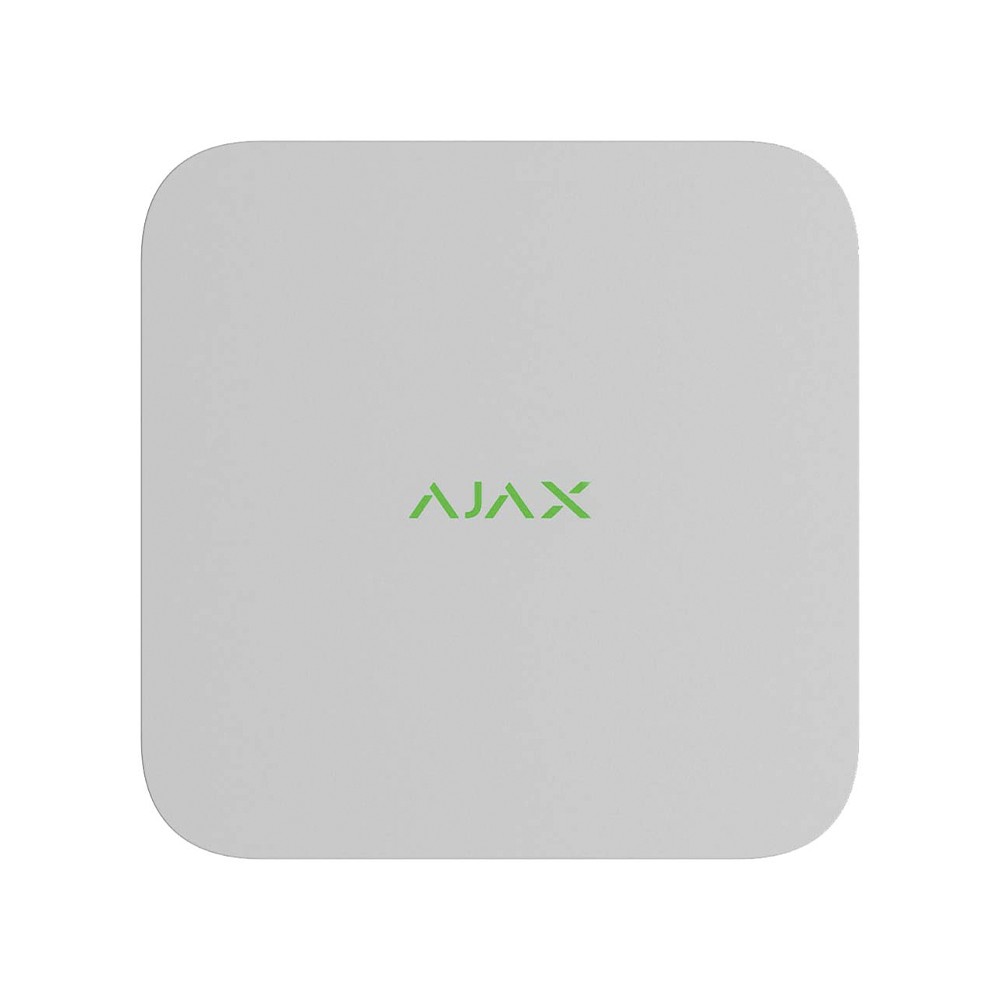

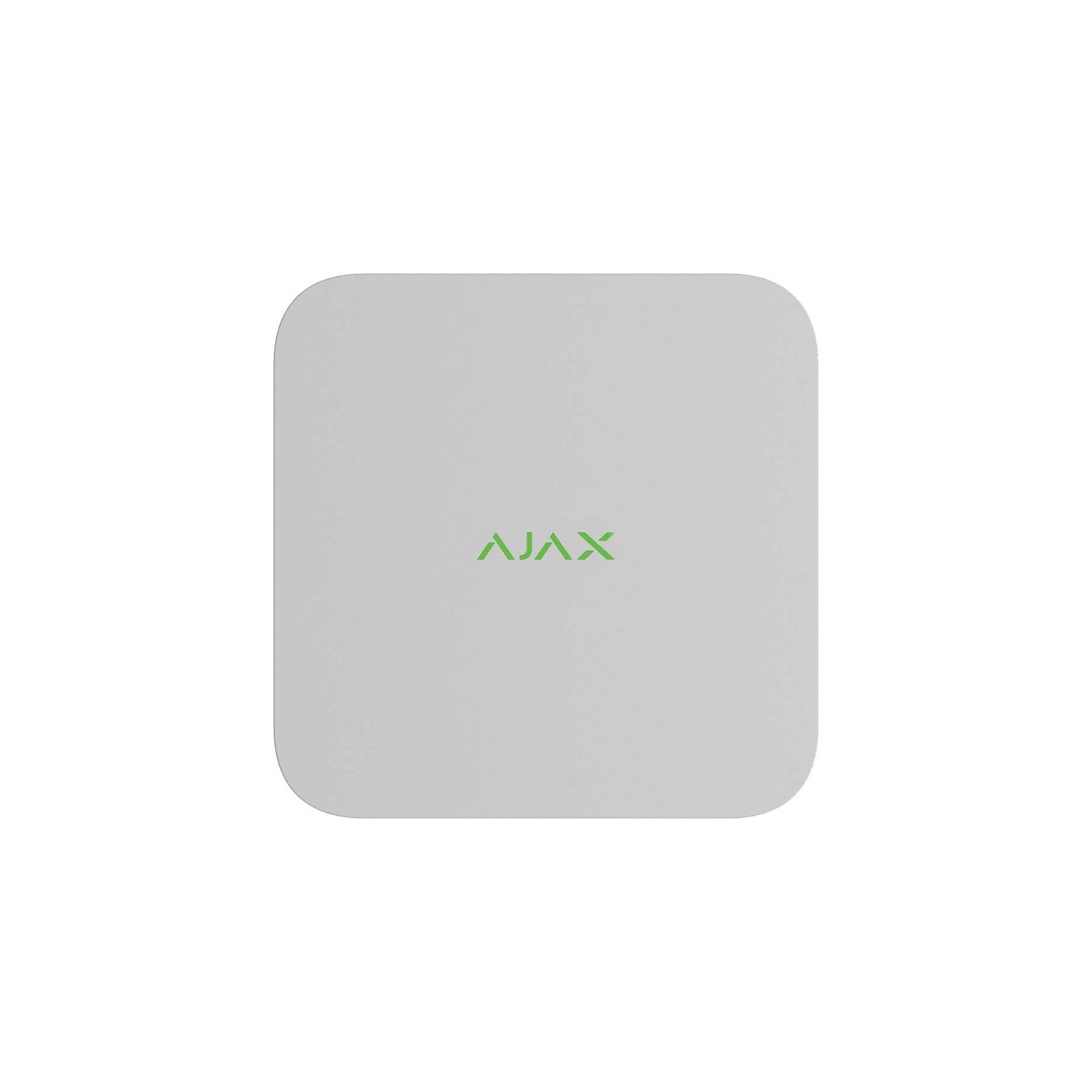

AJAX NVR - 16ch 100Mbps H.265 H.264

• Guiding video to top-tier security
• Customizable videowall for simultaneous monitoring
• Smooth archive search
• Instant event-to-video alarm verification
• Built-in motion detection
• Hassle-free installation and setup

Compatibility

• Hub
• Hub Plus
• Hub 2 (2G)
• Hub 2 (4G)
• Hub 2 Plus
• Hub Hybrid (2G)
• Hub Hybrid (4G)

Videostream

• 16-channel : With up to 4K resolution (25/30 FPS).
• IP cameras : ONVIF (Profile S/T) / RTSP
• Storage : hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) / HDD not included
• Decoding formats : H.265 / H.264
• Bandwidth : up to 100 Mbps

Communication channels

• Ethernet : up to 100 Mbps
• Bluetooth : BLE frequency band: 2.400–2.4835 GHz / To set up an Ethernet connection.
• Radio signal power : 2.5 mW (100 mW limit)

Key features

• Motion detection : NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms
• In-app video management system : Videowall that combines images from all connected cameras / Event filters / Timeline with smooth preview
• Visual verification of Ajax alarms : NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps
• Privacy : Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop

Power supply

• Main : 110–240 V~, 50/60 Hz, 0.6 A / Up to 24 W of mains power consumption.
• Backup : CR2032 battery, 3 V / Only to power the system clock

Sabotage protection

• Tamper alarm : Notifications about attempts to detach the device from the surface or remove it from the mounting panel

Enclosure

• Dimensions : 193 × 193 × 47 mm
• Weight : 700 g / Without a hard drive
• Operating temperature range : from 0°C to +40°C
• Operating humidity : up to 75%
• Protection class : IP20
