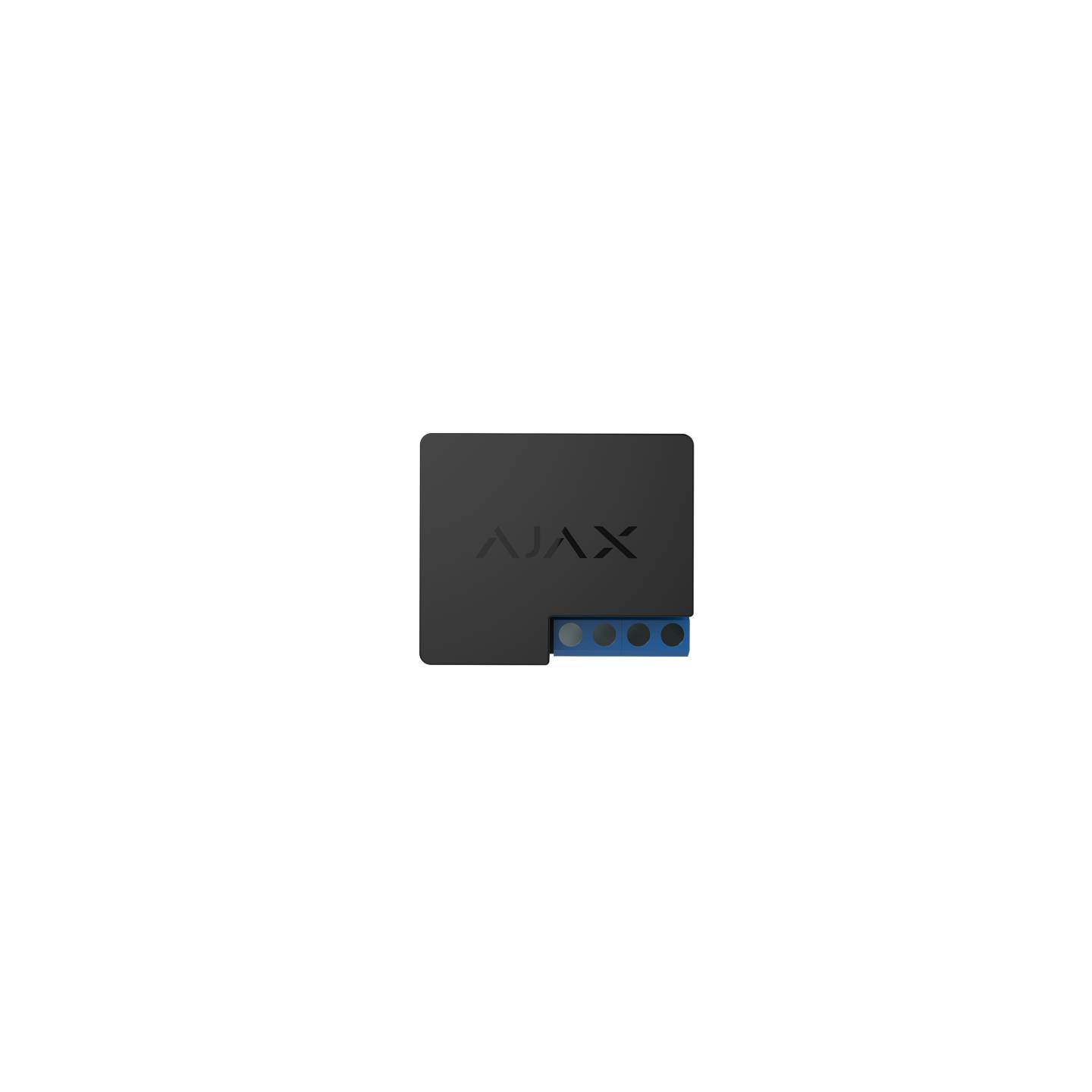

AJAX RelaySwitch - black
Remote relay switch for Ajax home/office automation; controls low-current devices and supports offline operation if Ajax Cloud is lost.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Safe home and office automation
- Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost
Relay
- Radio channel controller for remote control of low current equipment. It is used to activate electric locks, gates and swing gates, rolling shutters and blinds, and to restart modems and routers
Principle of operation
- The device controls electric power supply by means of relay, which closes and opens the dry contact
Features
- Operates from 7 - 24 V DC voltage sources. The dry contact is not galvanically connected to the device itself
Installation and set up
- The device is installed in junction boxes, distribution boards, and enclosures of switching units
- Classification : Radio channel relay unit
- Device type : Wireless
- Installation method :Into electric switchboard, junction box
- Compatibility : Operates only with Hub, Hub Plus, Hub 2 and ReX
- Actuating element : Electromagnetic relay
- Relay service life : 200,000 switch-ons
- Voltage protection : Max — 36.5 V, min — 6.5 V
- Maximum load current : 5A at 36V DC, 13A at 230V AC
- Maximum current protection : No
- Maximum temperature protection > 65°C at the place of installation
- Electric power meter function : No
- Energy consumption parameter check : Voltage
- Power supply : 7 - 24 V (DC only)
- Communication range with central unit — up to 1,000 m in an open space
- Two-way communication between devices
- Operating frequencies — 868.0 - 868.6 MHz
- Self-adjusting RF output power — up to 25 mW
- Block encryption based on AES algorithm
- Device scanning period — 12 - 300 s
- Operating temperature range : From 0°С to +64°С
- Permissible humidity : Up to 75%
- Protection class of body : IP20
- Anti-sabotage : Protection against fraud / Jamming detection
- Remote setting and testing : +
- Dimensions : 39 × 33 × 18 mm
- Weight : 25 g
- Certification : CE
- Warranty : Replacement and repair within 24 months of the date of sale
