Adastra Wall Amplifier - WA-215 - BT USB FM 2x15W@8ohm 953.132UK
Compact wall-mounted audio controller with a 2x15W digital amplifier in a single gang wall plate; powered from 100-240VAC mains, suitable for partition walls or 47mm backbox.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

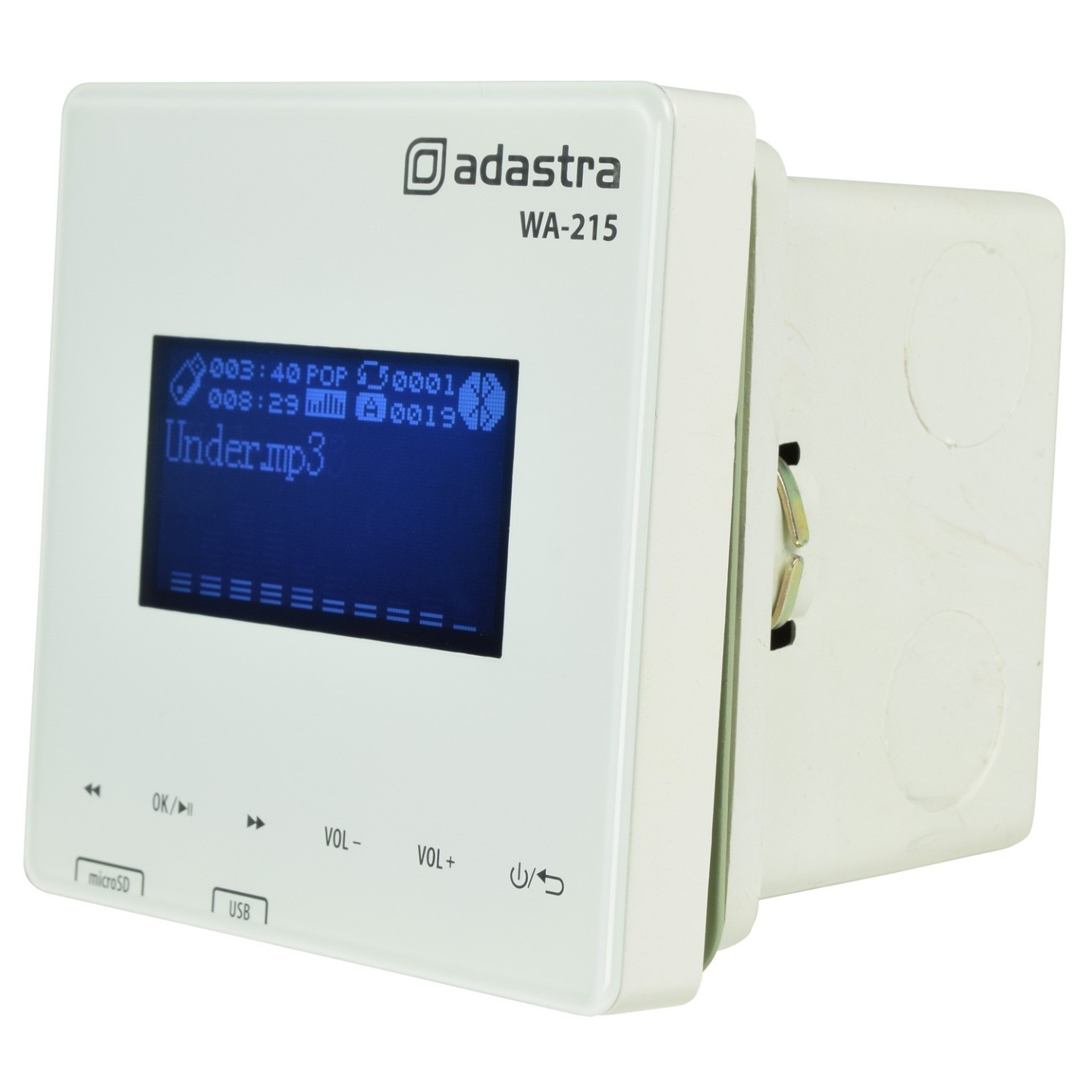

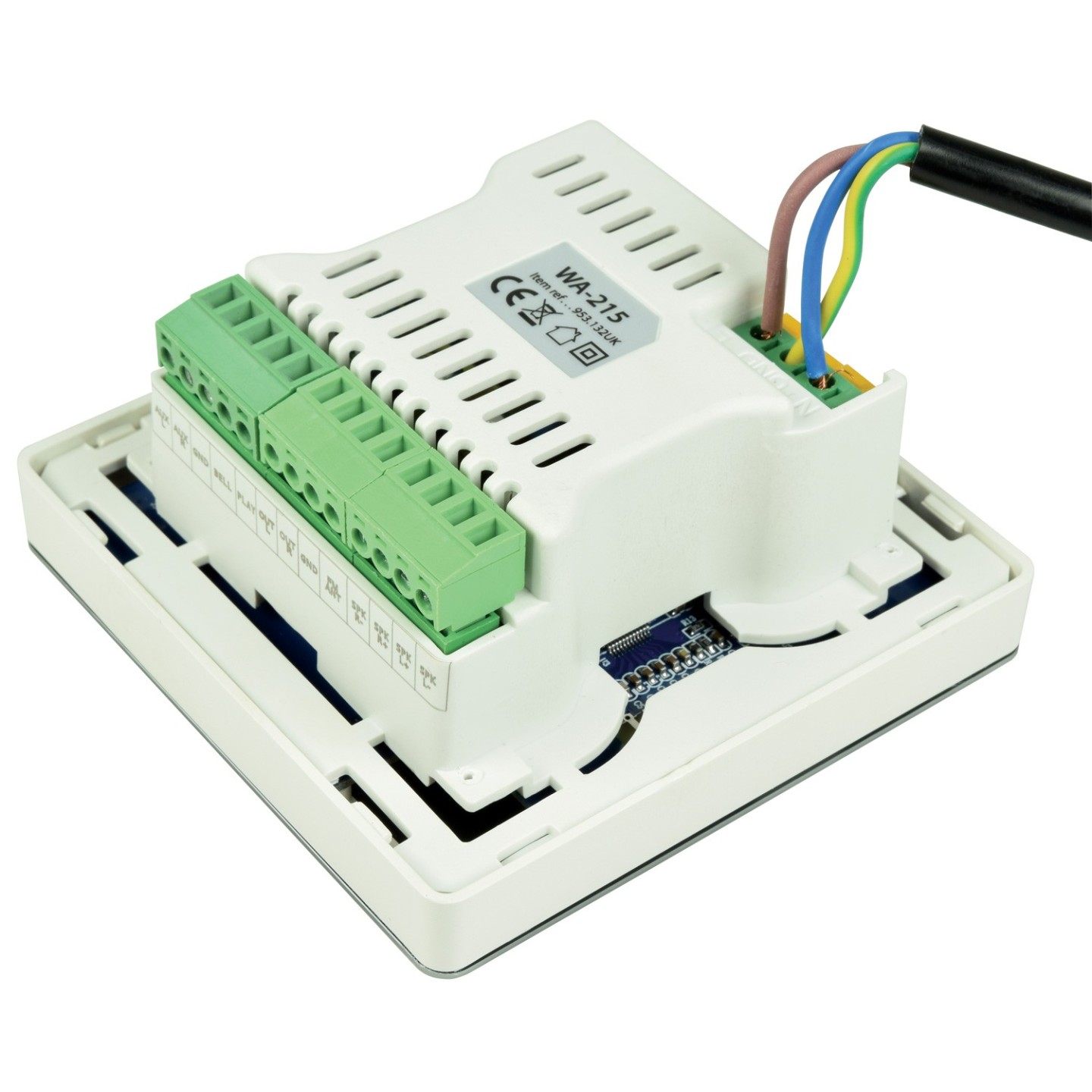

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and Bluetooth receiver. Key functions are operated from the front touch panel or by using the supplied IR remote control. Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. Trigger contacts are also included for media playback and in internal doorbell sound. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

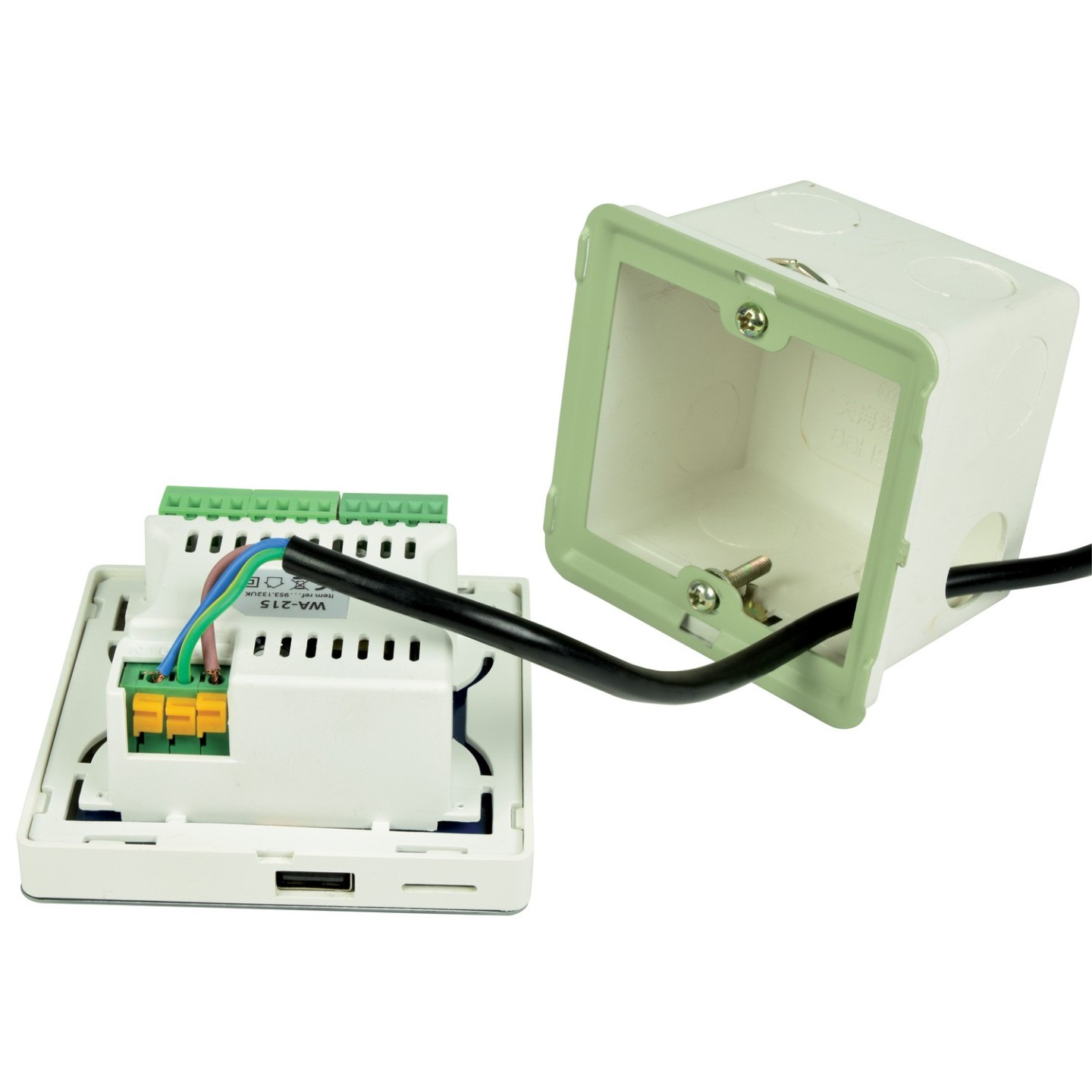

- Supplied with 57mm back box and IR remote control handset.

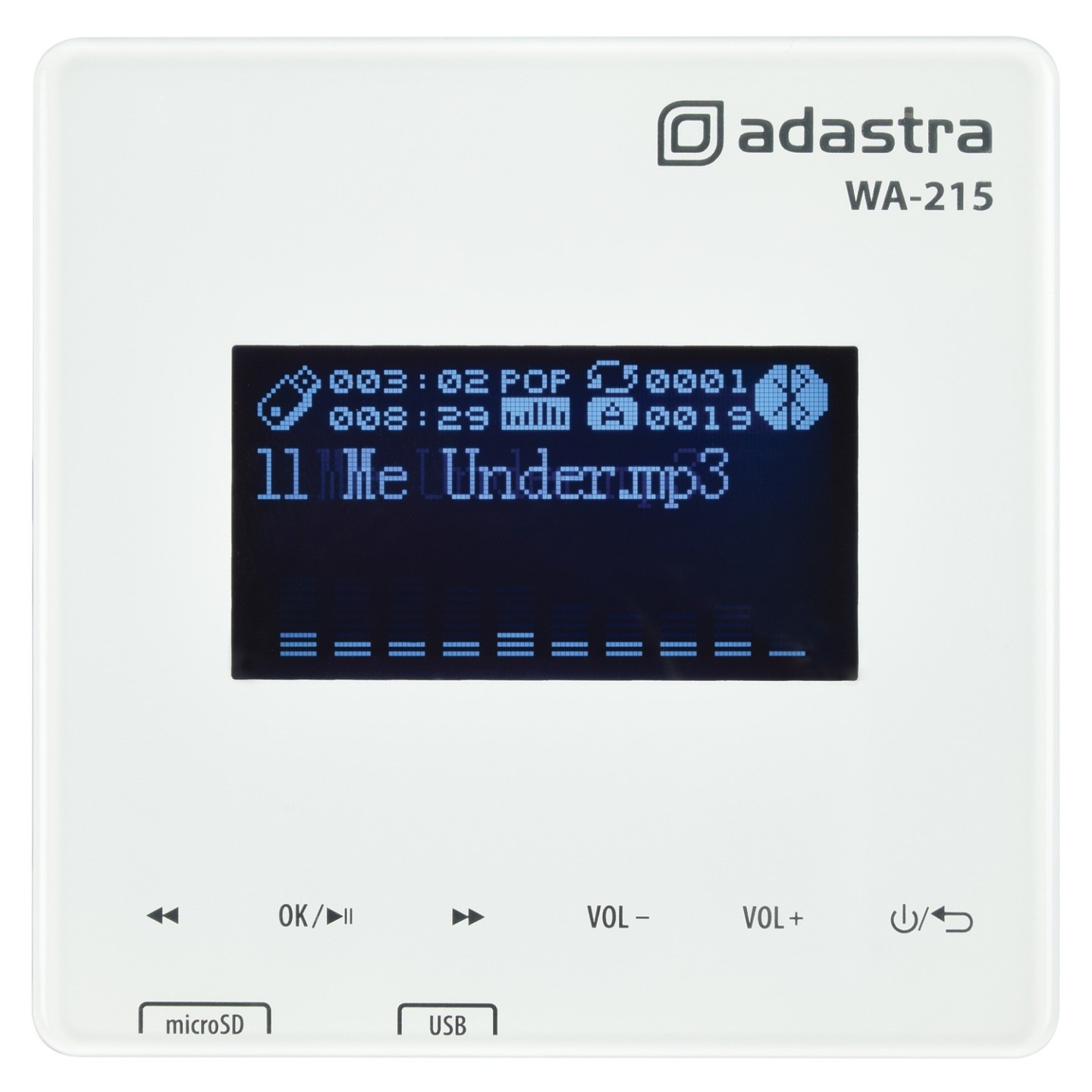

- 60mm backlit LCD display
- Wipe clean touch control panel
- Built in USB/microSD player and FM tuner
- Bluetooth connectivity
The box for this item contains:
- WA-215 wall mount amplifier + media player

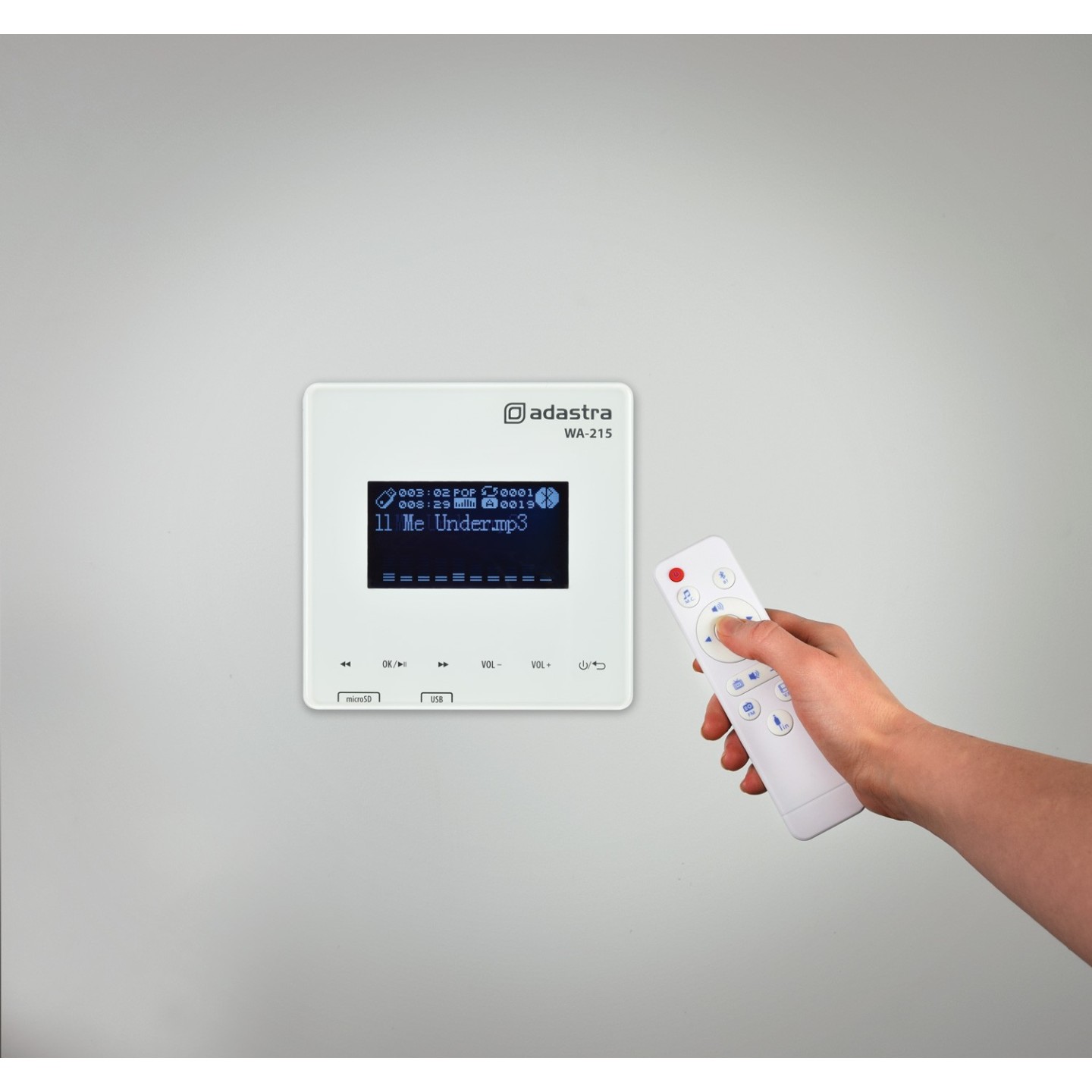

- I.R. remote control handset
- Power supply: 100-240Vac, 50/60Hz (euroblock terminals)
- Output: 2 x 15W @ 8 ohms (euroblock terminals)
- Audio source: USB / microSD player, FM tuner and Bluetooth receiver
- Auxiliary input: Left + right line in (euroblock terminals)
- Audio format: mp3, wma, wav
- FM: tuning range: 87.5 - 108MHz
- Bluetooth range: Up to 10m
- Bluetooth version: 4.1
- Frequency response: 20Hz - 20kHz (±3dB)
- THD: <0.03% at 1kHz, 1W
- S/N ratio: >98dB
- Trigger: Remote playback and door bell (euroblock terminals)
- Mounting depth: 47mm (with adequate ventilation), 57mm back box supplied
- Dimensions: 86 x 86 x 50mm
- Weight: 150g
| Power (RMS) 8ohm | 30W |
| USB/MP3 | Yes |
| FM Radio | Yes |
| Bluetooth | Yes |
| Line In | Yes |
| Remote Control | Yes |
| Extras | Wall Mount |
