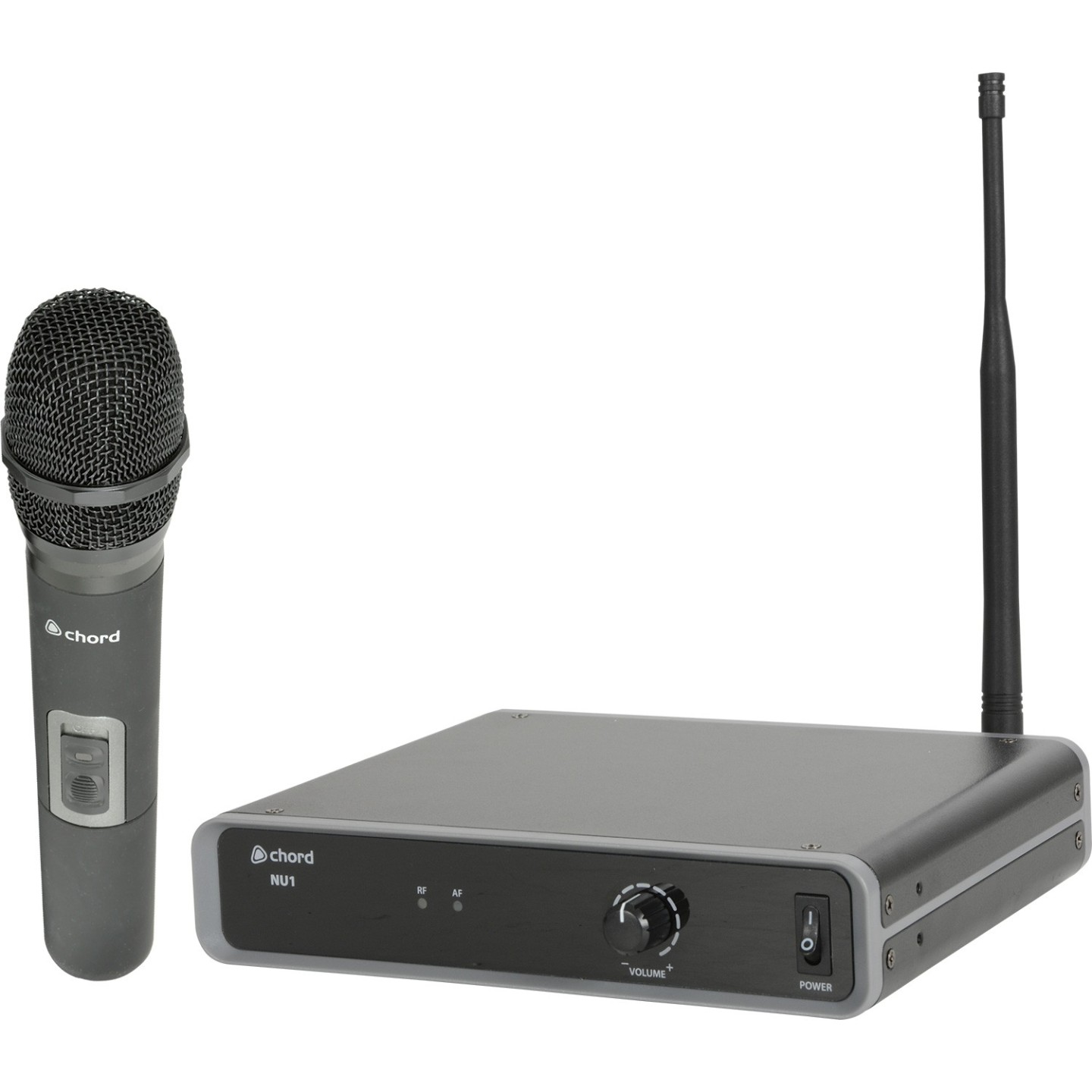

Chord UHF Wireless Handheld Microphone - NU1-H - 863.1MHz 171.981UK
Wireless UHF handheld microphone system with fixed transmitter and half-rack receiver; 19" rack mounting with included ears.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Microphones - Stand/Arm | None |
|---|

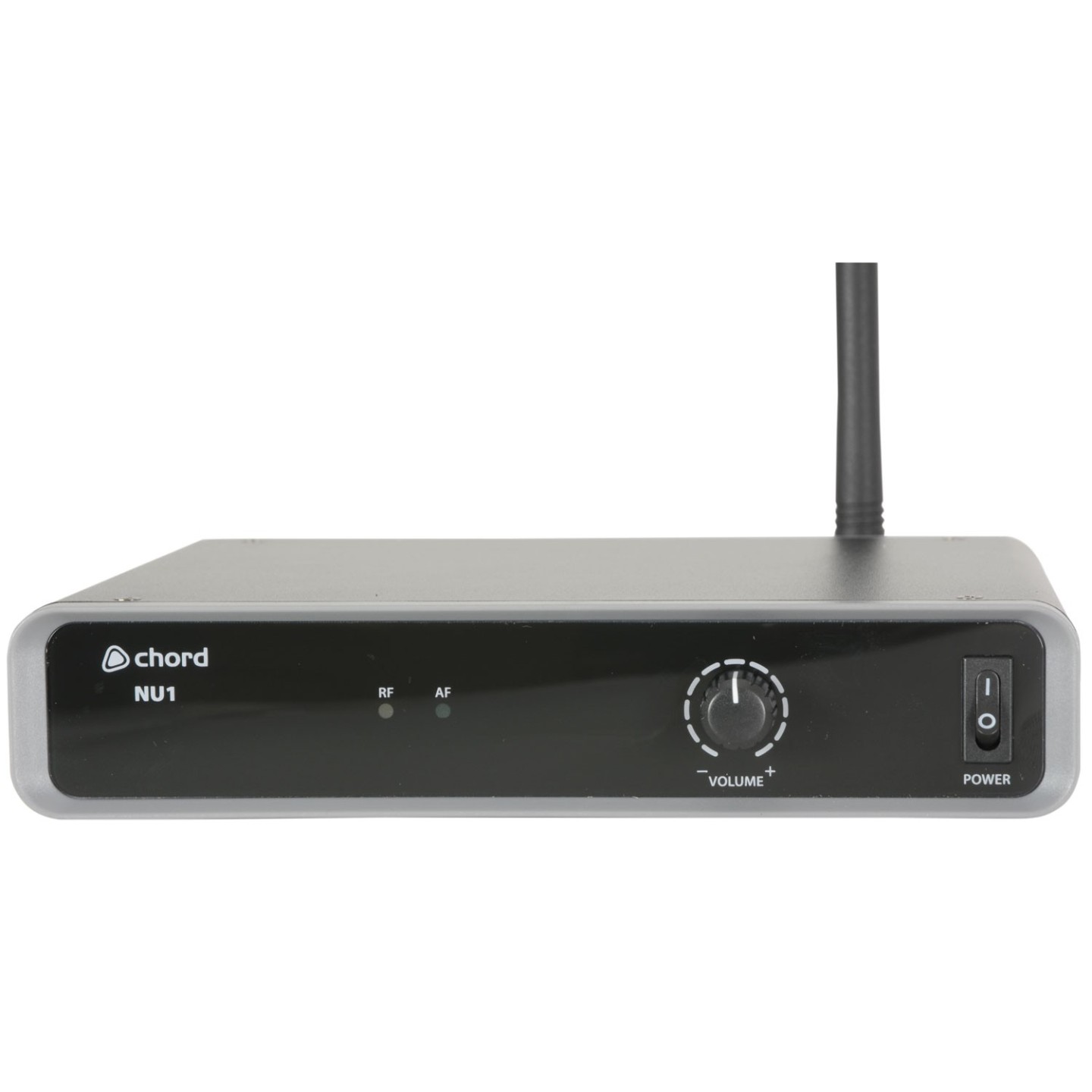

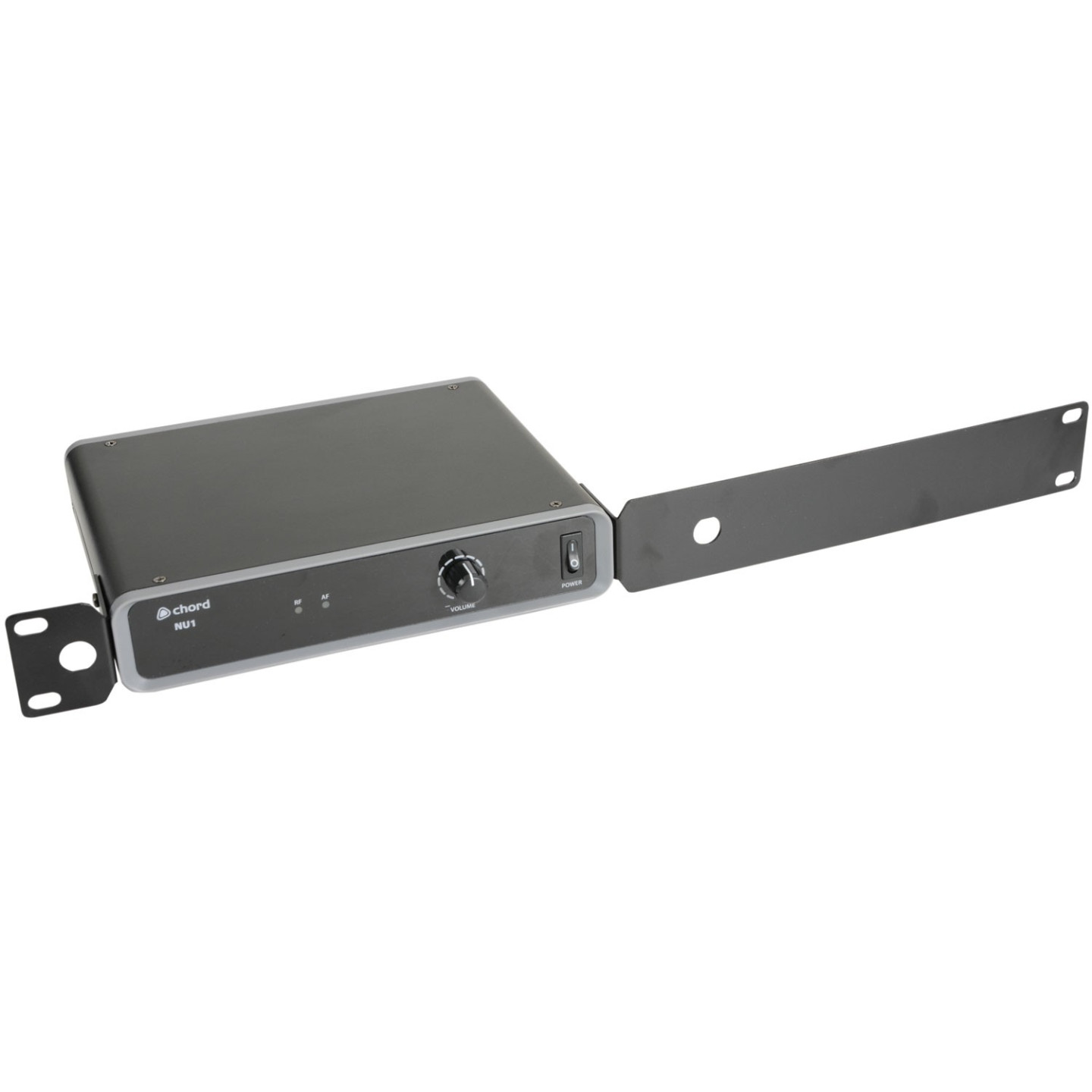

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.
- Pilot tone & mute circuit for stable signal
- Licence free operation in EU
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
Specifications
- Power supply 12-18Vdc, 350mA (mains adaptor included)
- Batteries 2 x AA (for transmitter - included)
- Range 60m
- Signal to noise ratio >105dB
- THD <0.5% @ 1kHz
- Frequency response 50Hz-18KHz ±1 dB
- Image rejection >85dB
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver 44 x 198 x 190mm
- Weight : receiver 710g
- Dimensions : transmitter 243 x 48mmØ
- Carrier frequency 863.1MHz
| Type | Handheld |
| Band | UHF |
| Channels | Single |
| Frequencies | 1 |
| Rack Mounted | Yes |
