Artsound - Arcus-EDS - KNX Interface for Smart Audio products
KNX gateway bridging ETS via Ethernet to KNX, with telegram monitoring, logging, real-time graphs, and WebSocket browser visualization.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

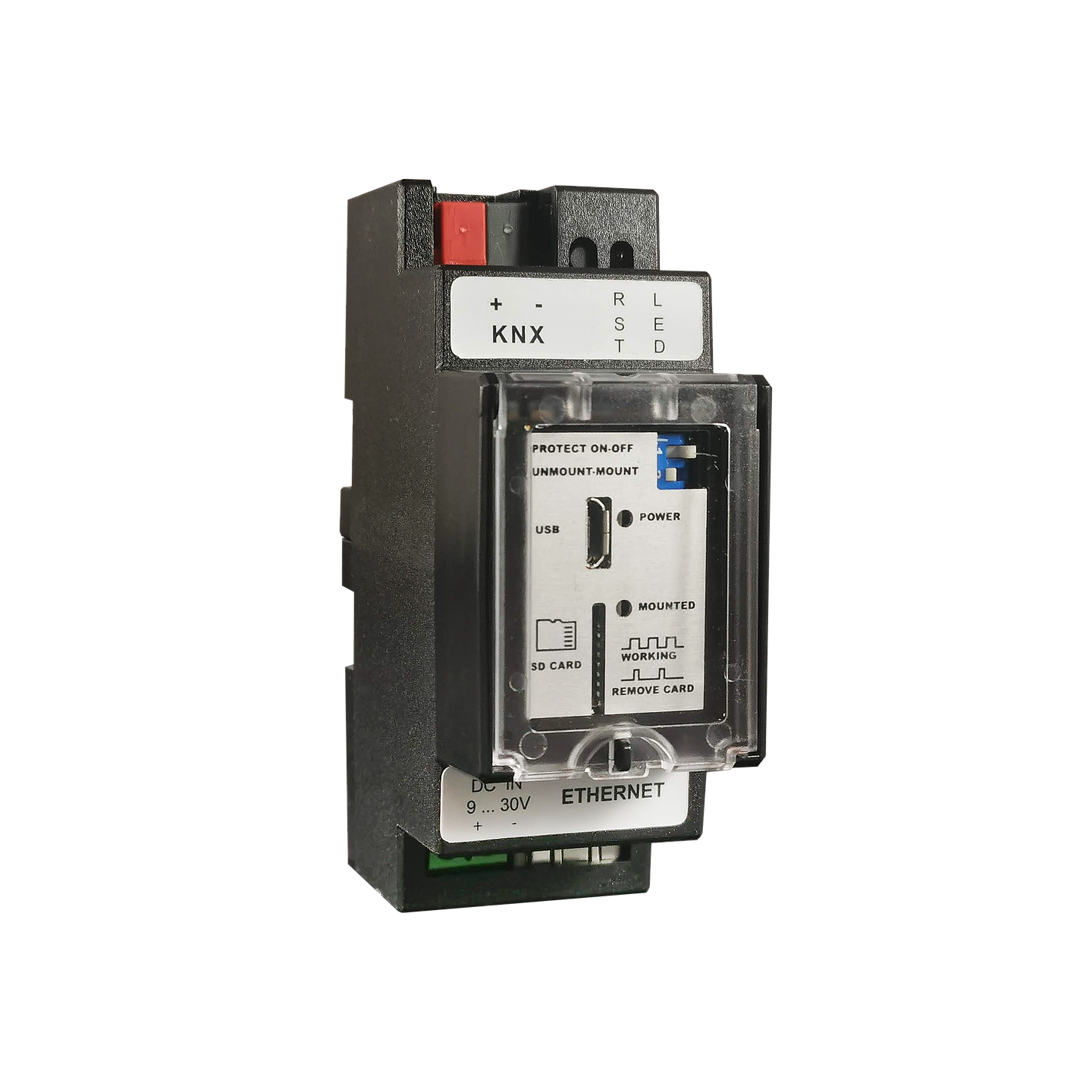

The KNX-GW-IP-2TE is used for coupling the ETS ( PC software tool ) via Ethernet to the KNX bus for addressing and programming KNX components.
Using the KNX-group monitor allows for the monitoring and transfer of telegrams via the KNX-bus in real time. The site of the KNX-group monitor is subdivided into a configuration and a telegram section.
The KNX-IP-gateway is able to save telegrams. The KNX-telegram logger lists the saved telegrams. It is possible to set a timeframe as well as a group address filter.
To visualize the data, up to three different group addresses can be displayed in one graph.
The gateway can link html-sites with KNX-files and visualize them in every browser, provided that websockets are supported.
- Operating voltage: 9 .. 30VDC max. 1,5W 2-pin terminal with screws
- Terminal bus voltage: KNX 2-pin terminal ( red / black )
- Power consumption (KNX): Approx. 120mW (at 24V DC)
- Ambient temperature: Storage -25 .. +85°C
- Operation -25 .. +55°C
- Ethernet: 10/100 Mbit/s RJ45
