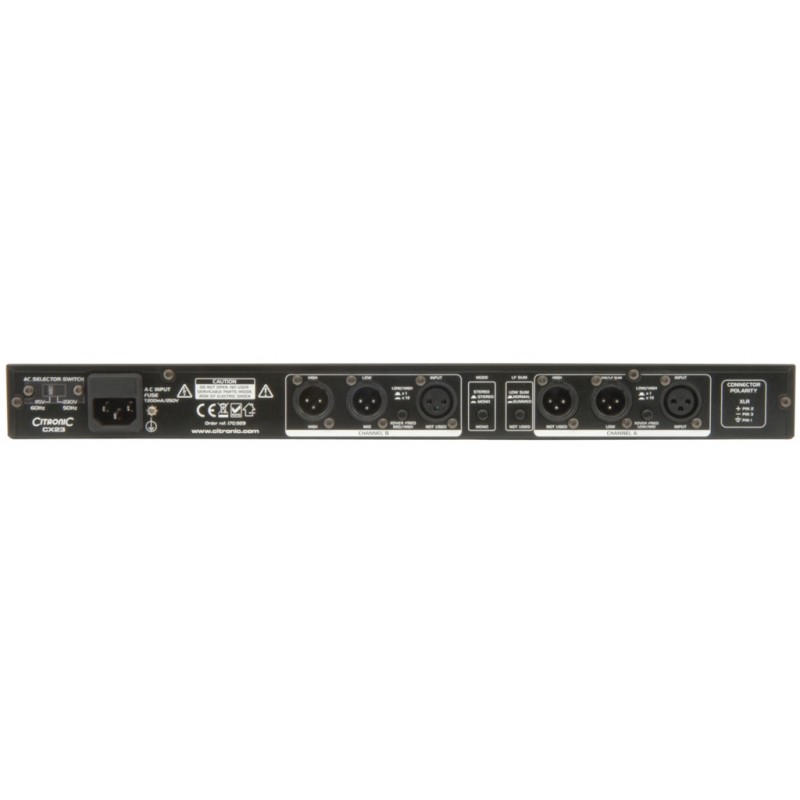

Citronic Crossover - CX23 - 2 3-way crossover - 1U
CX23 is a 2-way stereo or 3-way mono active crossover for subs vs mid/high cabinets, enabling efficient, accurate sound in large PA setups.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
- 2-way stereo, 3-way mono crossover
- 19" rack mountable
- Butterworth filters - 18dB/octave
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function
- Inputs and outputs via XLR
- Power supply: 115/230Vac selectable 50/60Hz (IEC)
- Input impedance: balanced40k ohms
- Input impedance: unbalanced20k ohms
- Output impedance: 220 ohms
- Crossover ranges: stereo50Hz-5kHz;750Hz-7.5kHz
- Crossover ranges: mono50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
- Filter slope: 18dB/octave
- Frequency response: 20Hz-25kHz +0/-1dB
- Signal to noise ratio: >90dB
- THD: 0.006%
- Dimensions4: 82 x 44 x 170mm
- Weight: 2.5Kg
