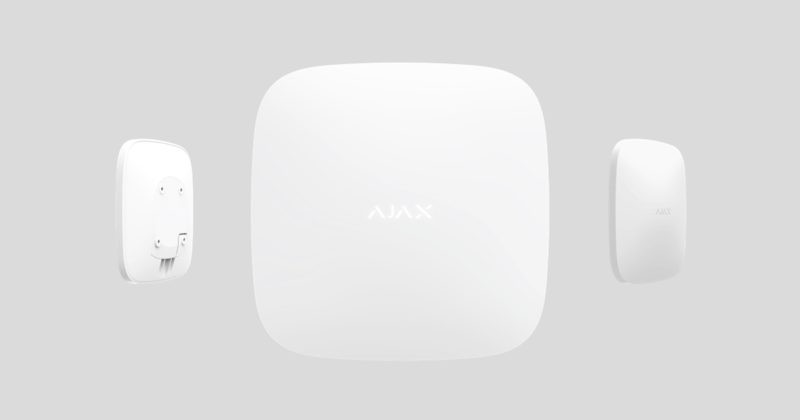

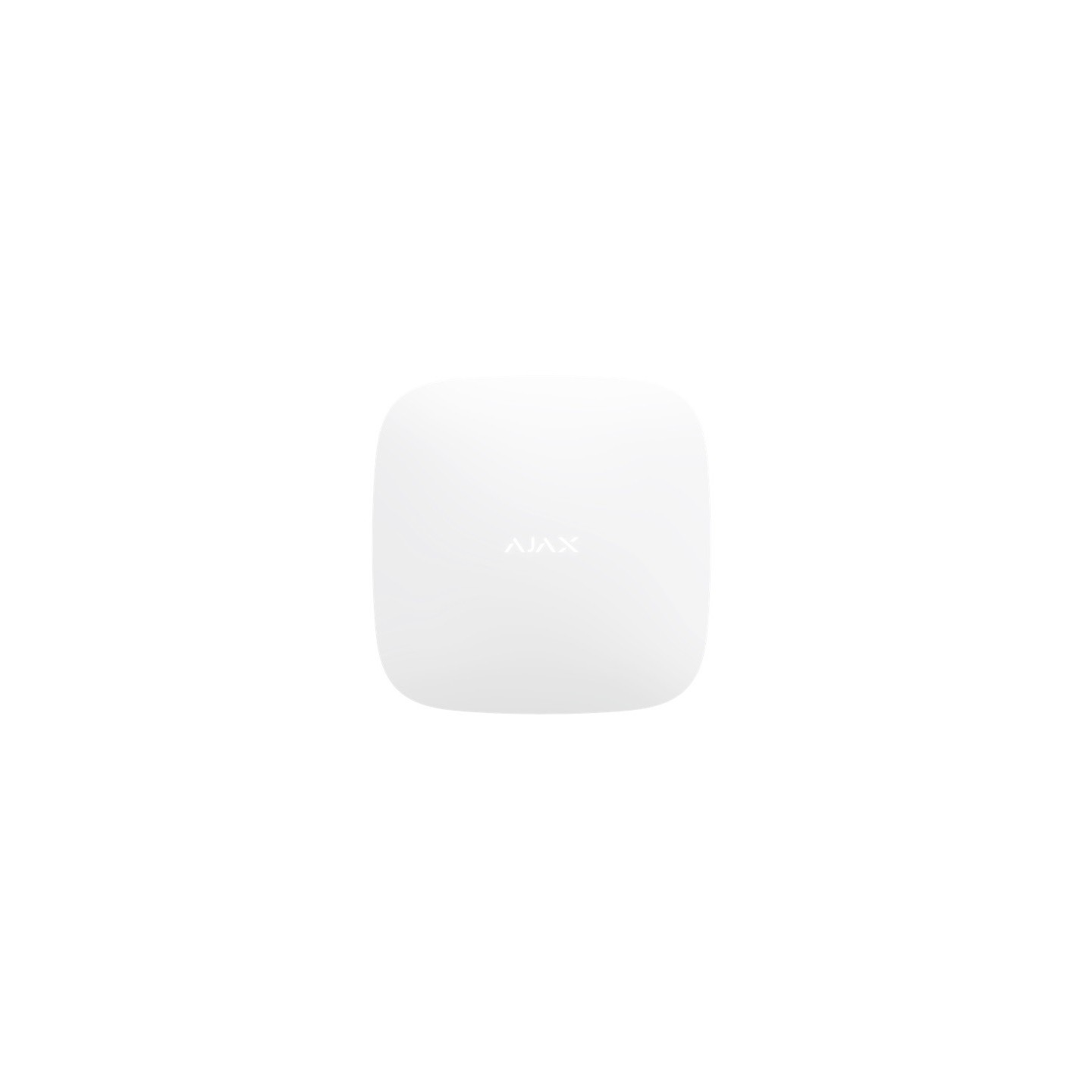

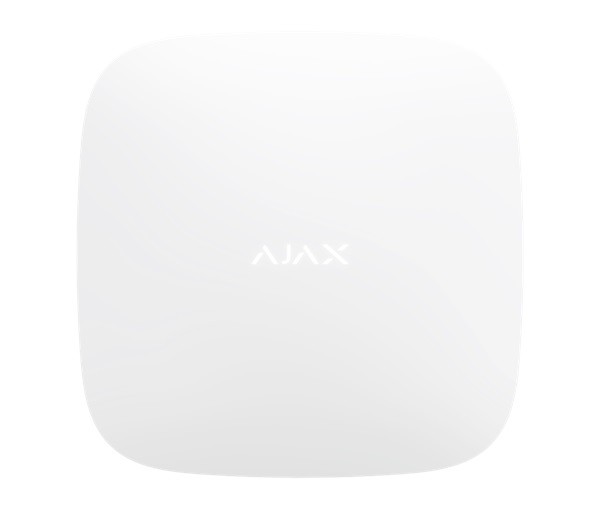

AJAX TCP-IP GSM Alarm Hub - White
The hub is the intelligent control panel of the Ajax security system, monitoring all detectors and sending alarm signals to the owner and Central Monitoring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Alarm Kits - System Type | Wireless |
|---|---|
| Alarm Kits - Communication | Ethernet + Cellular |
| Alarm Kits - Battery Backup | Yes |

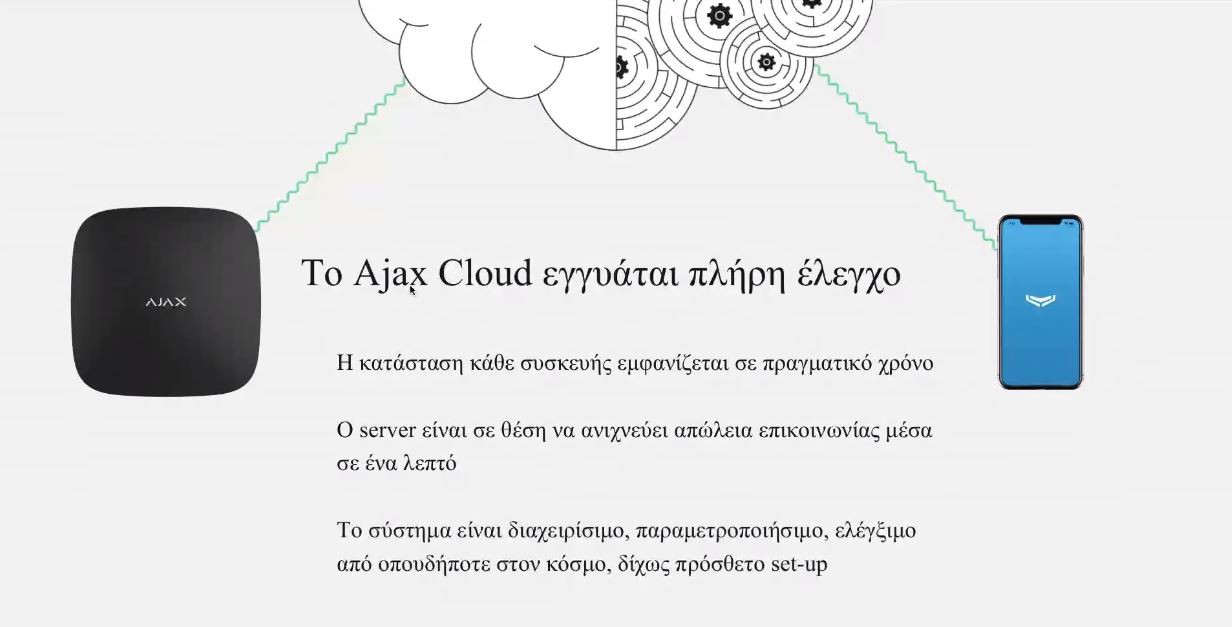

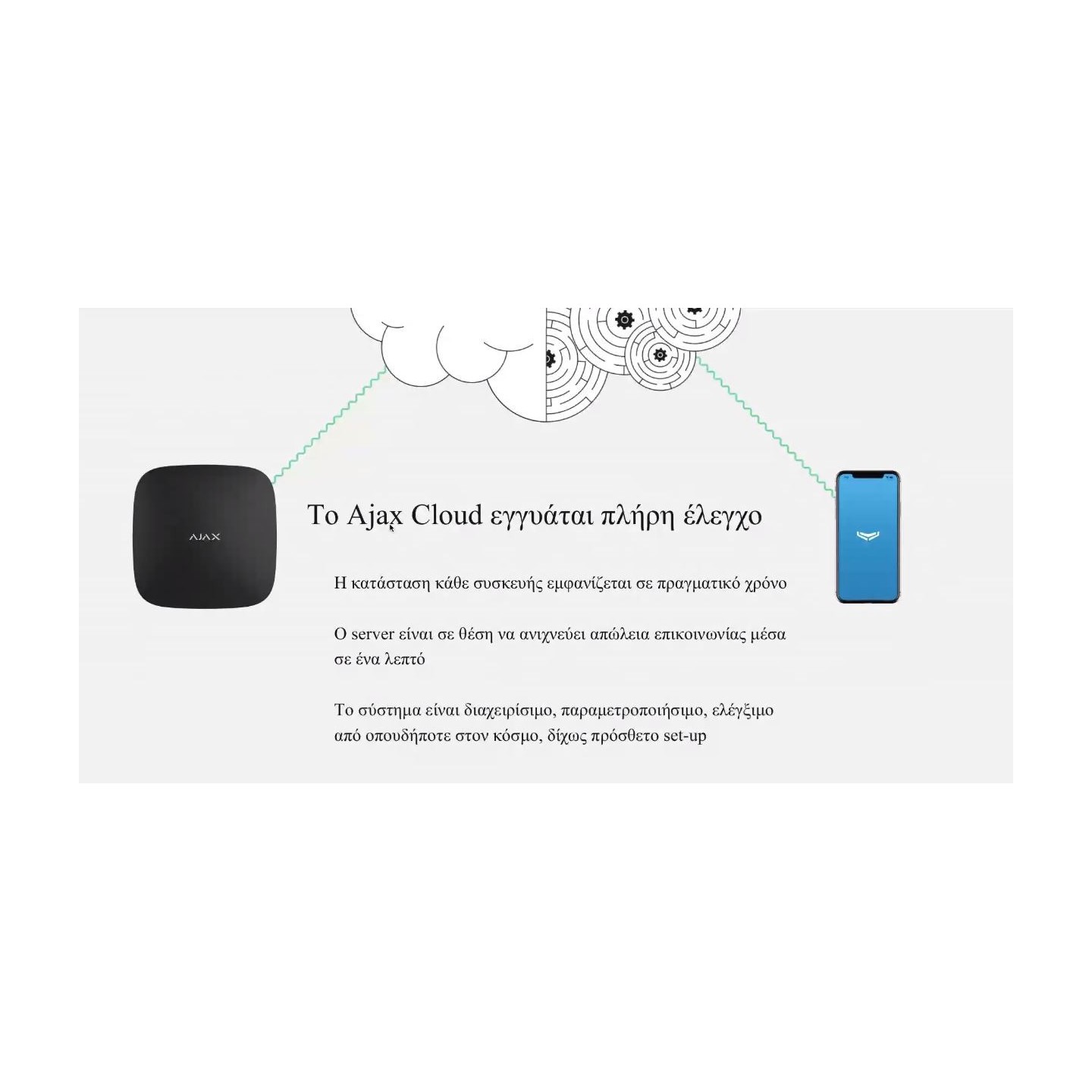

| Alarm Kits - App/Cloud | Yes |

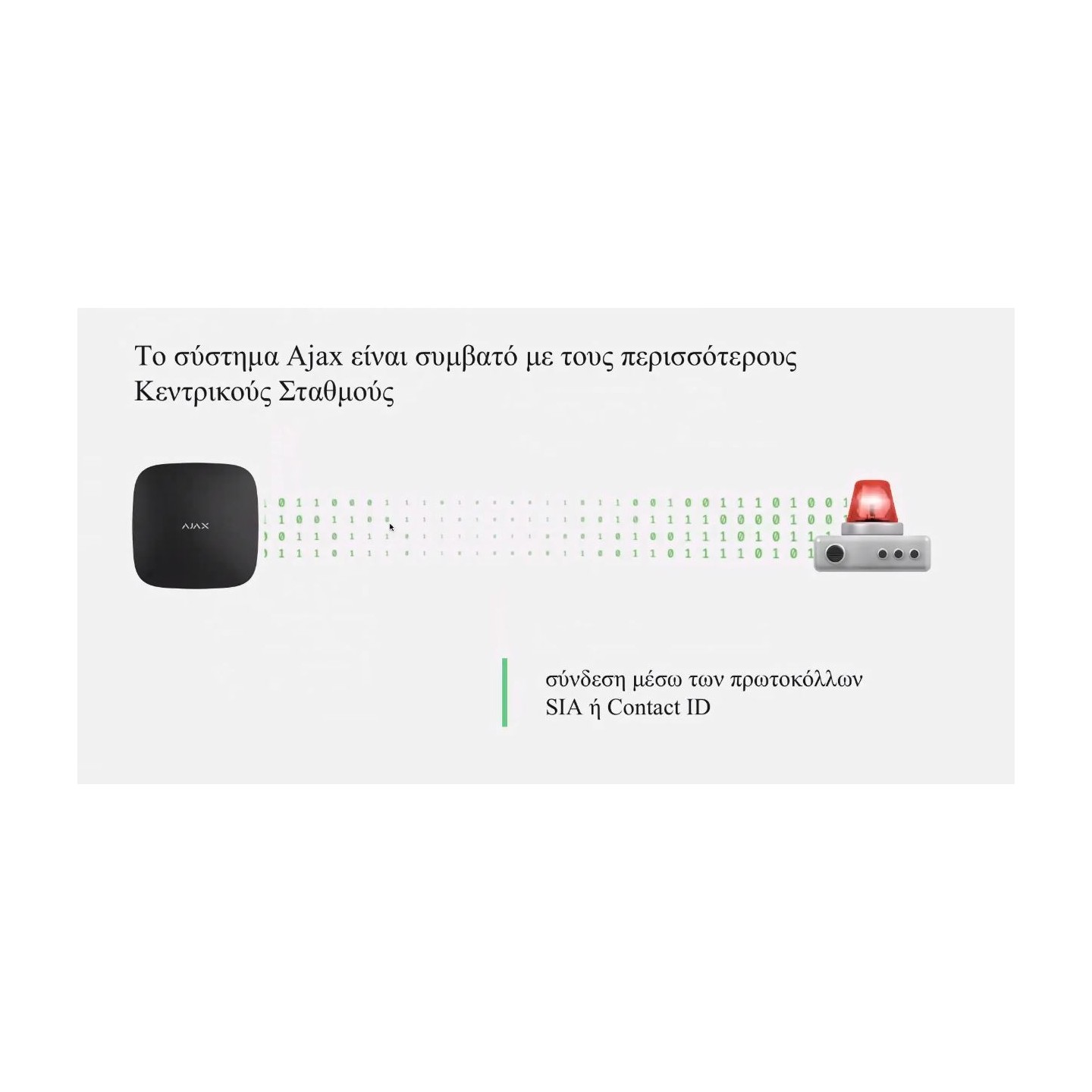

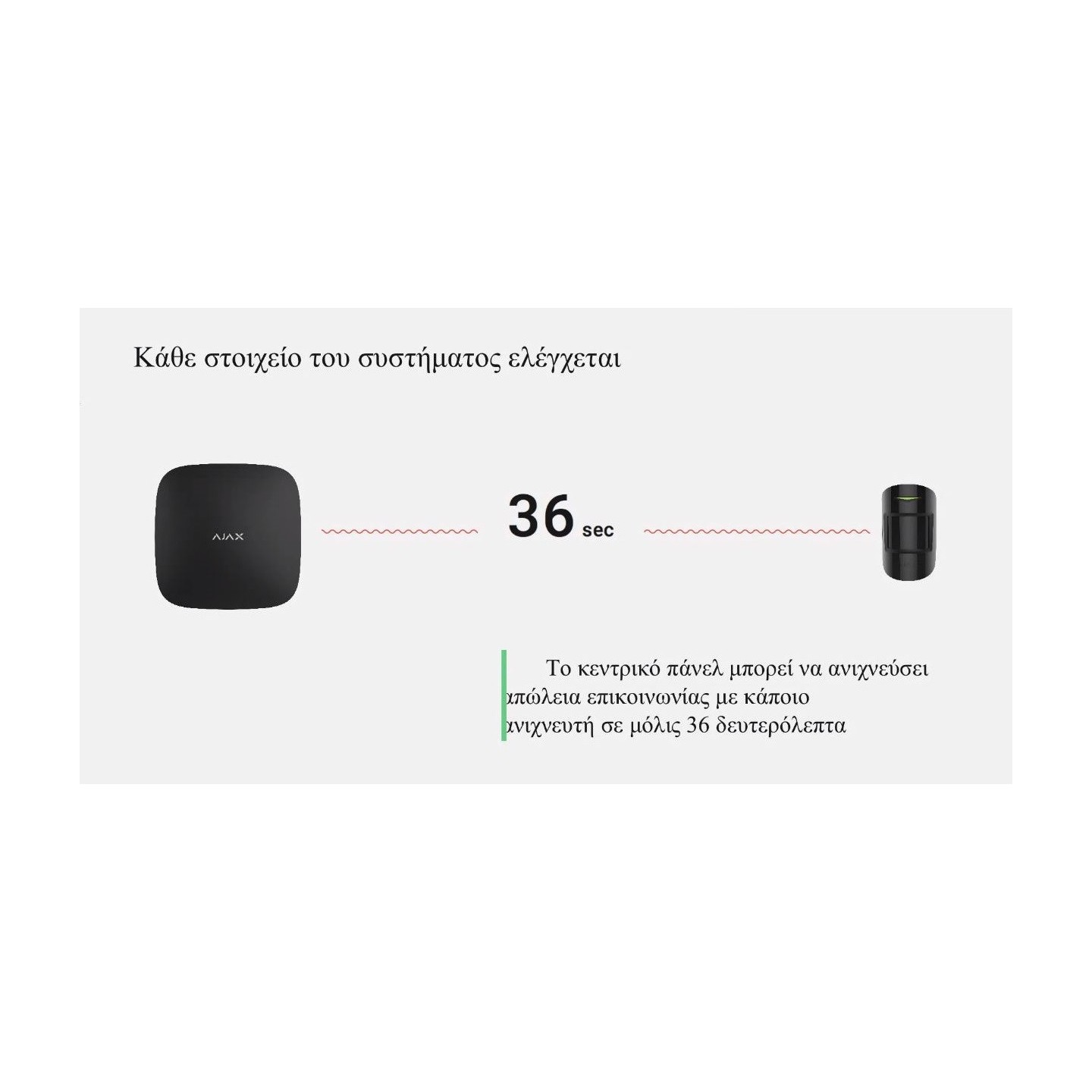

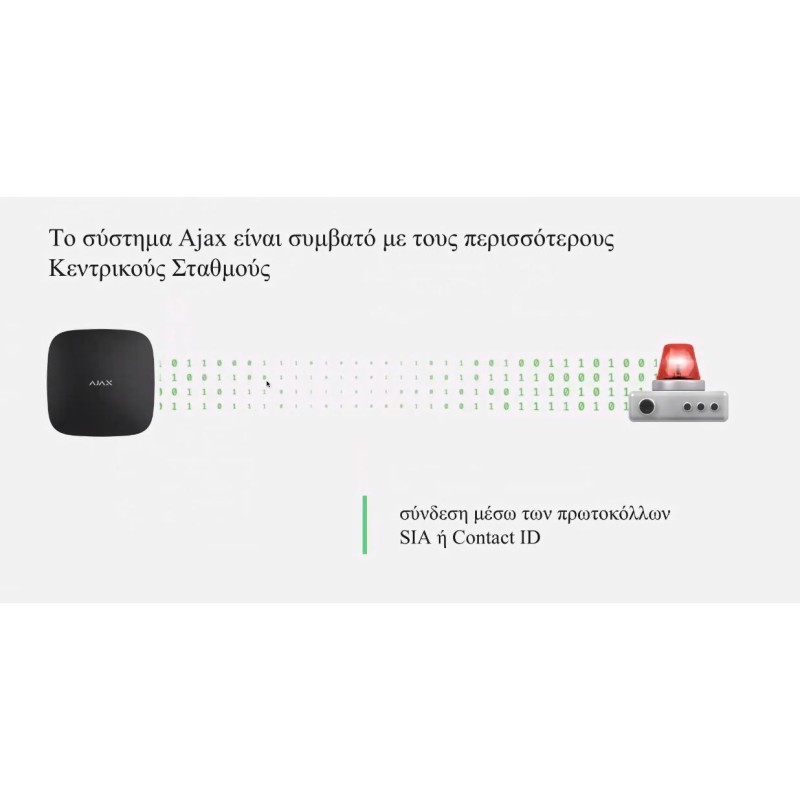

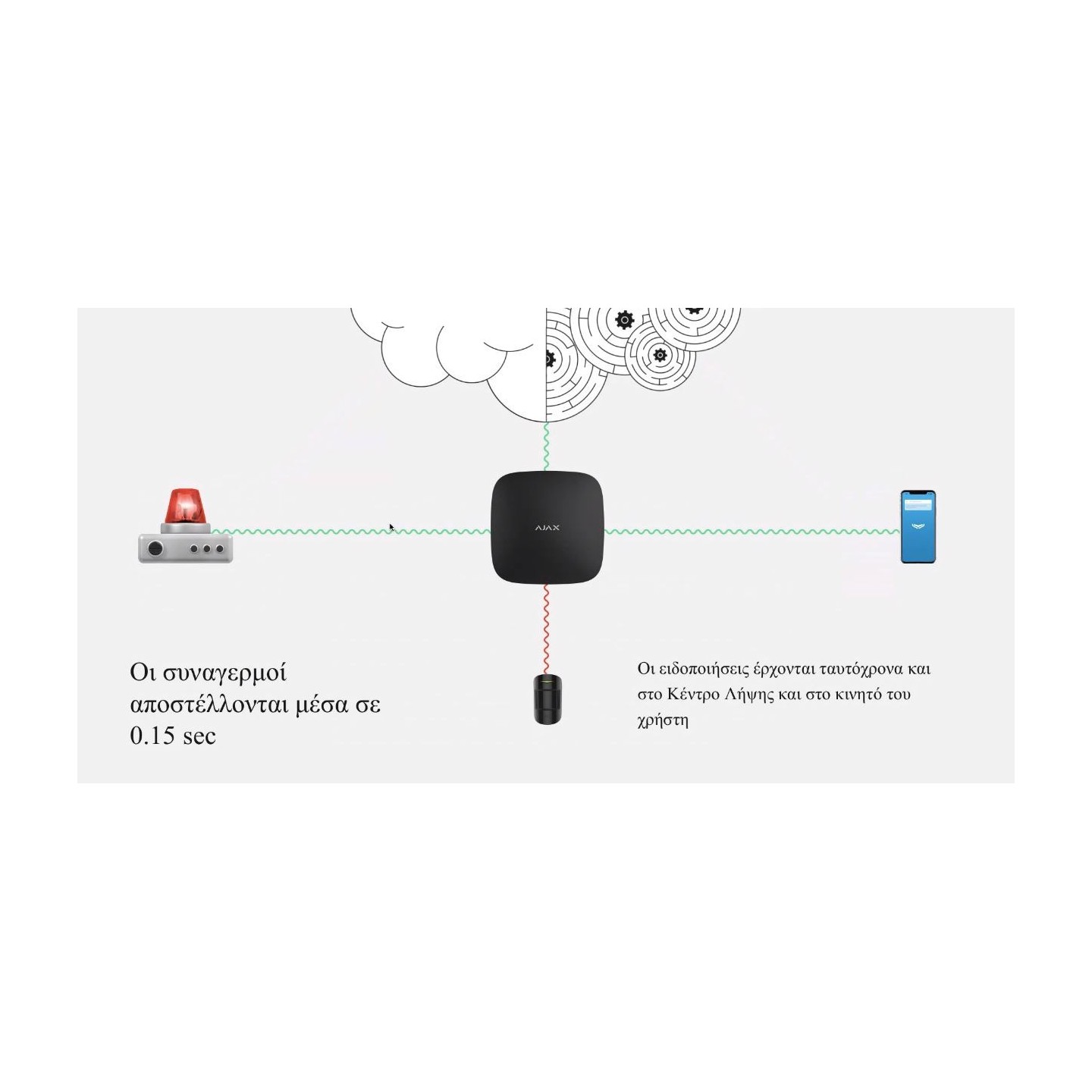

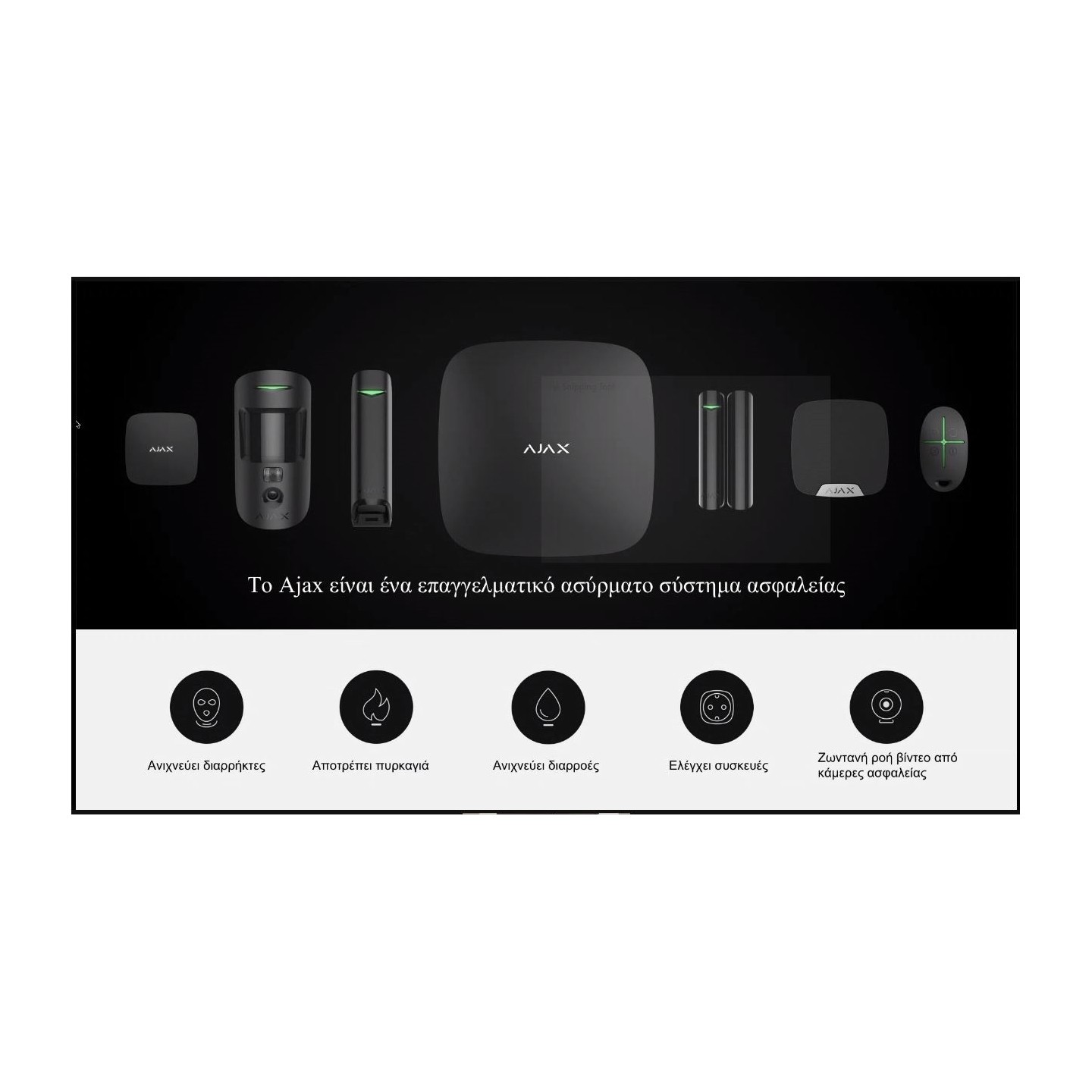

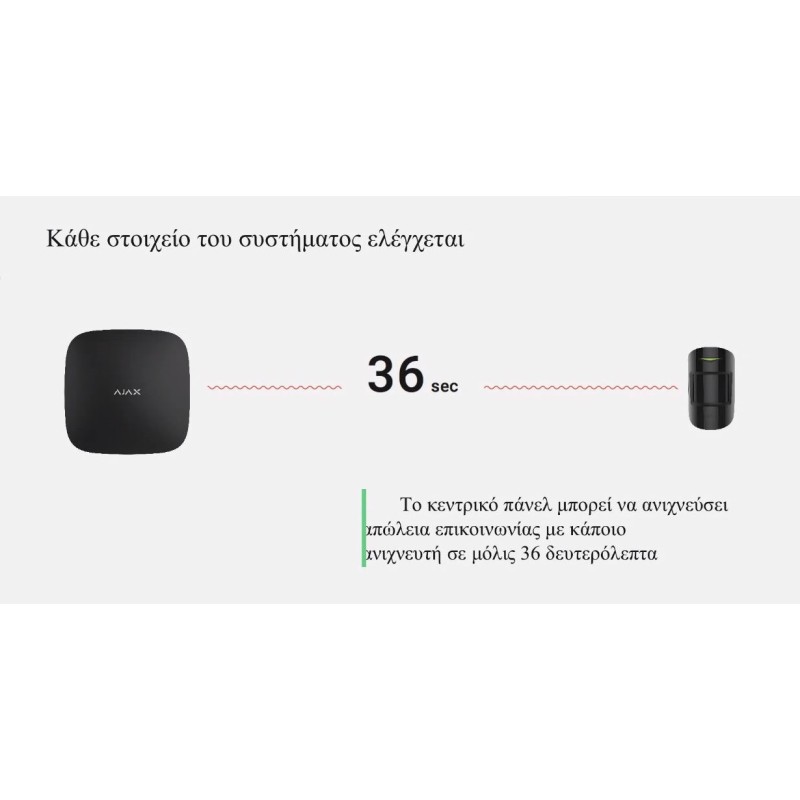

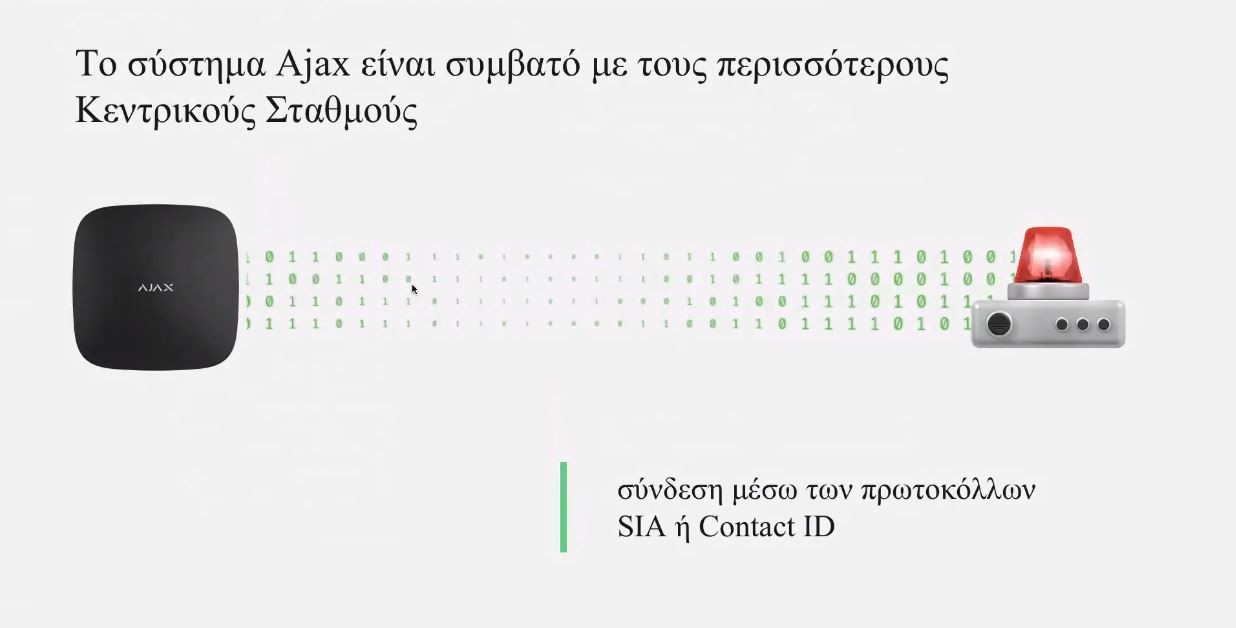

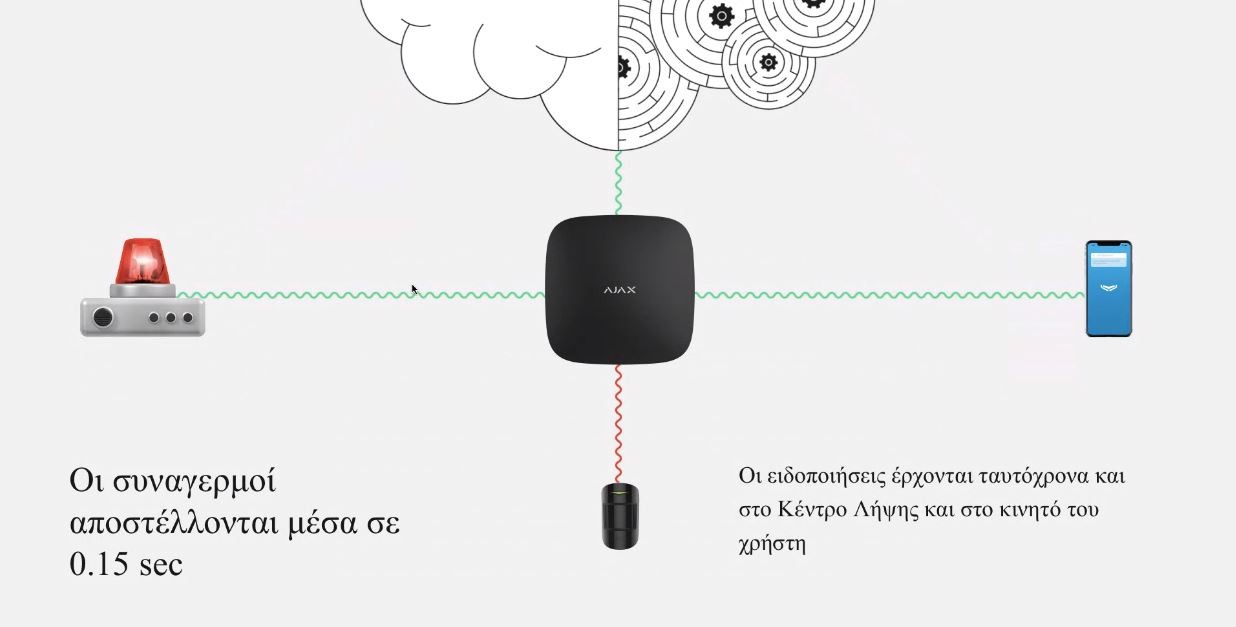

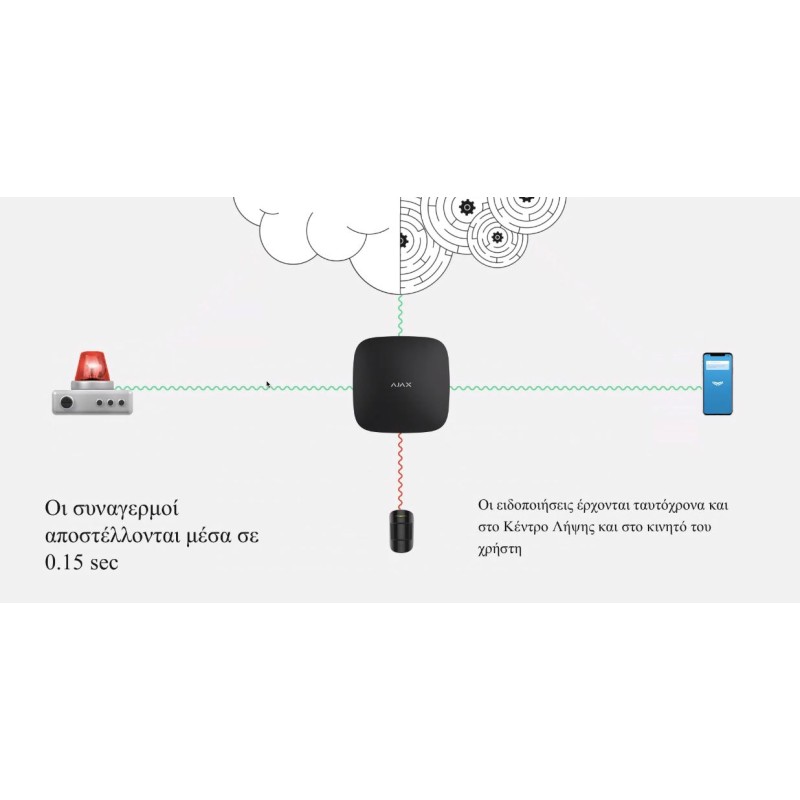

- The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station

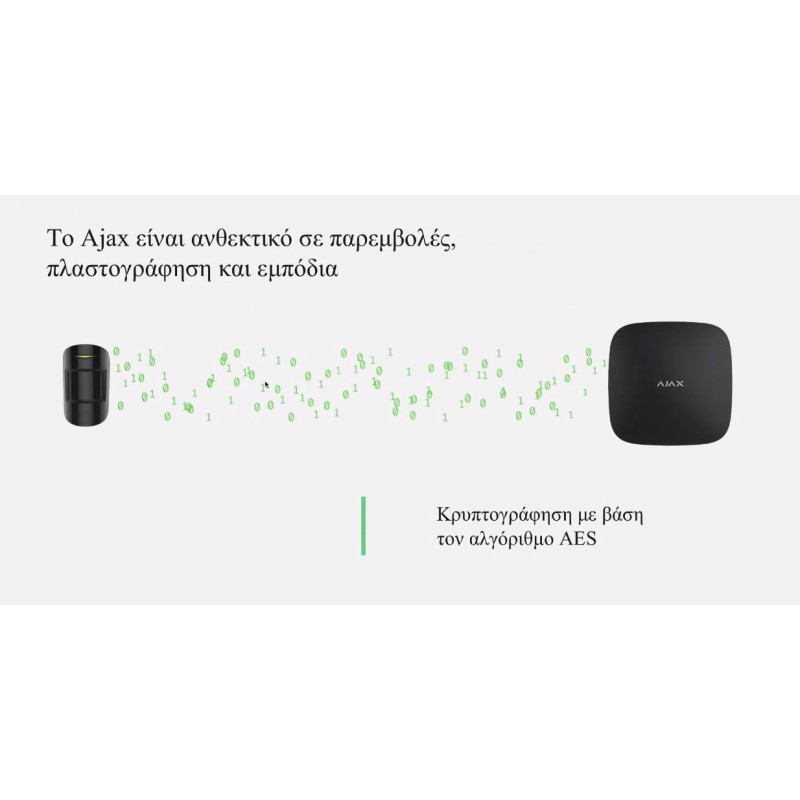

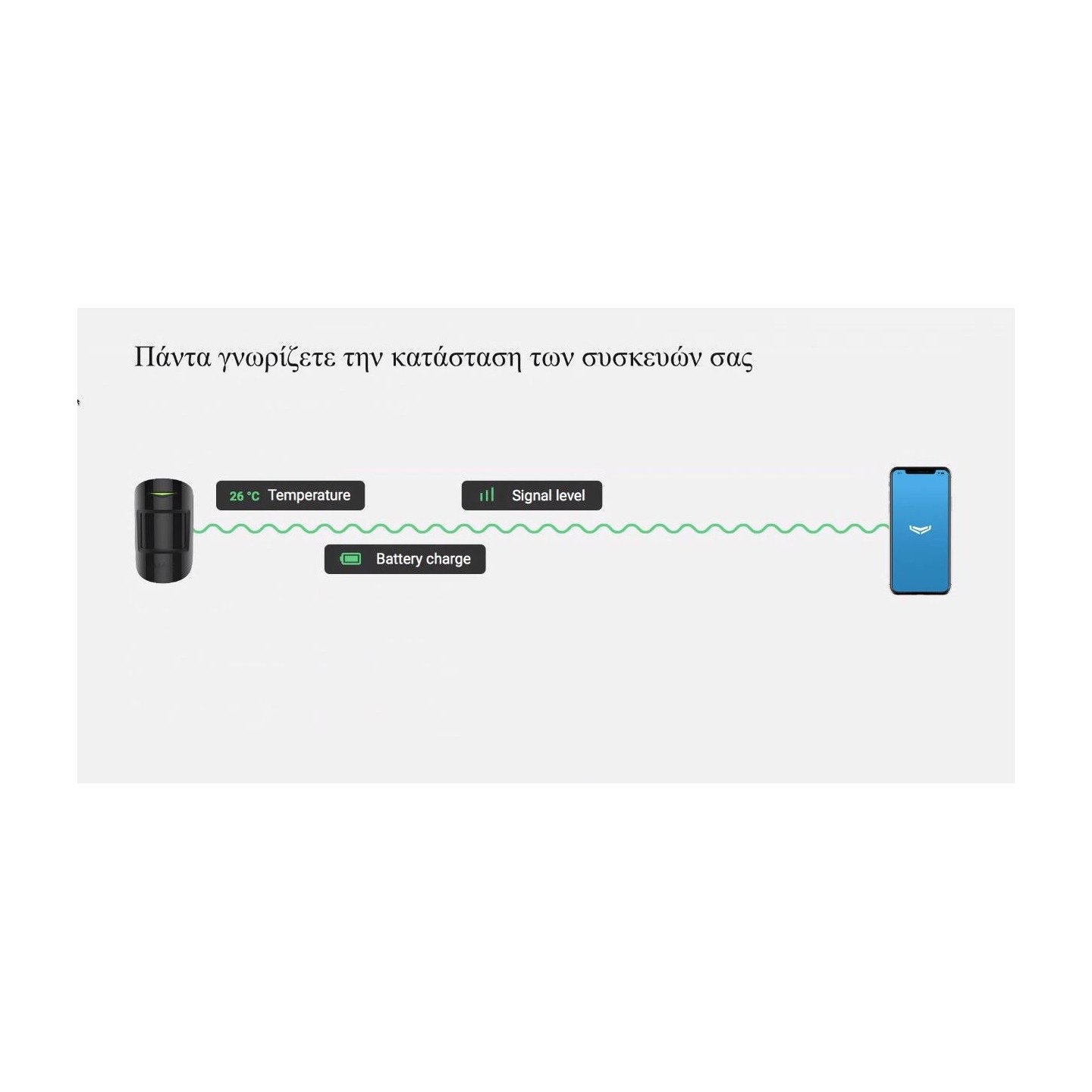

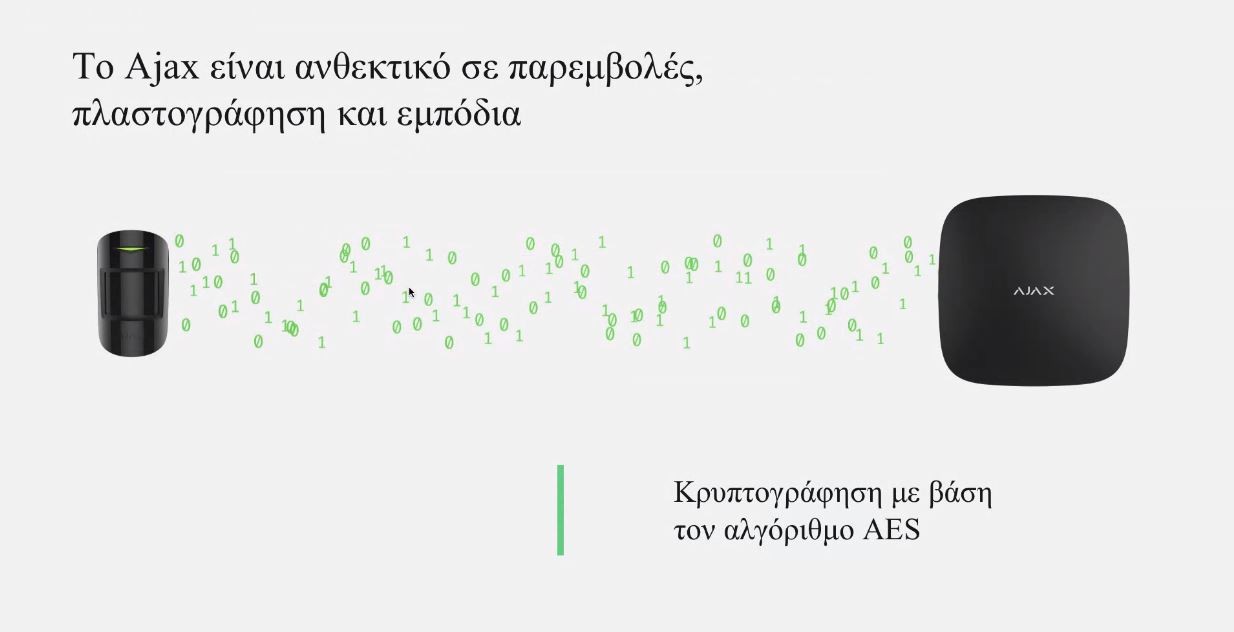

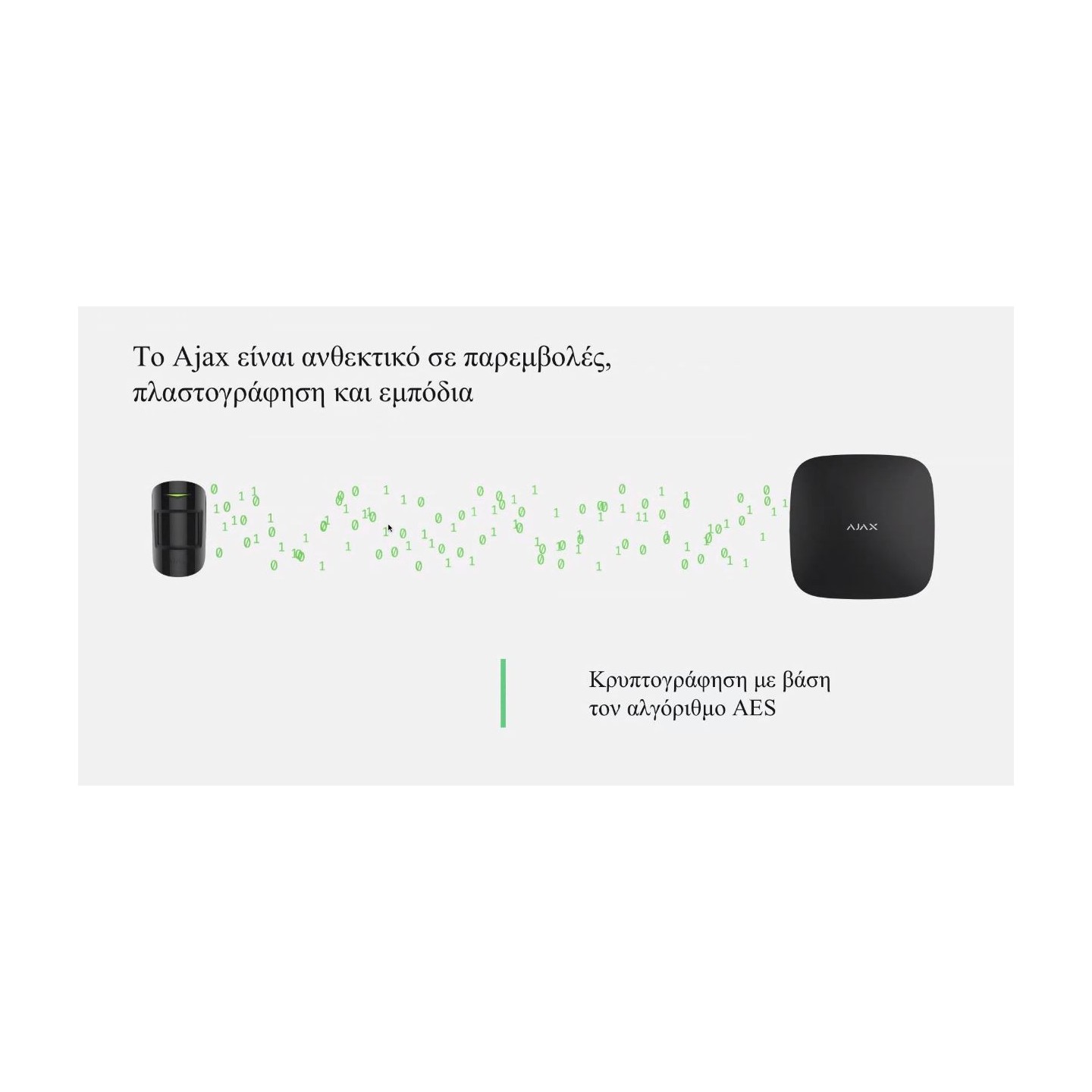

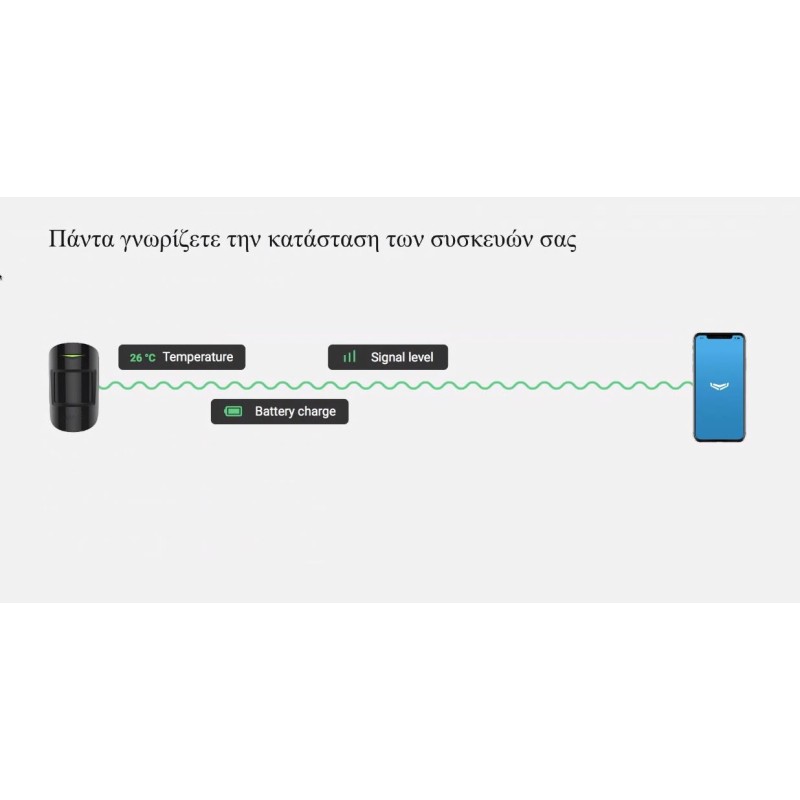

- The device collects information on detector operation in an encrypted format, analyzes the data, and in case of alarm, notifies the system owner and the Central Monitoring Station in just milliseconds

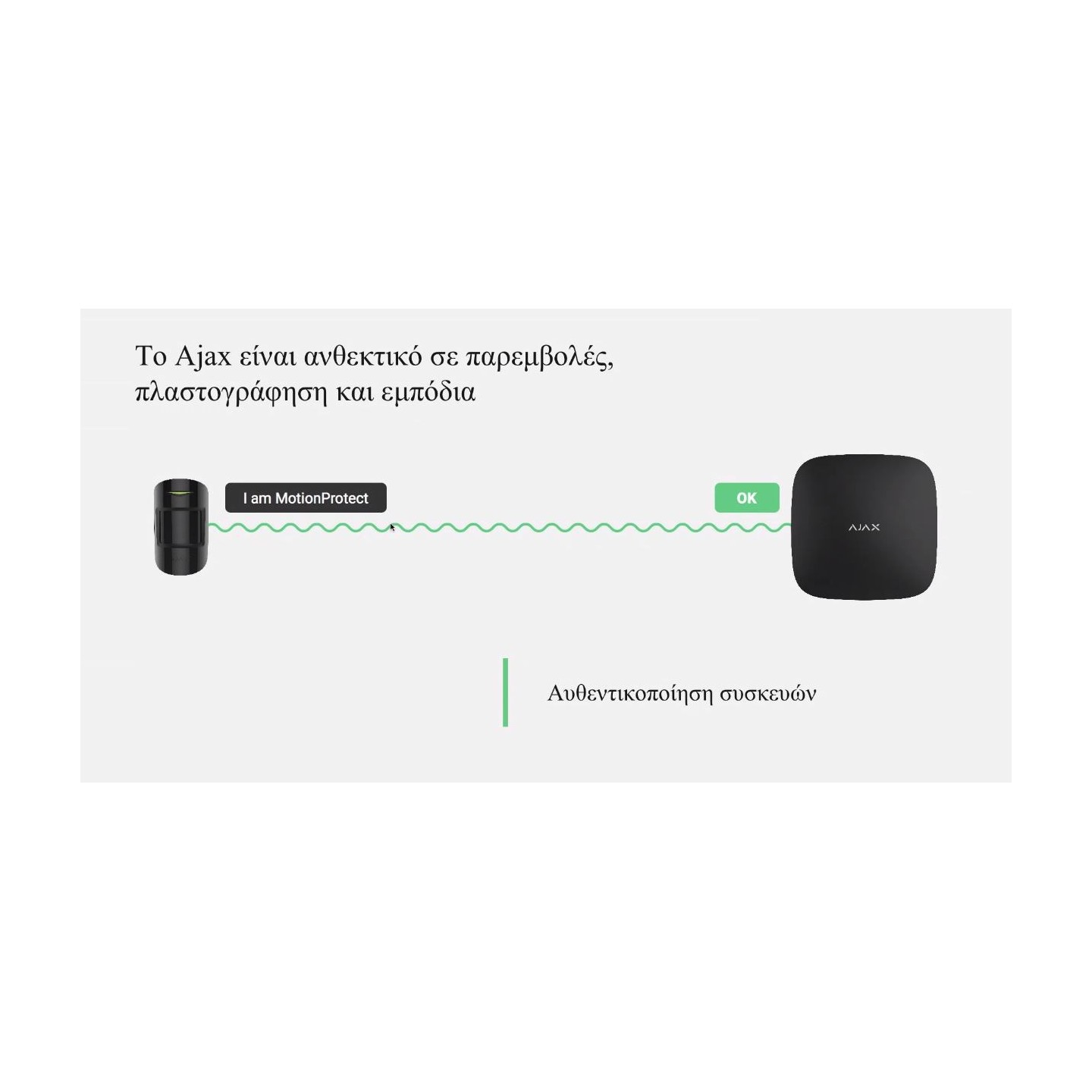

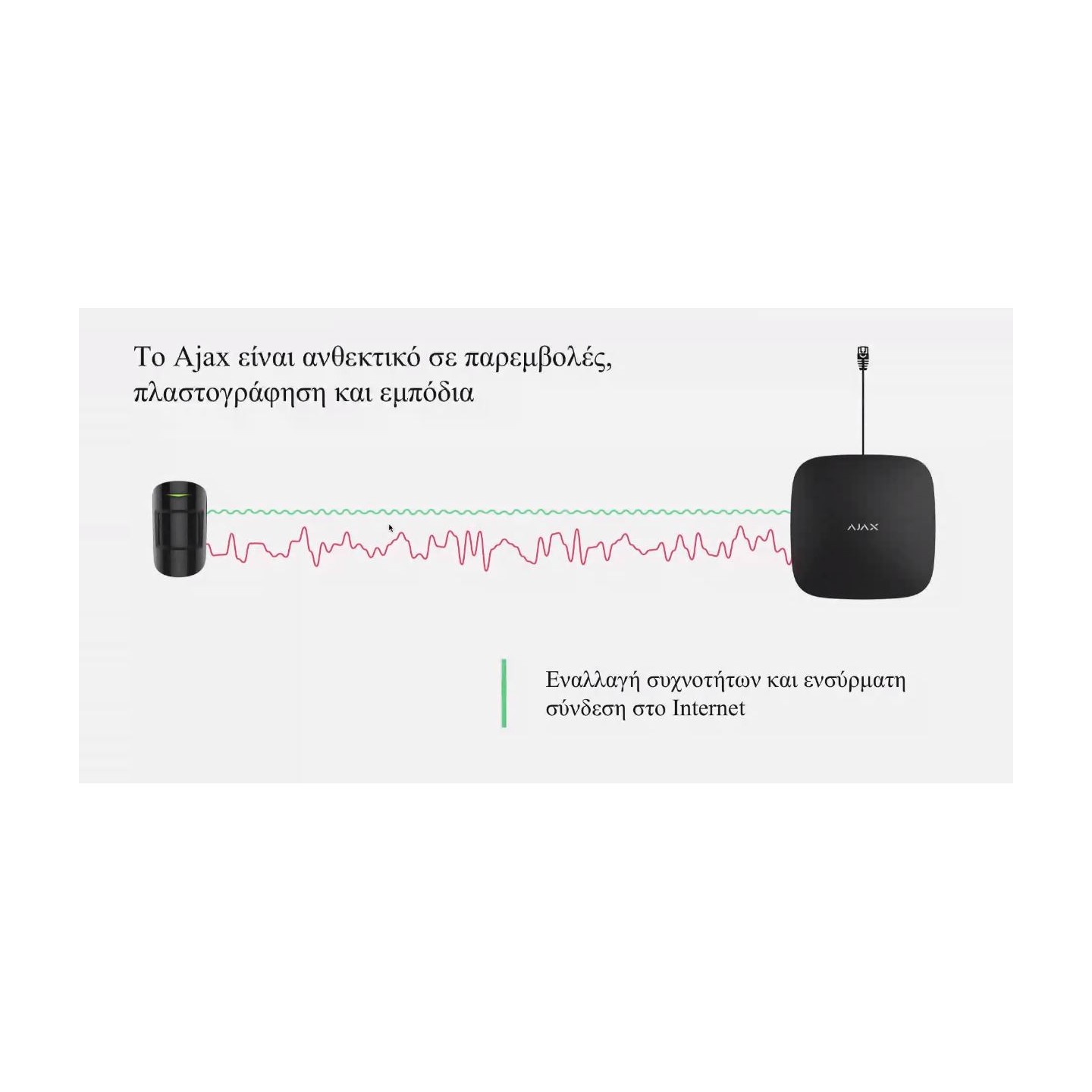

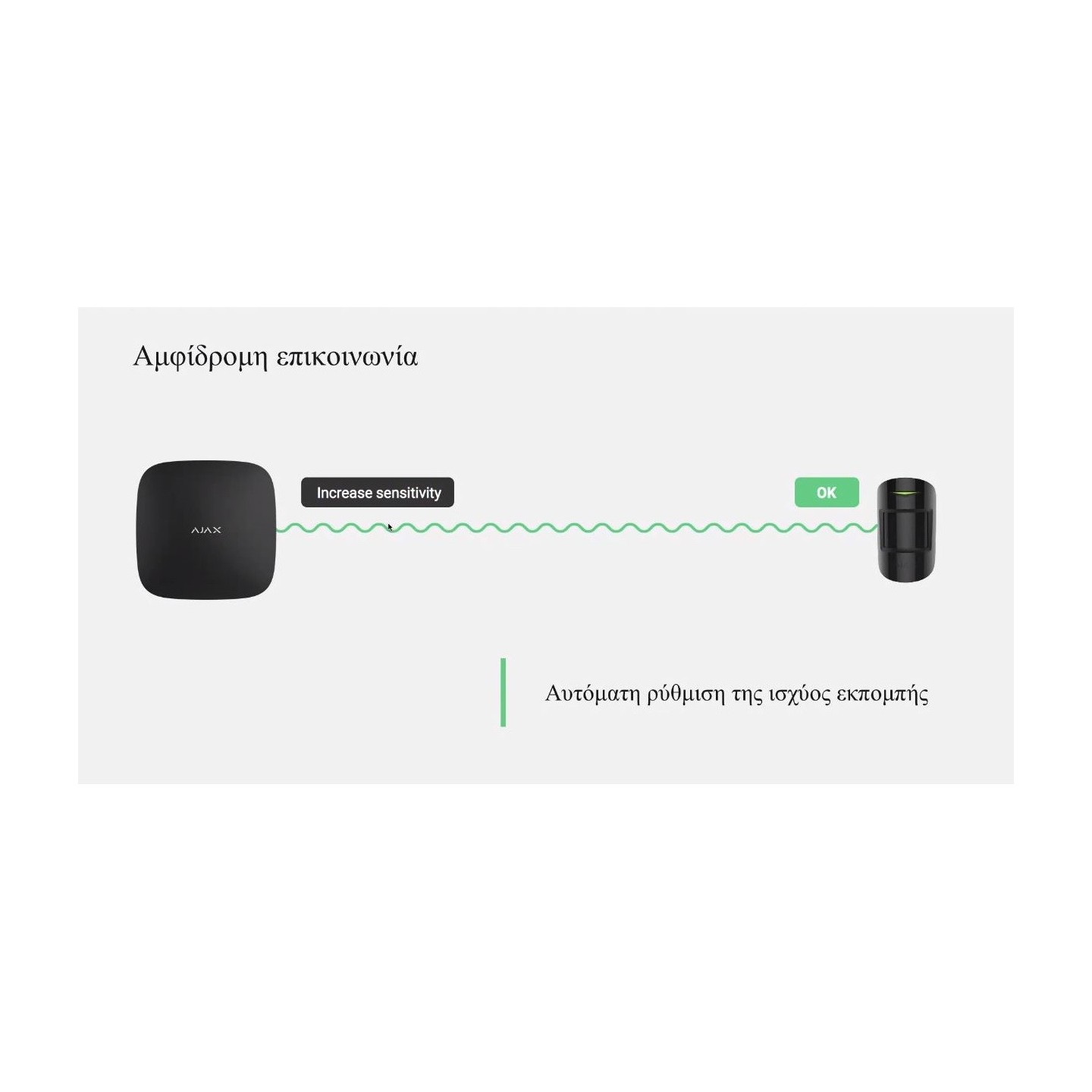

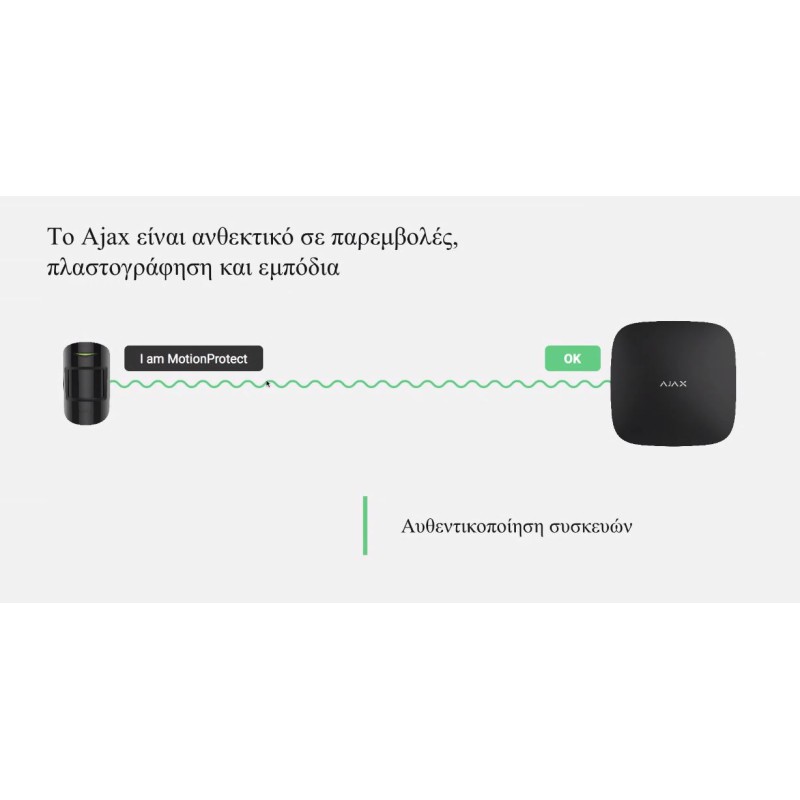

- The device uses Jeweller radio technology to monitor the detectors and ensure a quick response to danger. It switches the entire system to clear frequencies during jamming. The device is protected against viruses at software level

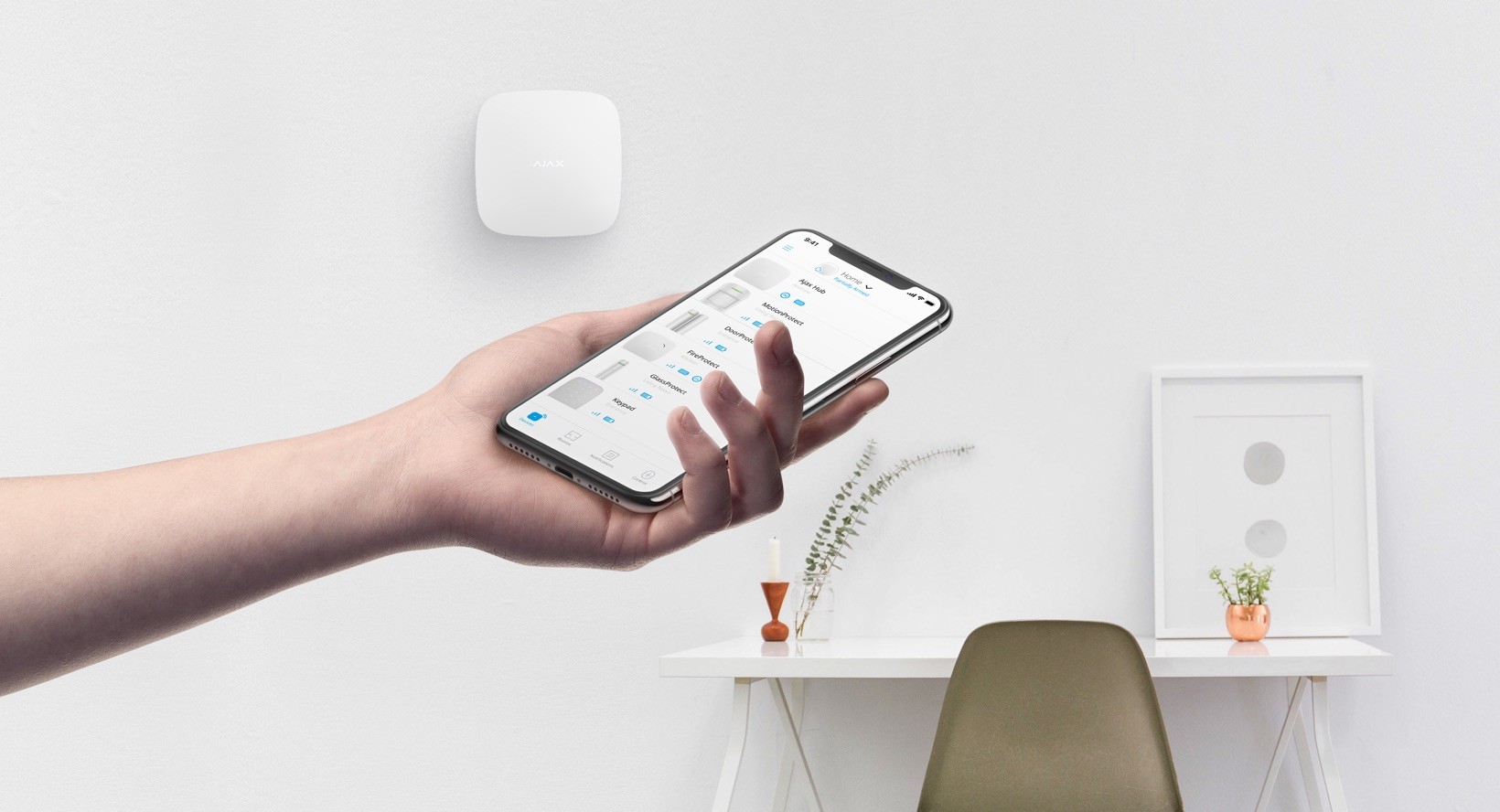

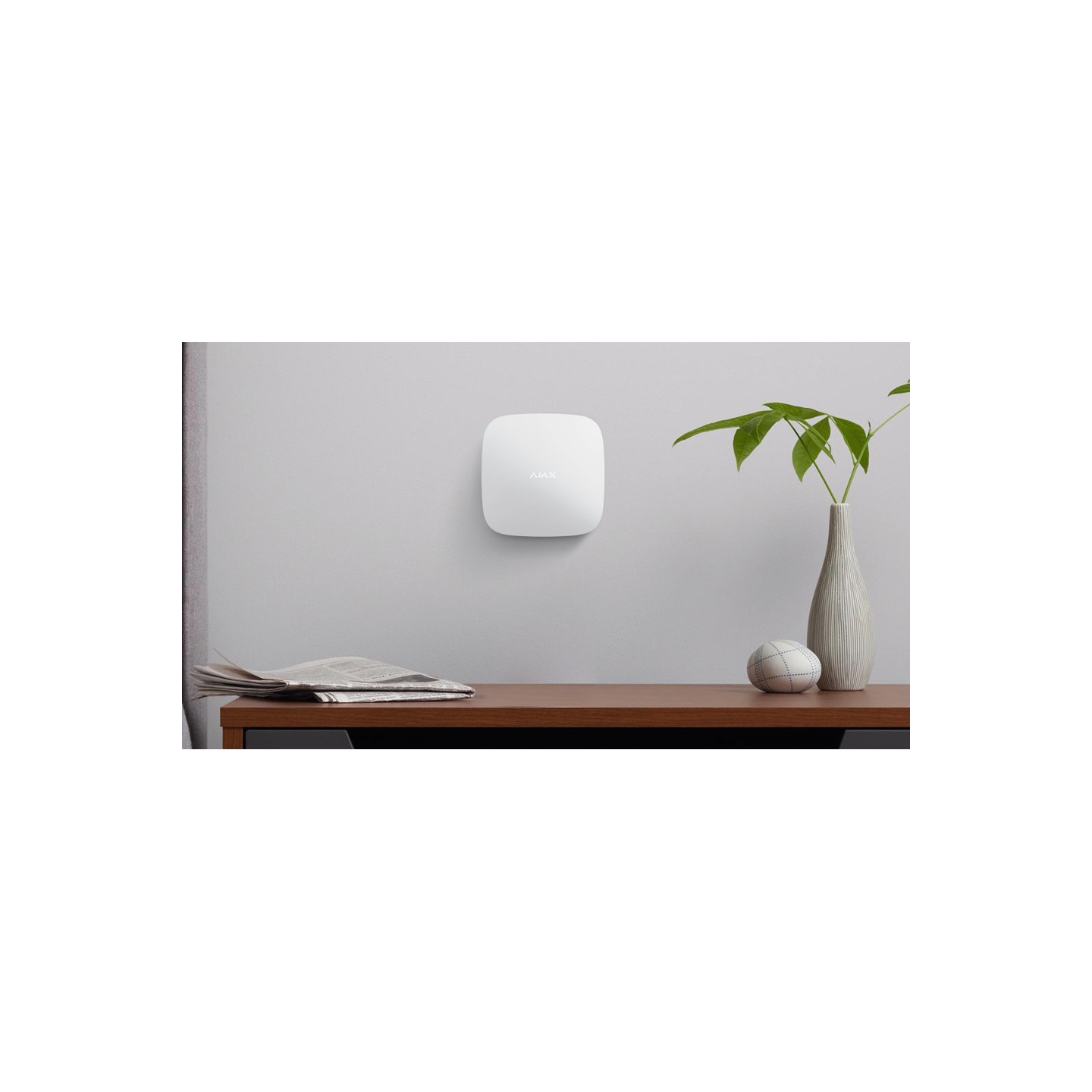

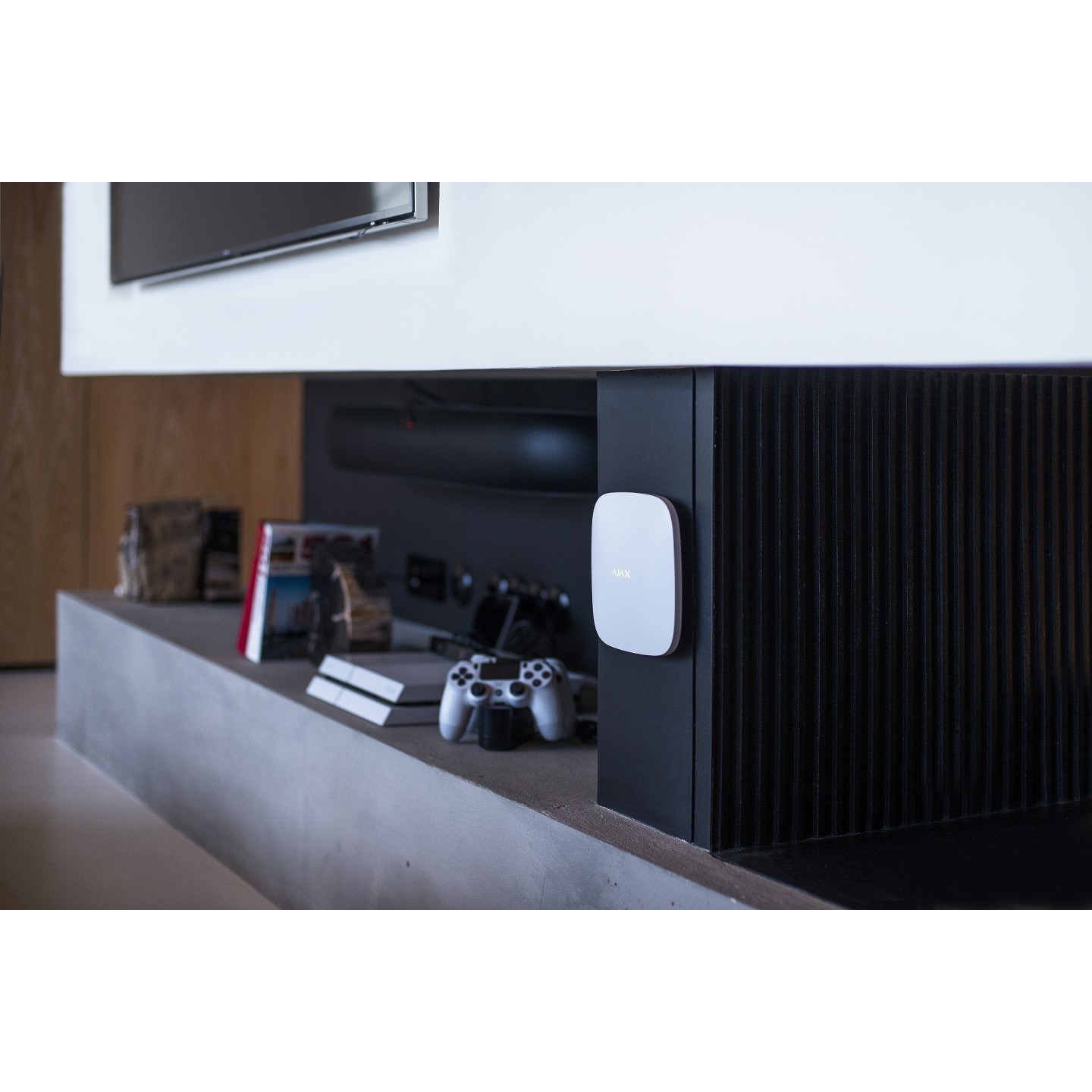

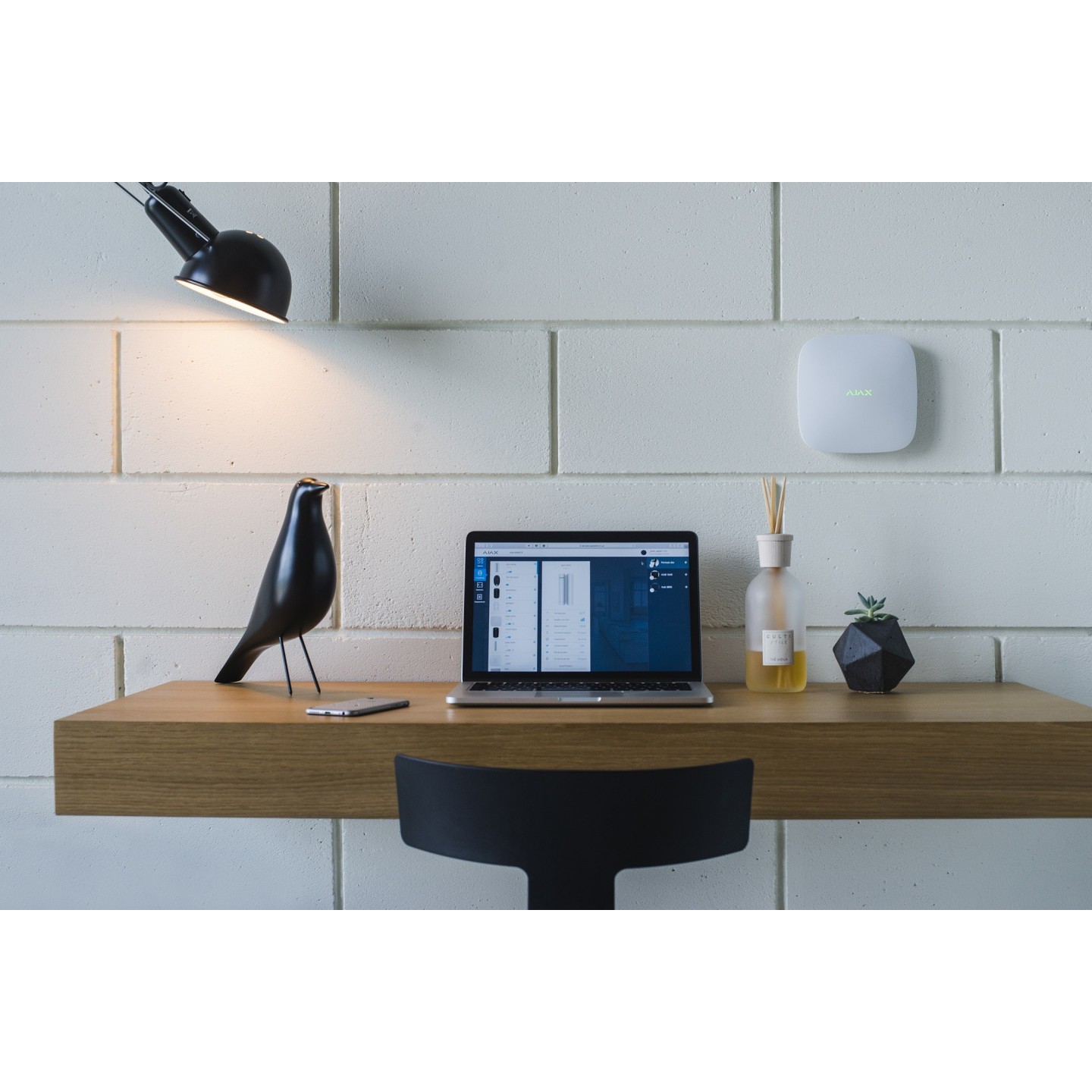

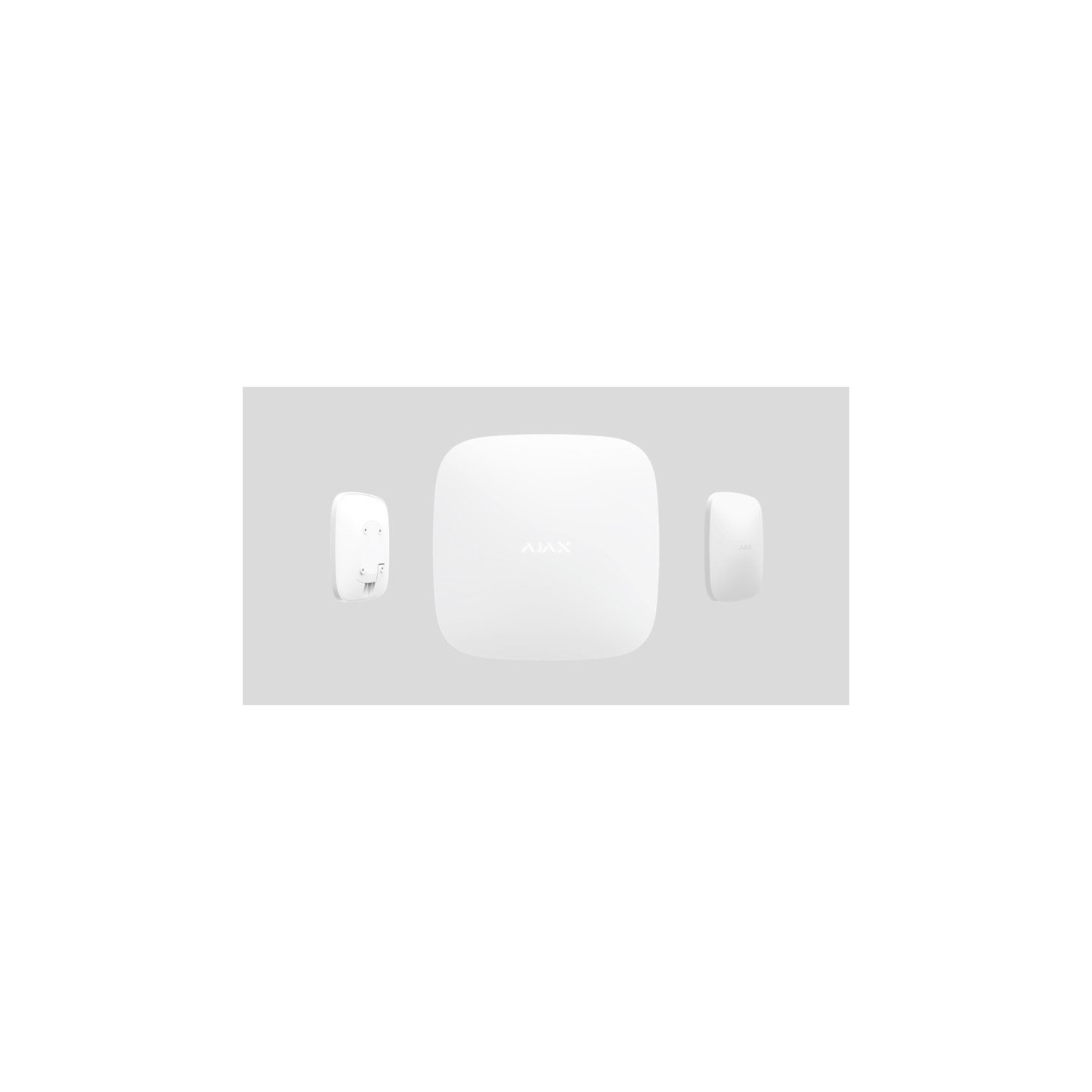

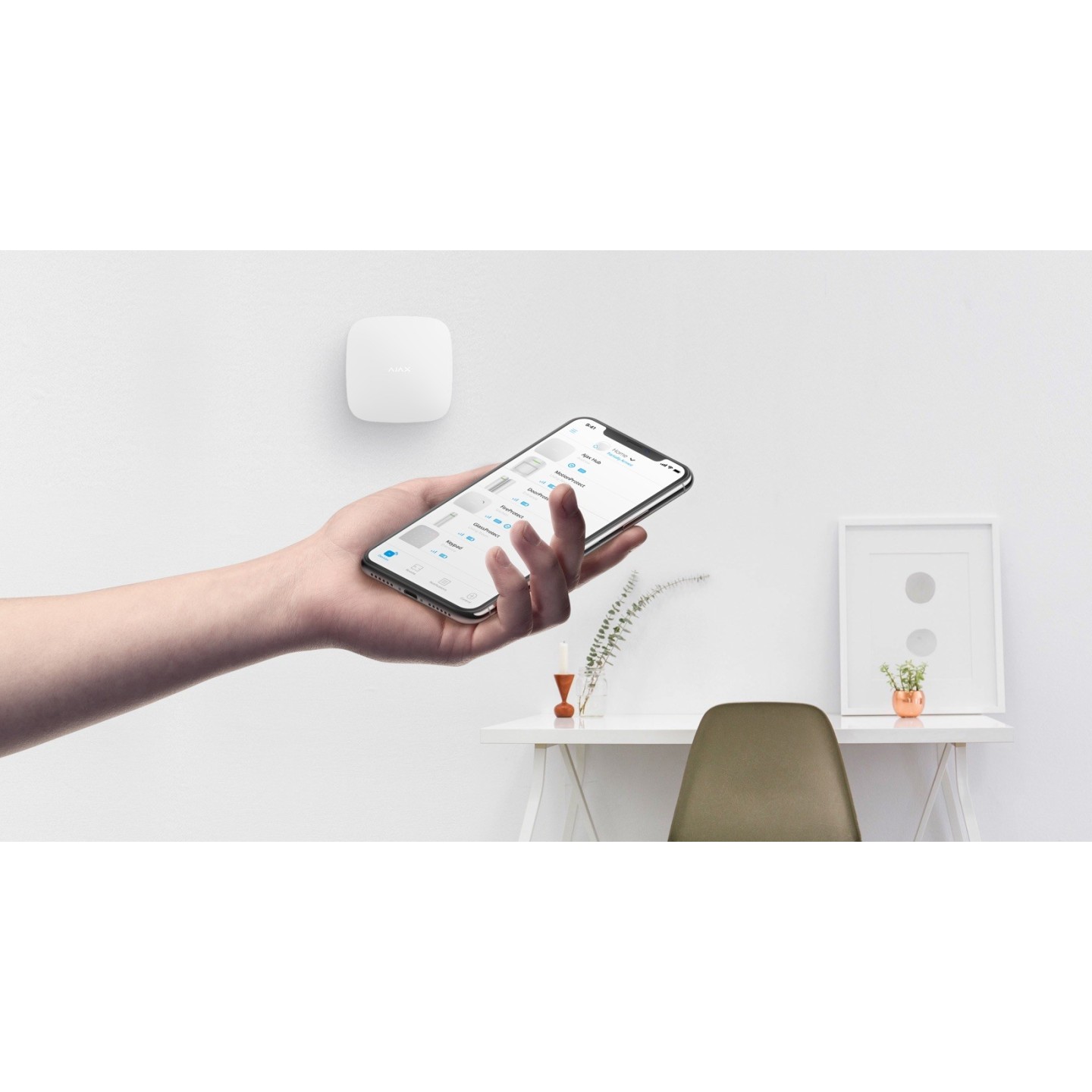

- Ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. It can be mounted in just a few minutes using the SmartBracket mount
- Maximum number of connected devices : 100
- Maximum number of the groups : 9
- Maximum number of the Hub users : 50
- Maximum number of logical rooms : 50
- Power supply : 110 – 240 V AC, 50 / 60 Hz
- Accumulator unit : Li-Ion 2 A⋅h (up to 15 hours of autonomous operation in case of inactive Ethernet connection)
- Tamper protection : Yes
- Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz
- Effective radiated power : 8.20 dBm / 6.60 mW (limit 25 mW)
- Modulation of the radiosignal : GFSK

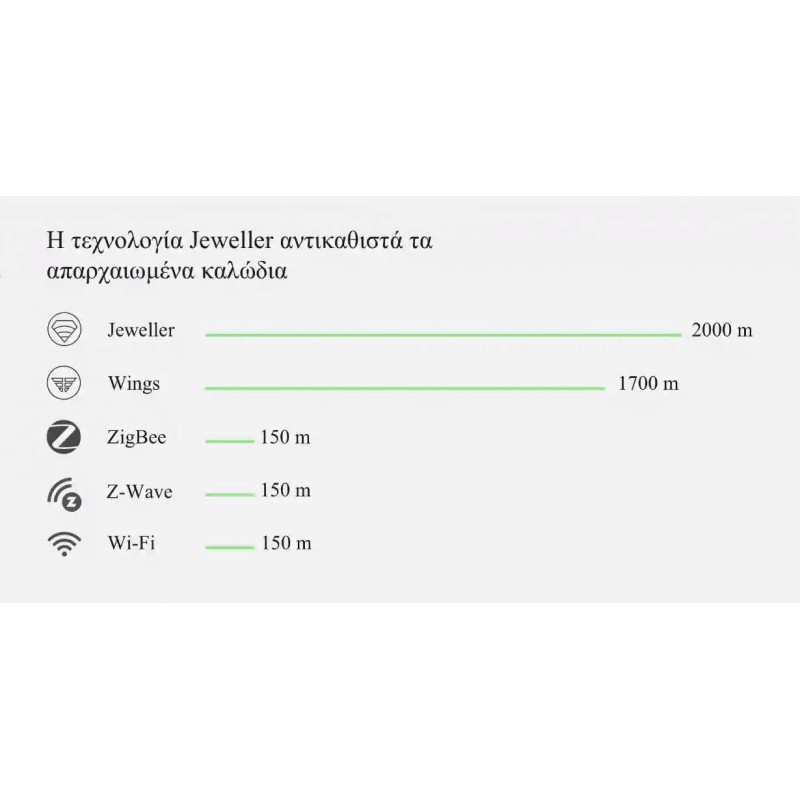

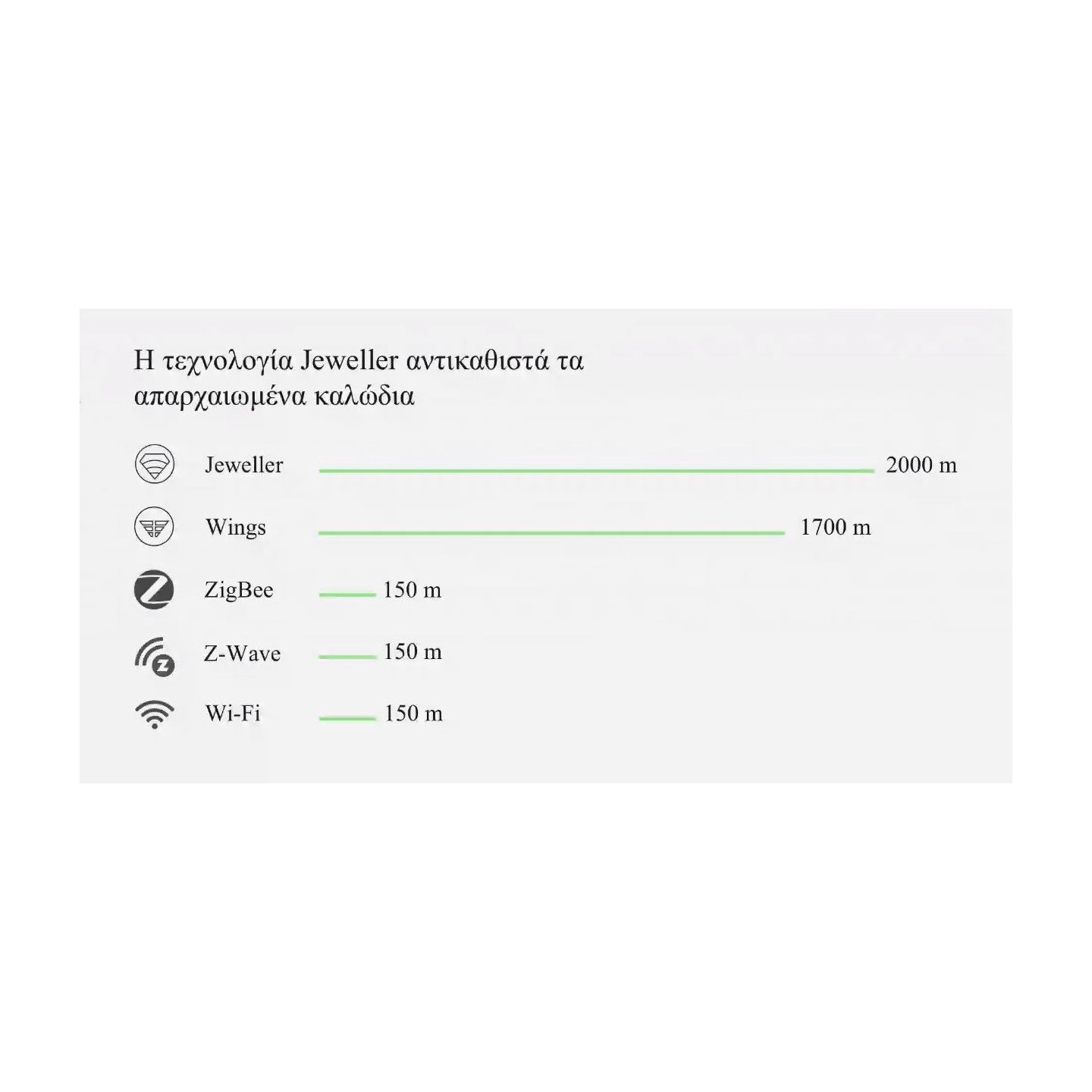

- Radio signal range : Up to 2,000 m (any obstacles absent)
- Communication channels : GSM 850/900/1800/1900 MHz GPRS, Ethernet
- Operating temperature range : From -10°? to + 40°?
- Operating humidity : Up to 75%
- Overall dimensions : 163 ? 163 ? 36 mm
- Weight : 350 g
- Certification : Security Grade 2, Environmental Class I SP2 (GSM-SMS), SP5 (LAN) DP3 in conformity with the requirements of EN 50131 and EN 50136
| Connectivity | Wireless |
| Ethernet | Yes |
| SIM Tray Slots | 1 Slot-2G |
| Video Streaming | Up to 10 Cameras/NVR |
| Battery | Up to 15 Hours |
| Communication | 2 Way Communication |
| Devices | Up to 100 |
| Certification | Grade 2, CE |
| Range | Up to 2000 meters |
| Installation | Wall |
