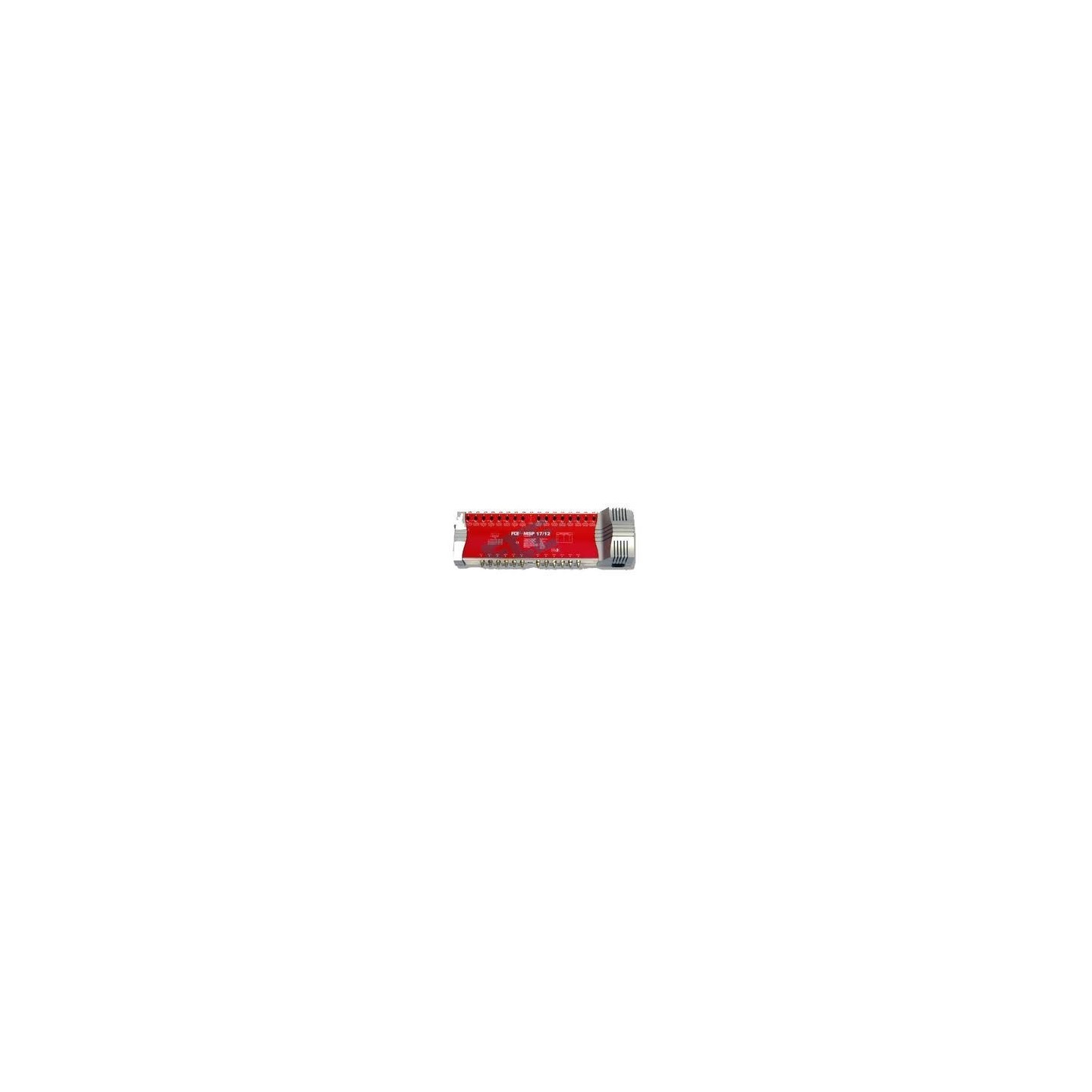

FTE Multiswitch - MSP17 12 - Multiswitch 17 12
MEP multiswitch distributes 16 satellite polarities to up to 16 users; includes a mixed terrestrial input; 17 inputs, 12 outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Multiswitches MEP have been designed to distribute sixteen complete satellite polarities (analog and digital) to a maximum of 16 users. They have a mix input for terrestrial channels passive type.
- Nr of SAT Inputs (950-2200 MHz) 16
- Nº of Terr. Inputs (5-862 MHz) 1
- Nº of Outputs (5-2200 Mhz) 12
- SAT pass attenuation (dB) 4 (typ)
- Pass AttenuationTerr. (dB) 20 (typ)
- Regulation margin SAT (dB) 12
- Commutation type DiSEqC 2.0
- Decoupling between SAT inputs (dB) > 25
- Maximum level SAT input (dBuV) 95
- Maximum level Terr. input (dBuV) 110
- LNB power supply 18 VDC Max 1000 mA
- Power supply SMPS 230 VAC / 50 Hz
- Connectors F
- Weight (grs.) 2400
- Packing quantity 1
- Preamplifiers power supply 18 VDC 100 mA
| Type | Multiswitch |
| Inputs | 17 |
| Outputs | 12 |
