AJAX Power Board - Hub HubPlus Rex
Power supply unit for Ajax Hub, Hub Plus, and ReX that connects control panels and ReX to low-voltage power sources.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- A power supply unit, connecting Hub/Hub Plus control panels and ReX radio signal range extender to low-voltage power sources
Compatibility
- The power supply unit is compatible with Hub, Hub Plus, and ReX. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter
Installation

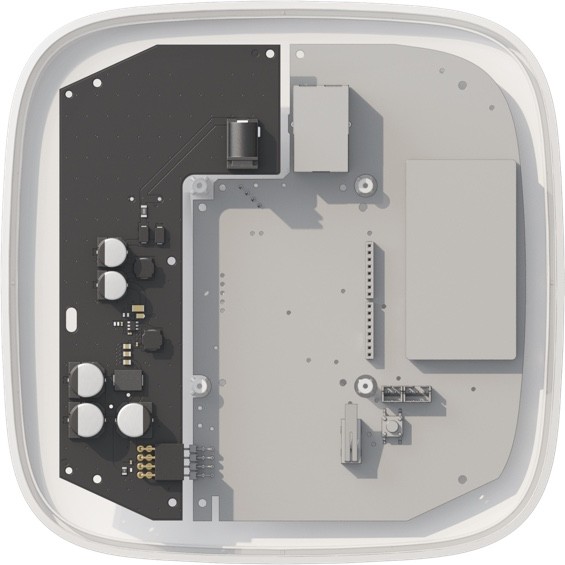

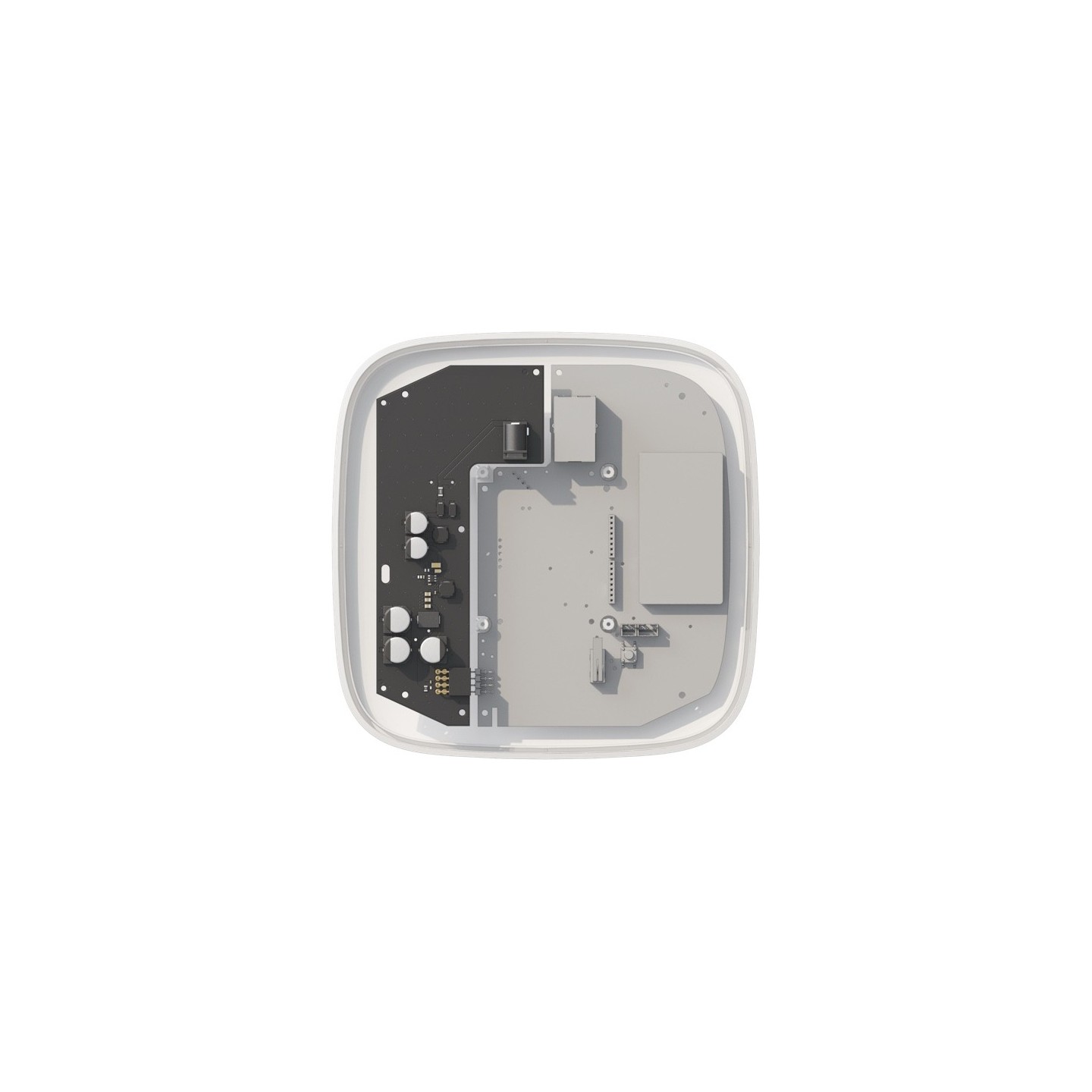

- 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit
Compatibility : Hub, Hub Plus, ReX
Input voltage : 8-20 V DC
Output voltage : 4.65 V ± 3%
Switch-on voltage : 8 V ± 2.5%
Switch-off voltage : 6.9-7.5 V (depending on load)
Input current : <1 А
Output current : 1,5 А
Connection : Socket: 6,5 × 2 mm / Plug: 5,5 × 2,1 mm (power jack)
Dimensions : 138 × 64 × 13 mm
Weight : 30 g
