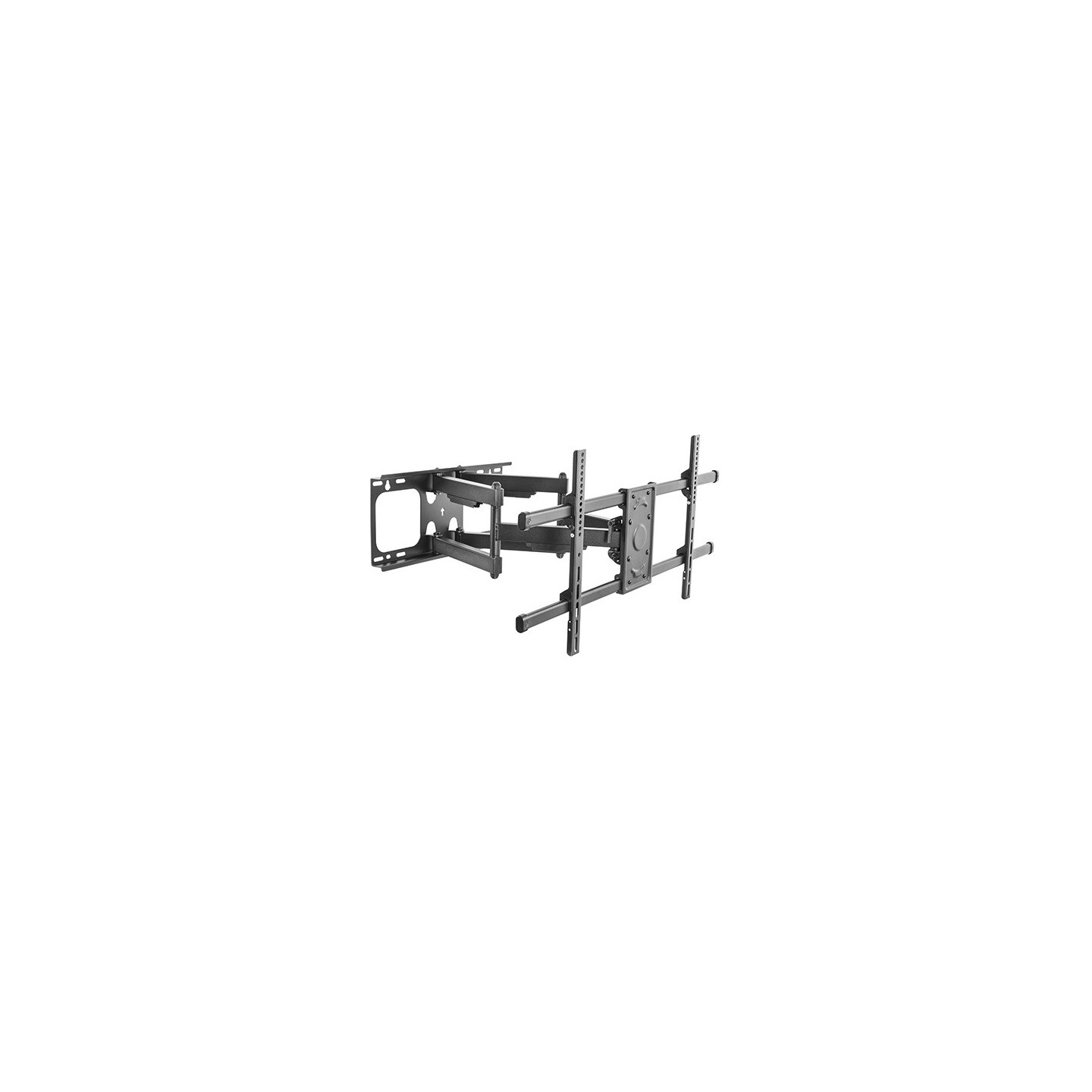

Brateck TV Mount - LPA49-486 - 80x40 Turn 4-Arm 64cm 60kg
Brateck heavy-duty full-motion TV mount for most 37-90 inch flat-panel TVs up to 60 kg, with 64 cm arm extension.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Full-Motion (Articulating) |
|---|
The new solid large full motion mount is constructed with high gauge steel that designed for most 37"-90" flat panel TVs up to 75kg/165lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look.
- Product Category: Full-motion TV Wall Mount
- Rank: Standard
- Material: Steel
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size: 40x25x1.5mm (1.6"x0.98"x0.059")
- Surface Finish: Powder Coating
- Color: Fine Texture Black

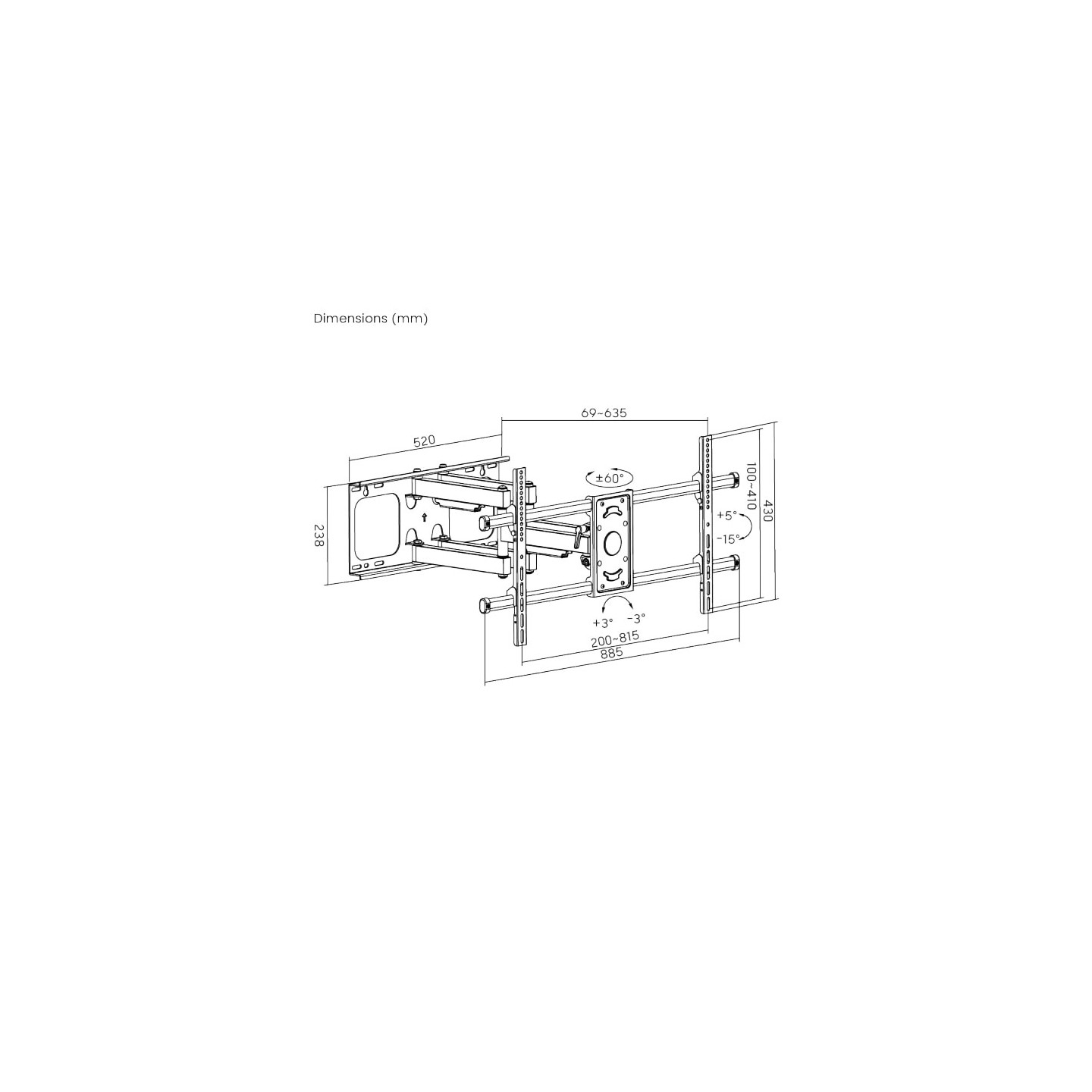

- Dimensions: 635x885x430mm (25"x34.8"x16.9")
- Fit Screen Size: 43"-95"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA & Universal
- VESA Compatible: 200x200,400x200,300x300,400x400,600x400,800x400
- Max. Mounting Hole: 800x400
- Weight Capacity: 75kg (165lbs)
- Strength Tested: 3 Times Approved
- Profile: 69~635mm (2.7"~25")
- Tilt Range: ＋5°～-15°
- Swivel Range: +60°~-60°
- Screen Level: +3°~-3°
- Screen Freely Tilting: No
- Installation: Solid Wall,Double Stud(406mm/450mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Cable Management: Yes
- Anti-theft: No
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
- Certification: CA 65
| Function | Turn |
| Max Vesa | 800x400 |
| Max. Weight | 60kg |
| Arm Extension | 64cm |
