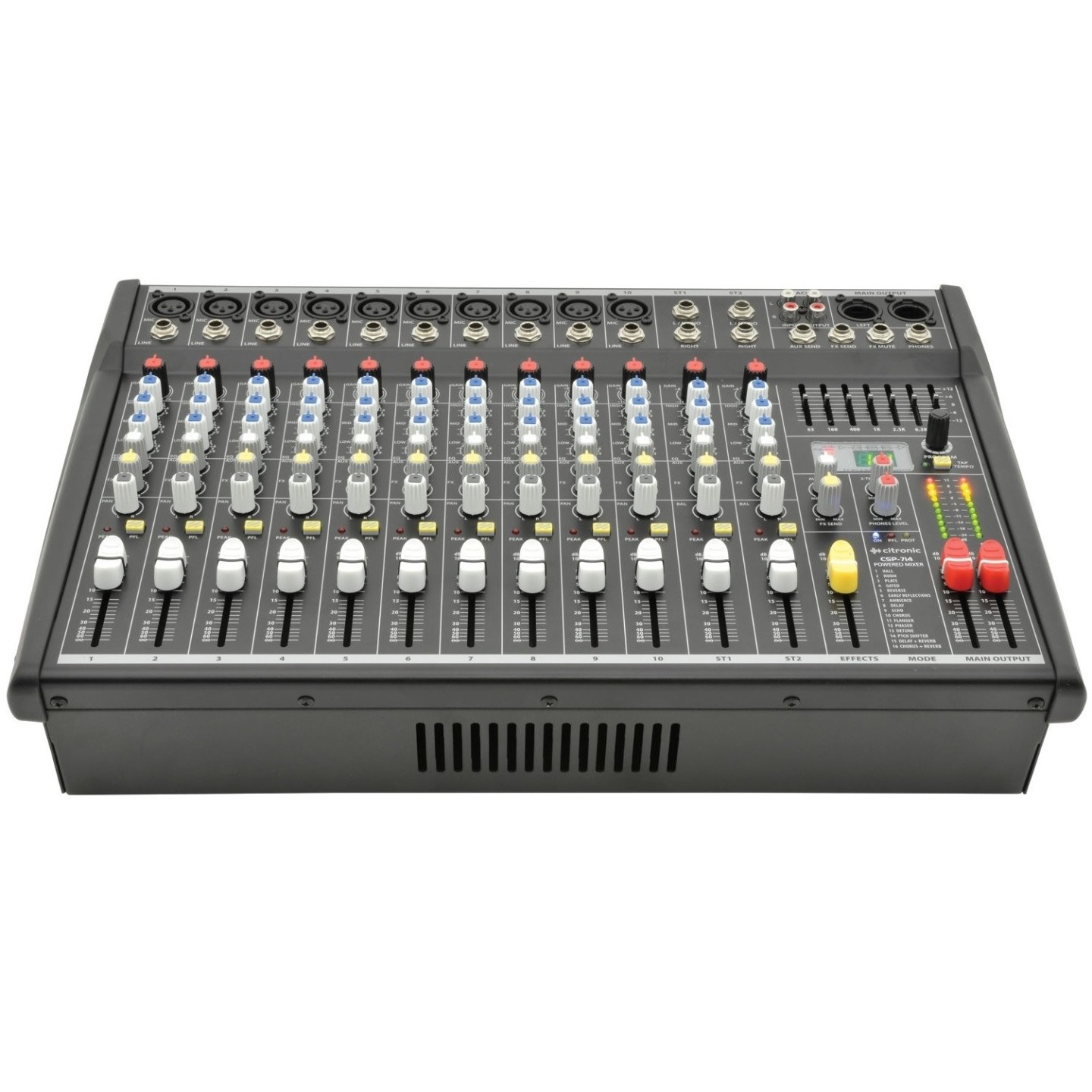

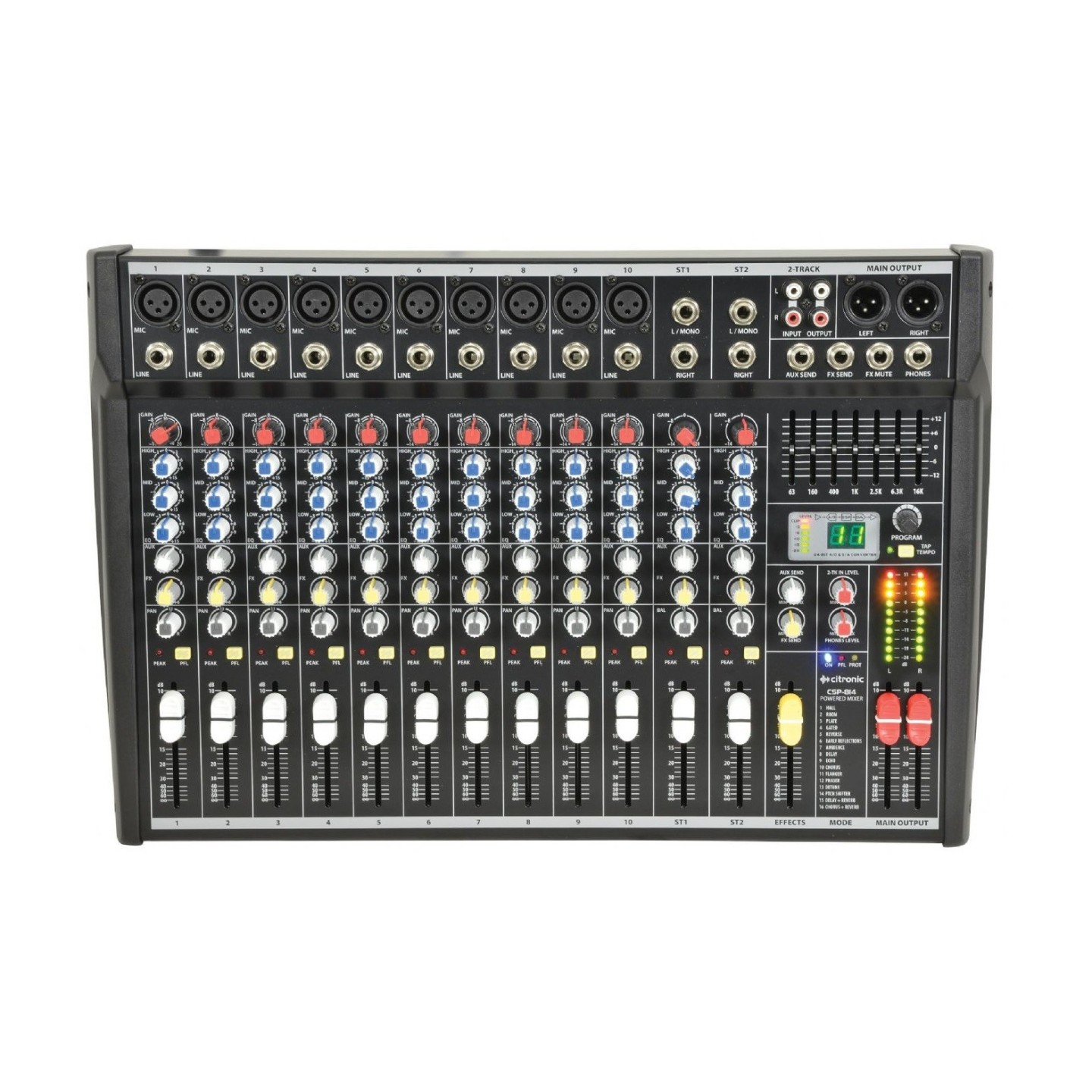

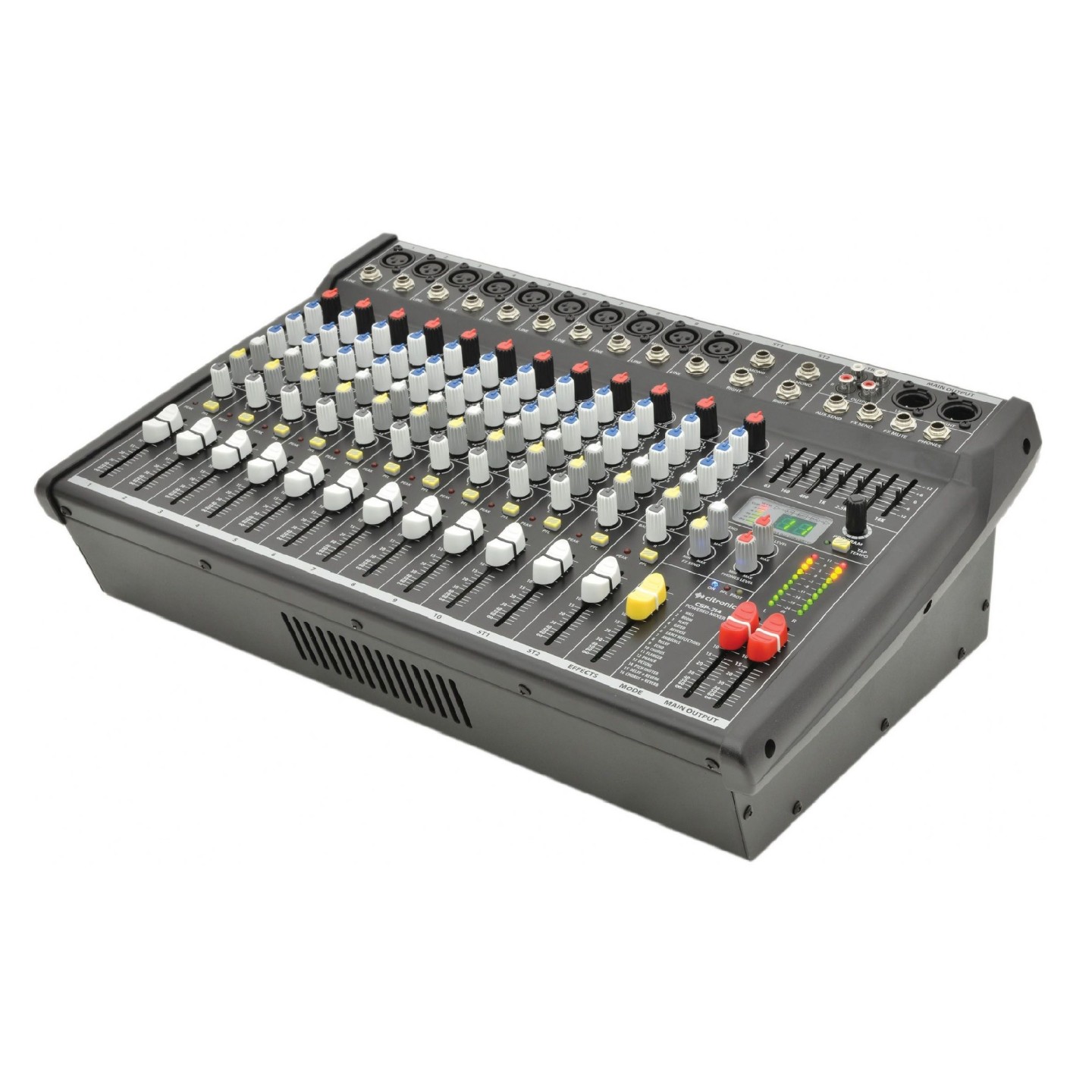

Citronic Powered Mixer - CSP714 v2 - Powered Mixer 700W 170.845UK
Powered mixer with balanced mic/line inputs, 2 stereo channels with 3-band EQ and aux send; 16-program DSP with tap tempo, 7-band graphic EQ and built-in stereo amp.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
- Power consumption: 1000W
- Fuse: T15A (5 x 20mm, 250V)
- Output power @ 4 Ohms 2 x 350Wrms
- Output power : 8 Ohms 2 x 230Wrms
- Inputs : mic/line 10 x balanced XLRF/TRS jack
- Dimensions: 477 x 322 x 153mm
- Weight: 0.40kg
- Power supply: 230Vac 50Hz (IEC)
- Phantom power: +48V (XLR inputs)
- Input level: +24dBu
- Output level: line +26dBu
- Frequency response: 20Hz-30kHz (0.5dB)
- CMRR >74dB (mic 1kHz)
- THD +N <0.01% (channel to main out)
- Crosstalk >85dB (fader mute), >82dB (channel)
- Noise rms: 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
- EQ: high 12kHz ±15dB shelving
- EQ: mid 2.5kHz ±15dB band pass
- EQ: low 80Hz ±15dB shelving
- Input impedance: mic (balanced) 2k Ohms
- Input impedance: line (balanced) 10k Ohms
- Sensitivity: mic -60 to +14dBu
- Sensitivity: line -40 to +14dBu
- 2-track: 2 x RCA in & out (-2dBu)
- Effects: 16 program DSP (24-bit sigma-delta, 40khz)
- Output impedance <75 Ohms
- Headphone output: 6.3mm jack, 30-600 Ohms
- Speaker: outputs L+R SPK connectors
