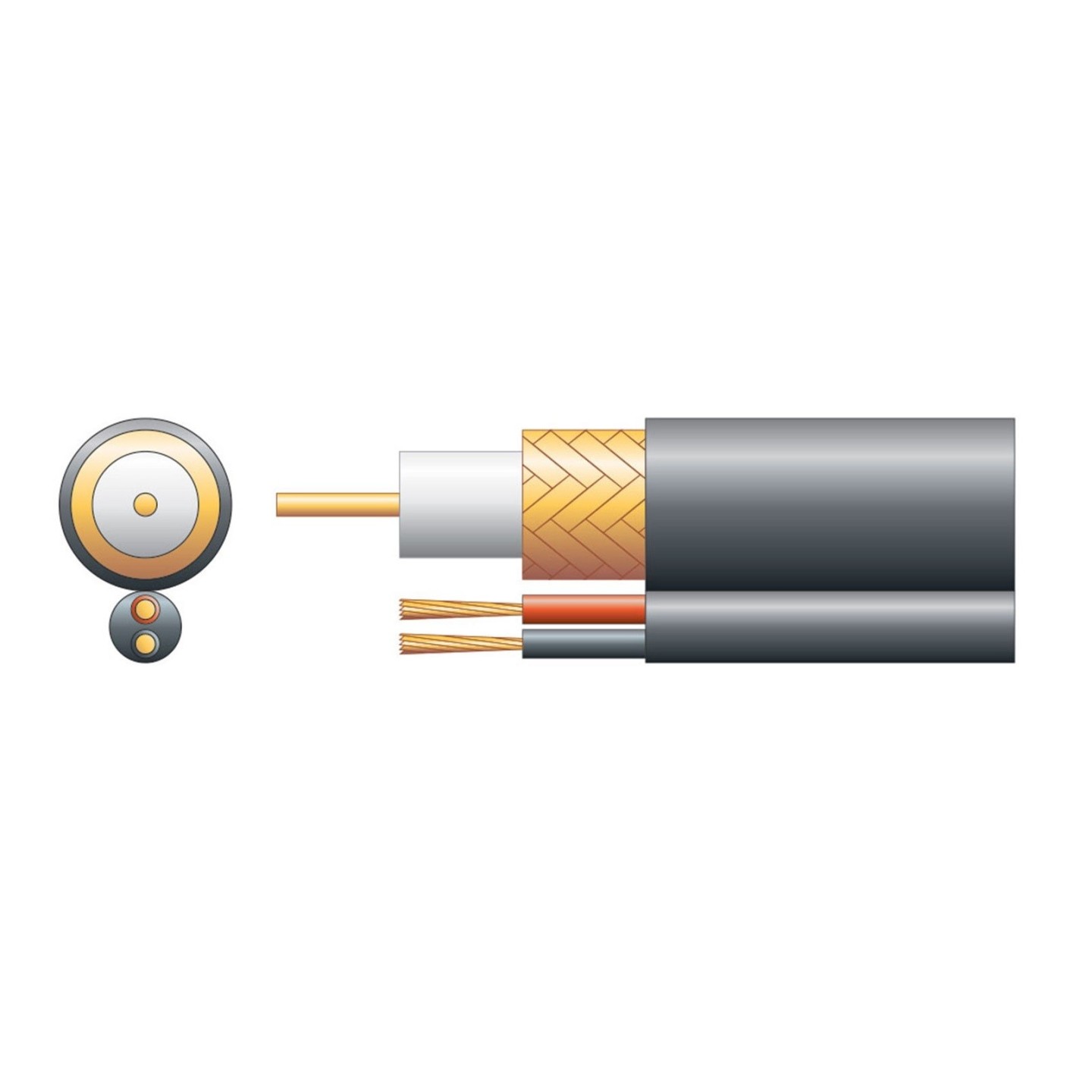

Mercury RG59 Shotgun Foam Cable - 808.105UK - 100m
75 Ohm RG59 coaxial cable with foam-filled PE dielectric and CCA braid, paired with a two-core power cable on a 100m reel; designed for CCTV power and signal transmission.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| BNC/PoE Cables - Type | RG59 + Power (BNC) |
|---|---|
| BNC/PoE Cables - Length | 100 m |
| BNC/PoE Cables - Conductor | Solid Copper |

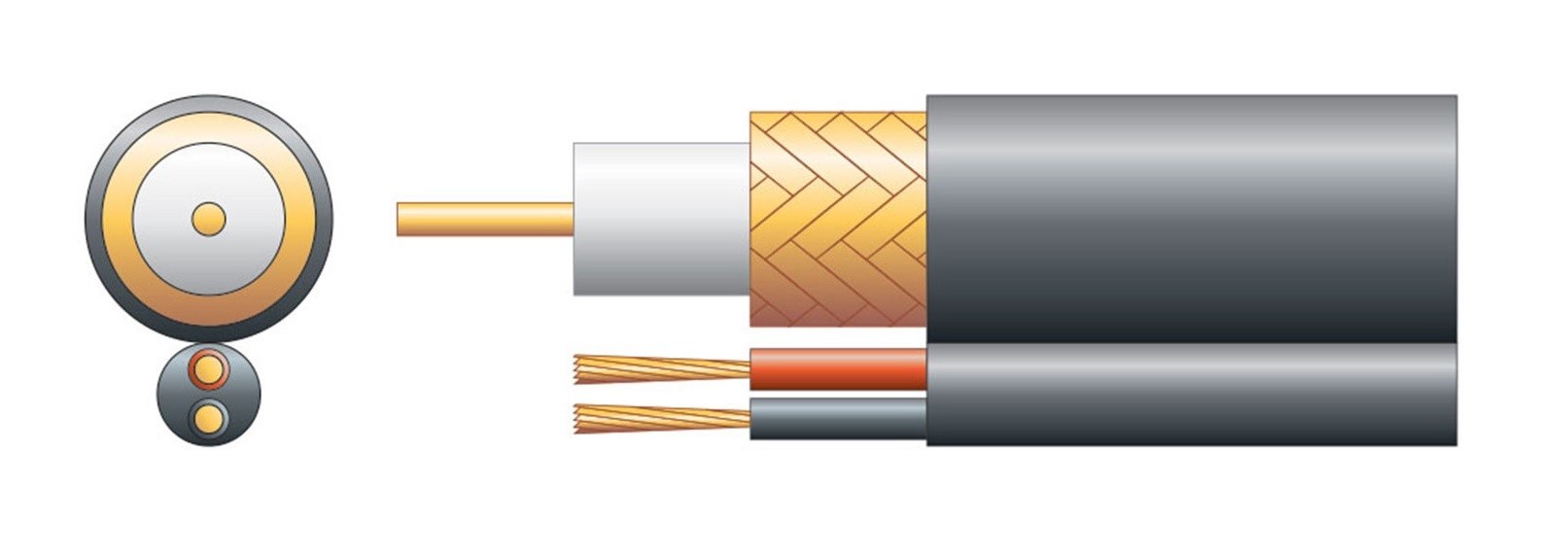

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.
- Solid OFC coaxial conductor
- Foam filled PE dielectric
- CCA braid
- Stranded OFC power cable conductor
- Supplied in 100m reel with metric cut markers
- CSA: 0.5mm²
- Conductor diameter: 0.8mmØ
- Conductor material: Solid OFC
- Braid: 48 x 0.12mmØ
- Braid: material CCA
- Dielectric: 3.7mmØ foam PE
- Cable diameter: 6mmØ
- Impedance: 75 Ohms
- Capacitance: 67pF/m
- Velocity factor: 83%
- Power cable: 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
- Max. current: 6A
- Return loss 5-400MHz: 24dB min./100m
- Return loss 450-1000MHz: 20dB min./100m
- Return loss 1000-2150MHz: 16dB min./100m
- Attenuation @ 5MHz: 2.8dB max./100m
- Attenuation @ 50MHz: 5.1dB max./100m
- Attenuation @ 100MHz: 7.3dB max./100m
- Attenuation @ 200MHz: 10.1dB max./100m
- Attenuation @ 400MHz: 14.9dB max./100m
- Attenuation @ 860MHz: 22.1dB max./100m
- Attenuation @ 1000MHz: 24.7dB max./100m
- Attenuation @ 1750MHz: 34.1dB max./100m
- Attenuation @ 2150MHz: 38.1dB max./100m
- Colour: Black
- Length: 100m
- Weight: 6.4kg
