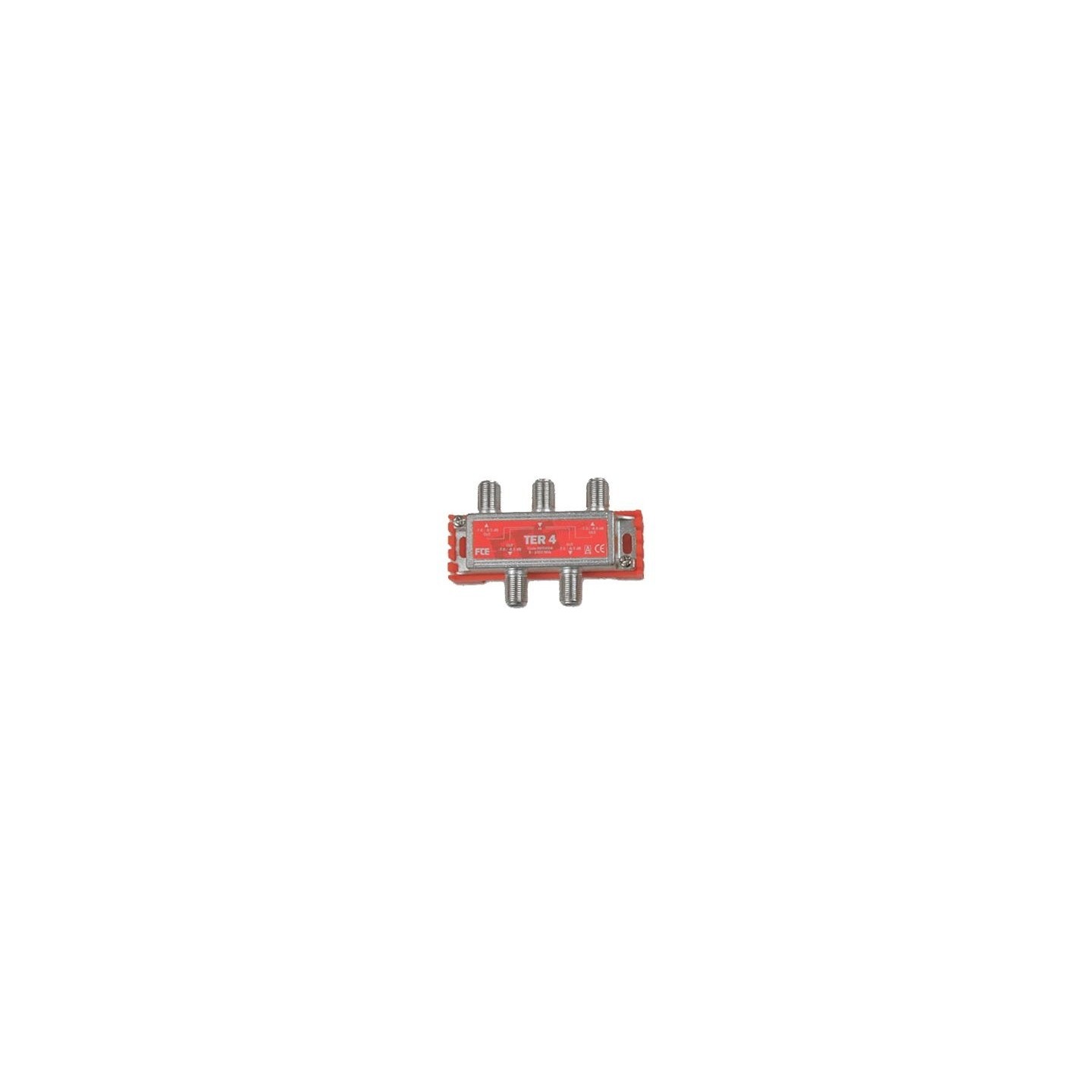

FTE Splitter - TER4 - 1-4 (5-1000MHz)
4-output splitter for 5-1000 MHz installations, designed for shielding per European EMC standards.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Splitters for installations from 5 to 1000 MHZ. These elements accomplish shielding or screening requirements specified in the european norm in force, specially concerning to electromagnetic compatibility. European norm EN 50083 section 2 (and 2/A1) specifies screening levels that passive elements must accomplish in distribution systems of TV and sound signals through coaxial cable. In this norm are defined levels and grades of quality of passive elements. Elements that accomplish A CLASS specifications, see attached board, for its screening are specially recommended to be used in distribution networks which are exposed to high levels of interferences in environment. This new series of passive elements FTE Maximal fulfill A CLASS requirements of this norm. References with these features are marked as A.
- Covered Band (MHz) 5-1000
- Return band (MHz) 5-30 / 5-65
- Nr. Of outputs 4
- Distribution attenuation (dB) Freq.(MHz) Typ Max 5-300 6,1 6,9 300-606 6,2 7,0 606-1000 7,8 8,5
- Decoupl. between outputs (dB) 5-300 > 35 300-606 > 25 606-1000 > 25
- Return loss (dB) IN > 18 OUT > 18
- Screening factor (dB) > 100
- Impedance (Ω) 75
- Current pass no
- Connectors F female
- Plastic support included
- Dimensions (mm) 10 pcs : 165 x 165 x 70 120 pcs: 330 x 330 x 210
- Packing weight (Kg) 10 pcs: 1 120 pcs: 12
| Type | Splitter |
| Outputs | 4 |
| Frequency | 5-1000Mhz |
| Series | TER |
