Adastra RX45 Advanced Audio Matrix - 953.046UK - 4in 5out
1U rack-mountable audio matrix with 4 inputs to 5 stereo outputs; built-in player with USB, DAB+, and Bluetooth.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs

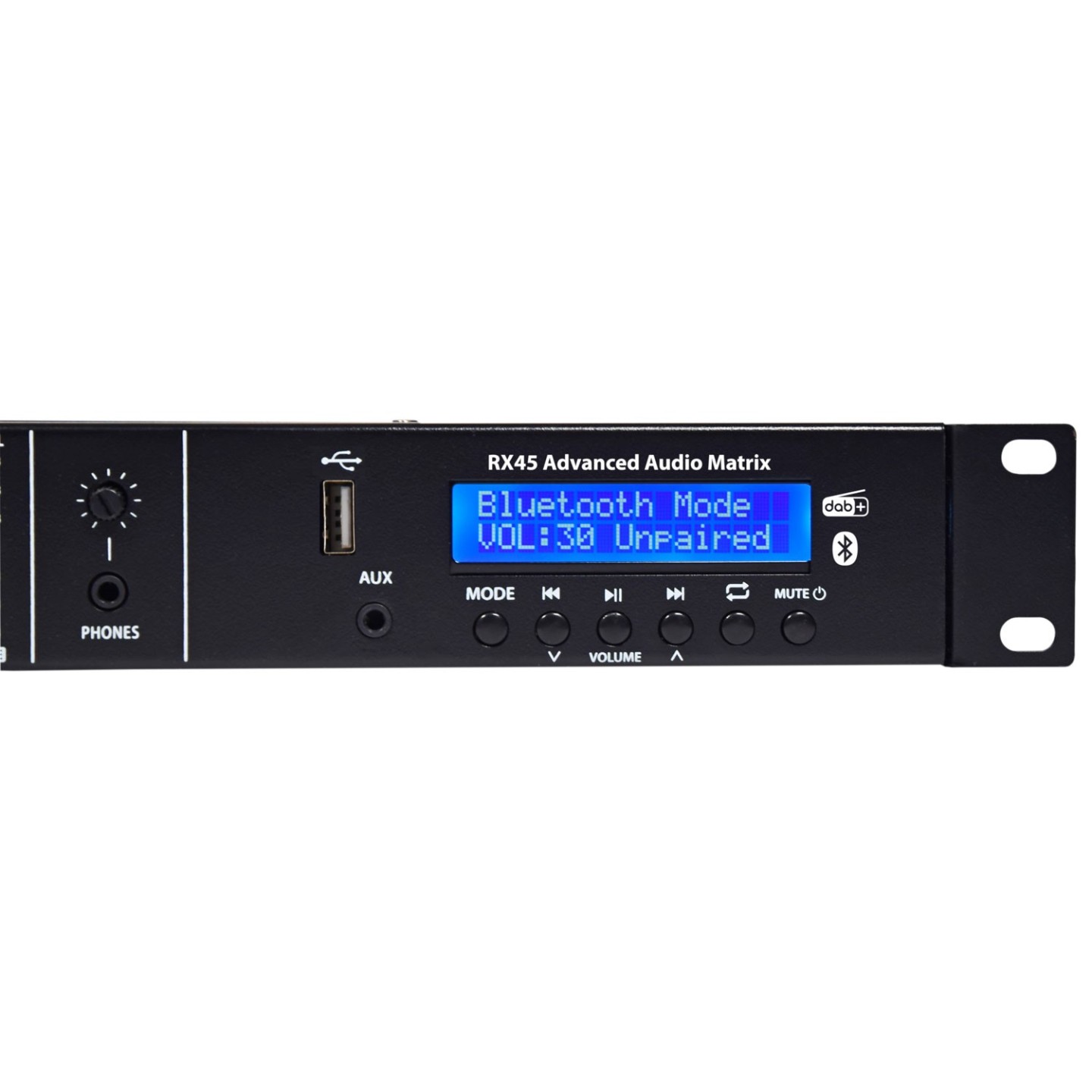

- An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth

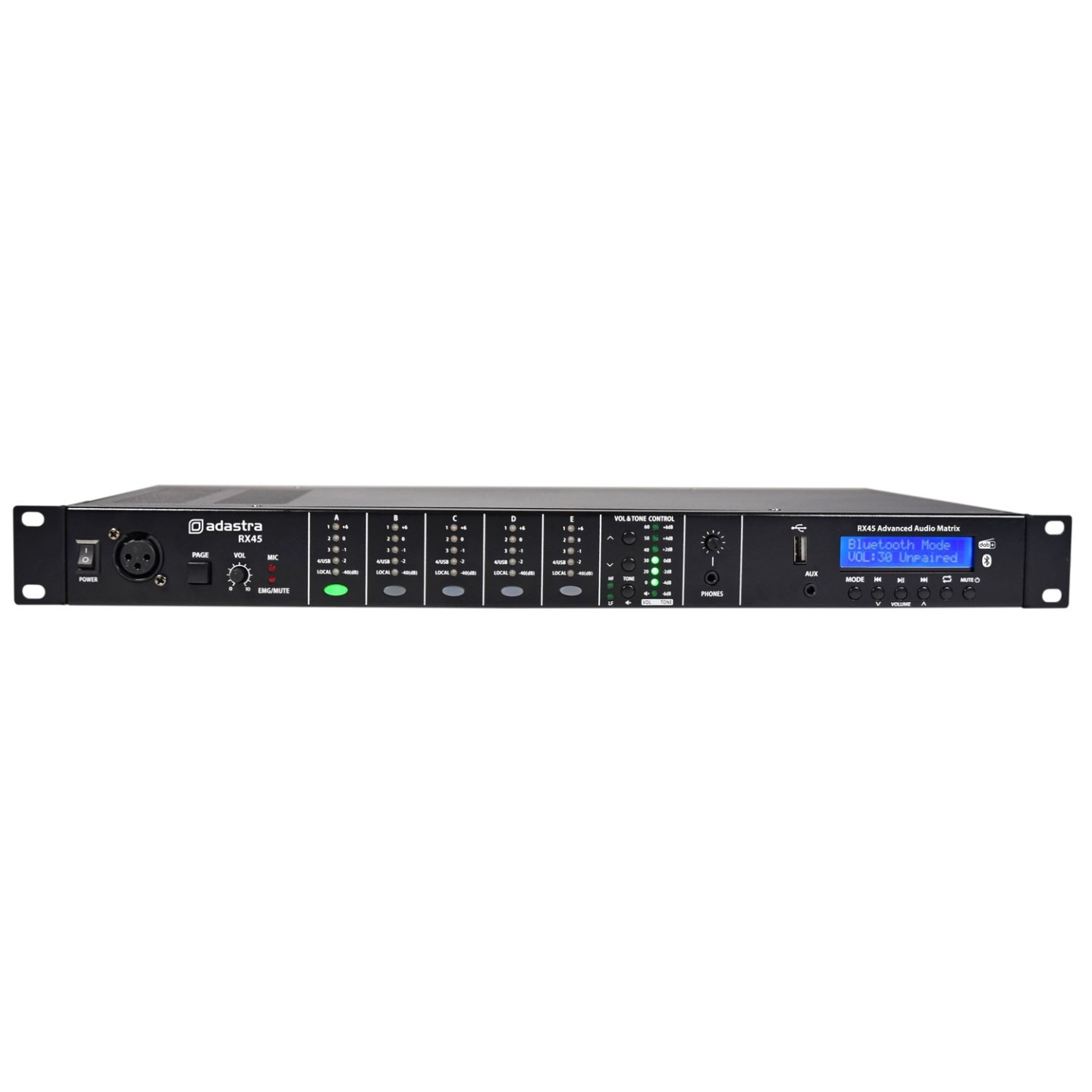

- Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section
- Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone
- The output for the selected zone may be monitored through a headphones output on the front panel
- The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones
- Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves
- An optional CS-20 call station can be used to address up to 20 different zones for announcements
- Expandable up to 40 individual zones (8 x RX45)
- Inbuilt USB, DAB+ and BT audio player
- Local or optional TR86 remote control per zone
- Local audio connection available if using TR86 remote
- Emergency mute and audio in contacts
- RX45 units linkable using standard CAT5 cable
| Amplifier Type | Matrix Amp |
| Zones | 5 |
| Zone Control | Wall Plate |
| USB / FM / BT | Yes |
| Rack Mountable | Yes |
