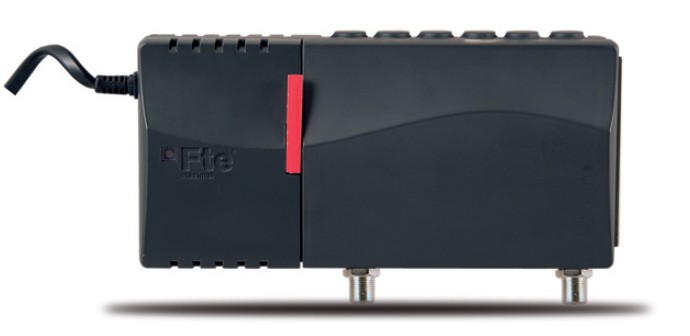

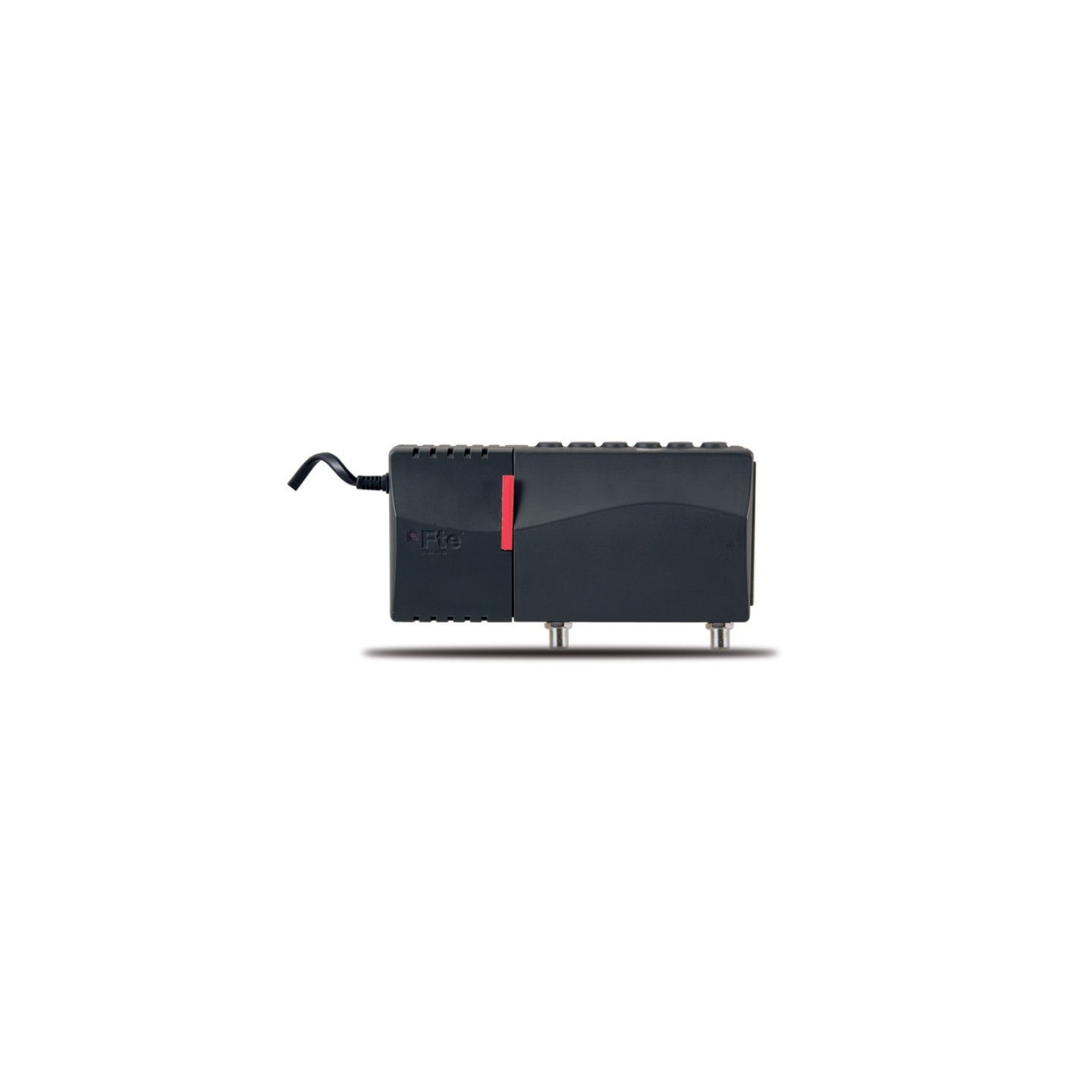

FTE Line Amplifier - HCAZM20-65 - 22db 115db Aluminium
1x input/1x output line amplifier for 85-862 MHz, 22dB gain, 20dB regulation, 10dB equalisation, 5-65 MHz return path, aluminium enclosure.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Number of Inputs/Output: 1/1
- Frequency Range: 85-862 MHz
- Gain: 22dB
- Regulation: 20dB
- Equalisation: 10dB
- Return Path: 5-65 MHz
- Return path Gain in active mode: 20dB
- Return path Gain Regulation in active mode: 20dB
- Return path Insertion losses in passive mode: 2.5dB
- Output Level Max.: 115dBµV
- Decoupling between Bands: >20dB
- Consumption: 230V 50-60Hz, 3W
- Dimensions(mm): 175 x 50 x 98
| Type | Line Amplifier |
| Inputs | 1 |
| UHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 20db |
| Total Output | 115db |
| Other | Aluminium |
