Mercury CAT6A FTP Outdoor Network Cable OFC 305m - 808.034UK - Grey
Cat6A oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Length Range | Other |
|---|

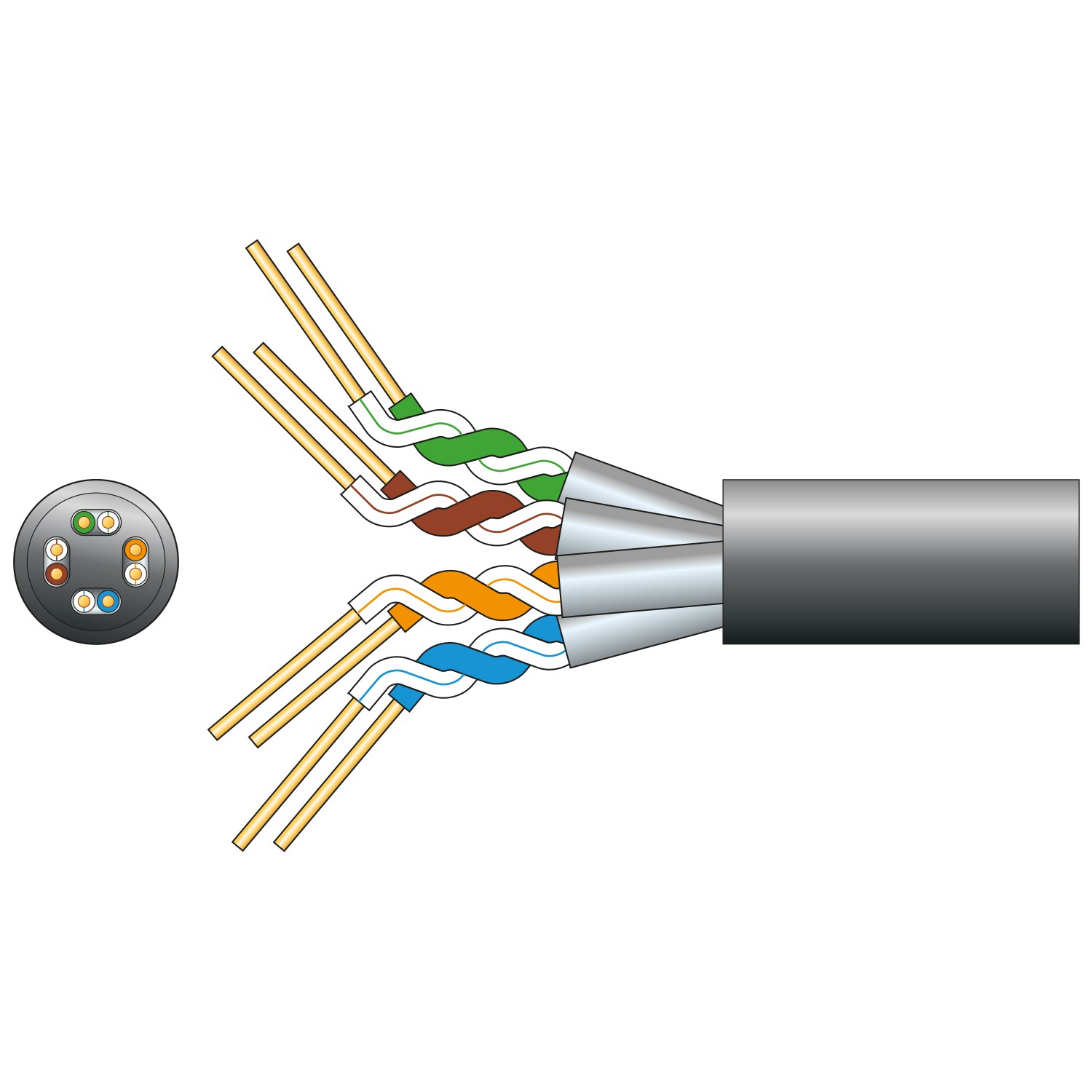

Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
- AWG 23 oxygen free solid copper conductor
- LDPE sheath with UV resistant properties ideal for outdoor installations
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
- Conductor: Solid OFC
- Strands: 8 x 1/0.560mmØ ±2%
- Cable : diameter7.3±0.5mm
- Screen: Aluminium/Mylar foil
- Insulation: PE 1.330±0.05mmØ
- Sheath: LDPE 0.55±0.05mm thickness
- Capacitance: <330pf/100m
- DC resistance @ 20°C: <9.38 Ohms/100m
- Impedance (100 to 250MHz): 100±15 Ohms
- Impedance (250 to 500MHz): 100±22 Ohms
- Return loss: >26.62dB
- Attenuation: <2.03dB
- NEXT: >87.2dB
- PSNEXT: >85.15dB
- ELFEXT: >88.77dB
- PSELFEXT: >86.74dB
- Phase delay:<450.79ns
- Colour: Black
- Length: 305m
- Weight: 17.4kg
| Type | Cat6a |
| Cable Type | FTP |
| Conductor | Pure Copper |
| Environment | Outdoor |
| Length | 305m |
| Colour | Black |
