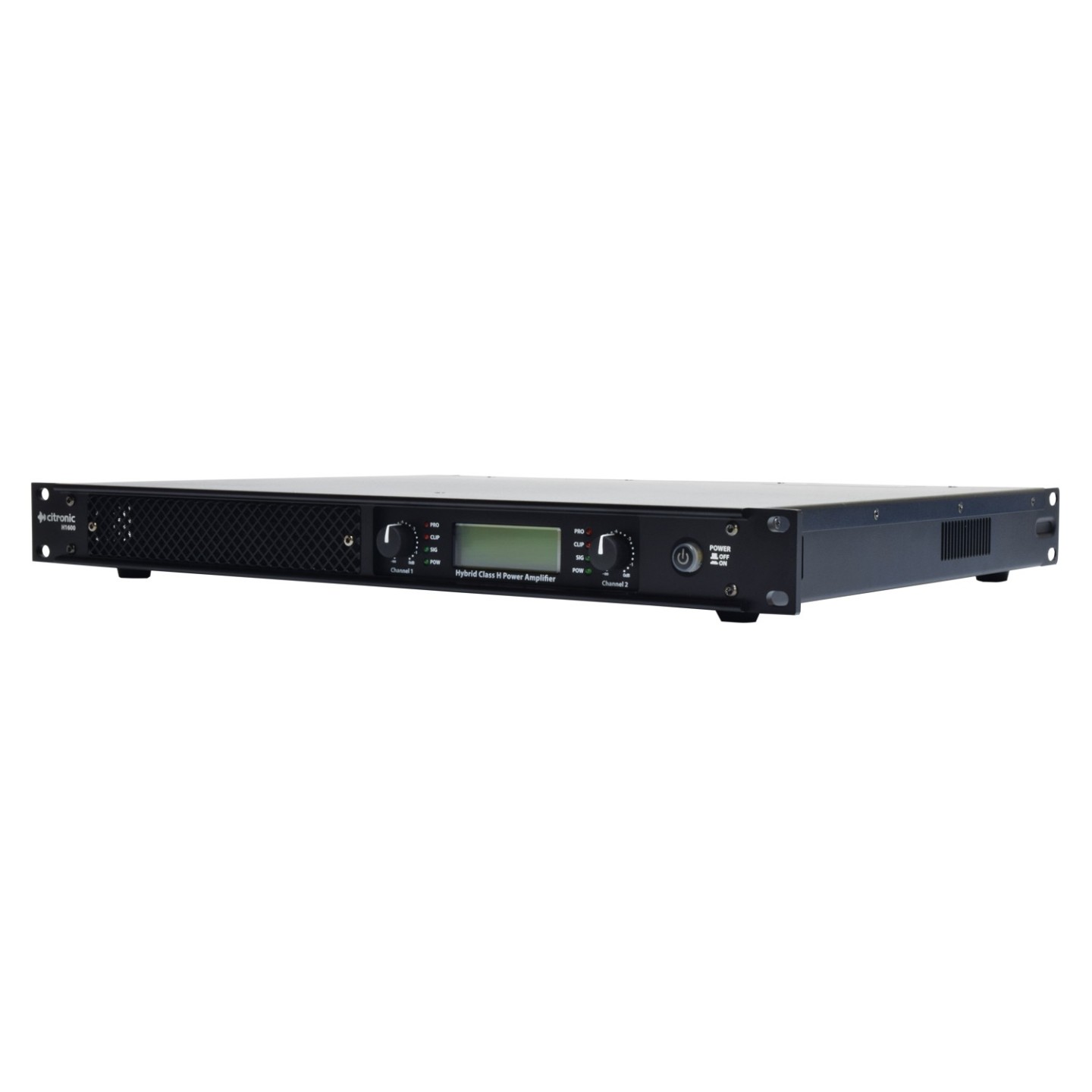

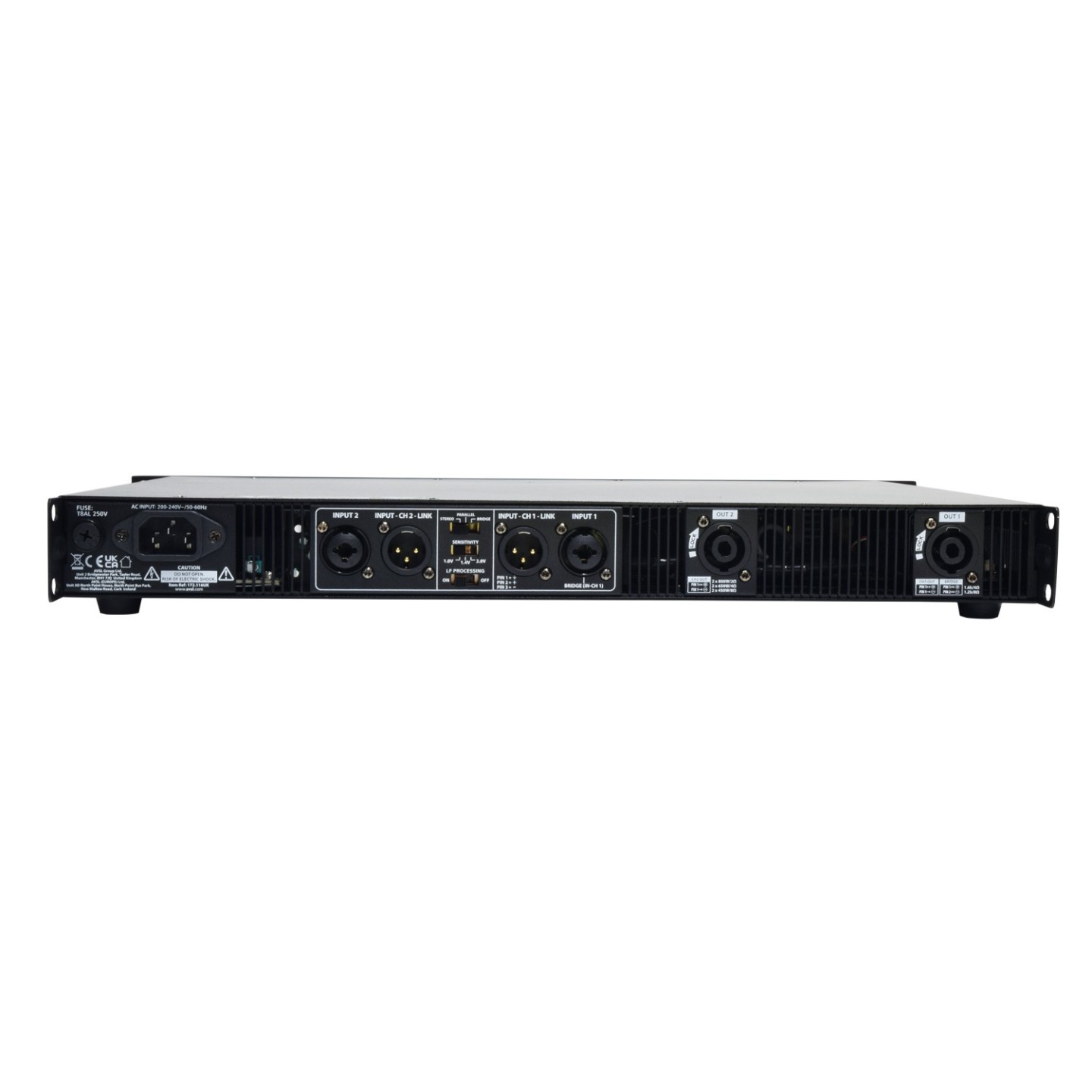

Citronic Hybrid Amp - H1600 - 2x800W@2ohm 172.116UK
Lightweight 1U rack-mount hybrid amplifier delivering 2x800W at 2Ω in dual-channel with bridge mode and 3-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

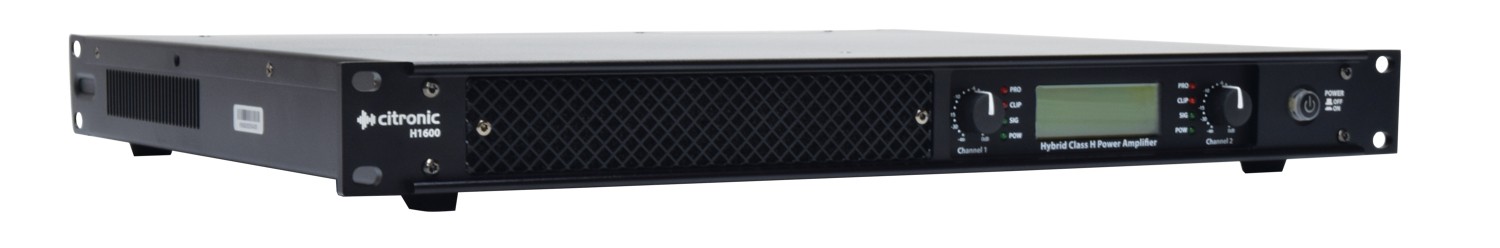

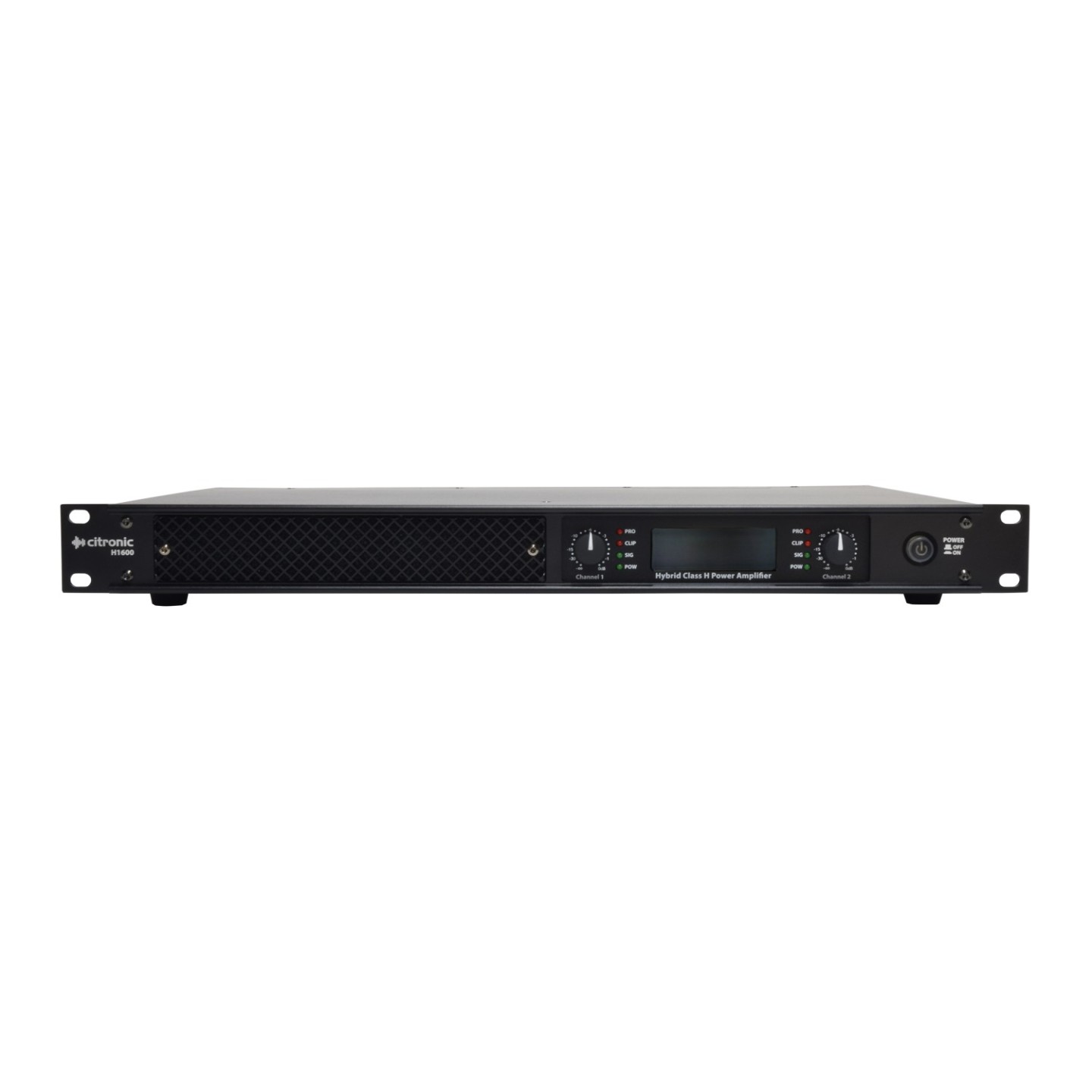

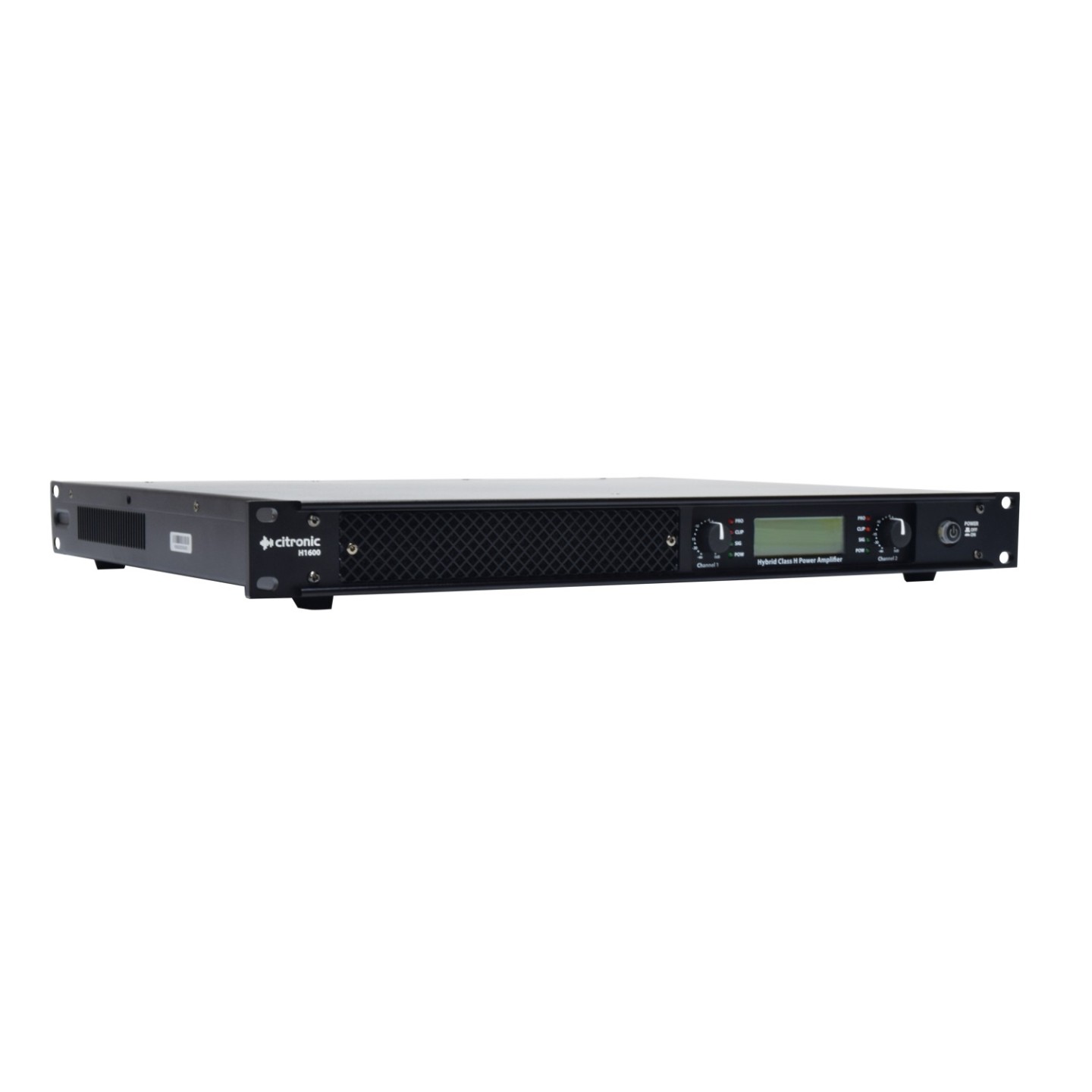

Lightweight power amplifier in a 1U rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-AB output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Industry standard Class-AB bi-polar output stage

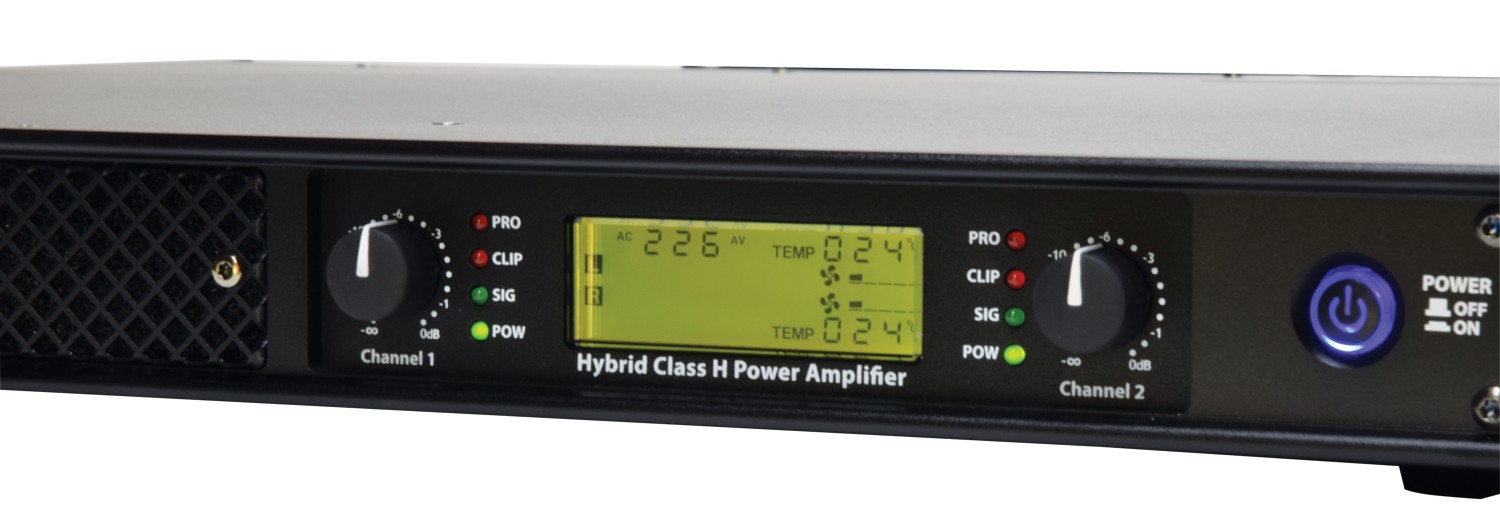

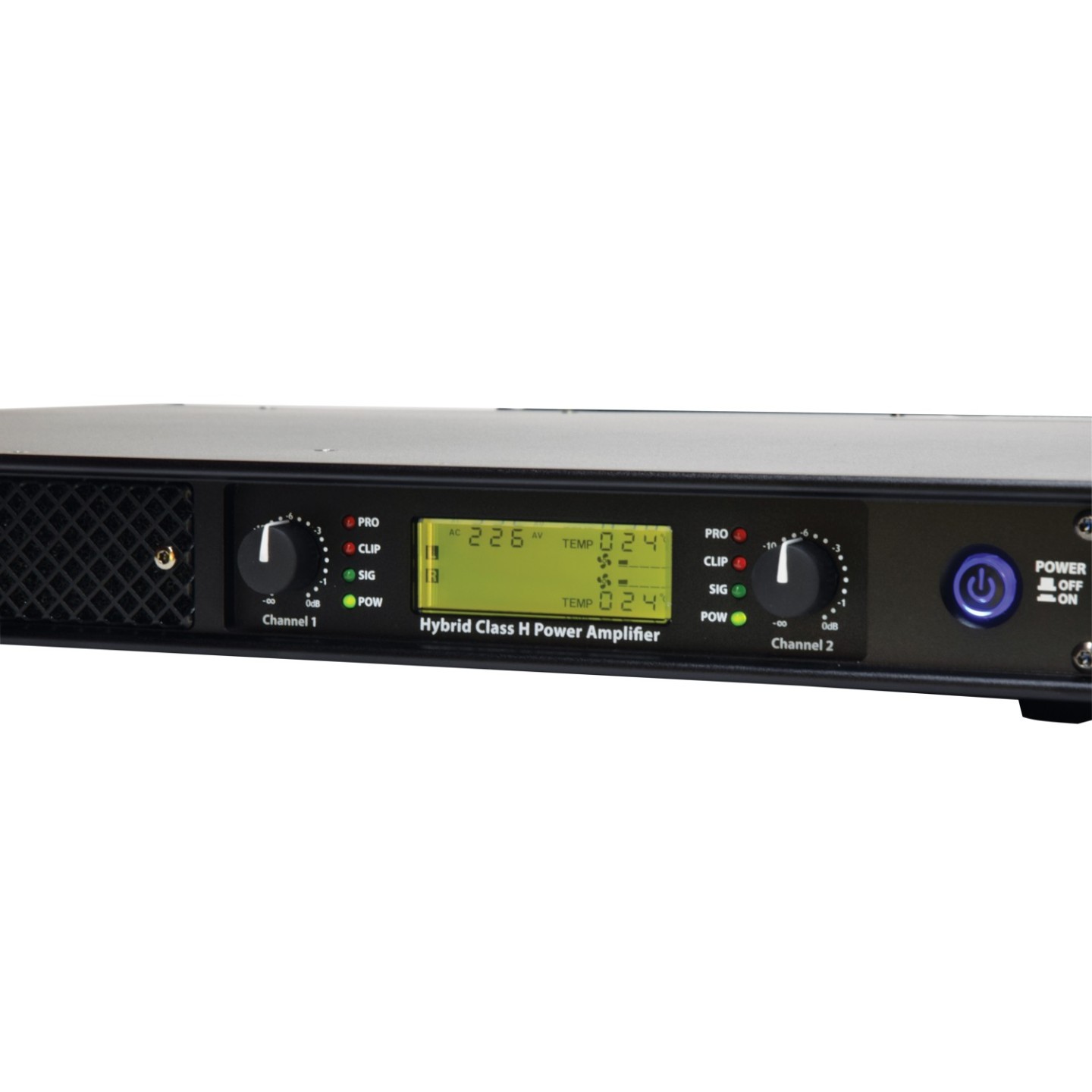

- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
- Power supply 200-240Vac, 50Hz (IEC)
- Amplifier : construction Hybrid Class-H
- Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
- Frequency response 20Hz-20KHz ±0.5dB
- THD +N 0.2%
- S/N ratio -95dB
- Damping factor >700
- Input sensitivity 1.0V - 1.4V - 2.0V switchable
- Input impedance 20K (balanced),10K (unbalanced)
- Dimensions 483 x 361 x 44 mm (1U)
- Fuse T6AL 250V
- Power rms @ 8 Ohms 2 x 450W
- Power rms @ 4 Ohms 2 x 650W
- Power rms @ 2 Ohms 2 x 800W (40ms burst 1kHz sine)
- Power rms bridge @ 8 Ohms 1200W
- Power rms bridge @ 4 Ohms 1600W (40ms burst 1kHz sine)
- Weight 6.8kg
| Channels | Dual |
| Power (8ohm) | 2 x 450 |
| Power (4ohm) | 2 x 650 |
| Power (2ohm) | 2 x 800 |
| Amplifier Class | Class H |
| 2ohm Stable | Yes |
| Bridge Mode | Yes |
| Warranty | 3 Years |
