Mercury CAT5e Cable CCA UTP 305m Grey - 808.021UK - CAT5e CCA UTP 305m Grey
Note: CCA cables not recommended for PoE. Solid-conductor Cat5e UTP data cable in dispensing box, marked at 1 m intervals; indoor use, Grey, 305 m.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Category | Cat5e |
|---|---|
| Ethernet Cables - Shielding | UTP |
| Ethernet Cables - Conductor | CCA |
| Ethernet Cables - Length | Other |
| Ethernet Cables - PoE Compatible | No |
Important Note: CCA Cables are not recommended for POE installations

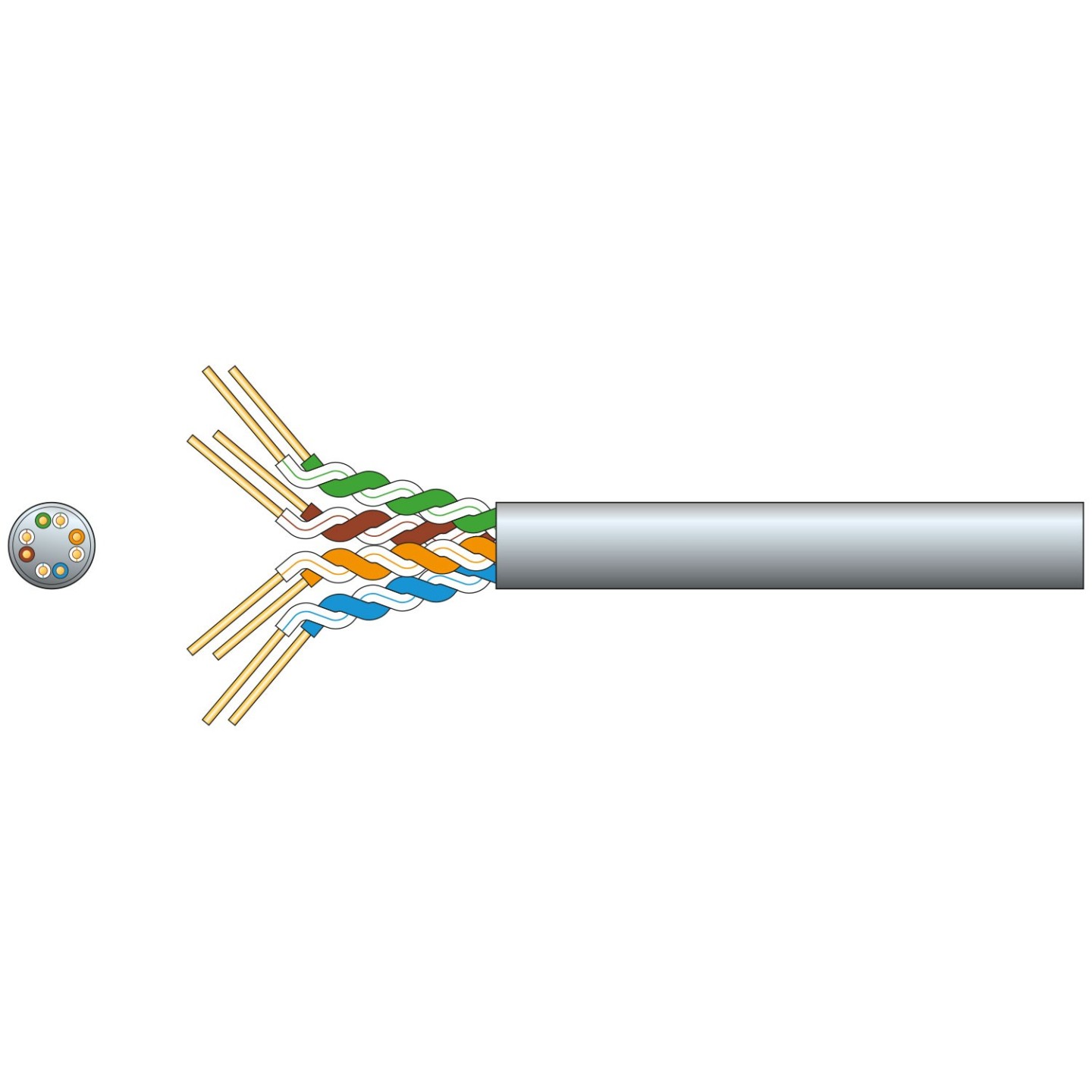

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.
- Solid copper clad aluminium conductor

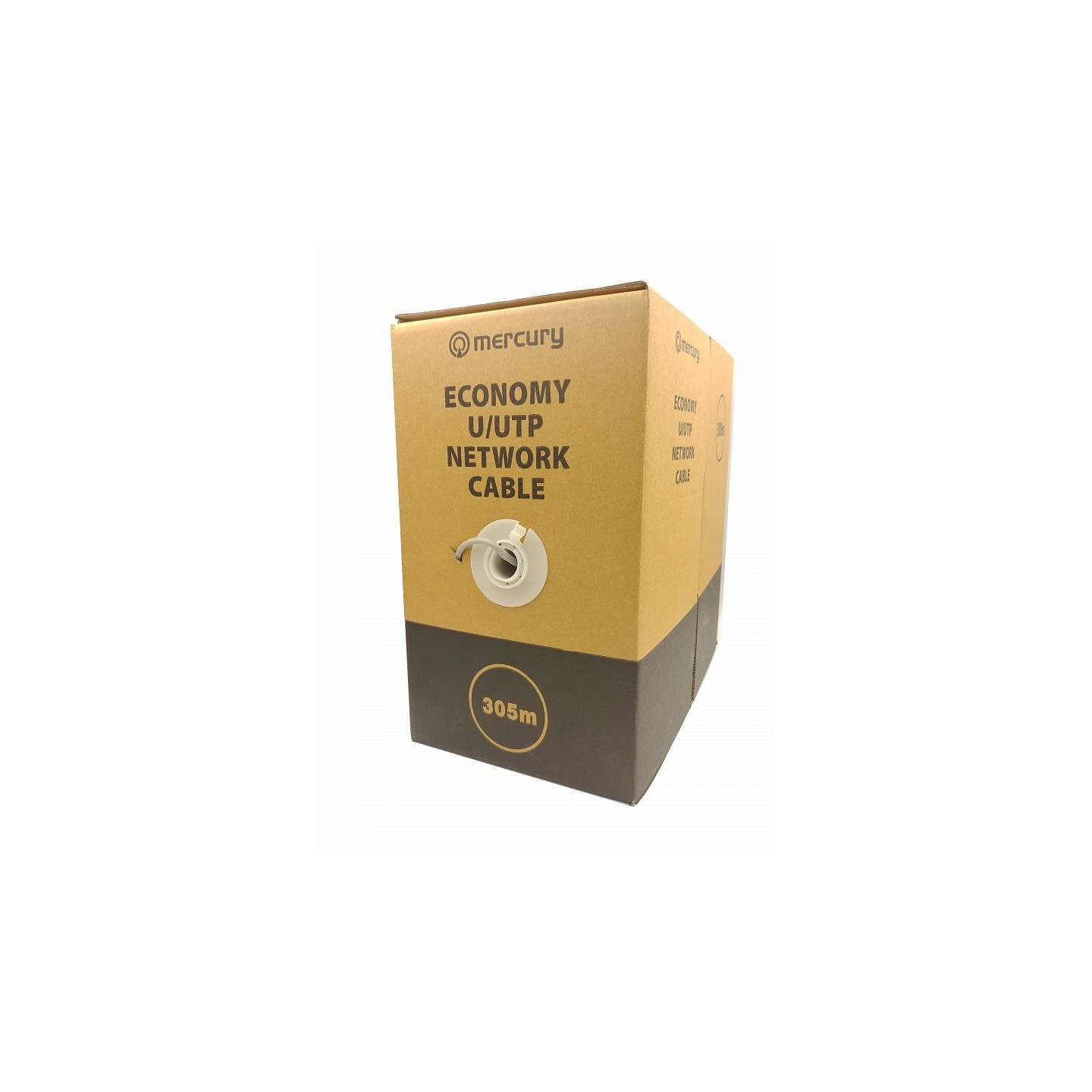

- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Conductor: Solid CCA
- Strands: 8 x 1/0.51mmØ ±2%
- CSA: 8 x 0.204mm²
- Cable diameter: 5mmØ
- Insulation: HDPE 0.19mm thickness
- Sheath: PVC 0.5mm thickness
- Impedance: 100 Ohms (±15)
- DC resistance @ 20°C:
- Return loss: >20dB @ 100m
- NEXT: >40dB @ 100m
- PSNEXT: >38dB @ 100m
- Cable colour: Grey
- Length: 305m
- Weight: 6kg
| Type | Cat5e |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Indoor |
| Length | 305m |
| Colour | Grey |
