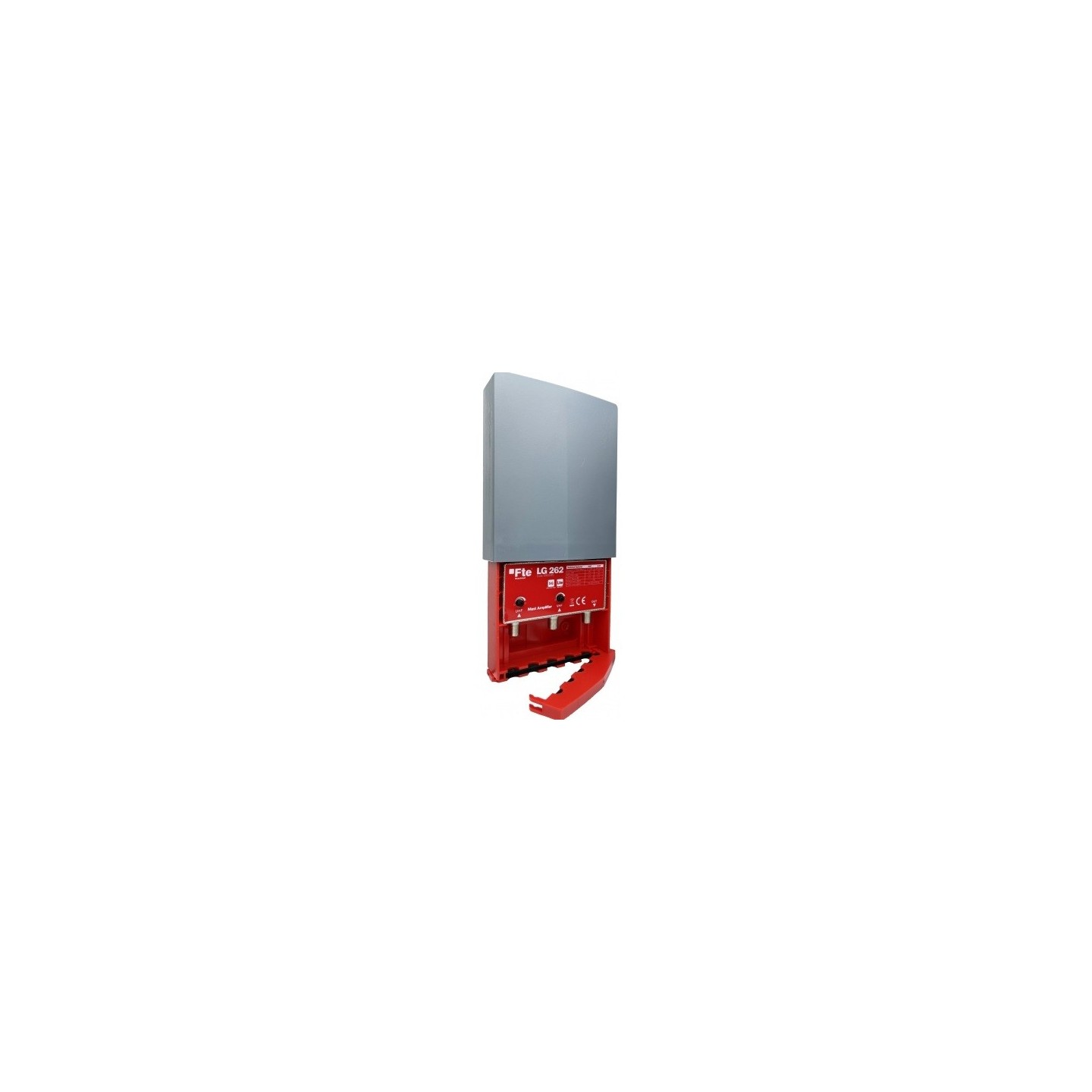

FTE Mast Amplifier - LG262 LTE2 - UHF VHF Mast Amplifier 24dB
Mast amplifier with 2 inputs (1 VHF, 1 UHF); frequencies 47-230 / 470-694 MHz; gain per output 24 dB; total output 105 dB; output level 110 dBuV; noise figure 2.5 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

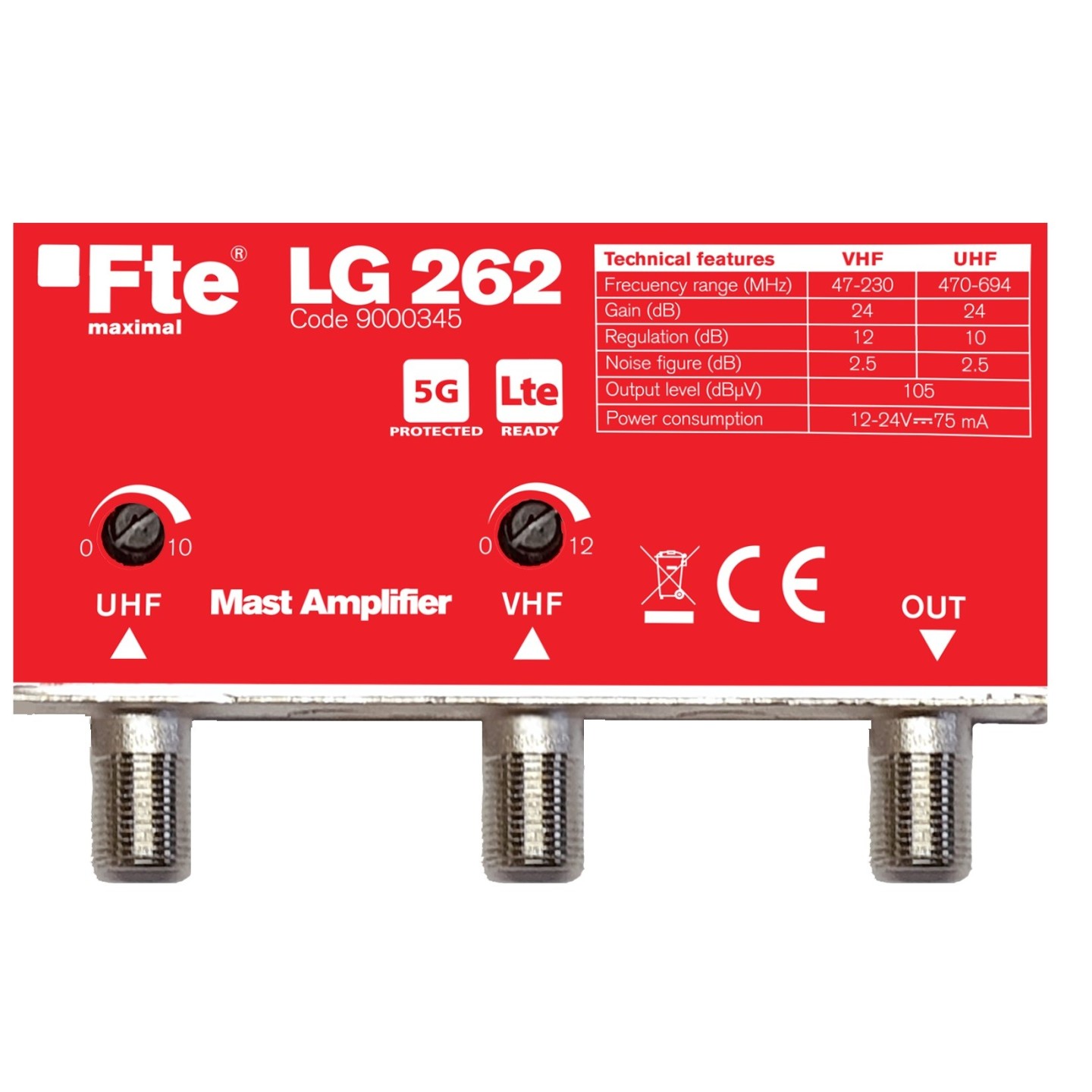

- Inputs and bands: 2: 1 VHF / 2 UHF
- Frequencies (MHz) 47 - 230 / 470 - 694
- Gain (dB): VHF24, UHF24
- Regulation (dB): VHF12, UHF10
- Output level (dBuV) : 110
- Noise figure (dB): VHF 2.5, UHF 2.5
- Maximum consumption (mA): 75
- Feeding (VDC): 12 to 24
- Dimensions (W x H x D) (mm): with box 115 x 110 x 57 mm, without box 104,6 x 44 x 24,2 mm
- Included accesories: Outdoors box EQ BOX, Cable tie 15 mm
| Type | Mast Amplifier |
| Inputs | 2 |
| UHF Inputs | 1 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 24db |
| Total Output | 105db |
