Chord Beltpack UHF Mics 863.4+864.3 171.917UK - SU20 - Beltpack UHF Mics 863.4+864.3 171.917UK
Dual UHF beltpack wireless microphone system with a compact receiver; mounting hardware for 1 or 2 units in a 1U rack.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Microphones - Stand/Arm | None |
|---|

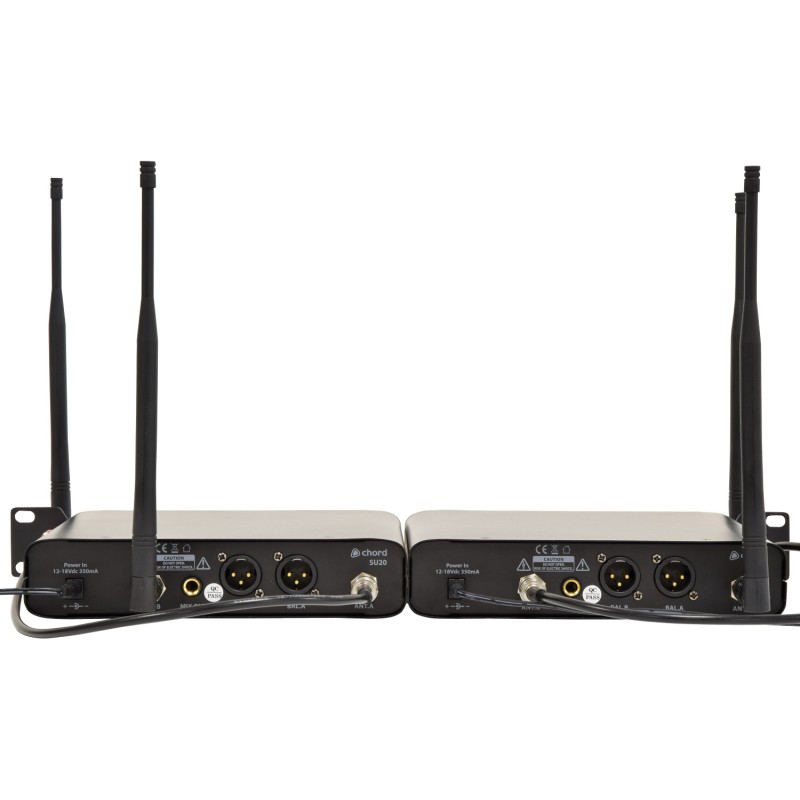

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space.
BNC cables and detachable antennas are provided for rear or front mounting as required.
Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
- Up to 2 sets (4 microphones) can be used together
- Available in handheld or beltpack versions with 2 carrier frequency options
- Front or rear mountable antennas Compact half-rack receiver
- Supplied with power adaptor and 4 x AA batteries
- Power supply14Vdc 350mA (adaptor supplied)
- Antenna connectionBNC
- Batteries4 x AA (2 per transmitter) included
- Range: 60m
- Microphone polar pattern Cardioid (handheld, neckband or lavalier)

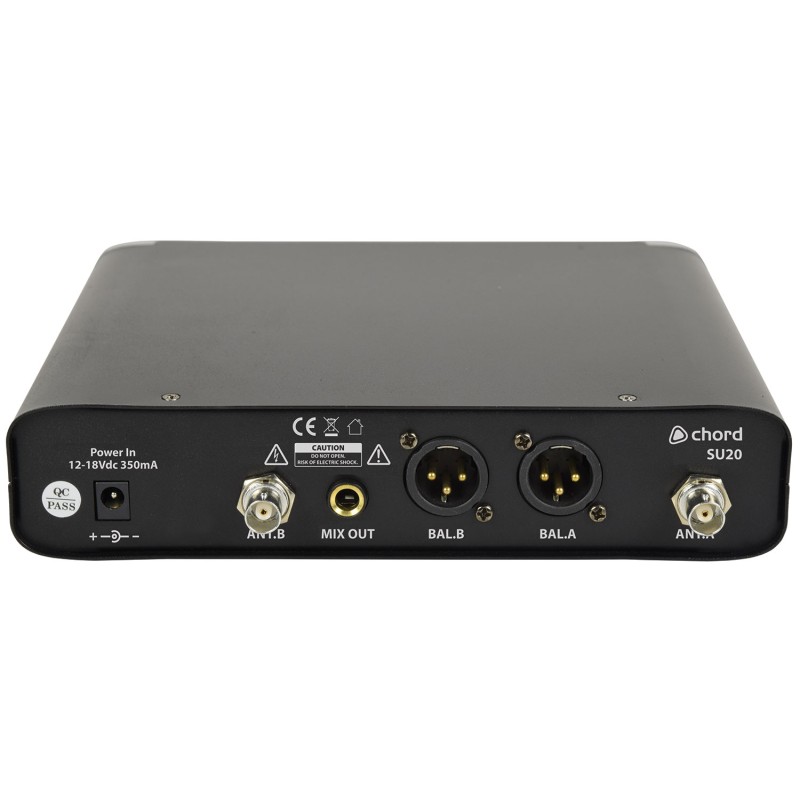

- Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output impedance: 2.2k Ohms
- Output level: 400mV (balanced), 200mV (unbalanced)
- Frequency response: 50Hz - 18kHz (±3dB)
- S/N ratio: >80dB
- THD: <0.5% @ 1kHz
- Dimensions receiver: 203 x 187 x 42mm
- Weight receiver: 845g
Dimensions : handheld transmitter 250 x 47mmØ
Weight : handheld transmitter 231g (no battery)
Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green)
| Type | Beltpack |
| Band | UHF |
| Channels | Dual |
| Frequencies | 1 |
| Neckband | Yes |
| Lavalier | Yes |
| Rack Mounted | Yes |
