Chord Quad UHF System-Combo - NU4-C - 171.845UK
UHF wireless system with four independent channels; 19" rack-mount receiver with 4 XLR or mixed outputs; available as four handhelds or four beltpack transmitters.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Microphones - Connection | XLR |
|---|

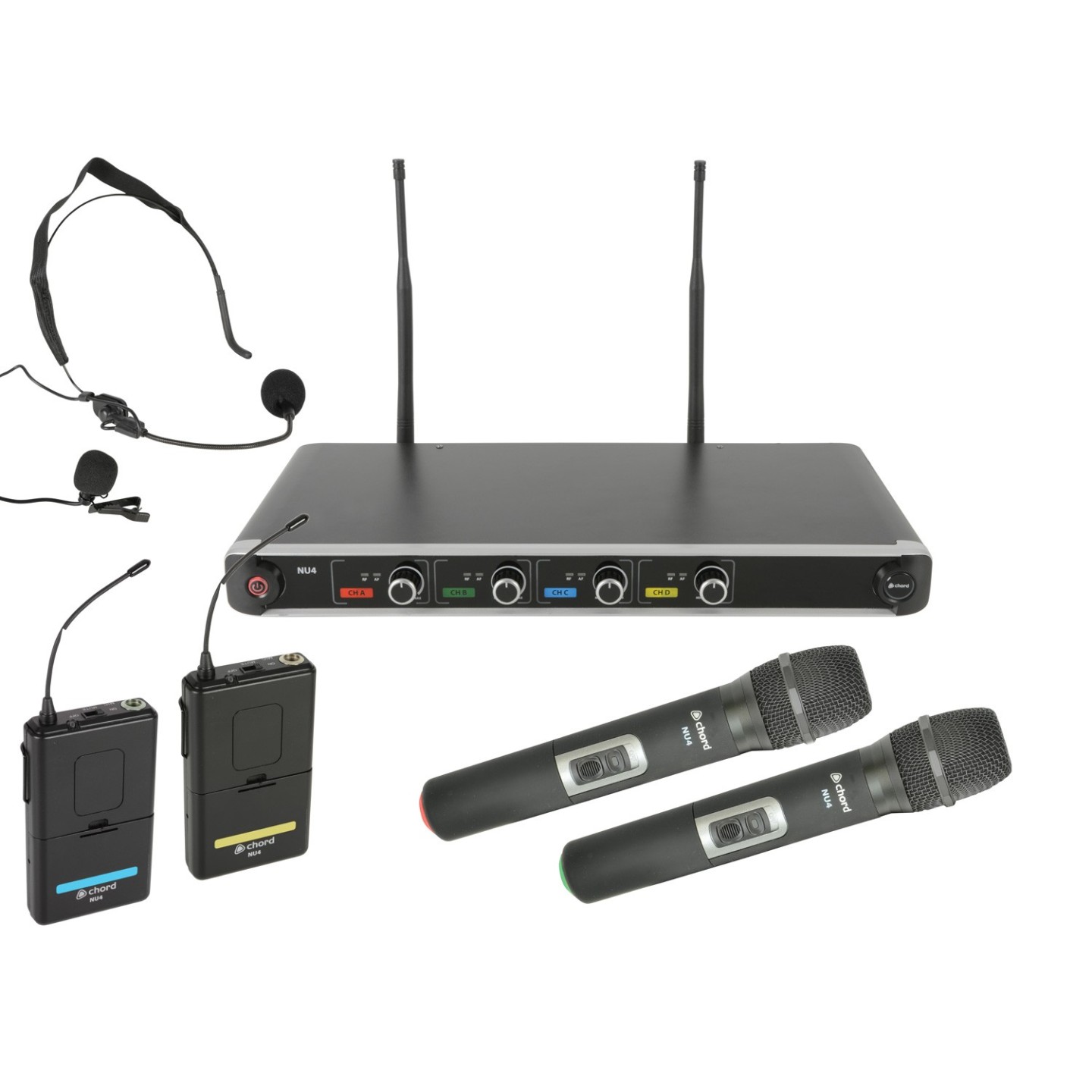

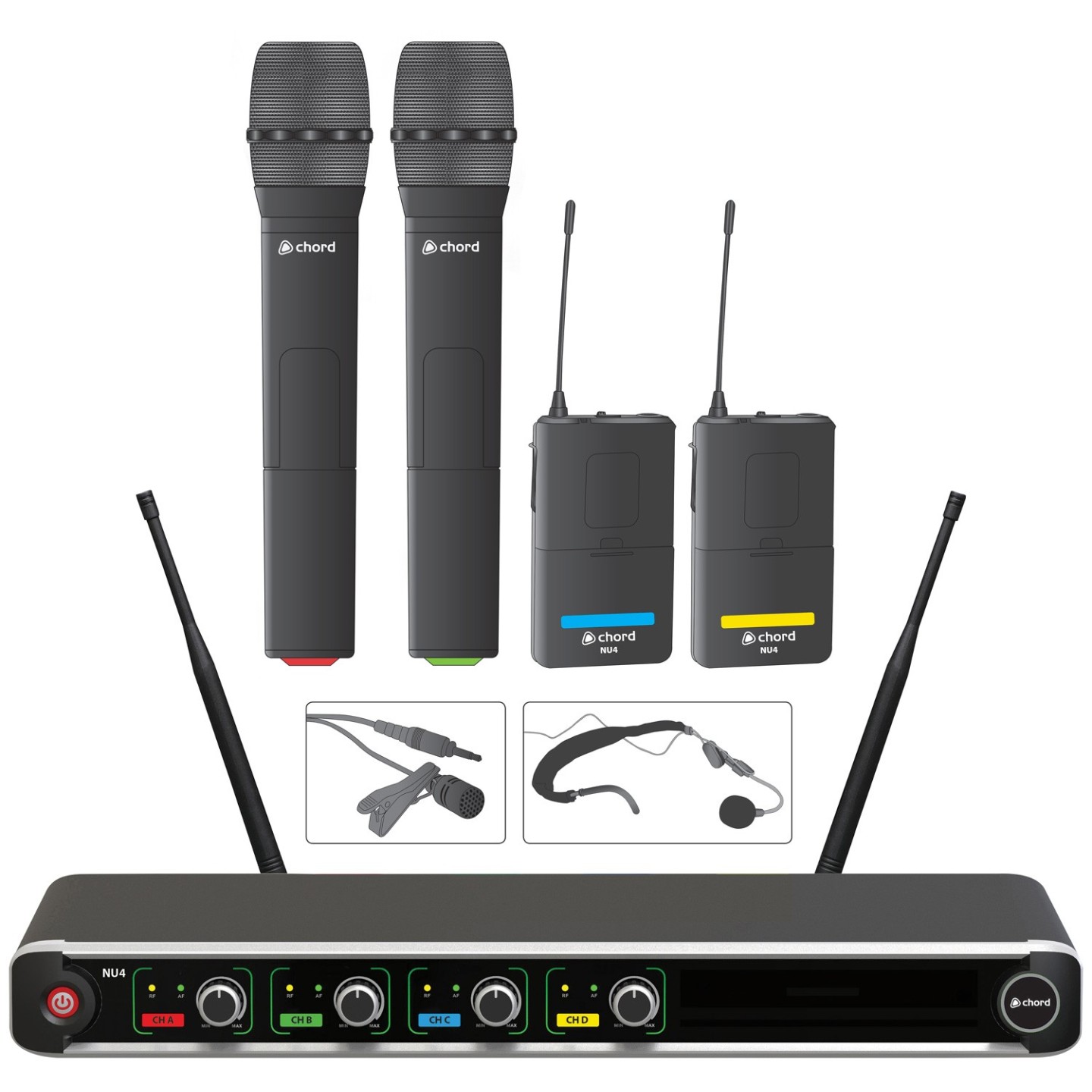

UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack transmitters (with a choice of neckband or lavalier microphone for each beltpack) or a combo set with 2 of each. Suitable for vocal groups, theatres and presentations.
- Individual or mixed outputs
- 4 licence-free UHF frequencies with pilot tone
- Supplied with 4 colour coded transmitters
- 19" rack-mountable (1U)
The box for this item contains:
- 1U rack-mountable receiver

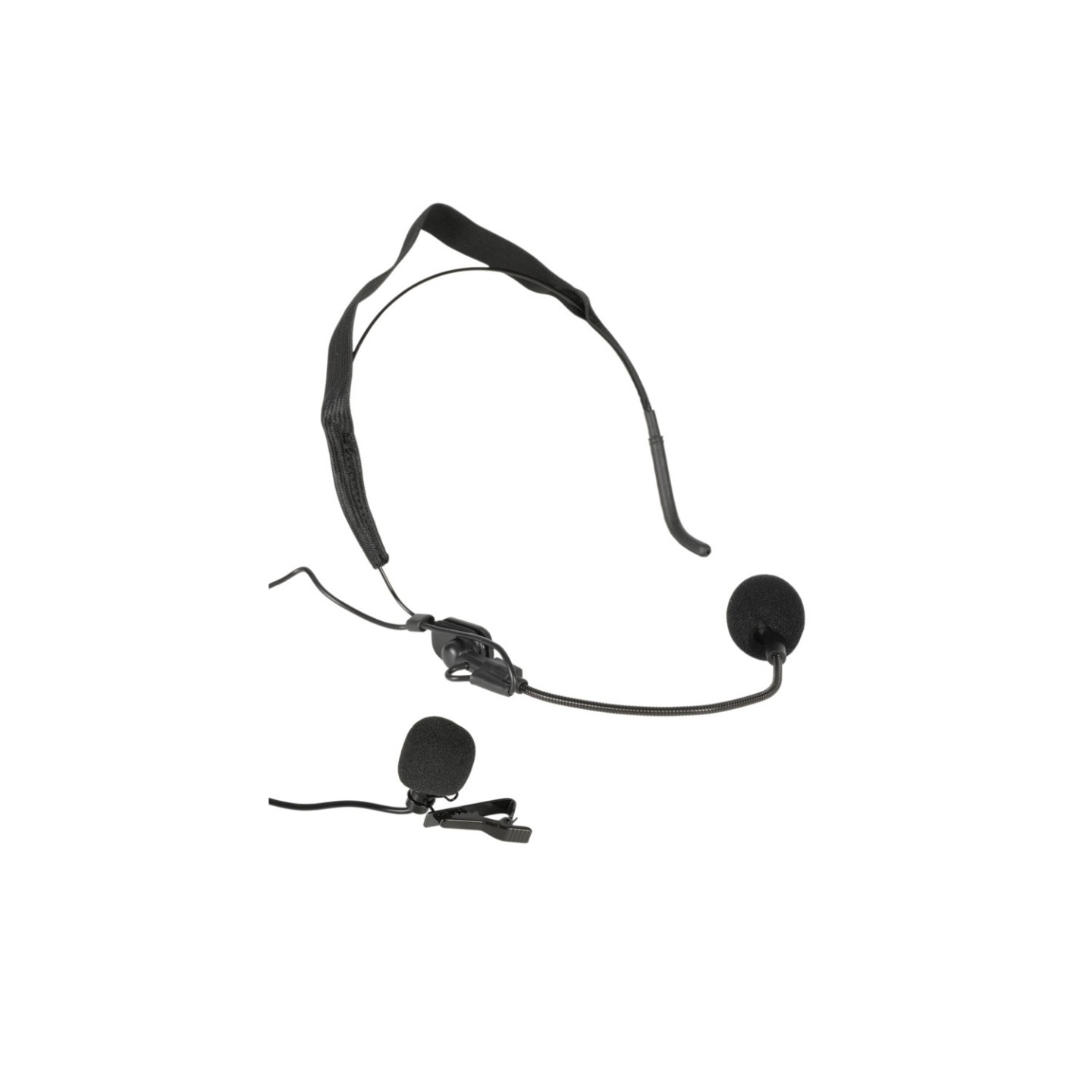

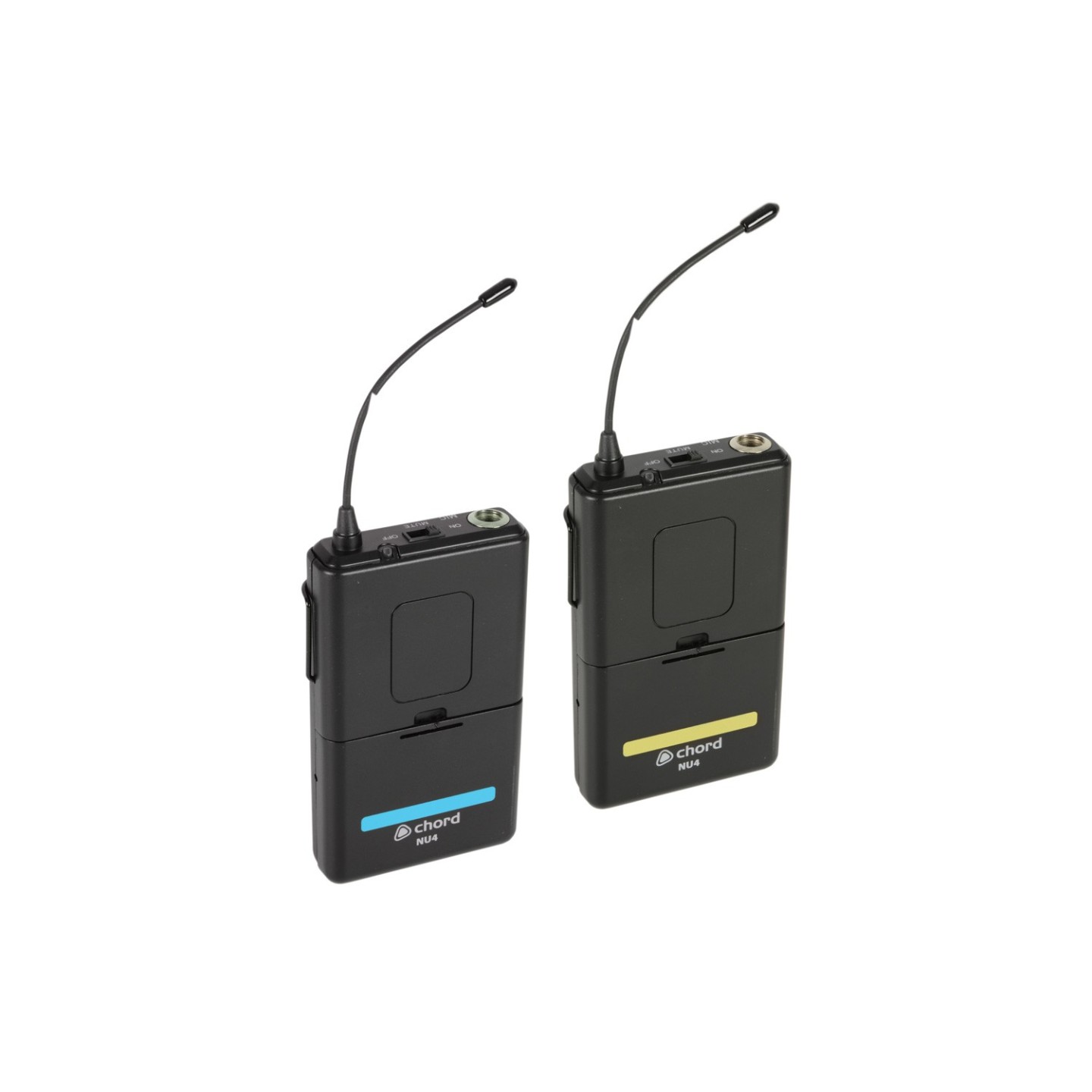

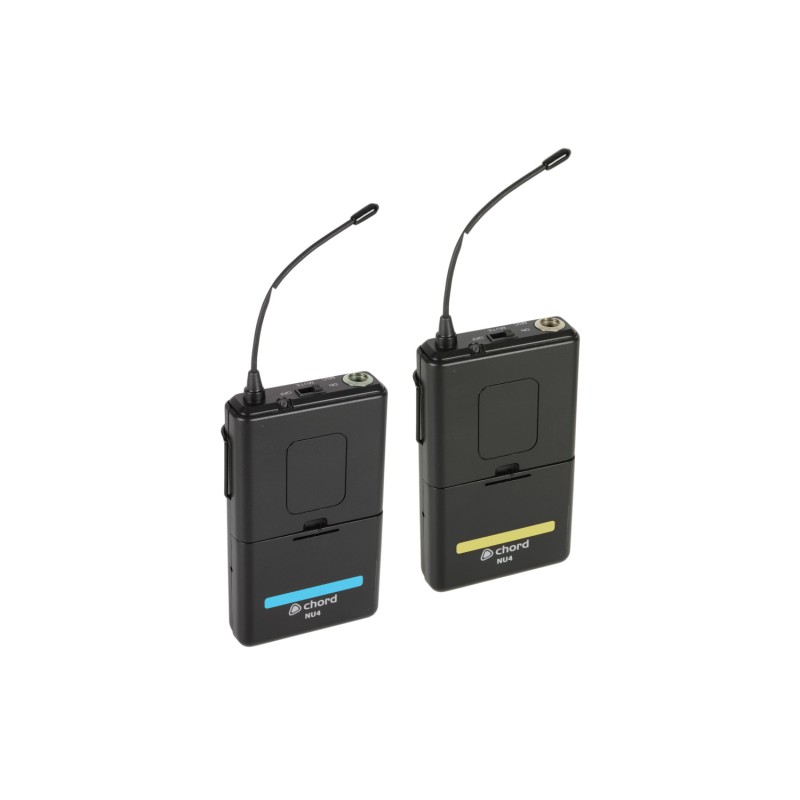

- 2 x handheld and 2 beltpack transmitters (with neckband and lavalier mics)
- 2 x UHF antennas
- 2 x BNC extension leads (for rack-mounting)
- 2 x rack-mount ears
- DC power adaptor
- 8 x AA batteries
- Power supply: 12-18Vdc 500mA adaptor (supplied)
- Dimensions: receiver: 482 x 225 x 44mm (inc. rack ears)
- Weight: receiver: 3.0kg
- Batteries: 8 x AA (included)
- Carrier frequencies: Red 864.8 ,Green 864.3, Blue 863.42, Yellow 863.1 (all in MHz)
| Type | Handheld+Beltpack |
| Band | UHF |
| Channels | Quad |
| Frequencies | 1 |
| Neckband | Yes |
| Lavalier | Yes |
| Rack Mounted | Yes |
