j5create Docking Station - JCD554 - USB-C 12-in-1 Triple Display 4K MST MacBookM3 HDMI DP USB-C RJ45 SD Audio PD
High-performance USB4 triple-4K dock with MST and Thunderbolt compatibility; USB-C host, HDMI + DP outputs, SD reader, RJ45, audio, and 85W PD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Docks & Hubs - Type | USB-C Dock |
|---|---|
| Docks & Hubs - Host Interface | USB-C (DP Alt-Mode) |
| Docks & Hubs - Power Delivery (PD) | 85 W |
| Docks & Hubs - Video Outputs | HDMI + DP |
| Docks & Hubs - Max Displays | 3 |
| Docks & Hubs - Max Resolution | 4K30 |
| Docks & Hubs - Ethernet | 1GbE |
| Docks & Hubs - Card Reader | SD |
| Docks & Hubs - Audio Jack | Yes |

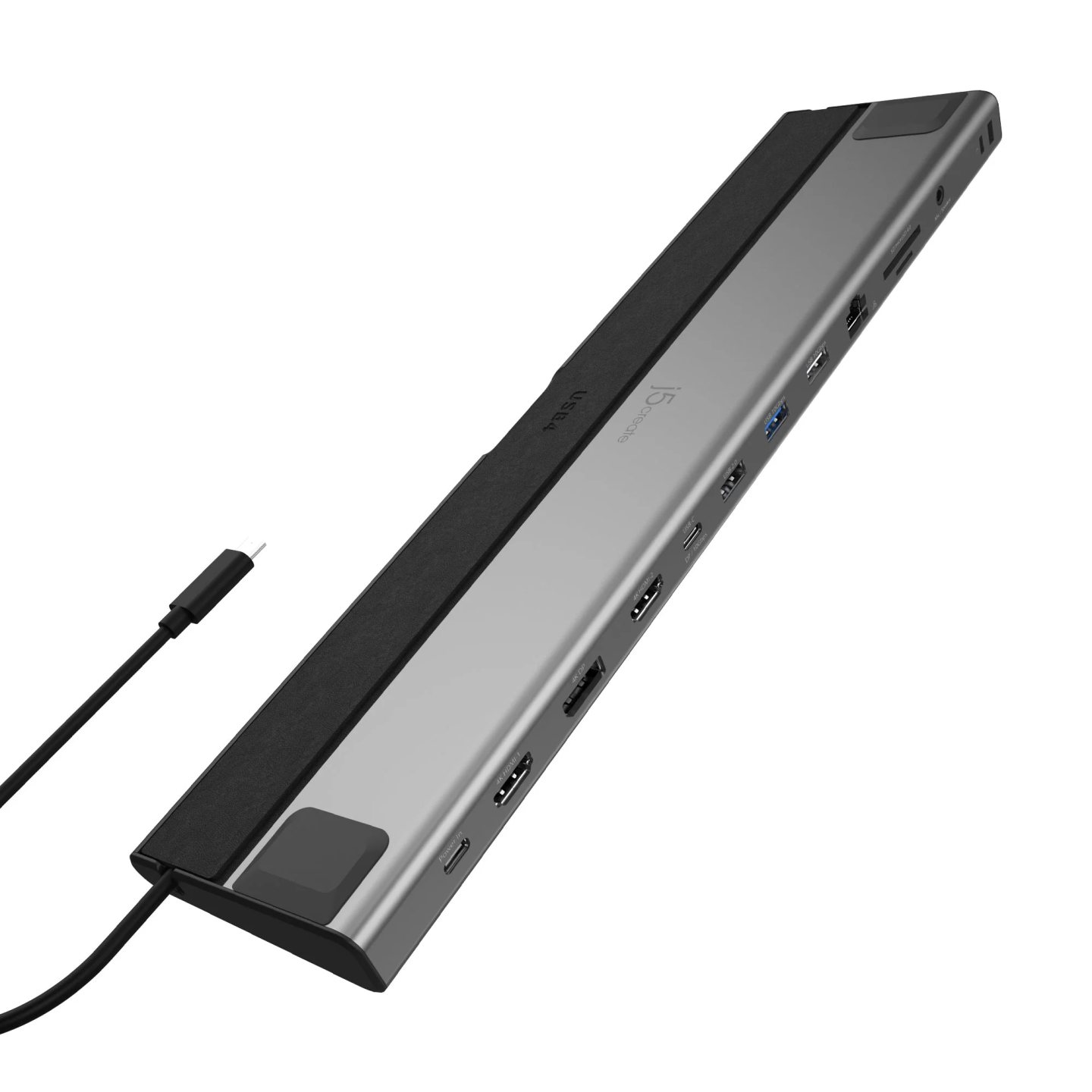

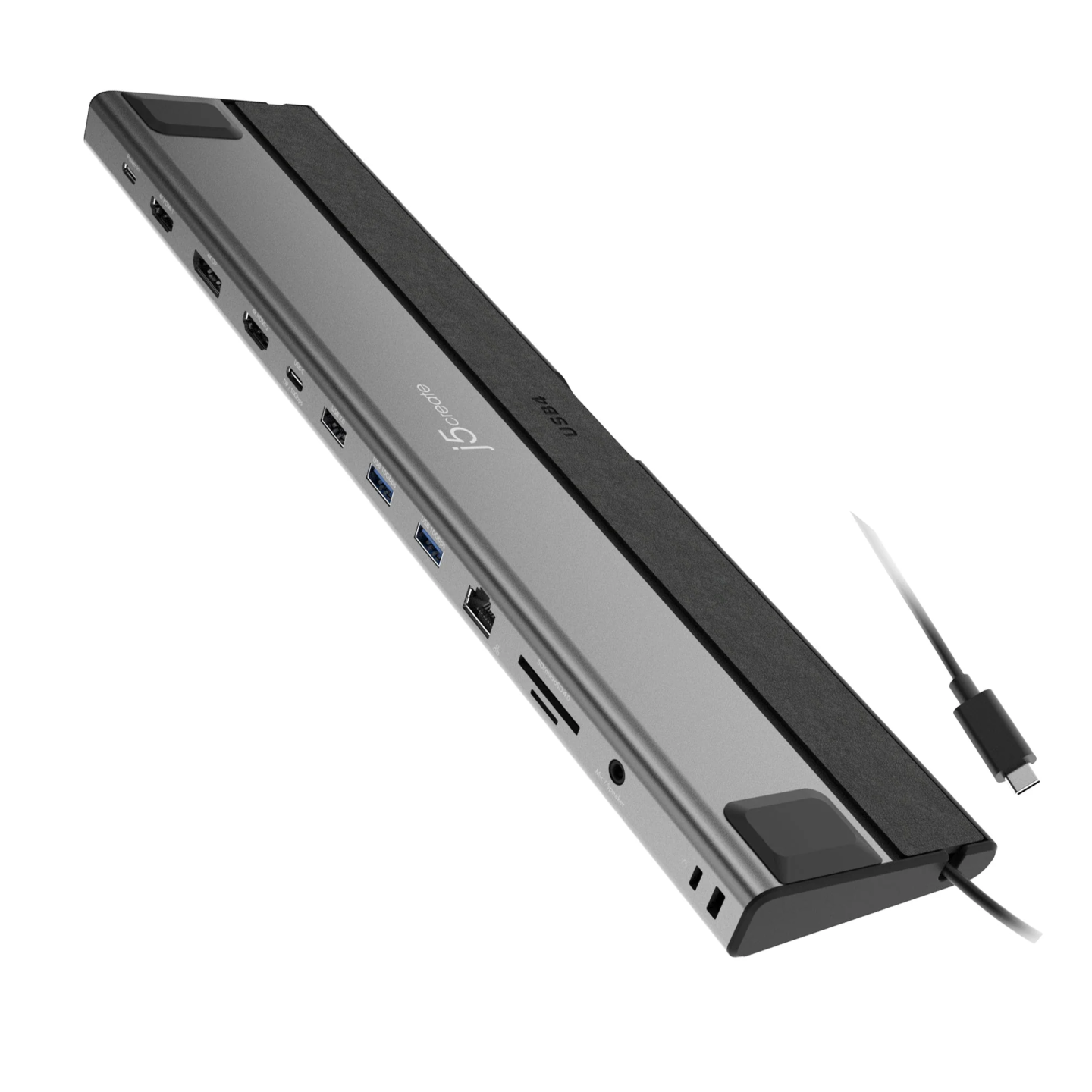

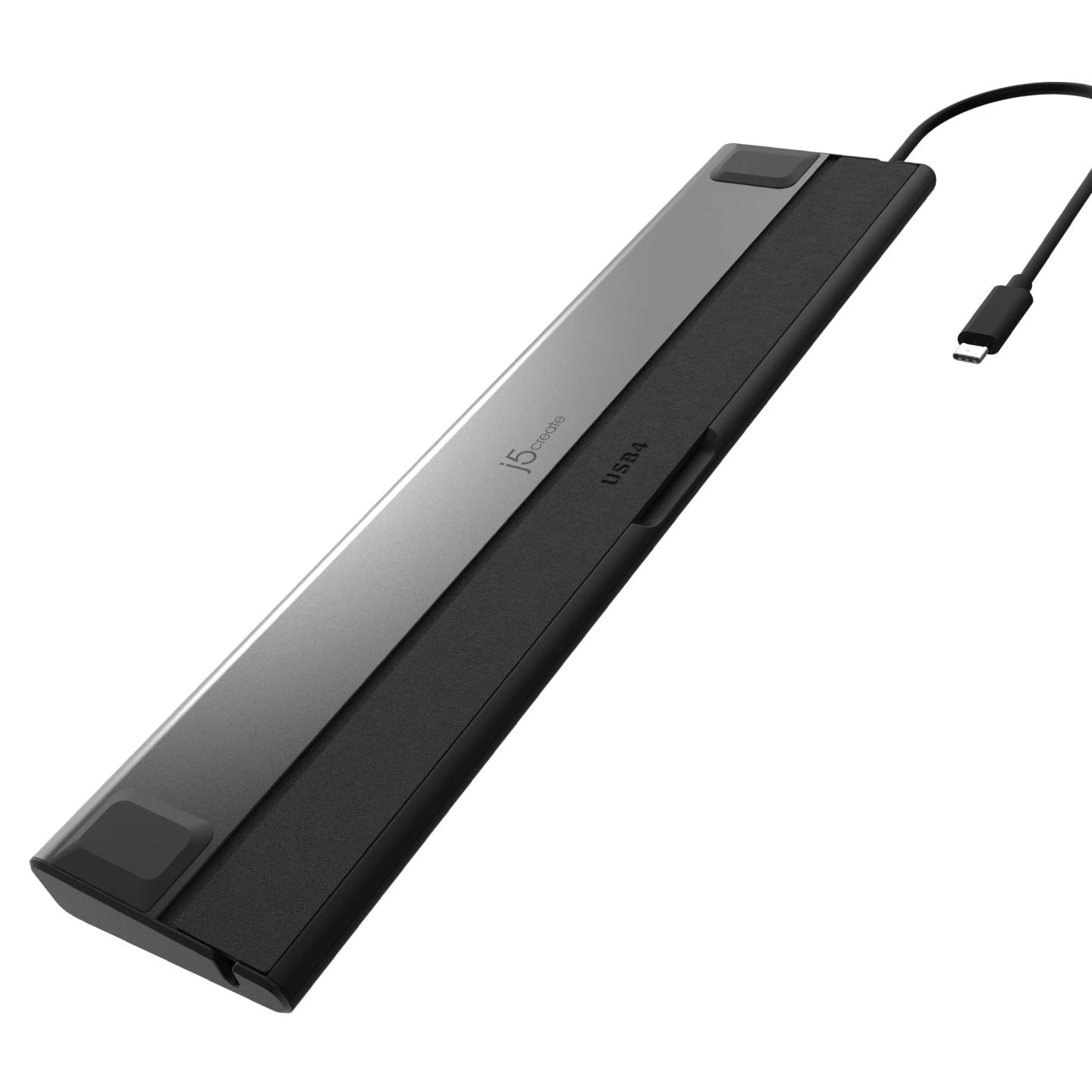

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution.
With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance.

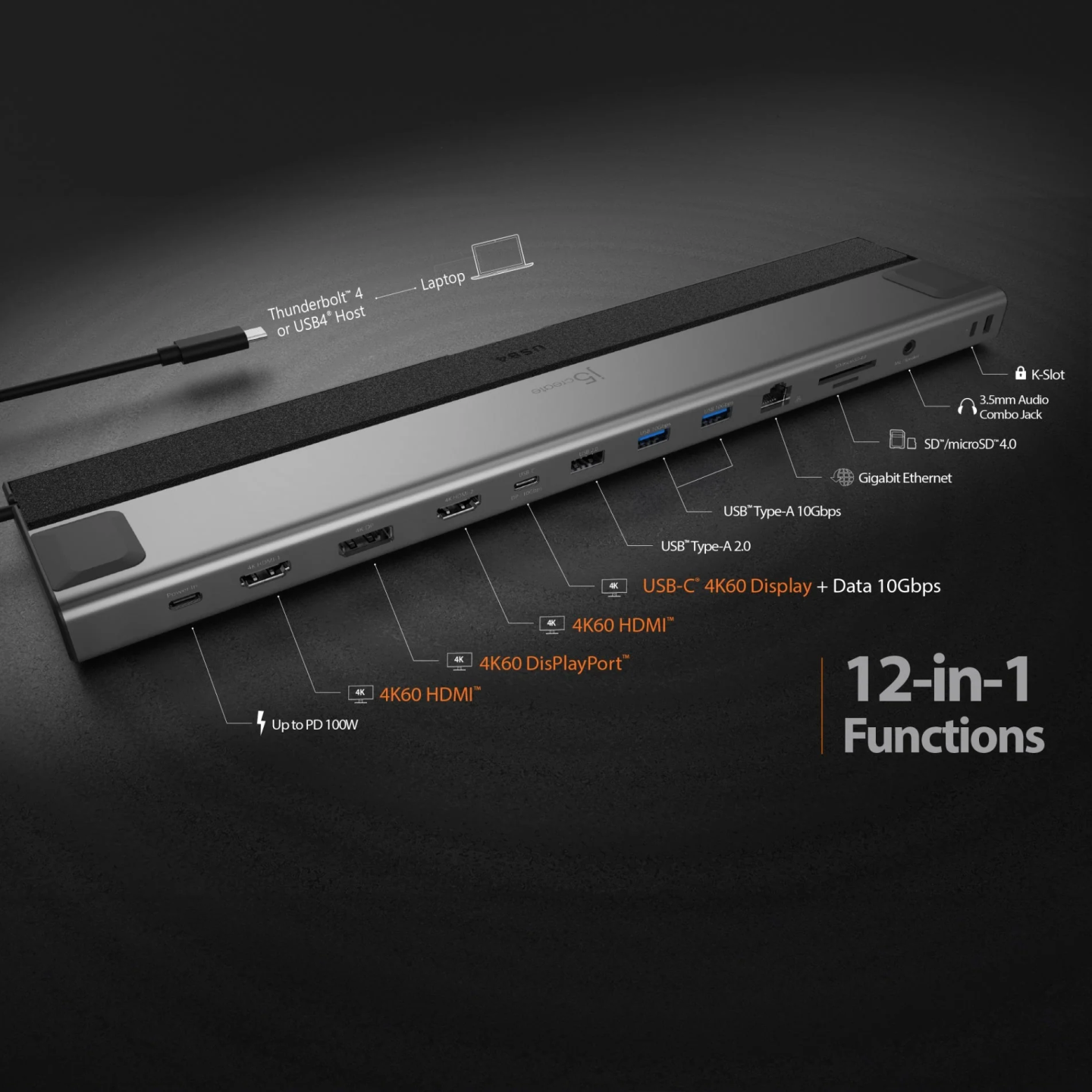

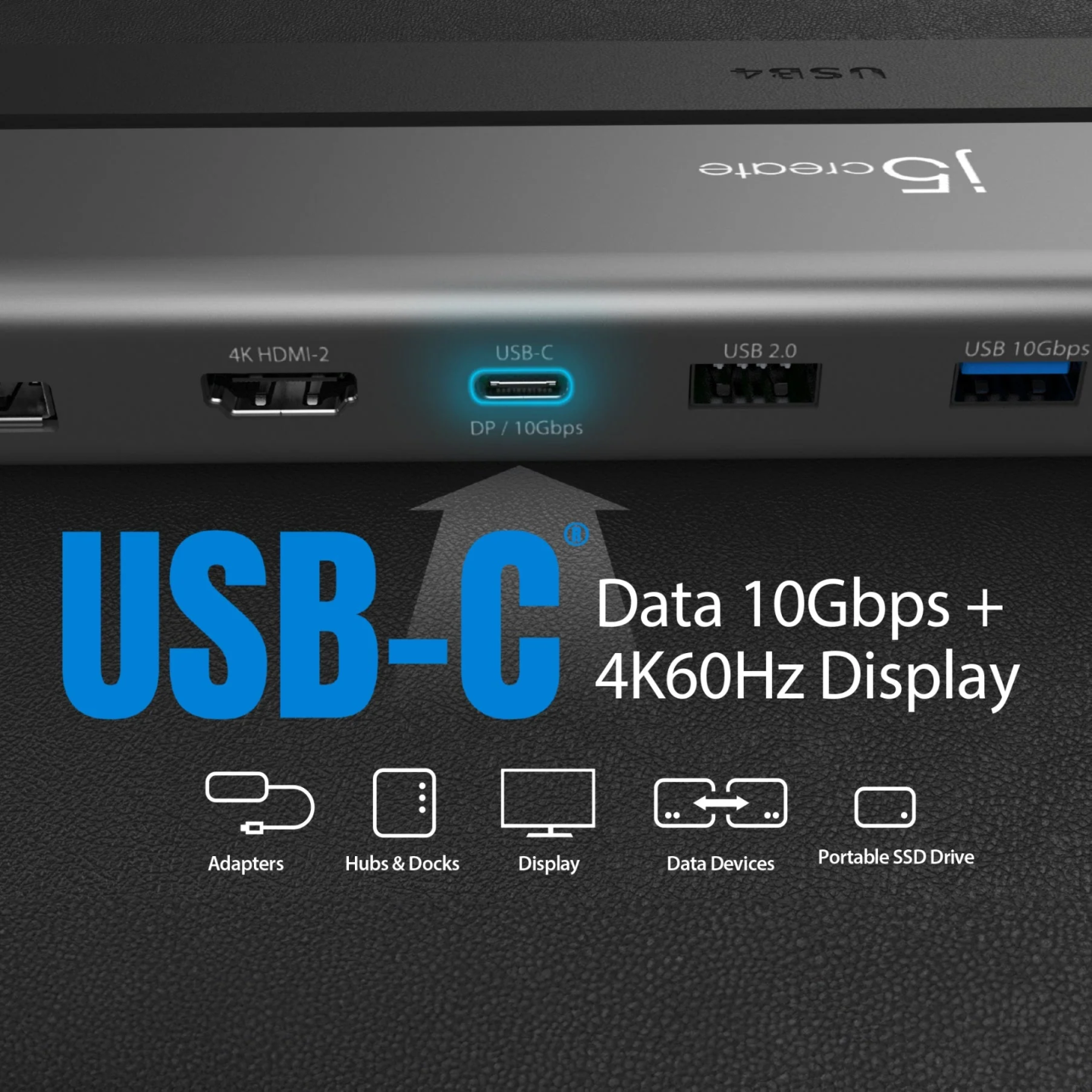

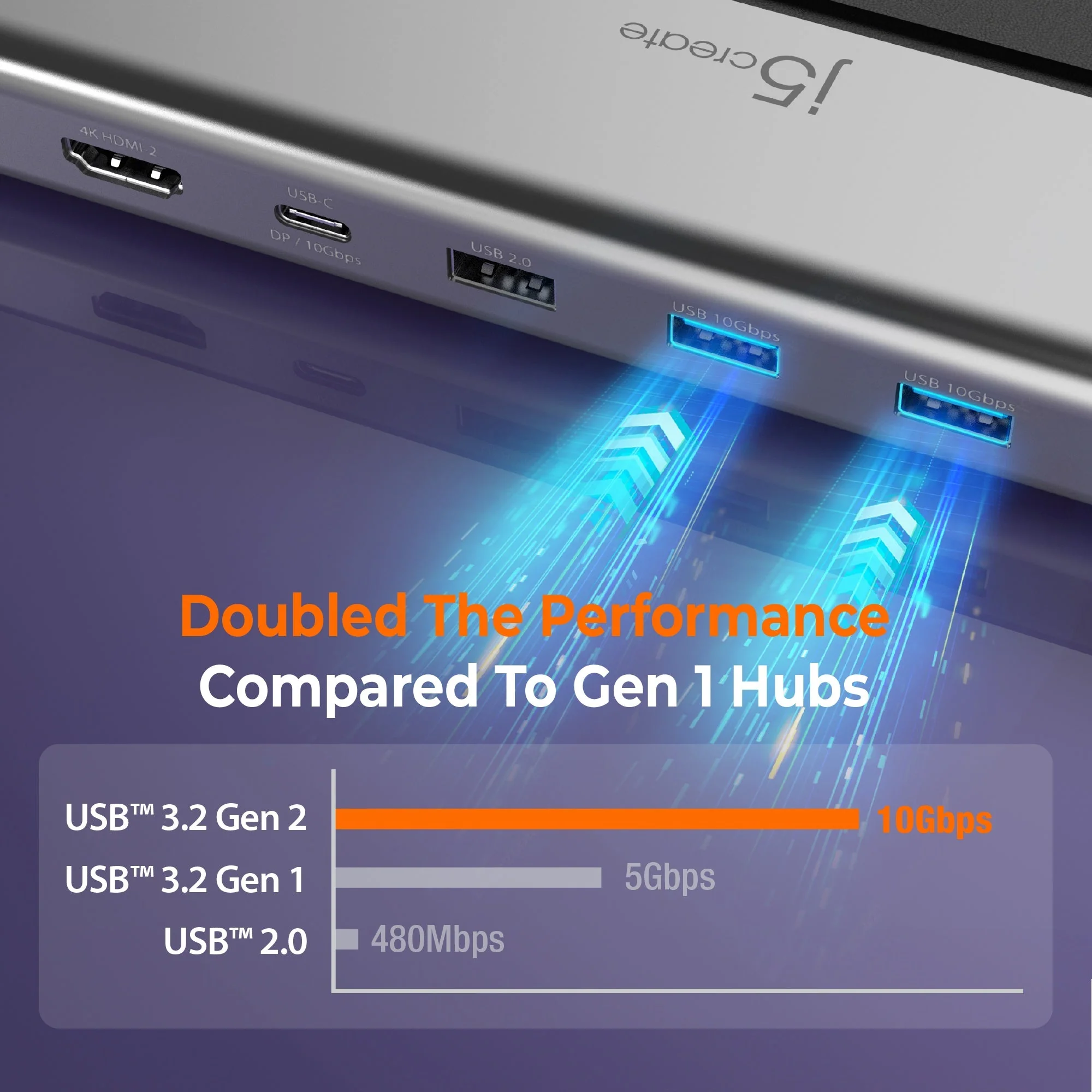

Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
- Includes the latest Intel® USB4® controller ensures industry-leading quality
- Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance

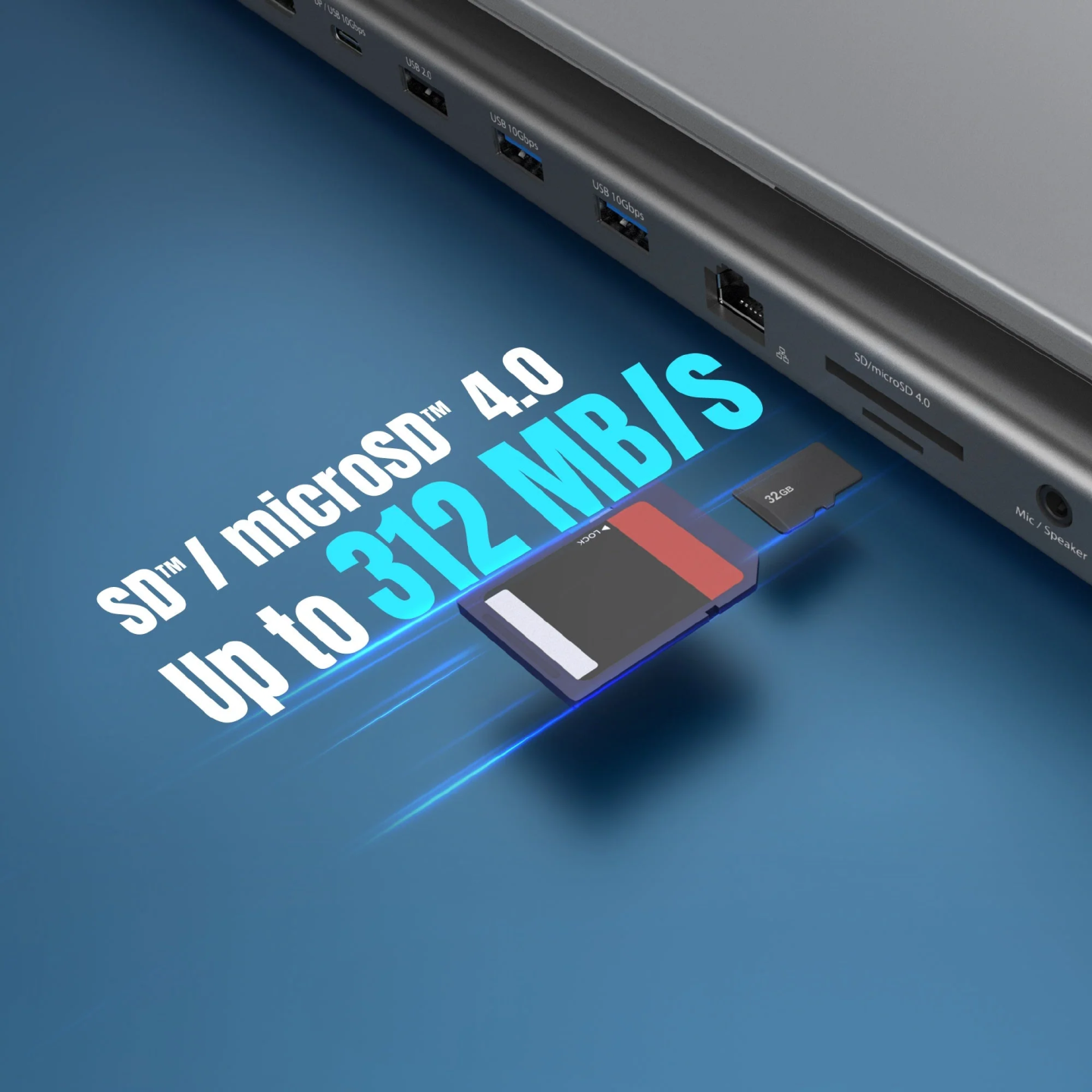

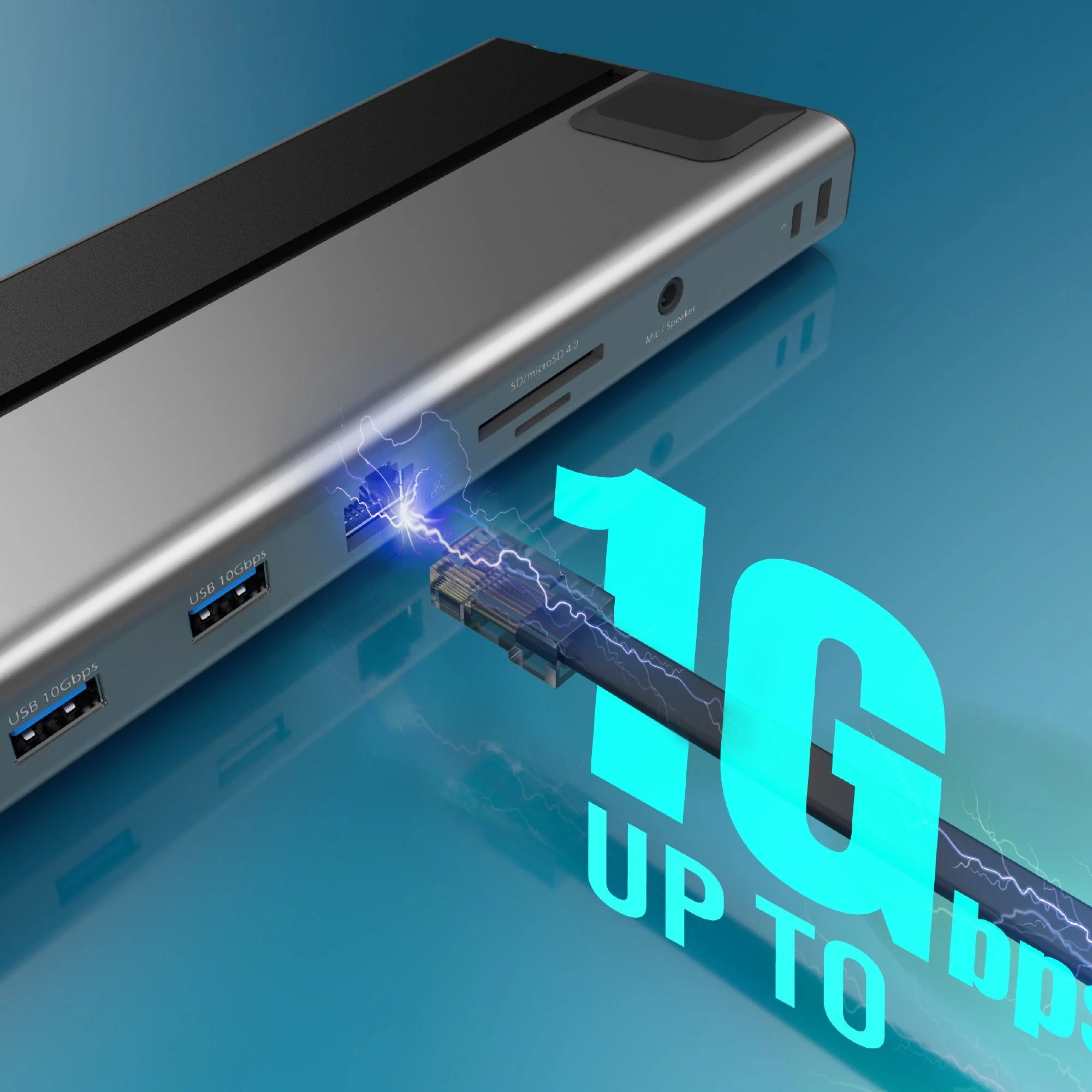

- Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
- Offers up to 85W of pass-through charging

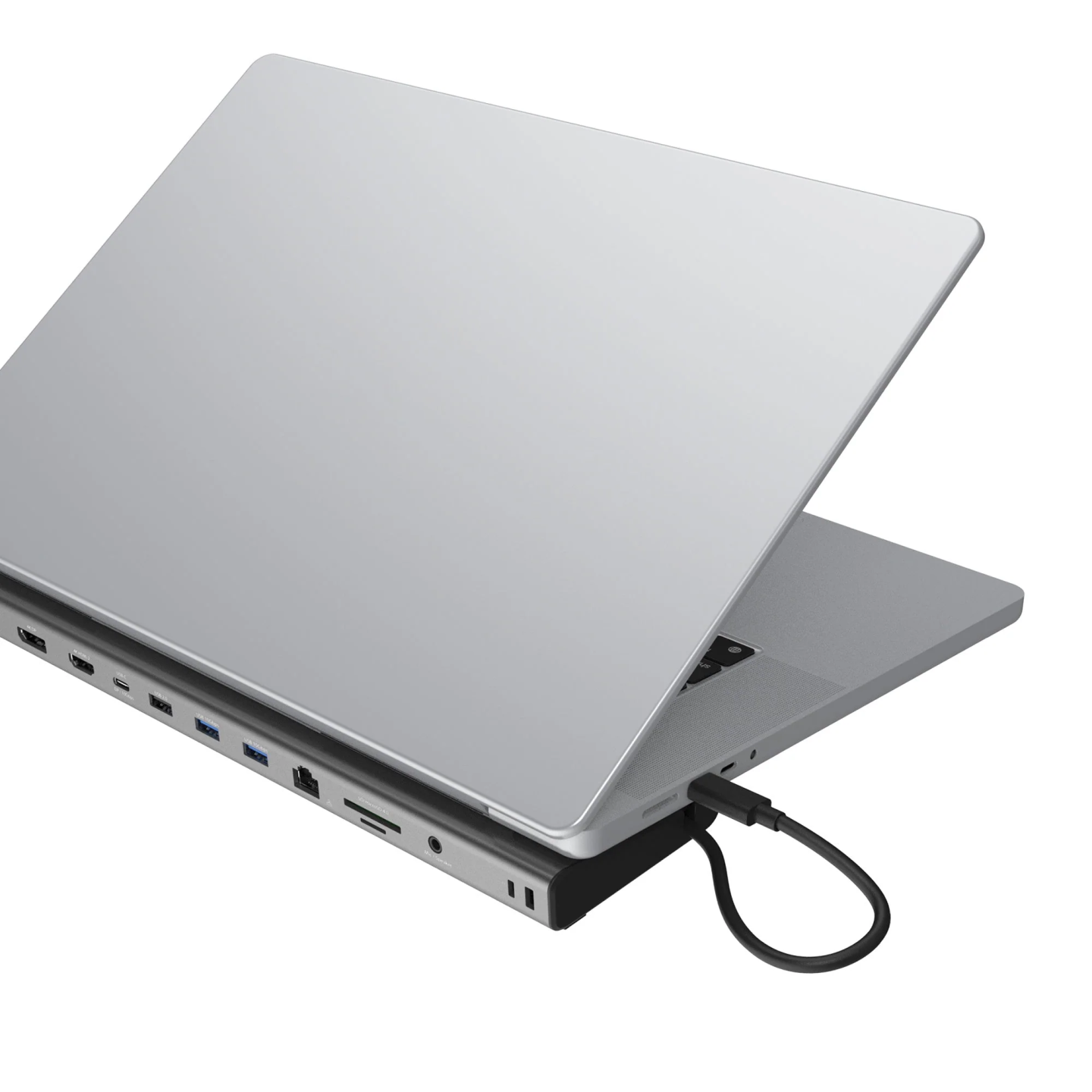

- Plug & Play, compatible with Windows® and macOS®
- Security Lock Design

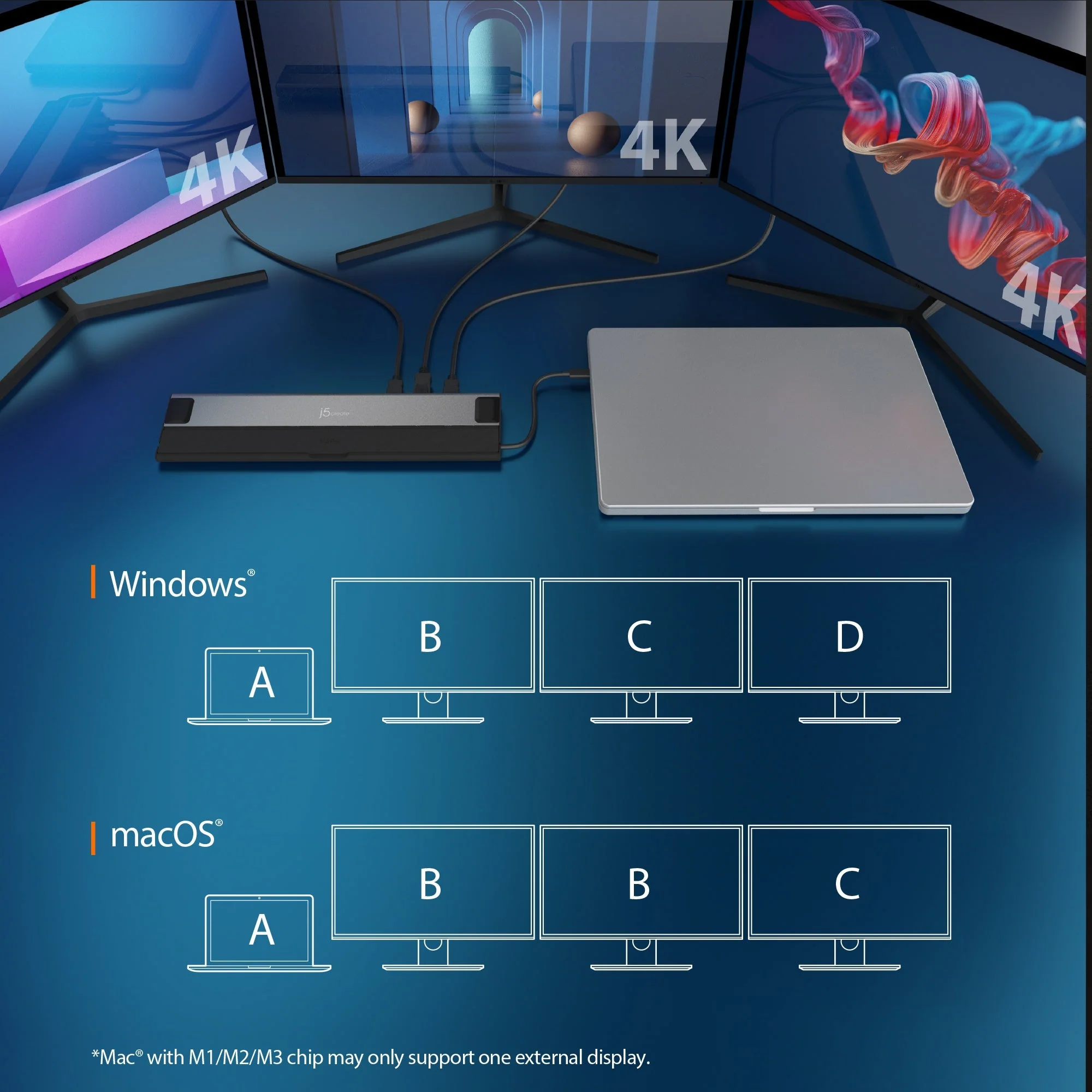

- Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops
- Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops
- Reference Triple Display Combinations
- HDMI™ 1 + DisplayPort™ + USB-C® (DP™ -Alt)
- HDMI™ 1 + DisplayPort™ + HDMI™ 2
*Mac® systems do not support MST, may only supports mirror screen on some external displays
*Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
*Supports DSC maximum resolution: Triple 4K60Hz monitors/display
| USB Type | Type C |
| USB Ports | 4 |
| USB Version | USB 3.2 Gen2 |
| MST Function | Yes |
| HDMI Ports | 2 |
| Displayport | Yes |
| Max. PD Output | 85W |
| ThunderBolt | Yes |
| Audio | Yes |
| Card Reader | Yes |
| Gigabit Lan | Yes |
| Laptop Docking | Yes |
