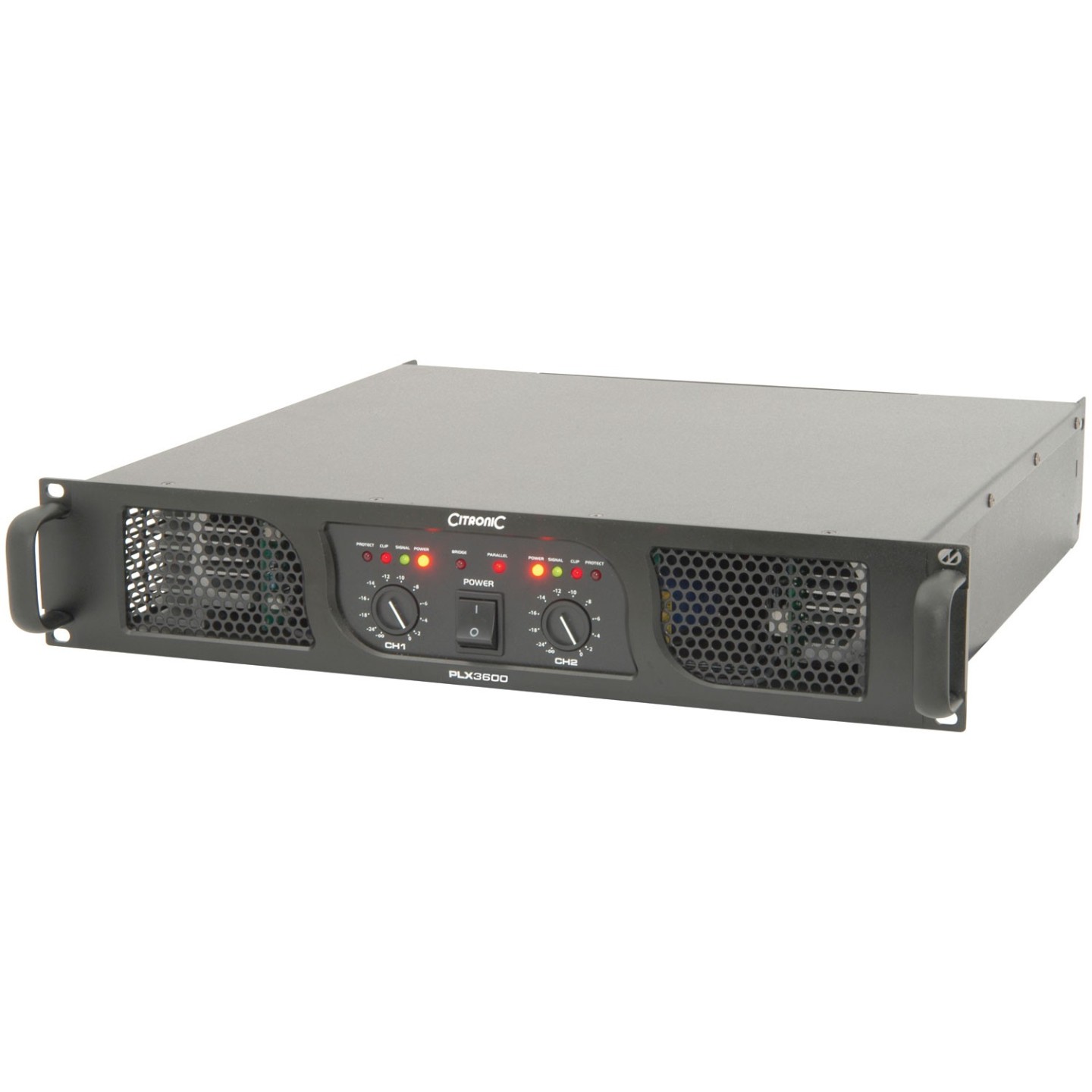

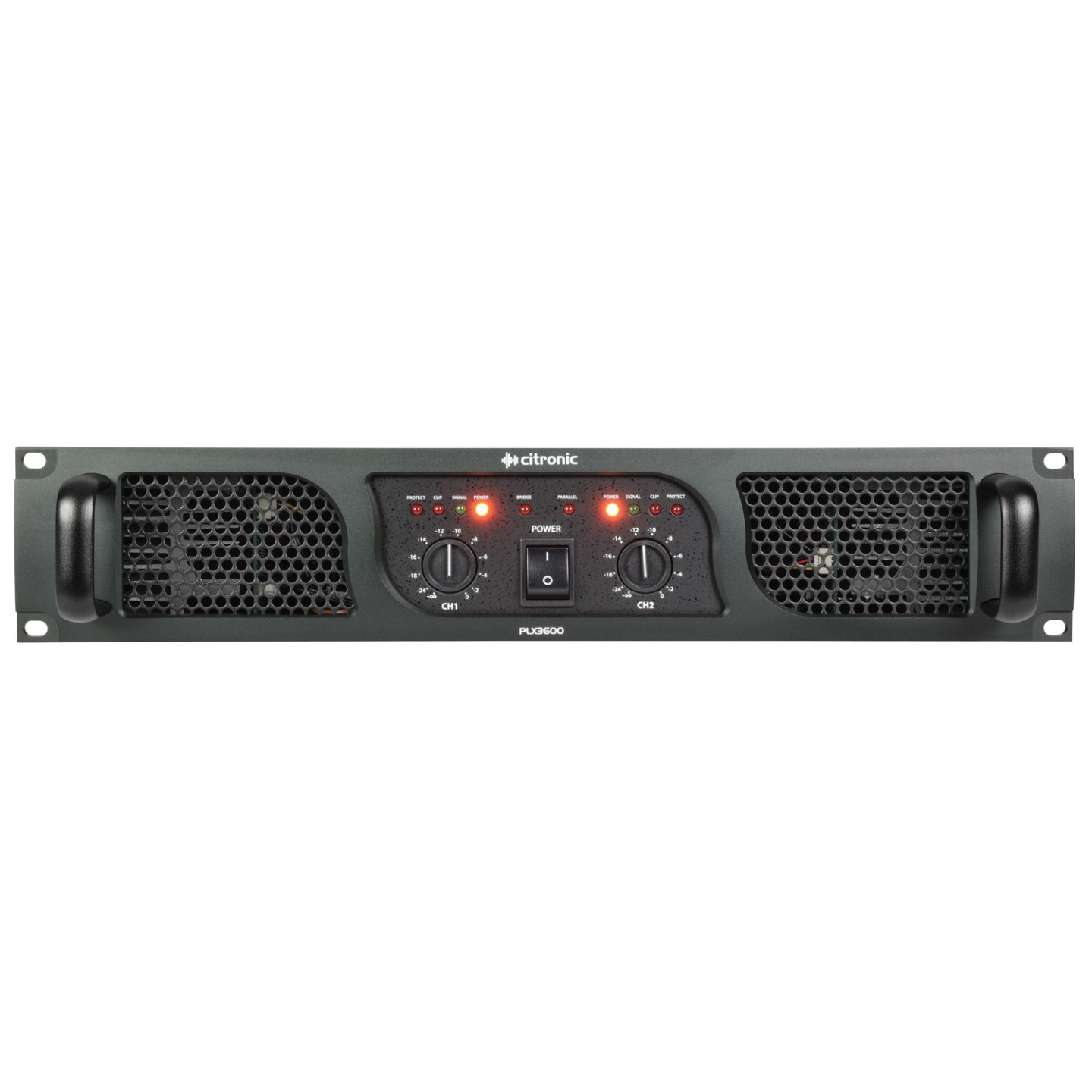

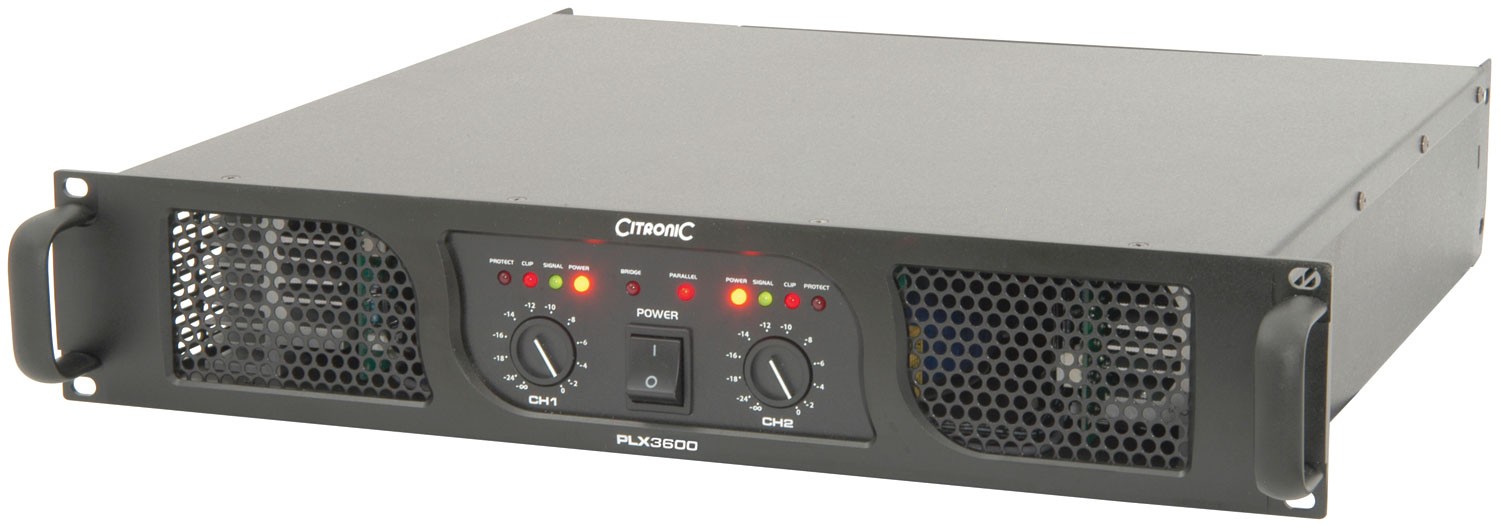

Citronic Power Amplifier - PLX3600 - Power Amplifier 2x1800W 2ohm 172.218UK

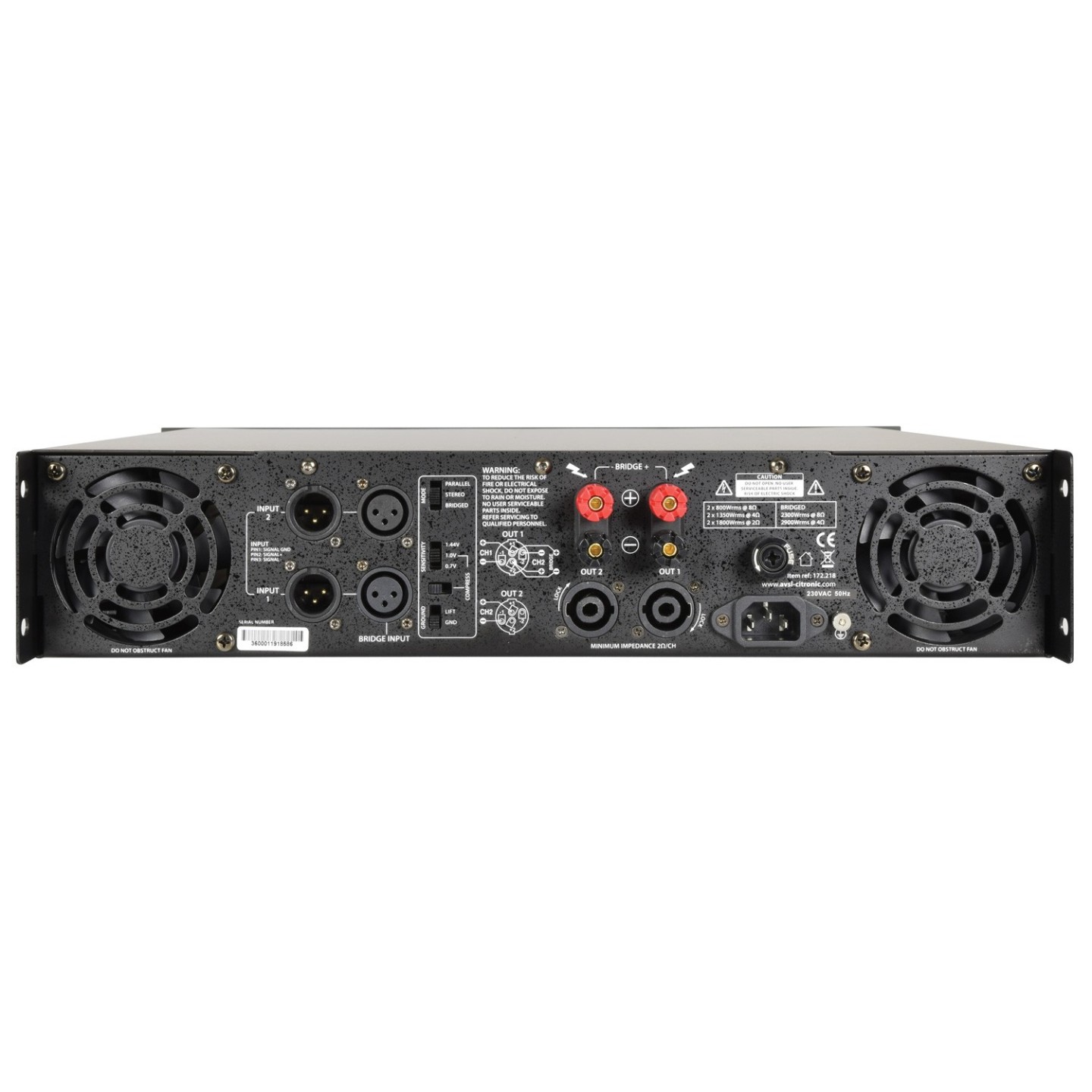

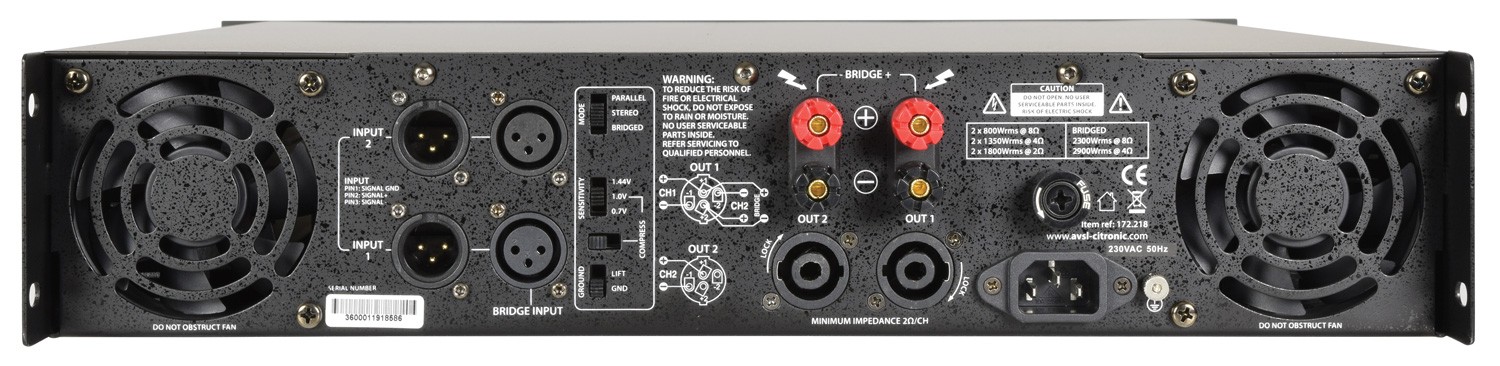

19-inch rackmount 2U dual-channel power amplifier with dual fans and Class H design; balanced XLR inputs; speaker outputs on 2 SPK connectors or 4mm outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
19" rackmount 2U power amplifier with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
- Bridge mode for high power mono operation
- Output stable down to 2 Ohms
- Switchable clip limiter
- Power rms bridge @ 8 Ohms : 2300W
- Power rms bridge @ 4 Ohms : 2900W
- Power rms @ 8 Ohms : 2 x 800W
- Power rms @ 4 Ohms : 2 x 1350W
- Power rms @ 2 Ohms : 2 x 1800W
- Amplifier : construction : Class-H
- Controls : Level channel 1, level channel 2, ground, mode, clip limiter
- Input impedance : 20k ohms
- Frequency response : 5Hz - 50kHz
- Total harmonic distortion : 0.05%
- Slew rate : 40V/us
- Damping factor : >400
- Protection : Short-circuit, overload, D.C. and thermal protect
- Fuse : F15A (6 x 32mm)
- Power supply : 230Vac, 50Hz (IEC)
- Dimensions : 482 x 453 x 88mm (2U)
- Weight : 26kg
| Channels | Dual |
| Power (8ohm) | 2 x 800 |
| Power (4ohm) | 2 x 1350 |
| Power (2ohm) | 2 x 1800 |
| Amplifier Class | Class H |
| 2ohm Stable | Yes |
| Bridge Mode | Yes |
| Warranty | 3 Years |
