AV:Link TV Bracket - LPTL600 - 600x400 Tilt Auto Lock
Easy-to-assemble tilting wall mount for TVs up to 65 inches; supports 600x400 VESA and max 35 kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - Type | Tilt |
|---|---|
| TV Wall Mounts - Screen Size | 43-65inch |
| TV Wall Mounts - VESA | 600x400 |
| TV Wall Mounts - Max Load | 35 kg |

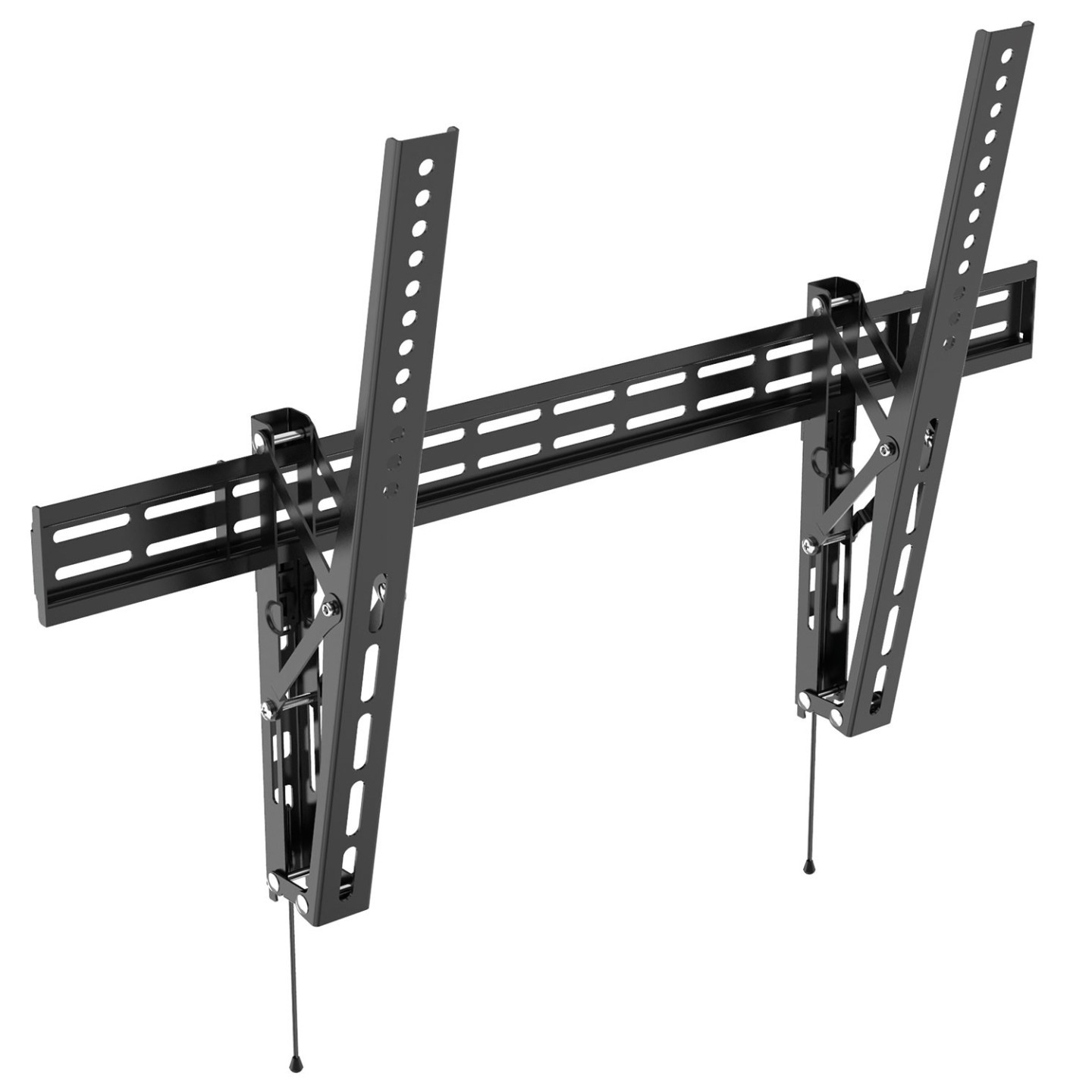

Easy to assemble and install this professional tilting wall mounting is specifically designed for todays lighter and slimmer TVs up to 65" in screen size. The self-locking mechanism can be opened by simply pulling on 2 drawstrings that hang either side of the unit making removal of the TV quick and hassle free. The smooth, accurate tilting mechanism provides an additional 12° tilt angle should your mounting position require it.
- Specifically designed for todays slimmer and lighter TVs from 32" to 65"
- Automatic self locking mechanism
- Low profile design sits only 36mm from the mounting surface
- Maximum weight load 35kg
- Maximum 600x400 VESA compatible
- Up to 12° tilt angle adjustment if required
- Wide range of fixings supplied
- Max. VESA: 600x400
- Max. weight load: 35kg
- Screen size: 32" to 65"
- Distance from wall: 36mm
- Tilt angle adjustment: 0° to 12°
- Dimensions: 666 x 437mm (W x H)
- Weight: 1.46kg
The box for this item contains :
- 1pc TV bracket
- 4pcs M4 x 20mm
- 4pcs M5 x 20mm
- 4pcs M6 x 20mm
- 4pcs M8 x 30mm
- 4pcs Spacer
- 4pcs Plate
- 4pcs Wall screw
- 4pcs Wall plug
- 4pcs Washer
- 1pc Magnetic spirit level (removable)
- 1pc User guide
| Function | Tilt |
| Max Vesa | 600x400 |
| Max. Weight | 35kg |
