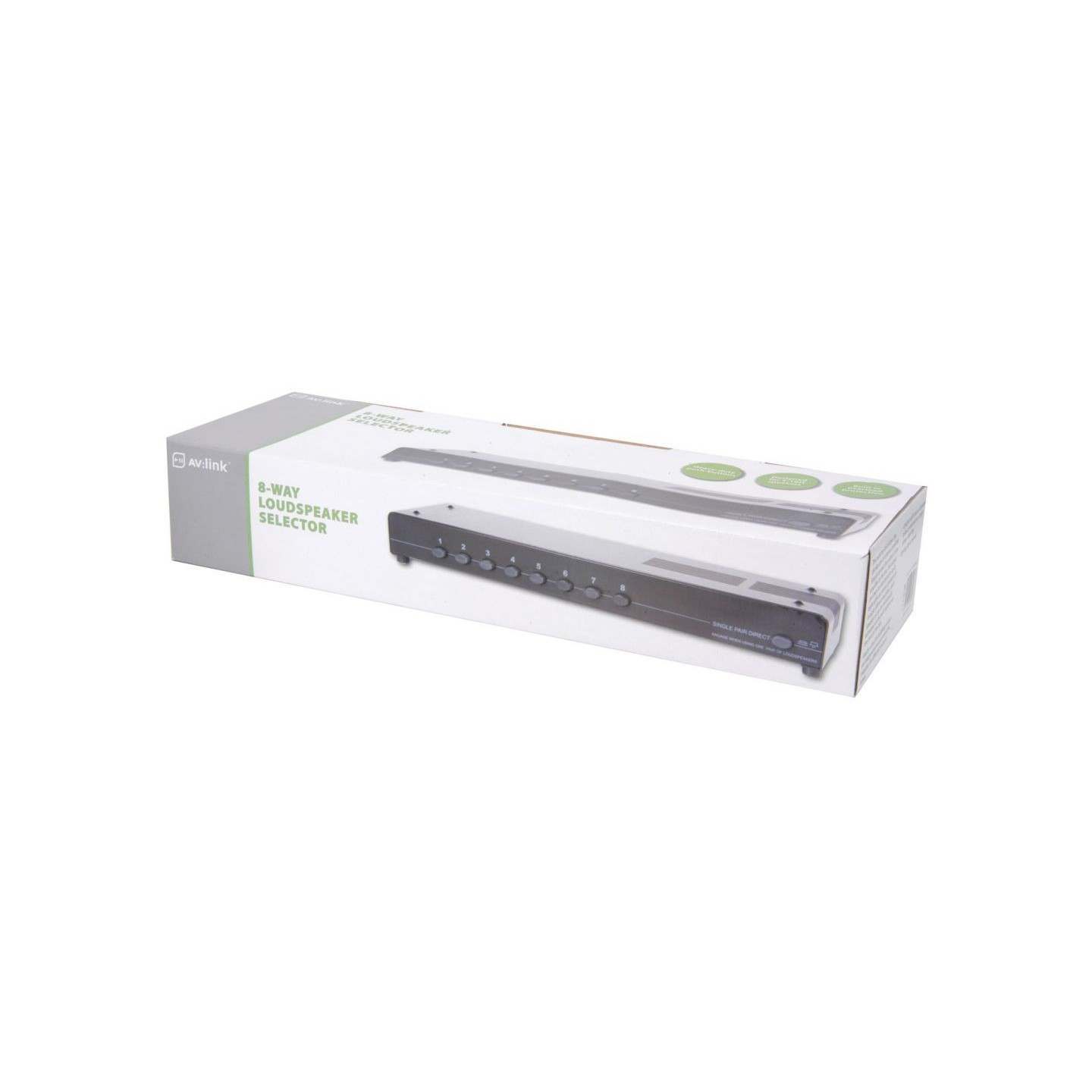

AV:link Speaker Switch - 128.428UK - 1:8 Speaker Switch with protection
Distributes a stereo amplifier output to eight speaker sets with built-in protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
This switcher unit allows the distribution of a stereo amplifier. Simply connect the output of an amplifier to the box, this output can then be distributed to up to eight different stereo speaker sets in eight different locations, each speaker set can be individually activated via the push buttons on the front of the box. Ideally suited for buildings where an independent sound control is required for different rooms or zones.
- Eight pairs of speakers can be connected to a single stereo amplifier

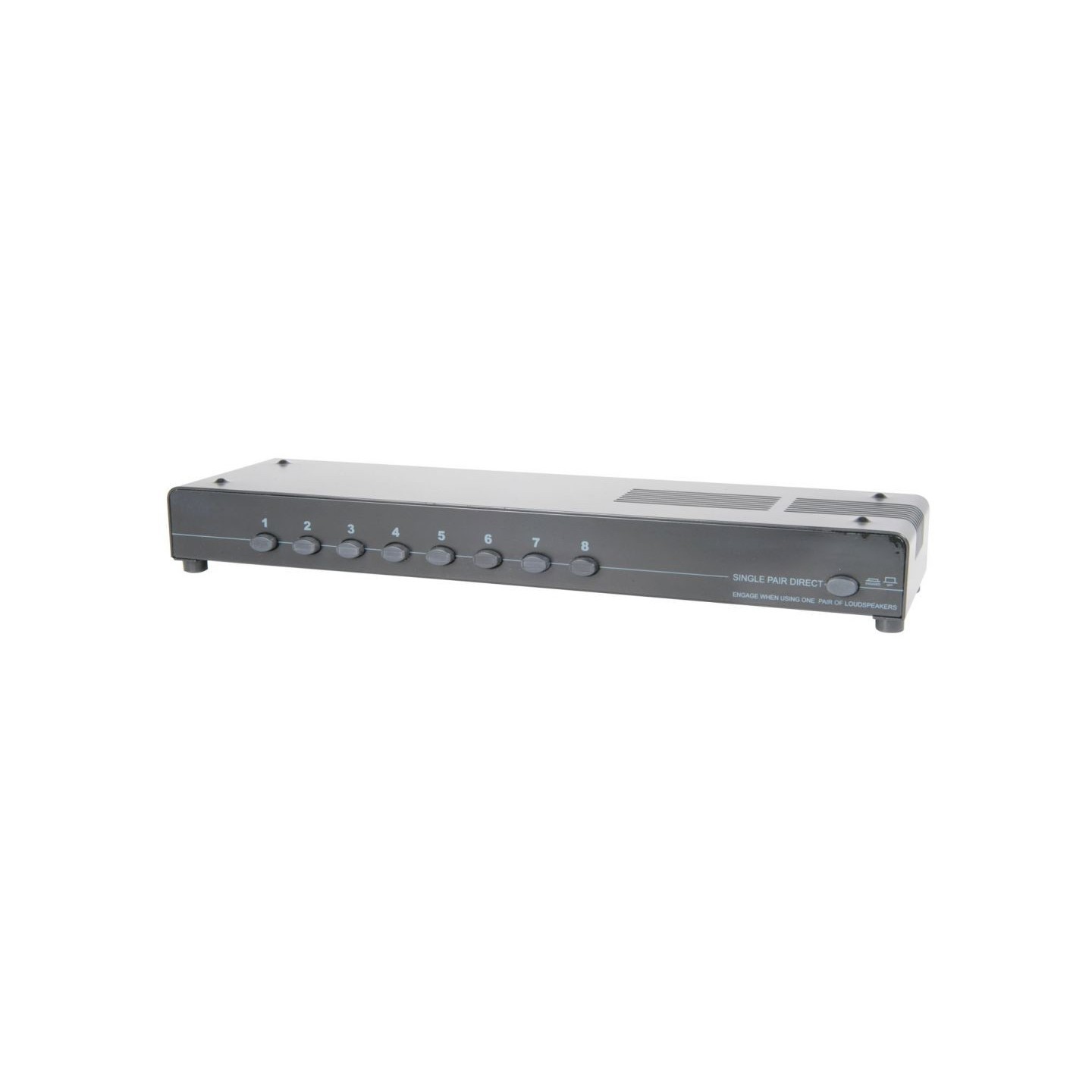

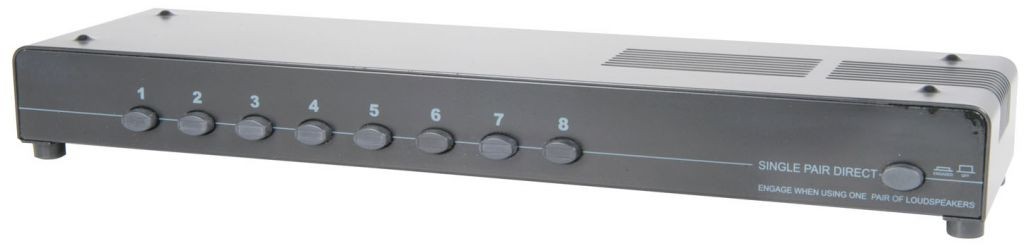

- Heavy duty push-buttons
- Built-in overload protection

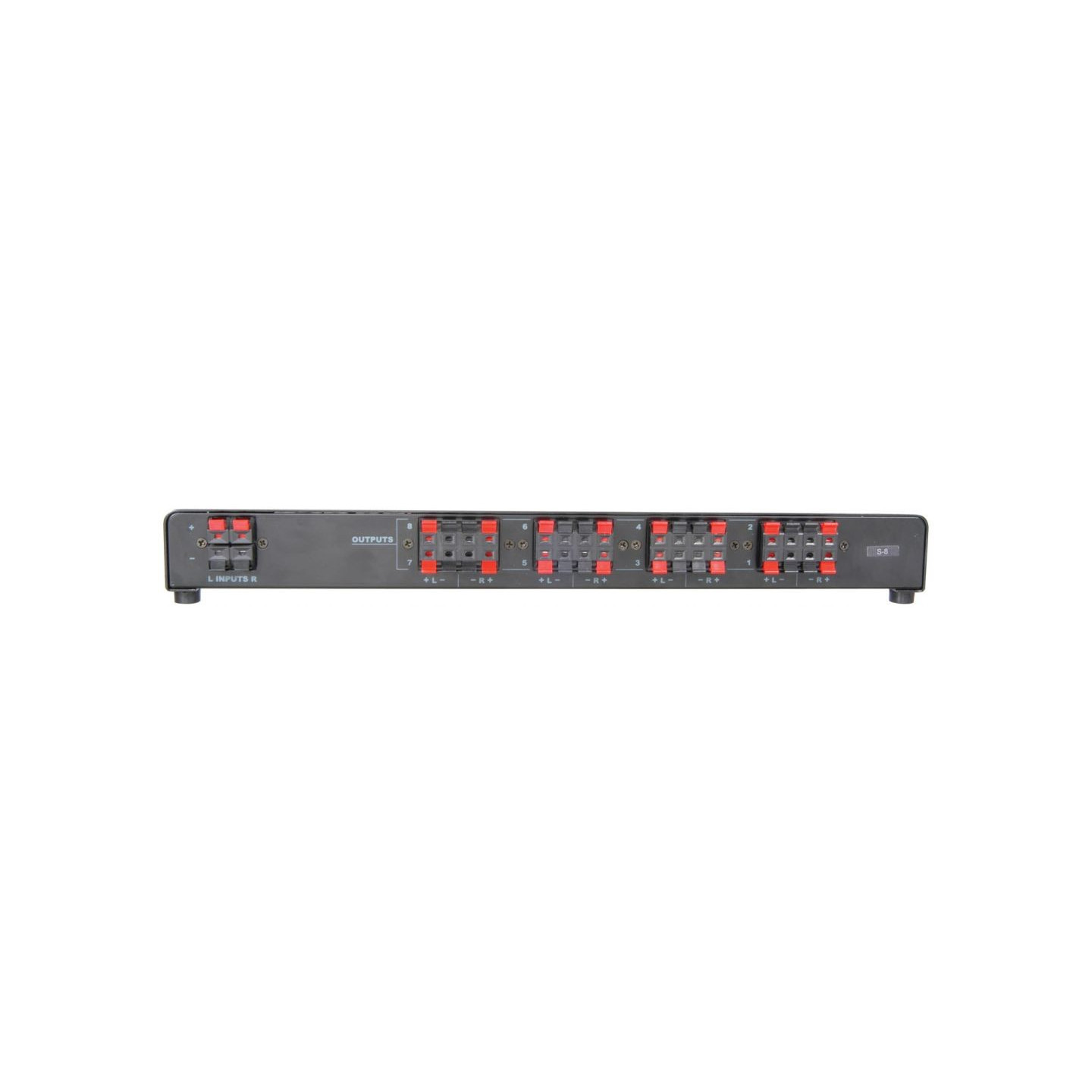

- Spring clip terminals
- Designed for 4-16 ohms speakers
- Wiring Gauge 14 to 22 gauge
- Input 1 x stereo
- Output 8 x stereo
- Power per channel 100W max.
- Dimensions 432 x 125 x 55mm
- Weight 2.08kg
| Zones | 8 |
| Speaker Outputs | 16 |
| Amplifier Inputs | 1 |
| Max Input (per channel) | 100W |
| Protection | Yes |
