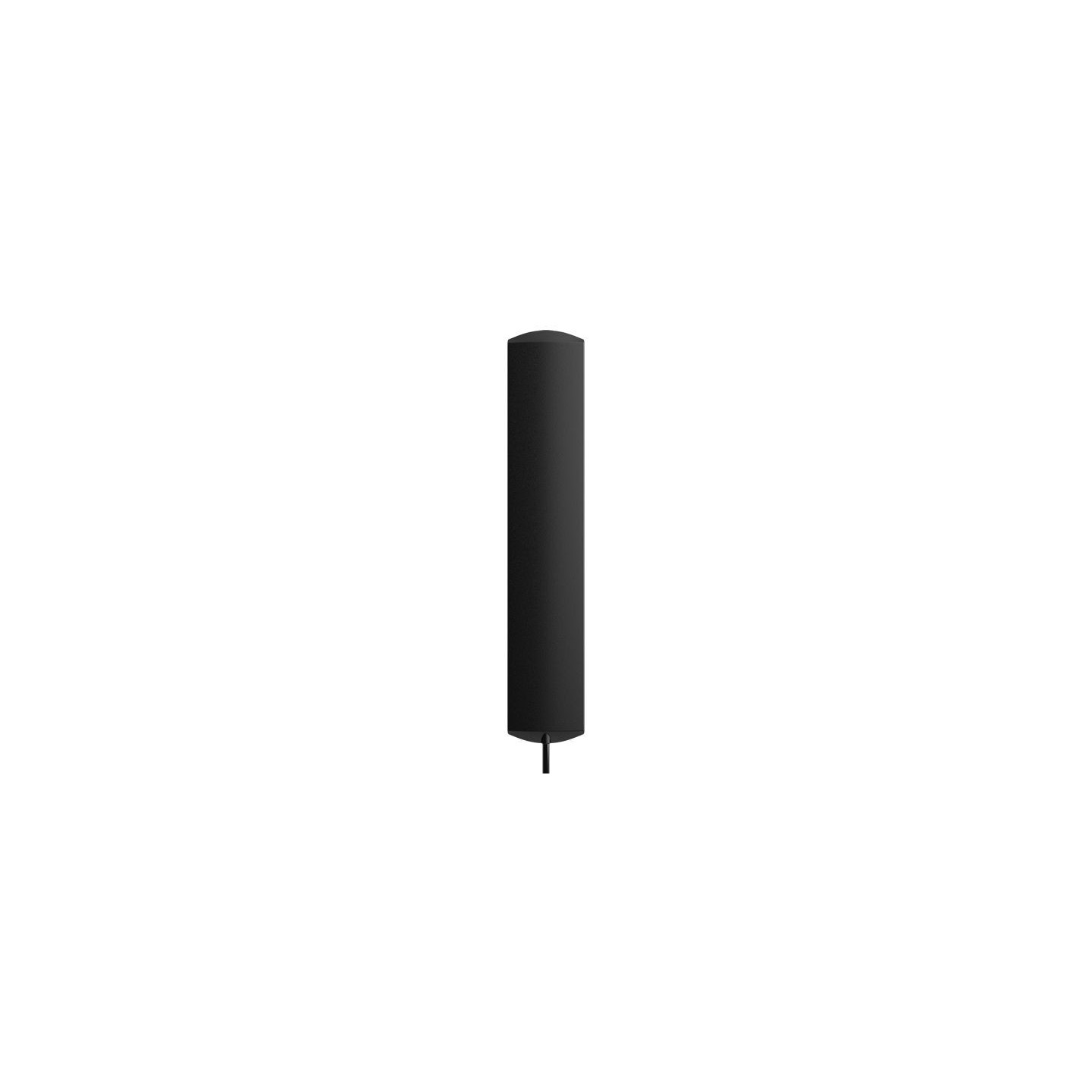

AJAX Baseline Alarm Hub BP External Antenna - External Antenna
External antenna for AJAX Baseline Alarm Hub BP, compatible with Hub BP Jeweller.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Compatibility : Hub BP Jeweller
Key features
- Communication channels : 2G/3G/LTE / Jeweller / Wings
Operating frequencies
- 698–960 MHz
- 1,710–2,690 MHz
Connector : SMA
Sabotage protection
- External antenna breakage detection : An Ajax system is able to detect a breakage of an external antenna and notify users and the monitoring company.
Installation
- The antenna is connected to the hub’s communication channels and goes outside through holes in the hub’s casing.
- The antenna is attached to the surface using a pre-applied double-sided adhesive tape.
- Dimensions : 115.6 × 21.7 × 5.8 mm
- Cable length : 3,000 mm
- Weight : 41 g
- Operating temperature range : from –40 °C to +85 °C
- Operating humidity : up to 95%
| Connectivity | Wired |
| Compatibility | Hub BP Jeweller |
