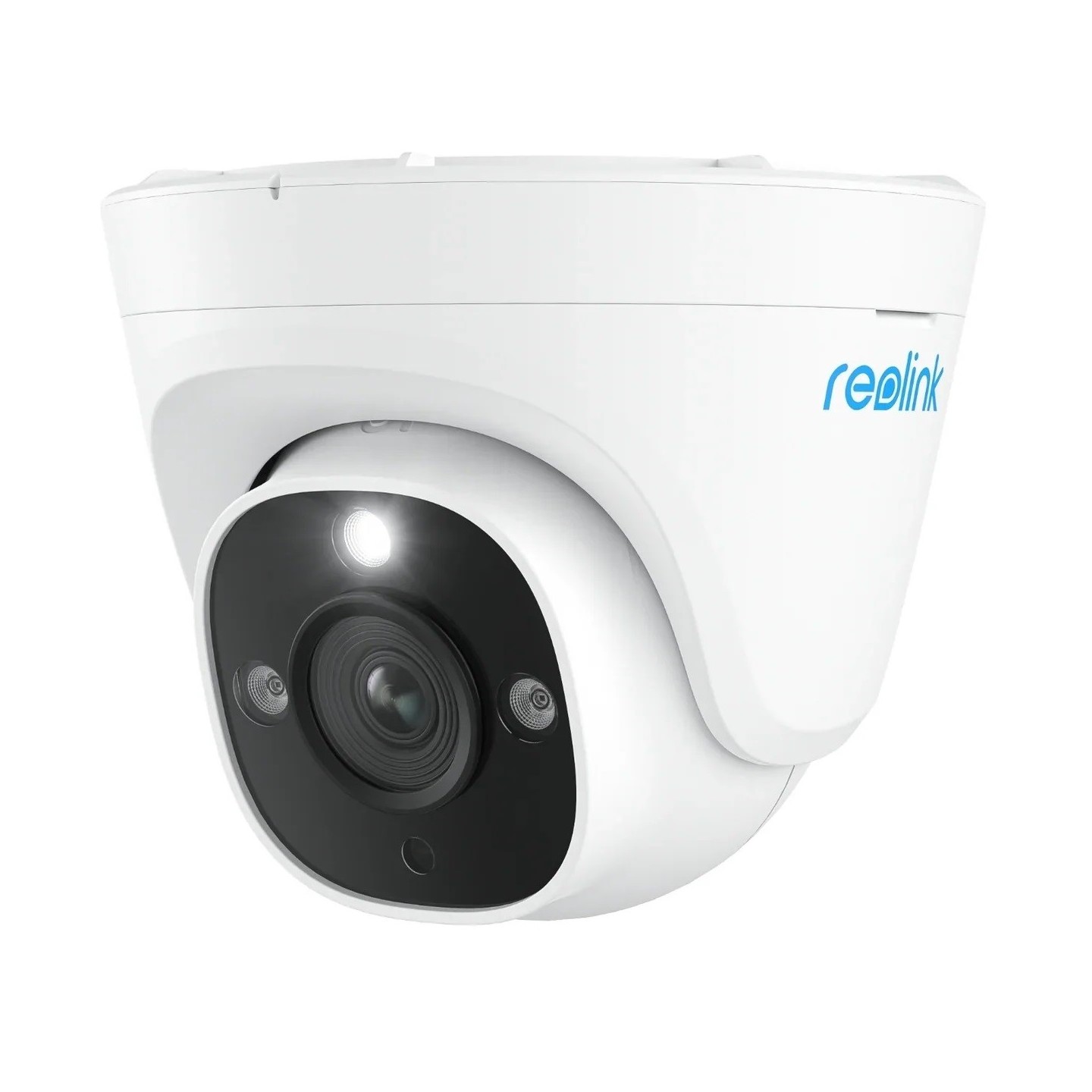

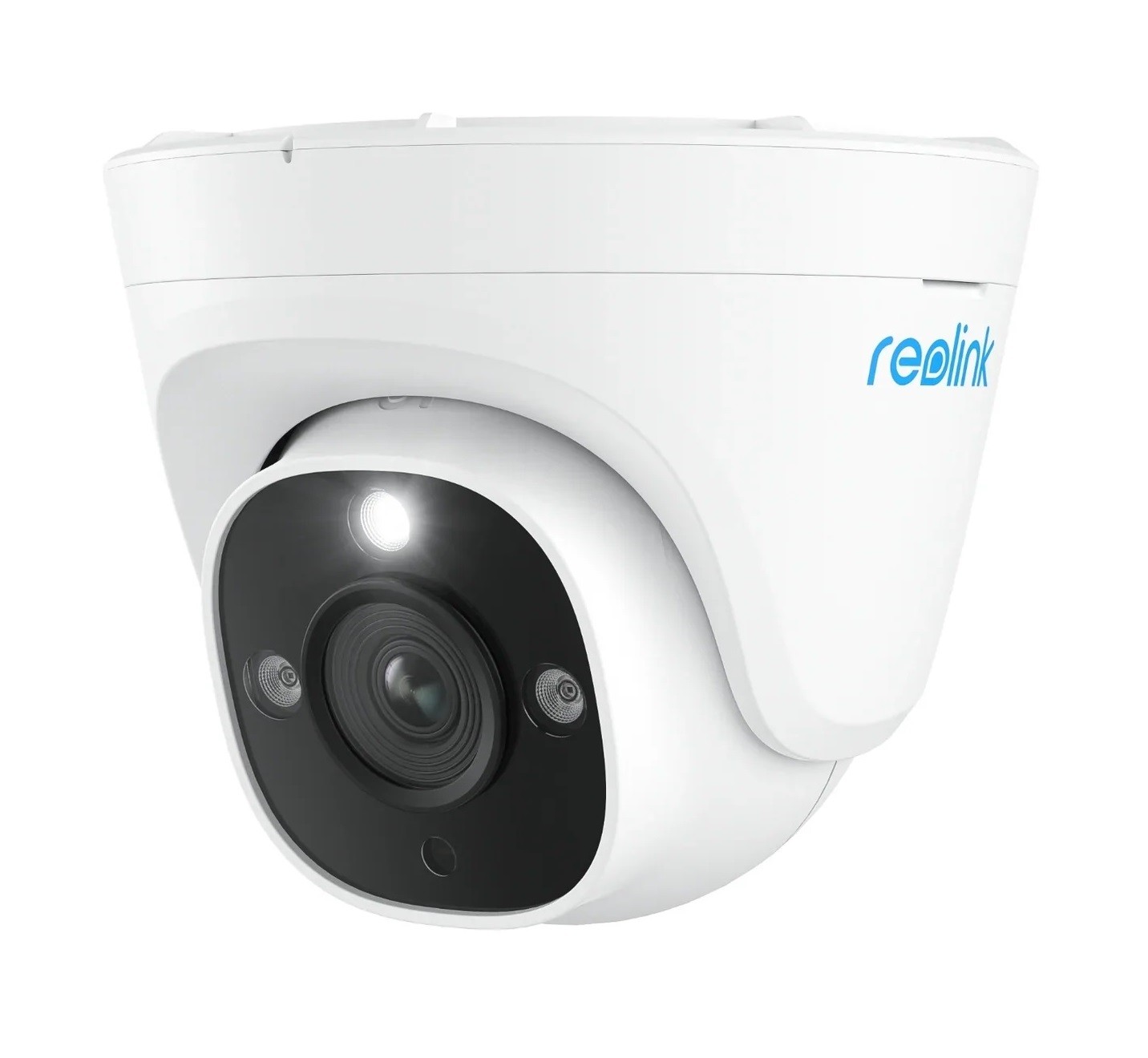

Reolink POE IP Dome Camera 12MP - RLC-1224A - Dome, Fixed
POE IP Dome Camera with 12MP resolution, fixed 4.0mm lens, up to 256GB Micro SD, two-way audio, AI person/vehicle detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Dome |
|---|---|
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
- INDUSTRY-LEADING 12MP VISUAL EXPERIENCE: With the 12MP (4512x2512) resolution, this security camera provides wider coverage and captures even more details than 4K cameras. No suspicious movement should be missed.
- FULL-COLOR NIGHT VISION WITH SPOTLIGHTS: Gain more detailed and convincing evidence at night with the color night vision enabled by the spotlight. The illumination of the 700-lumen spotlight also provides an effective way to deter intruders.

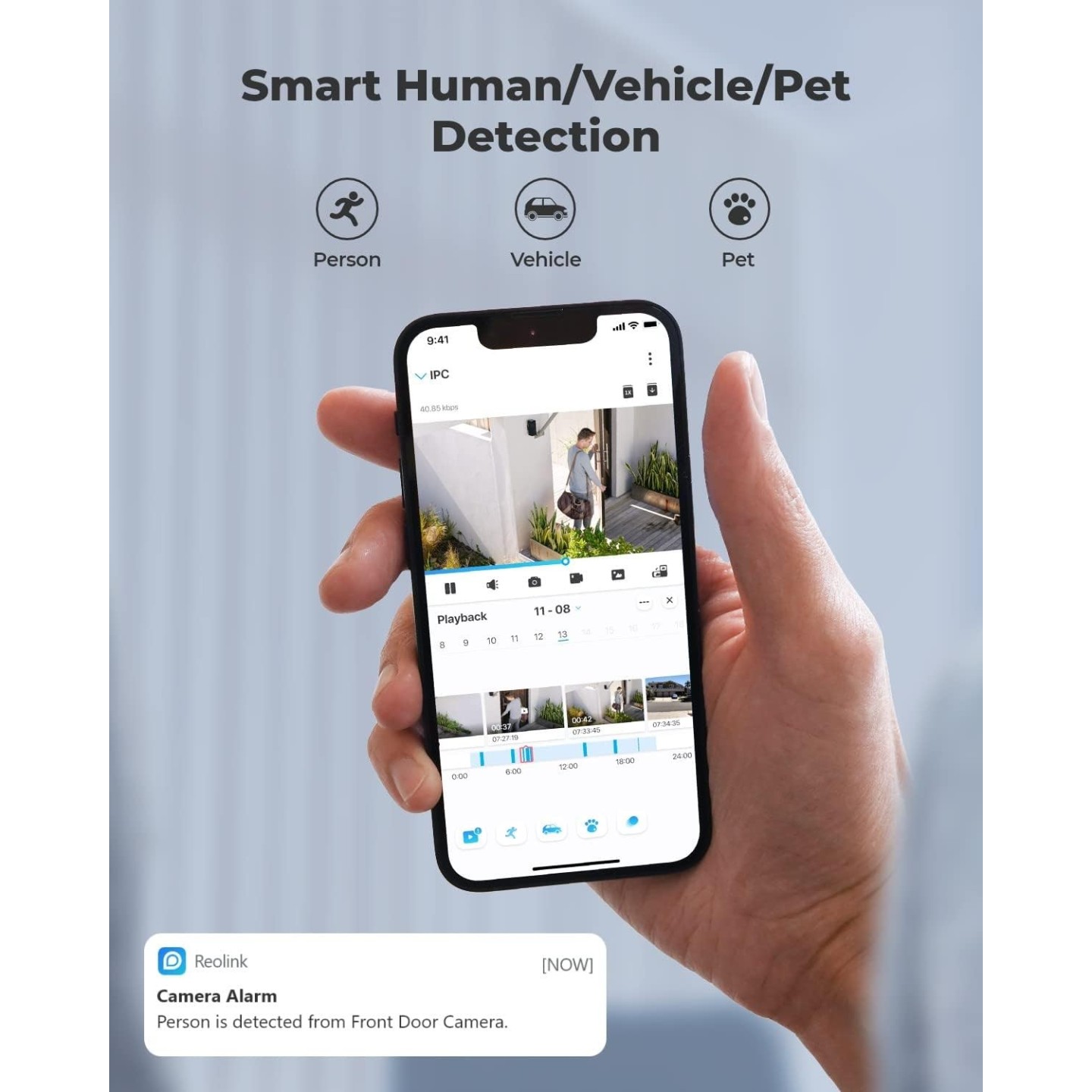

- SMART PERSON/VEHICLE/PET DETECTION: This smart camera can detect people, vehicles, and pets according to their shapes. You can customize the motion detection zone and alarm delay for each detection type to further reduce unwanted alerts.
- POWER OVER ETHERNET: This PoE camera is easy to install and set up. Only one Ethernet cable is needed for power, video, and audio transmission. You can connect the camera to an NVR for convenient management and built-in HDD massive storage.(The PoE NVR/switch/injector and DC power adapter are not included.)
- MULTI-PLATFORM REMOTE ACCESS WITHOUT SUBSCRIPTIONS: Reolink App/Client works on Android/iOS/Windows/Mac for you to view and control the camera. You can also use the IP address to view the live feed on web browsers. No monthly fee is needed.
Video & Audio
- Image Sensor: 1/2.49" CMOS Sensor
- Video Resolution: Default: 4512X2512 (12 Megapixels) at 20 frames/sec
- Lens: f=4.0mm; F=1.6, with IR-cut filter
- Video Format: H.265
- Field of View: • Horizontal: 93°
- • Vertical: 49°
- Day & Night: Auto-switching with IR-cut filter
- Infrared Night Vision: 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision: Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio: Two-way audio
Power
- POE: IEEE 802.3af, 48V Active
- DC Power: DC 12.0V⎓1A, <12W
Interface
- Power: DC power port
- System: Reset button
- Ethernet: One 10M/100Mbps; RJ45
- Storage: microSD card slot (Max. 256GB)
- Audio: Built-in microphone and speaker
Software Features
- Frame Rate: Mainstream: 2fps - 20fps (default: 20fps), Substream: 4fps - 20fps (default: 10fps)
- Code Rate: Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps), Substream: 128Kbps - 1024Kbps (default: 768Kbps)
- Browsers Supported: Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/person detection/vehicle detection/pet detection
- Record Mode: Motion-triggered recording (default); scheduled recording
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximal User Access: 20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Work with: Google Assistant
Working Environment
- Temperature: Operating temperature: -10°C~+55°C (14°F~131°F)
- Humidity: Operating humidity: 10% ~ 90%
- Waterproof: IP67
Size & Weight:
- Dimension: Φ117.4*103.8mm
- Weight: 515g
| AI Features | Person,Vehicle Detection |
| Camera Resolution | 12.0MP |
| Housing Type | Dome |
| Full-Color | Yes |
| Lens | Fixed |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| Audio | Two-Way |
| Others | Up to 256GB Micro SD |
