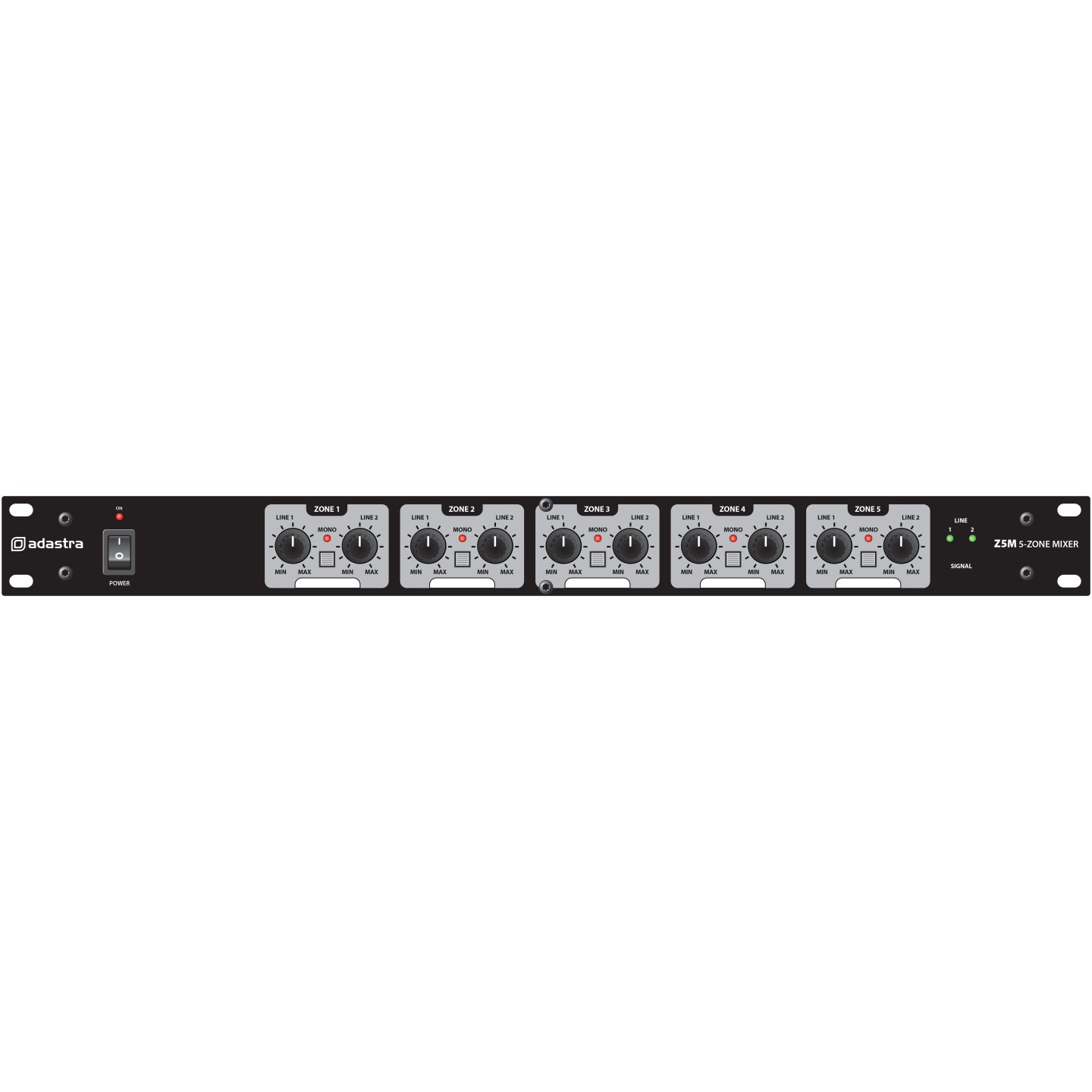

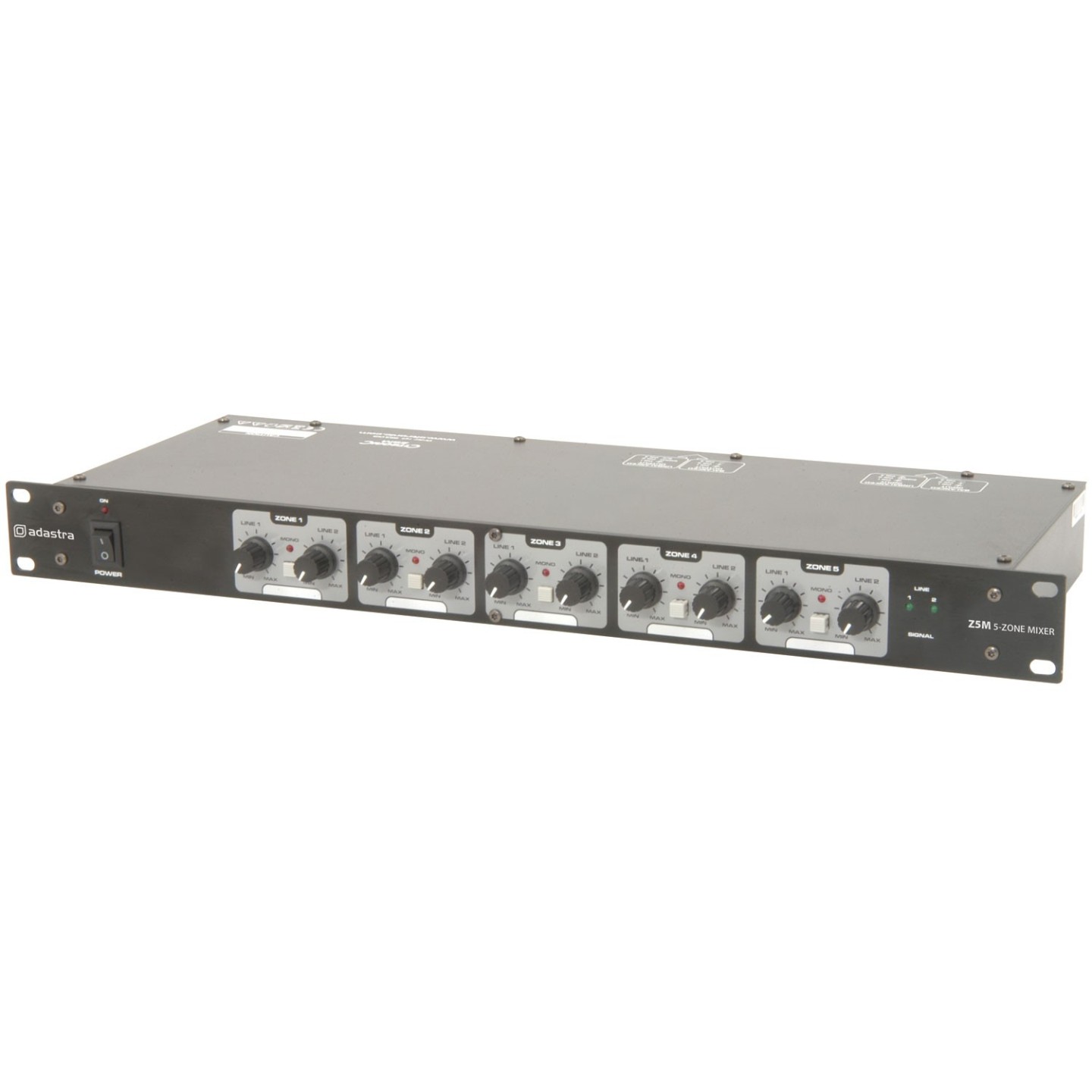

Adastra Z5M Zoning Mixer - 953.019UK - Zoning Mixer
2-input, 5-zone mixer with individual input volumes and per-zone mono; stereo balanced XLR inputs/outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.
- 2 inputs to 5 zones
- Mono selectable for each zone

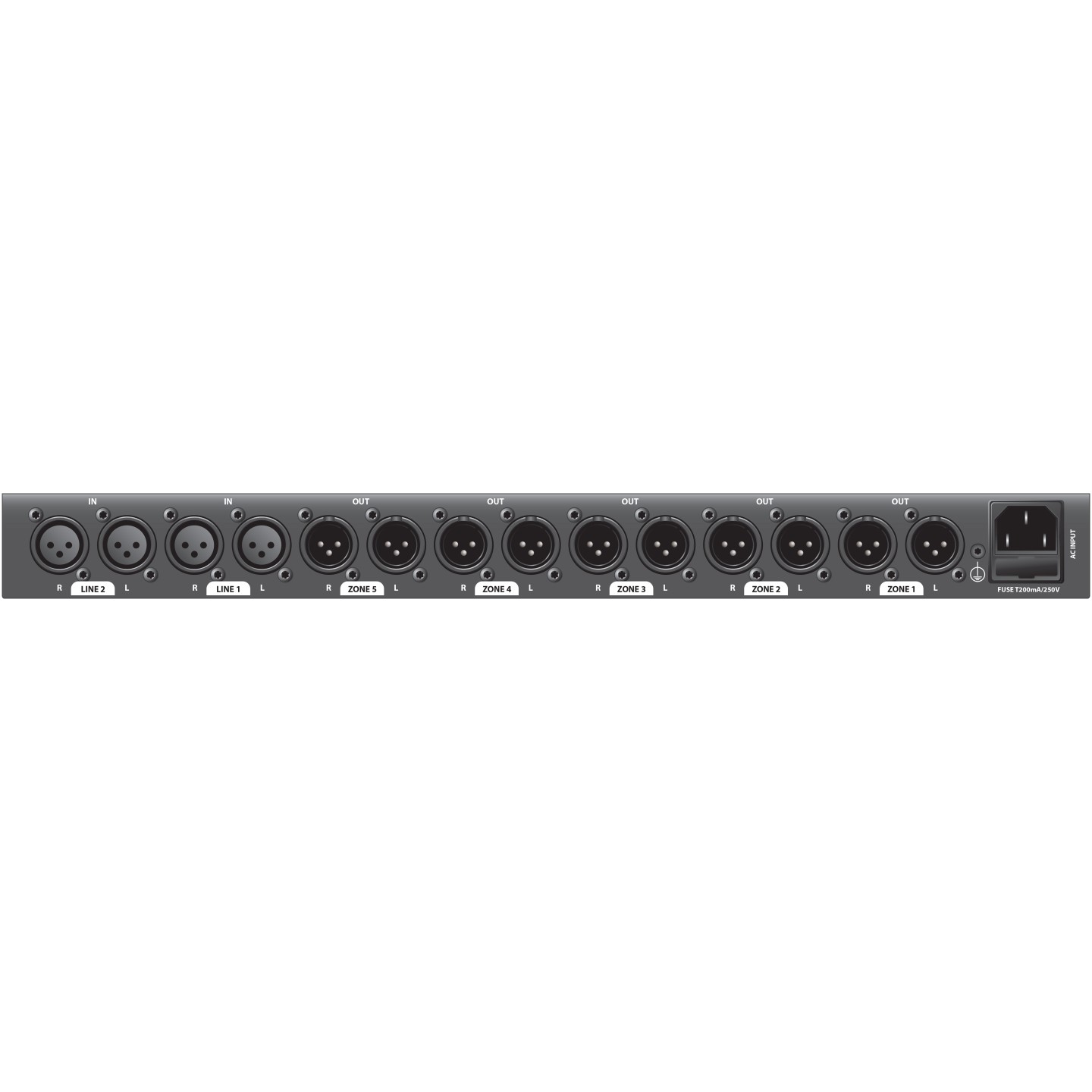

- Fully balanced XLR connections
- Power supply...................115/230Vac 50/60Hz (IEC)
- Inputs...............................Line 1 L+R, Line 2 L+R, balanced XLRF
- Outputs............................Zone 1 to 5 L+R, balanced XLRM
- Input impedance............40k Ohms
- Output impedance.........220 Ohms
- Frequency response......20Hz - 25kHz, +0/-1dB
- Signal to noise ratio.......>100dB
- THD.................................<0.005%
- Dimensions......................483 x 175 x 44mm
- Weight..............................2.2kg
