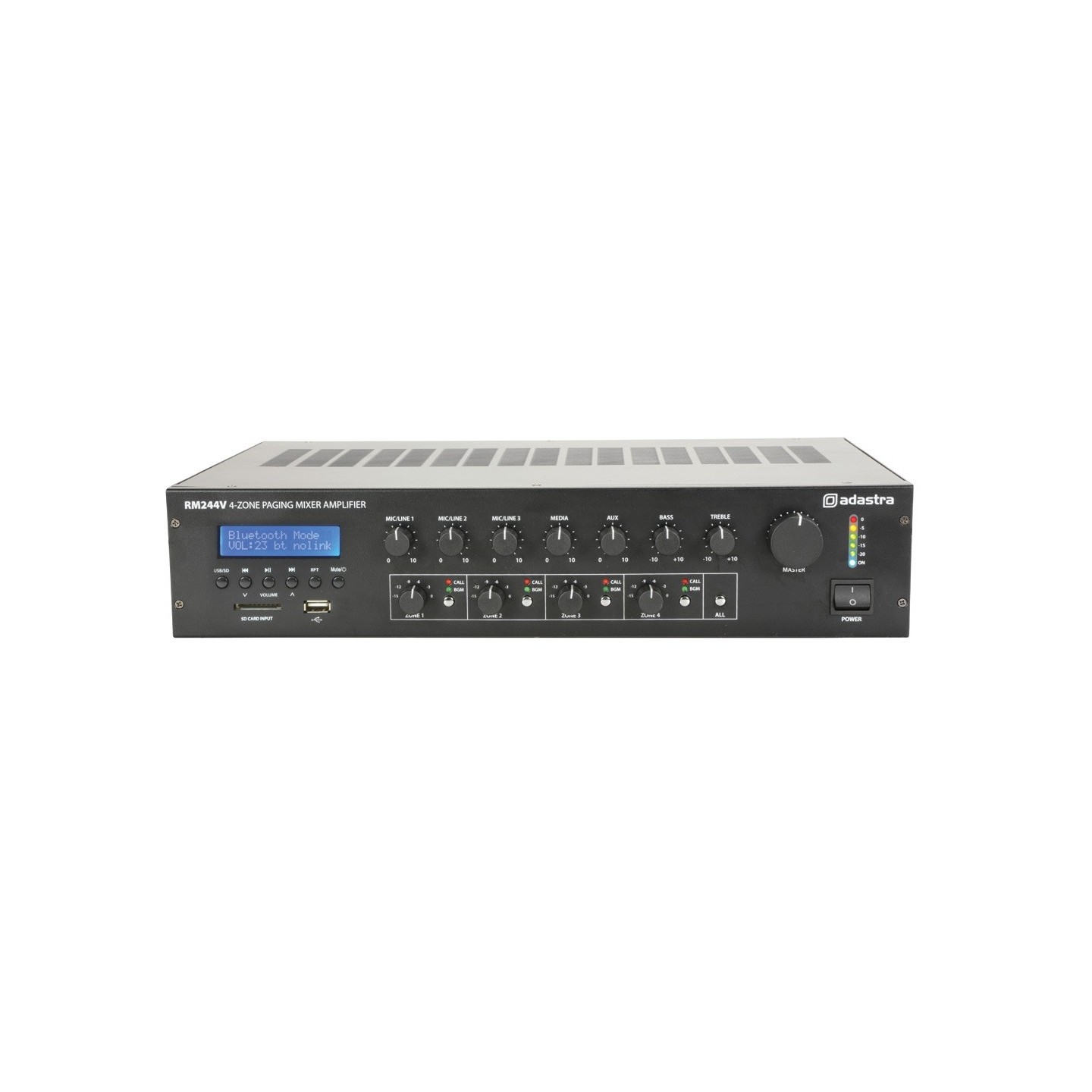

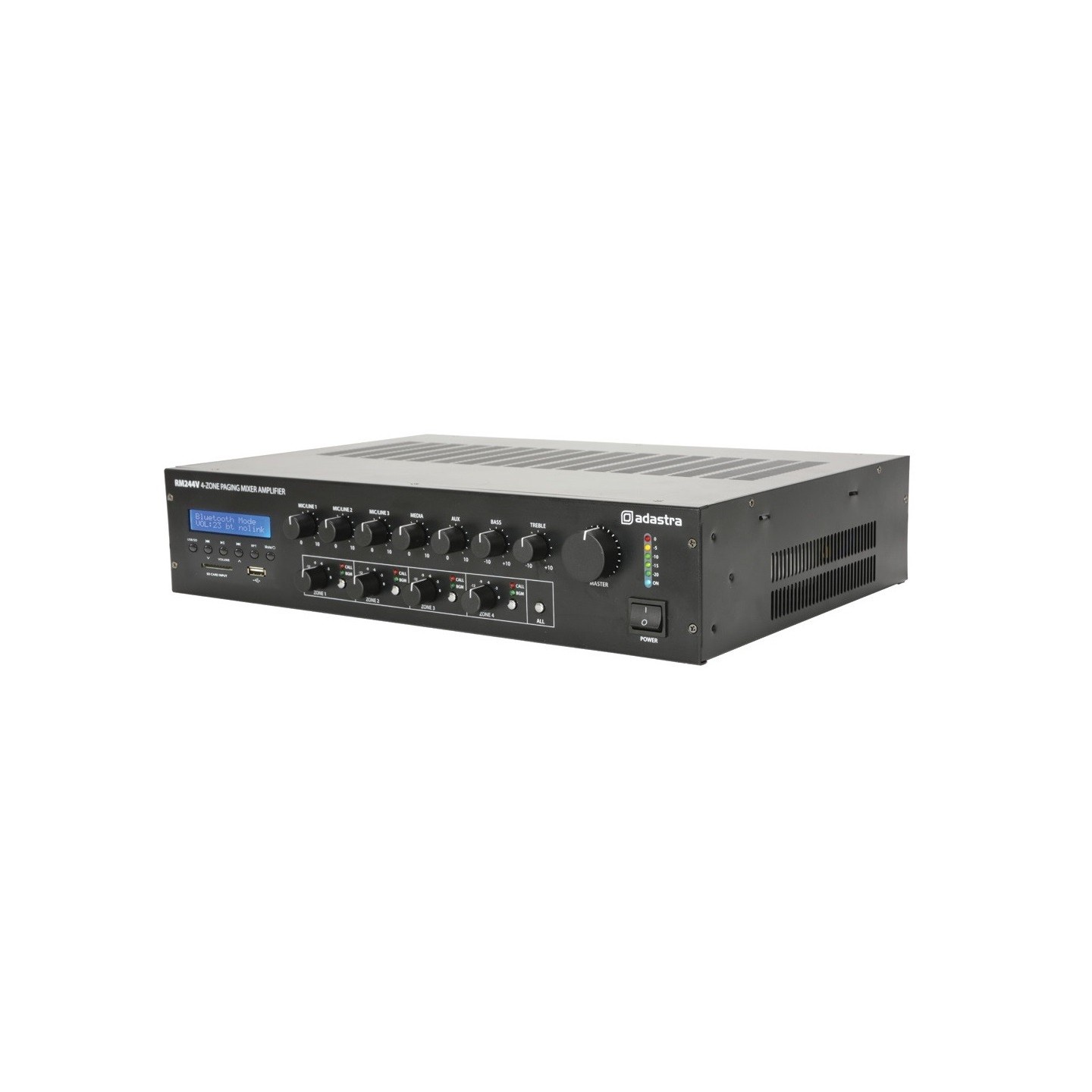

Adastra - RM244V - v2 4Z 240W FM USB BT with Paging 953.244UK
240W mixer-amplifier with 3 mic/line inputs, 1 aux input, built-in media player; Channel 1 priority mute; 4 zones; 24V supply.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

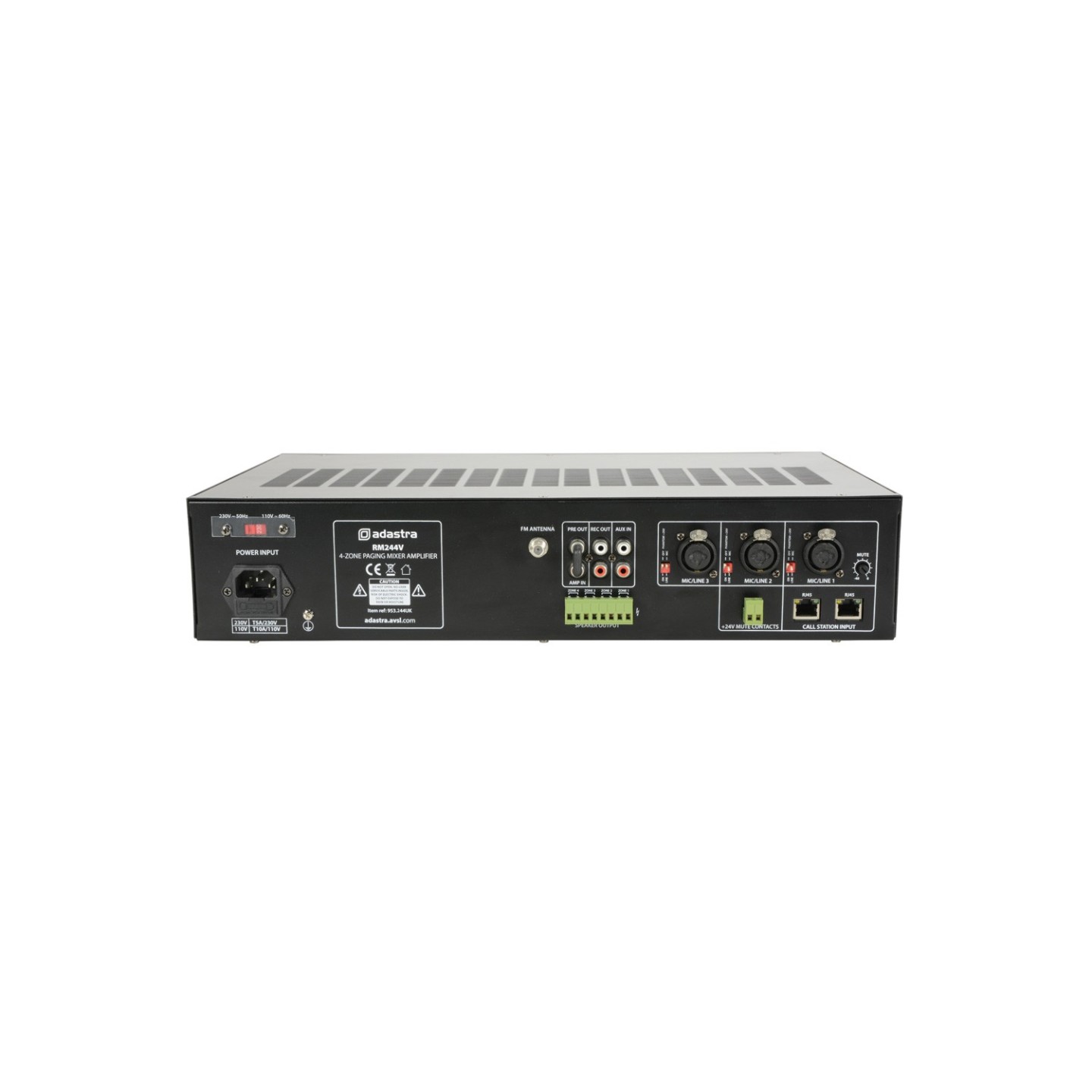

240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.
- Built-in USB/SD player with Bluetooth and FM tuner
- Compatible with CS4 call station (953.146UK)
- 4 individual volume attenuators
- Switchable +20V phantom power
- Send/return loop for connection to audio processors or amplifiers

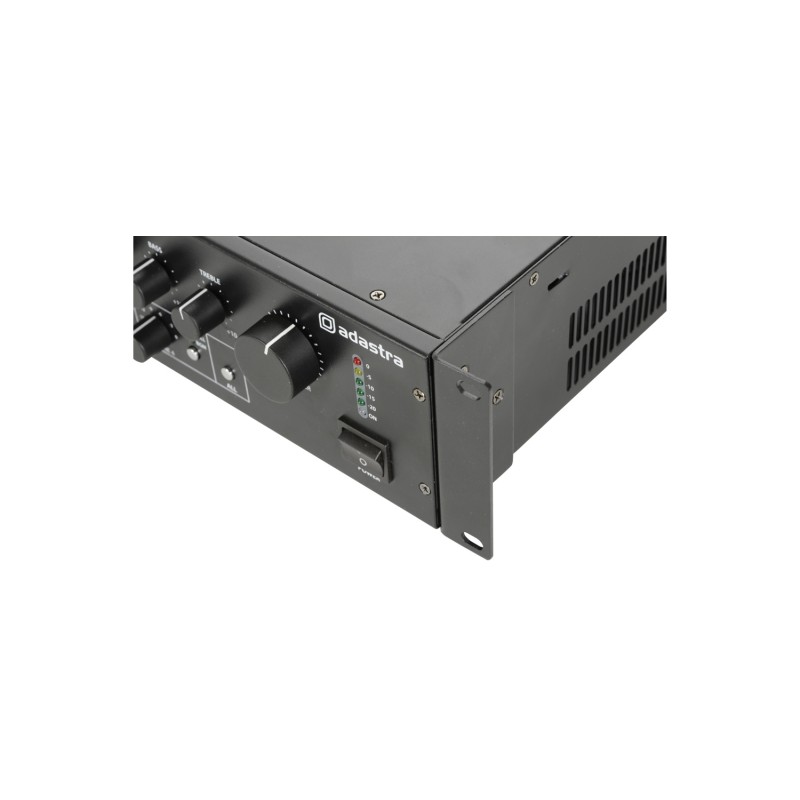

- Supplied with 19" rack-mount ears (2U)
- Power supply 110/230Vac, 50/60Hz (IEC)
- Output power : rms 240W (shared across 4 zones @ 100V)
- Inputs 3 x mic/line (jack/XLR), 1 x aux (RCA)
- Input sensitivity : mic -47dBV
- Input impedance : mic 5k Ohms
- Input sensitivity : line -10dBV
- Input impedance : line 1k Ohms
- Paging station inputs 2 x RJ45 (for optional RM-4B paging stations)
- Line output RCA
- Sends : returns Pre out, amp in (RCA)
- Channel controls Ch1, Ch2, Ch3, Media and Aux volume
- Output controls Master volume, 4 x zone volumes & mutes
- Equaliser : bass 100Hz ±10dB
- Equaliser : treble 10kHz ±10dB
- Phantom power +20V (switchable inputs 1-3)
- Audio source USB/SD player, FM tuner and Bluetooth receiver
- Bluetooth version 2.0
- Fire alarm contacts 24V screw terminals
- THD +N <2% @ 1kHz (rated power)
- Protection Short circuit, overload, overheat
- Speaker : outputs 4 x 100V (modular terminal block)
- Dimensions 430 x 315 x 89mm
- Weight 10.4kg
| Amplifier Type | Mixer Amp |
| Power | 240W |
| Zones | 4 |
| Zone Control | Volume |
| USB / FM / BT | Yes |
| Rack Mountable | Yes |
