AV:Link 1:4 Speaker Switch - 128.425UK - with protection
Distribute one amplifier output to up to four stereo speaker sets with protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

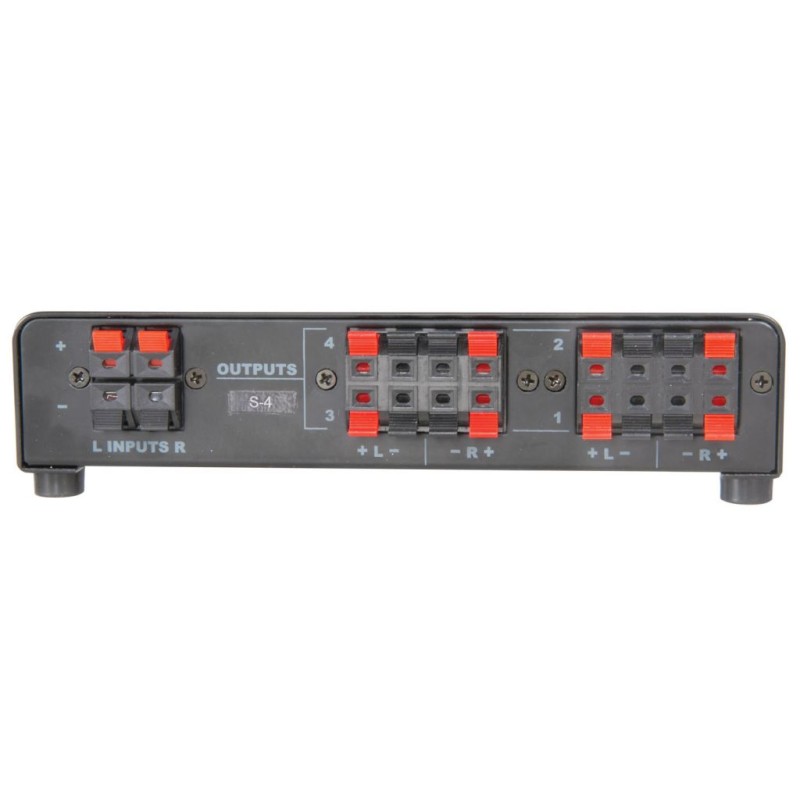

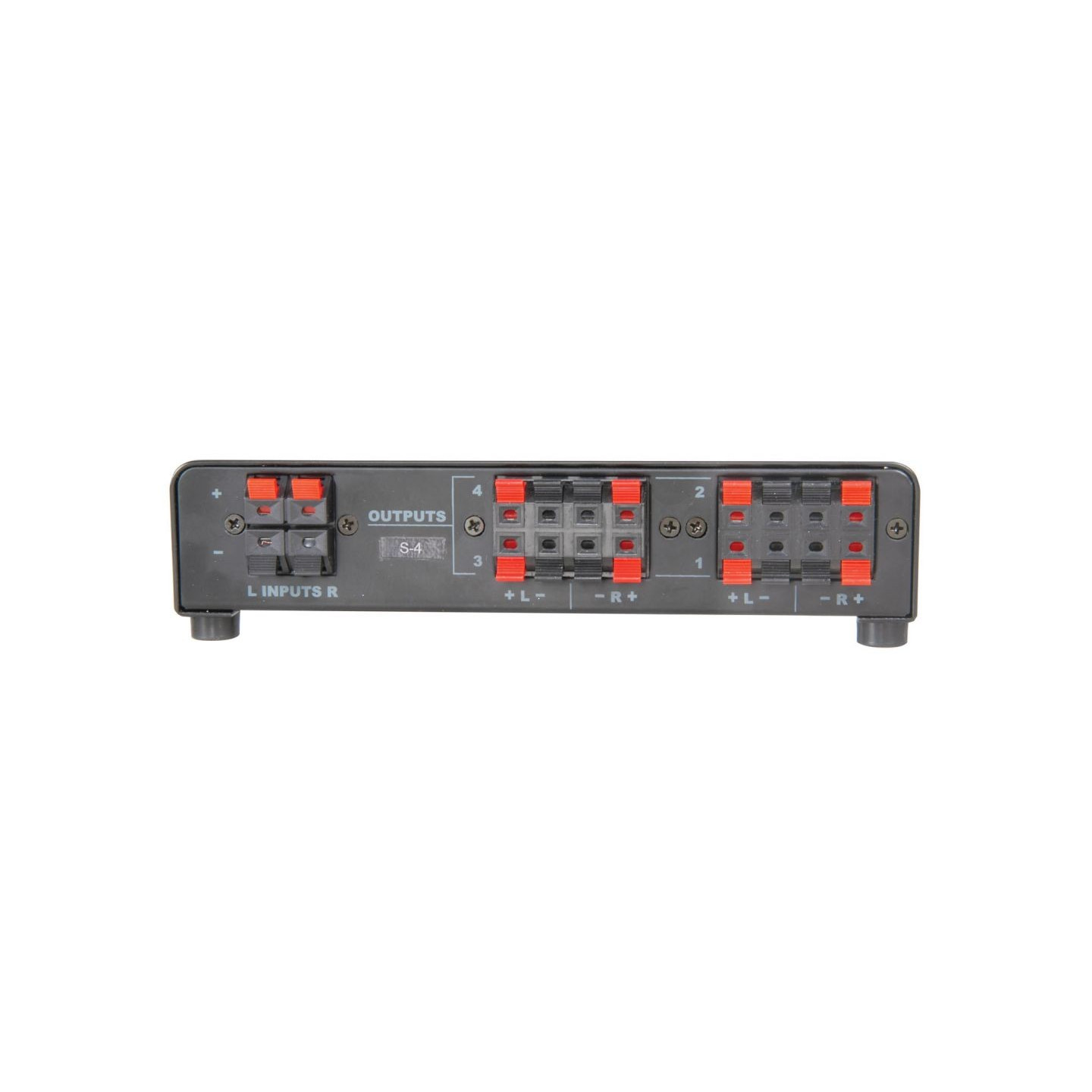

This switcher unit allows the distribution of a stereo amplifier. Simply connect the output of an amplifier to the box, this output can then be distributed to up to four different stereo speaker sets in four different locations, each speaker set can be individually activated via the push buttons on the front of the box. Ideally suited for buildings where an independent sound control is required for different rooms or zones.
- Enables four pairs of speakers to be connected to a single stereo amplifier

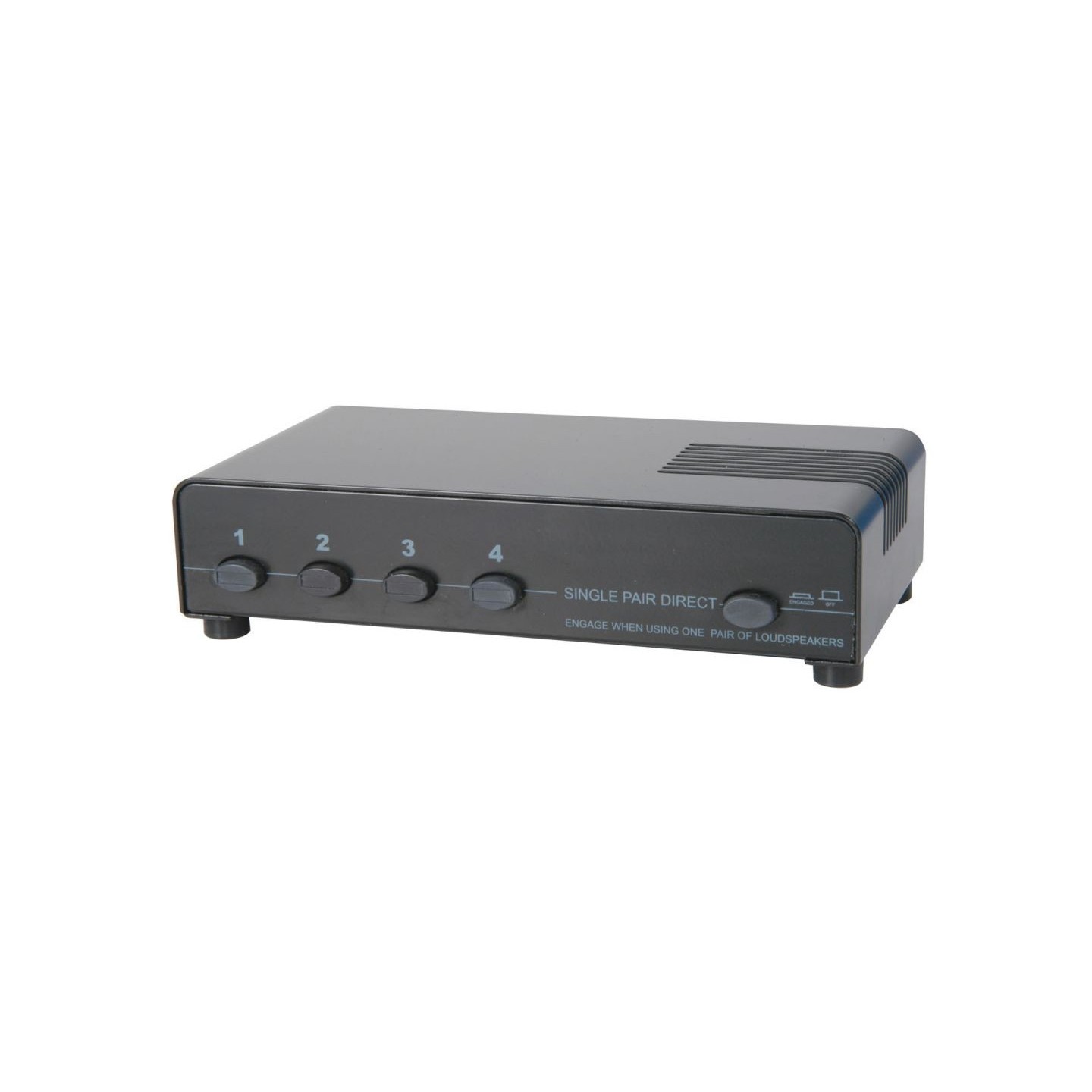

- Heavy duty push-buttons
- Built-in overload protection
- Designed for 4-16 ohms speakers
- Spring clip terminals
- Wiring Gauge 14 to 22 gauge
- Input 1 x stereo
- Output 4 x stereo
- Power per channel 140W max.
- Dimensions 215 x 110 x 45mm
- Weight 1.2kg
| Zones | 4 |
| Speaker Outputs | 8 |
| Amplifier Inputs | 1 |
| Max Input (per channel) | 140W |
| Protection | Yes |
