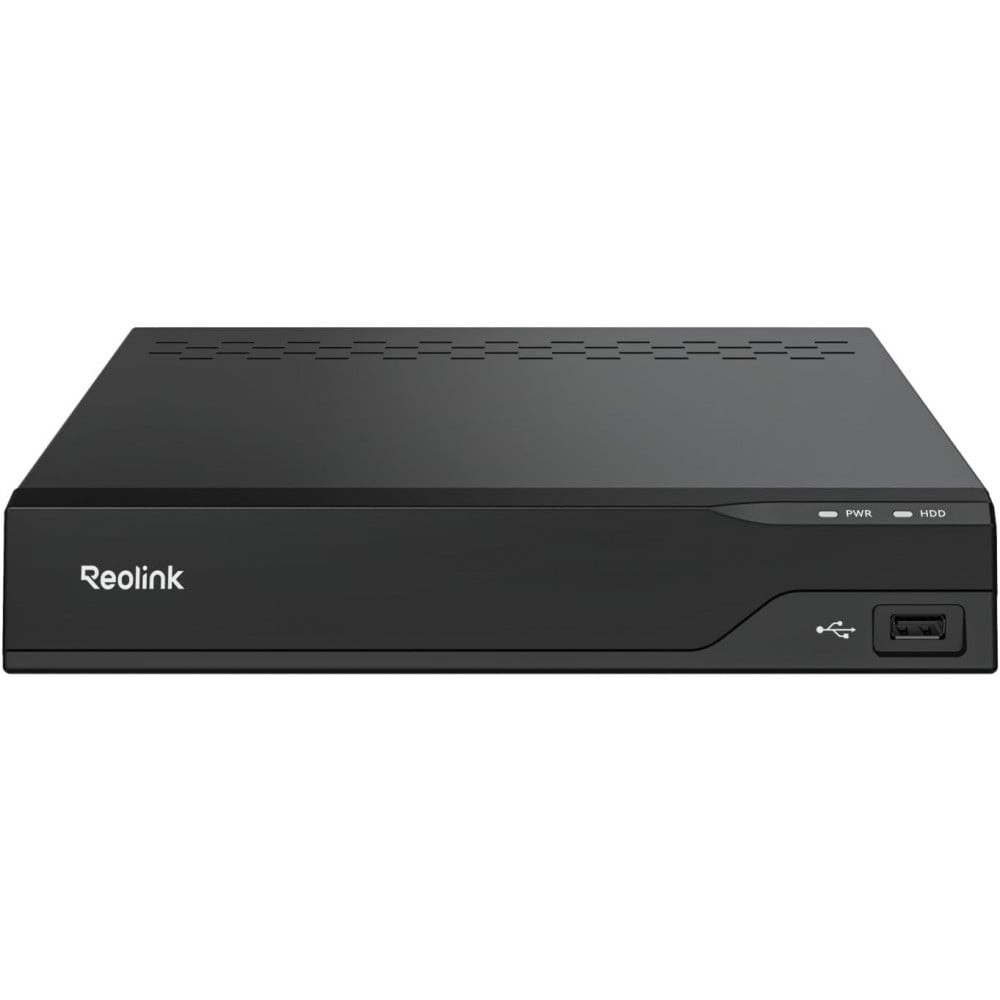

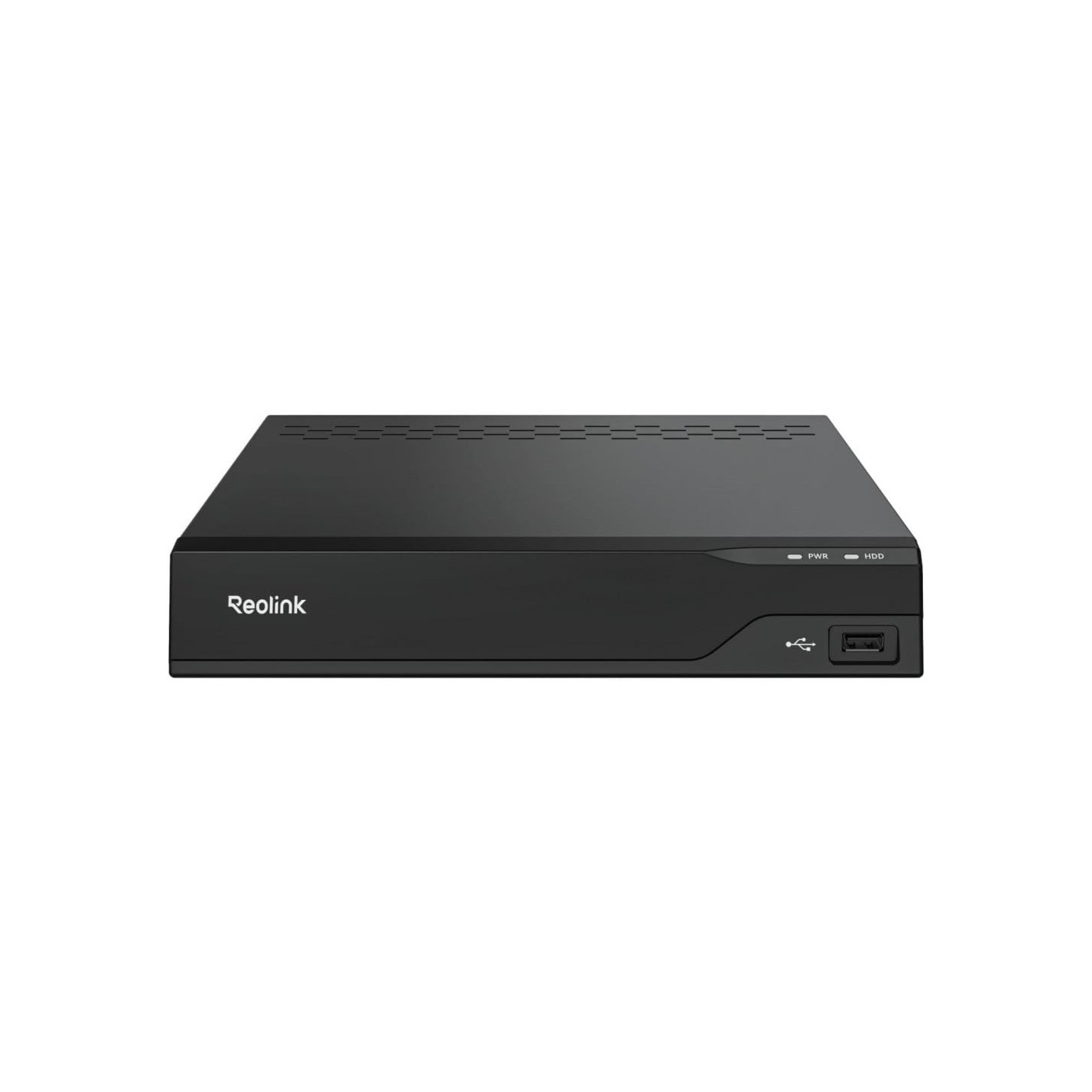

Reolink PRO IP POE NVR 12ch with 8port POE - RP-PN8-NHD - 12ch with 8port POE
12-channel PoE NVR with 8 PoE ports; built-in 2TB HDD (expandable to 32TB); supports up to 16MP; AI video search, person/object detection, perimeter protection, heat map, smart event detection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Power | PoE |
|---|---|
| IP Cameras - Storage | NVR Only |
- Built-in 2TB HDD
- Expandable Storage up to 32TB
- Supports up to 16MP
- Heat Mapping Technology
- Smart Event Detection
- AI Video Search
Video/Audio Input
- IP Video Input : Up to 12 IP Cameras (Max.8 wired cameras) / Up to 16 MP resolution
- Audio Input : Cameras with built-in MIC
- Incoming Bandwidth : 240Mbps
- Outgoing Bandwidth : 240Mbps
Video/Audio Output
- Video Output : 1 HDMI, 1 VGA
- Display Resolution : HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio Output : 1 audio out channel, RCA
Decoding
- Video Compression : H.265 / H.264
- Live View/Playback Resolution : 7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P
Recording
- Synchronous Playback : 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)
HDD
- SATA : 1 x SATA interface (1 x 2TB HDD included)
- External HDD : 1 eSATA interface for HDD
- Capacity : Up to 32TB (up to 16TB capacity for each HDD)
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 8 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras) / 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3 af/at
Network
- Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP
- Browsers Supported : Edge, Firefox, Chrome, Safari
- OS Supported : PC: Windows, Mac OS; Smart phone: iOS, Android
- Max. User Access : 20 Users (1 admin account & 19 user accounts);
- supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Other Features
- AI Video Search : Yes (need to be supported on cameras as well)
- Person & Object Detection / Person, Vehicle, Non-motorized vehicle, Animal and Package (need to be supported on cameras as well)
- Perimeter Protection : Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (need to be supported on cameras as well)
- Smart Event Detection : Object Removal (beta) , Forgotten Object (beta) (need cameras support)
- Heat Map : Yes
General
- Power Supply : DC 52V/2.3A
- Power Consumption : <10W (without HDD & PoE)
- Working Environment : Temperature: -10°C ~ + 45°C (14°F ~ 113°F); / Humidity: 10% ~ 90%
- Dimensions : 255mmx50mmx211mm
- Weight : 1.4kg(without HDD) 1.8kg(with HDD)
| AI Features | AI Video Search, Person & Object Detection, Perimeter Protection, Smart Event Detection, Heat Map |
| Channels | 12 |
| Max Input/Record | 240Mbps/240Mbps |
| PoE Ports | 8 |
| Compression | H.265/H.264 |
| HDD | Pre-installed 2TB |
| Others | 1 eSATA interface for HDD/Up to 32TB (up to 16TB capacity for each HDD) |
