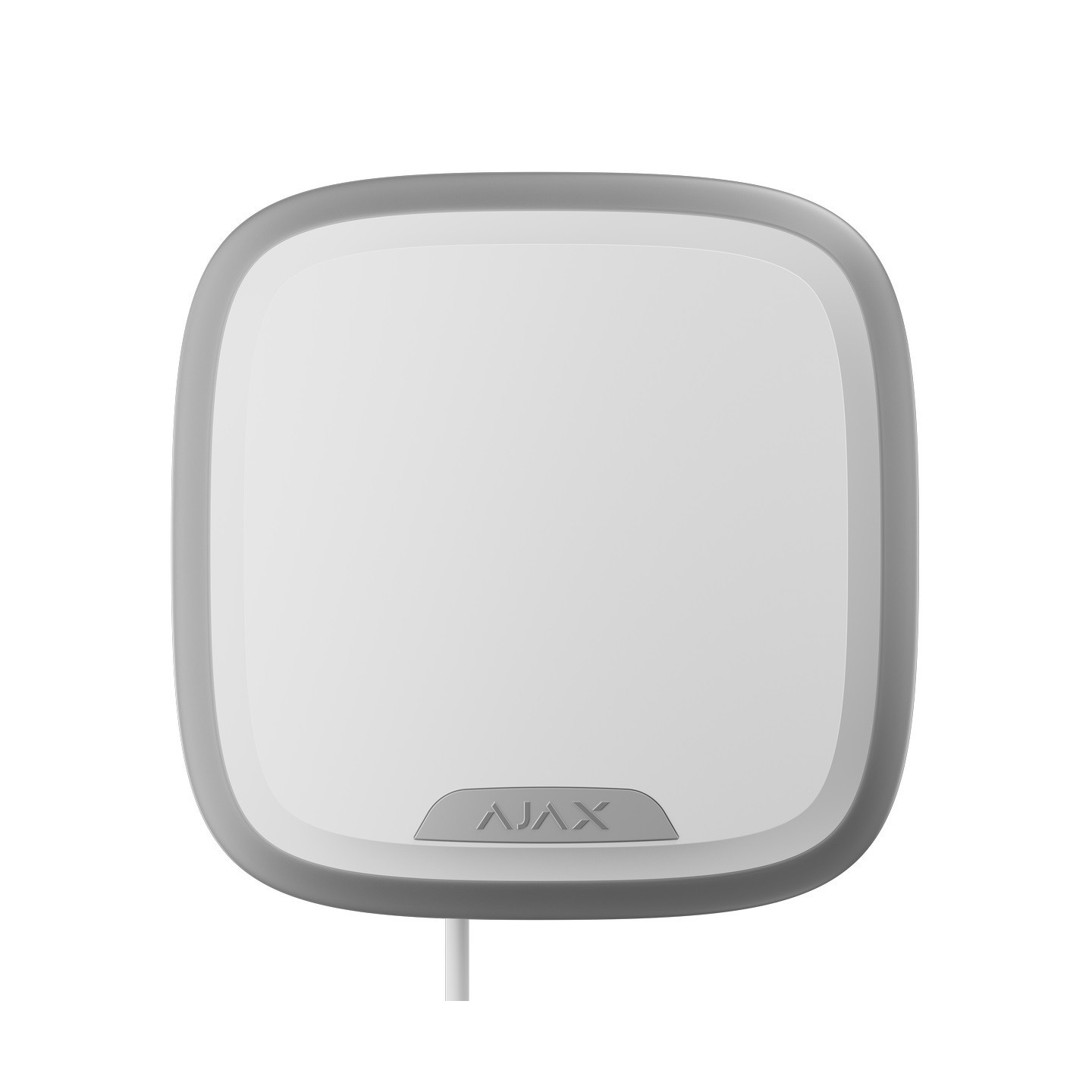

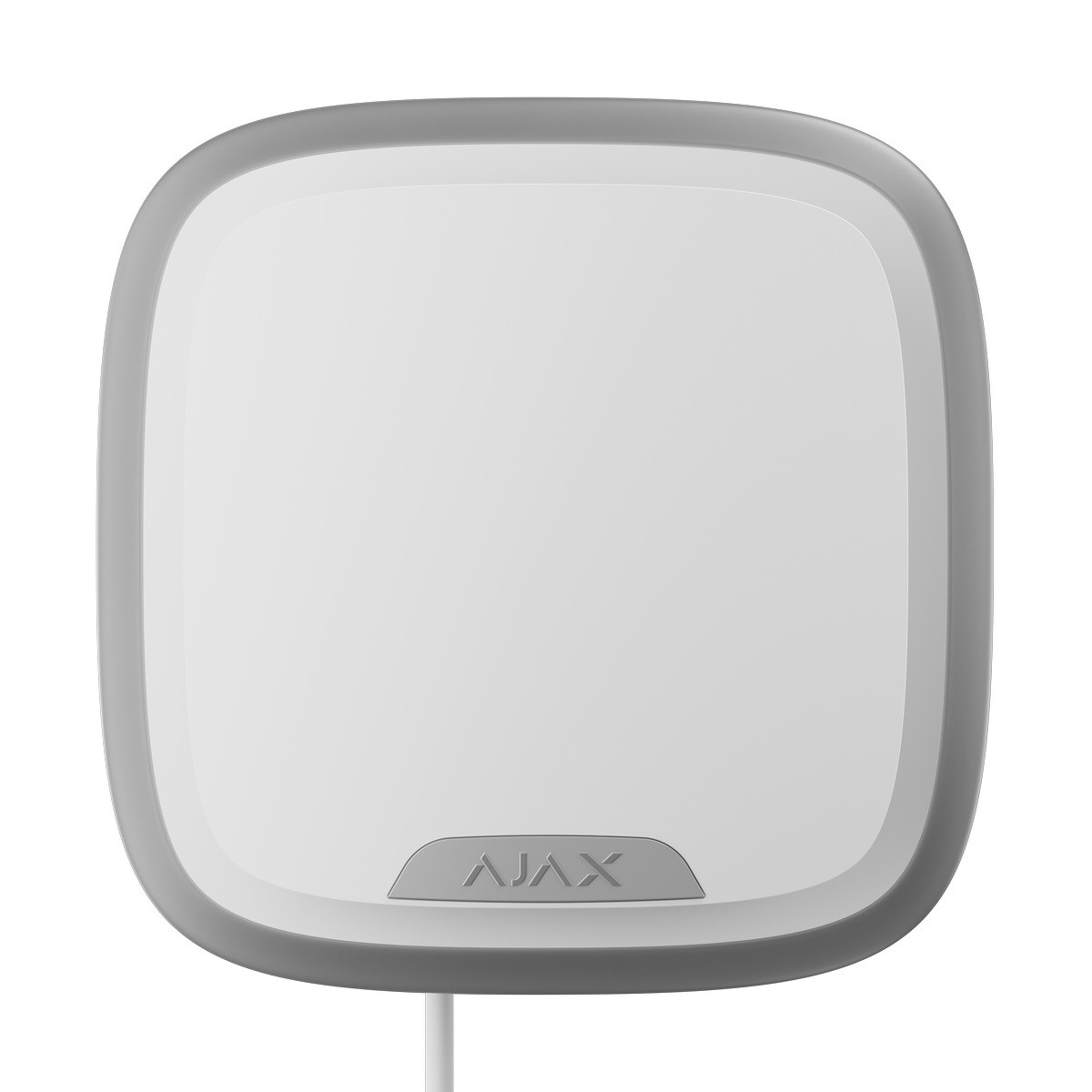

AJAX FIBRA StreetSiren Plus - White
Wired siren with advanced anti-sabotage and extended compliance certificates; Fibra wired communication, two-way alerts, and remote control via Ajax apps for indoor and outdoor use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Alarm Kits - System Type | Wired |
|---|
Wired siren with advanced sabotage protection and an extended list of compliance certificates. For outdoor and indoor use.
Wired Communication
Communication Technology: Fibra — proprietary wired communication technology to transmit commands, alarms, and events
Key Features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote control and configuration in Ajax apps
- Line Connection: 4-core cable
Connection Point: To any point of the Fibra line (can be installed after a hub, detector, keypad, or siren)
Fibra Line Length: Up to 2,000 m using U/UTP cat.5 twisted pair cable
Encrypted Communication: All stored and transmitted data protected by block encryption with dynamic key
Alarm Functionality
- Alarm Type: Acoustic and light (via speaker and LED frame)
- Type of Warning Device: Type Z (external)
- Acoustic Output Type: Tone
- Alarm Volume: From 85 to 107 dB at 1 m (adjustable in Ajax app by PRO or admin)
- Alarm Duration: From 3 s to 3 min (adjustable in Ajax app)
- Alarm Sound Options: 3 types — NFA2P-compliant / VdS-compliant / Regular
- LED Indication Types: Corner backlight / Full-frame backlight (Full-frame requires sufficient battery power)
- NFA2P LED Indication: Flashlight color — red / Flashlight frequency — 1 flash per second
- Siren Sound Frequency:
- NFA2P: 1,400–1,600 Hz
- VdS: 1,400–1,800 Hz
- Regular: 1,400–1,600 Hz
- Events Indication: Alarms / Entry & exit delays / Security mode change / After-alarm indication
- Chime Feature: Notifies with a sound when opening detectors are triggered while system is disarmed
Sabotage Protection
- Tamper Alarm: Notifies on attempts to open the enclosure, detach the siren, or remove from mounting panel
- Protection Against Forgery: Device authentication
- Communication Loss Detection: After 36 s (depends on Jeweller/Fibra settings)
Power Supply
- Operating Voltage Range: 8–28 V⎓ (powered by the control panel)
- Nominal Voltage: 24 V⎓
- Maximum Current Consumption: 50 mA
- Quiescent Current Consumption: 2.9 mA
- Peak Current Consumption: 217 µA (Very loud volume level)
- Average Current Consumption: 217 µA (default volume level)
Battery
- Type: LTO 2.4 V⎓ rechargeable battery (pre-installed)
- Capacity: 3,000 mAh
- Low Battery Notification: Triggered at 20% of nominal capacity
- Electric Shock Protection Class: Class III
Enclosure
- Dimensions: 210 × 210 × 71 mm
- Weight (White Version): 1,059 g
- Weight (Black Version): 1,038 g
- Operating Temperature Range: From −25 °C to +60 °C
- Operating Humidity: Up to 95% (no condensation)
- Protection Class: IP54 / IK08
