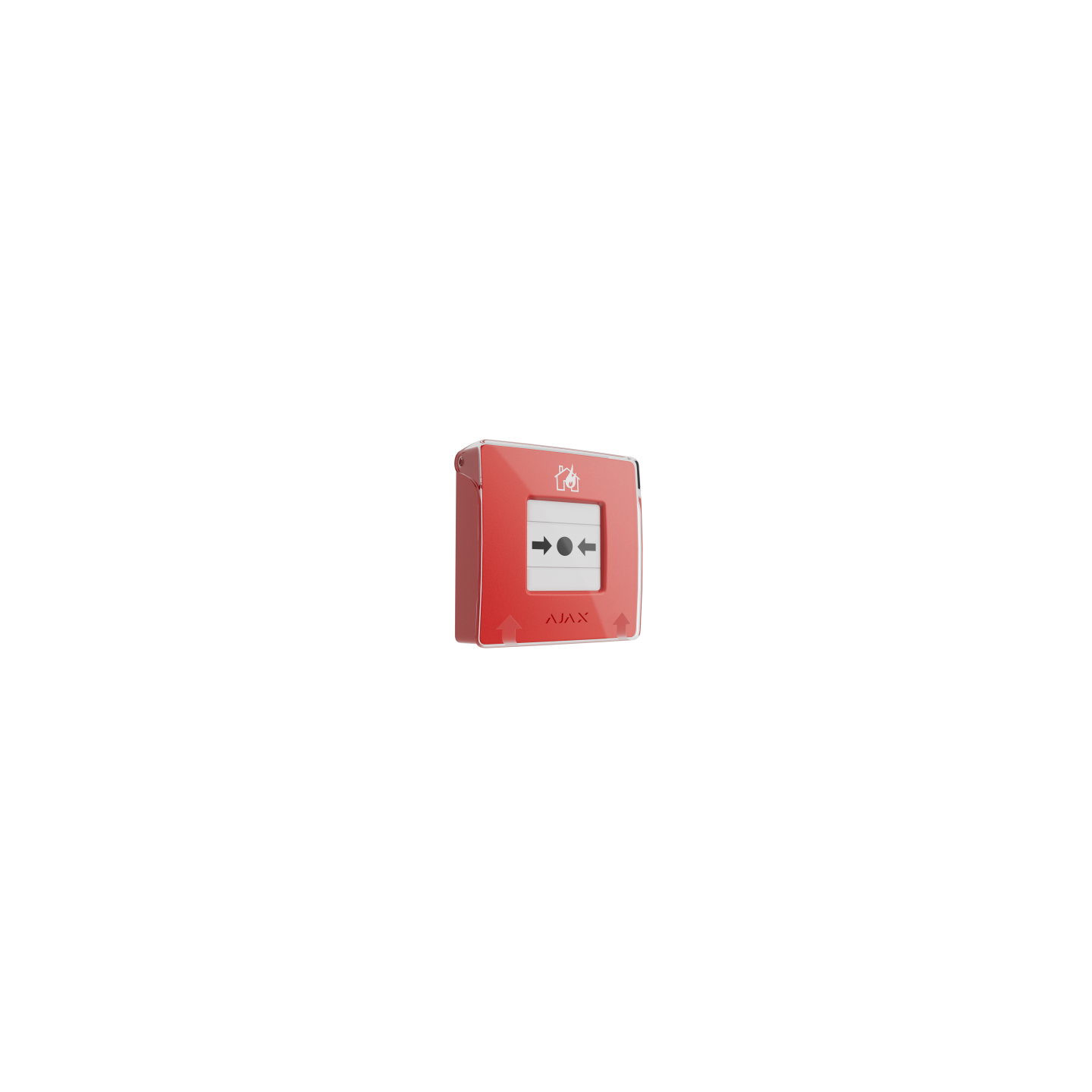

AJAX Manual Call Point - BASELINE - Red
Wireless resettable manual fire alarm button with programmable scenarios.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Wireless resettable button for manual fire alarm activation featuring programmable scenarios.
ManualCallPoint (Red) Jeweller is a fast and straightforward way for anyone to activate the fire alarm. Pressing the button triggers the built-in sirens of all fire detectors in the system and informs the users. Meanwhile, the central monitoring station (CMS) receives the alarm and calls emergency services. All the data is instantly available in Ajax apps: which device was triggered, when, and where. In a life-endangering situation, Ajax innovative features follow an alarm in seconds: automation scenarios de-energize the facility, turn the emergency lights, and unlock the exits.
Sabotage Protection
- Tamper alarm : Notifies on attempts to detach the button from the surface or remove it from the mounting panel
- Protection against spoofing : Via device authentication
- Communication loss detection : After 36 seconds
Detection time depends on the Jeweller or Jeweller/Fibra settings
Power Supply
- Batteries : 2 × CR123A (pre-installed)
With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years
Enclosure
- Dimensions : 102 × 104 × 39 mm
- Weight : 214 g
- Operating temperature range : 0 °C to +50 °C
- Operating humidity : Up to 80%
