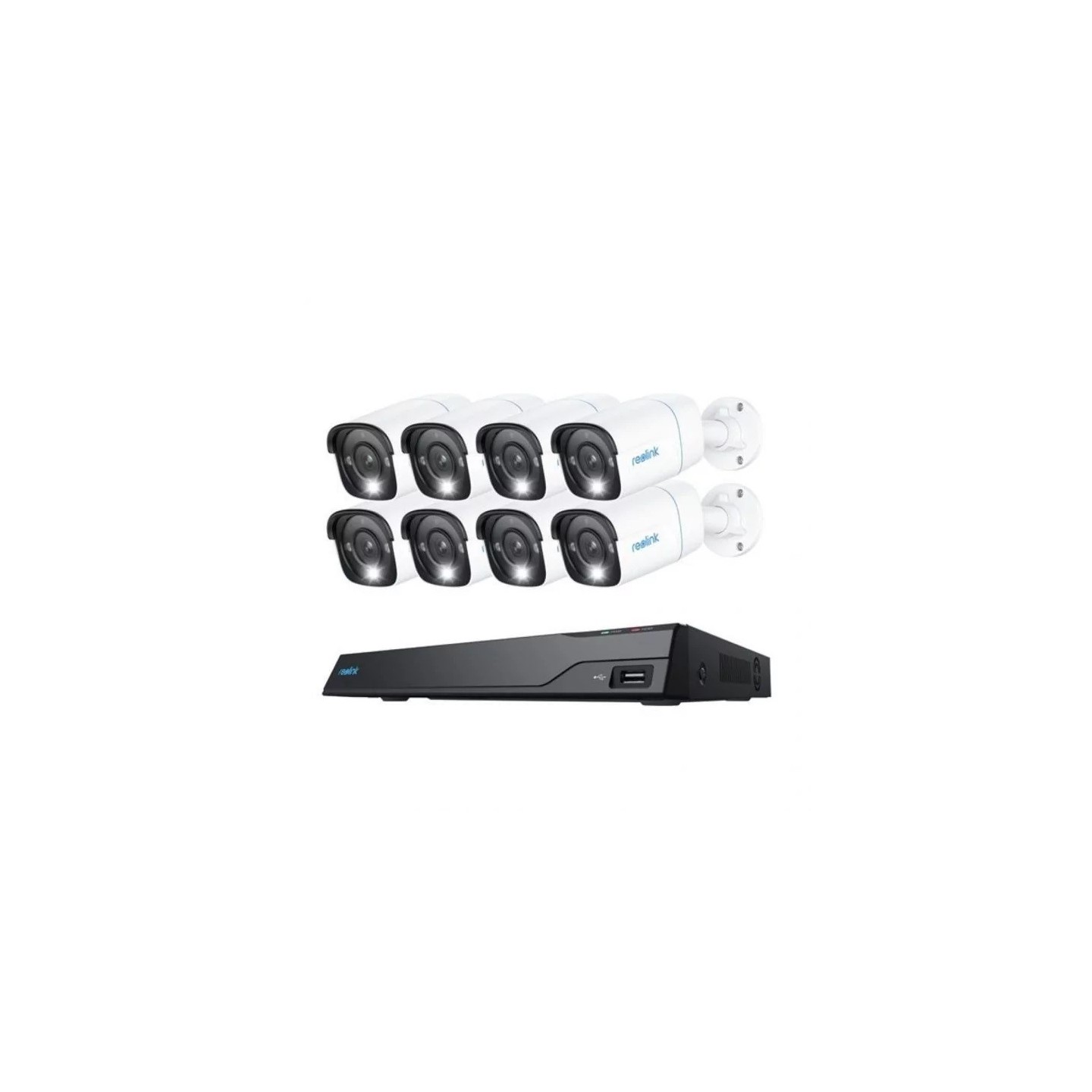

Reolink KIT 16xChNVR+8x8MP Bullet+4TB - RLK16-800B8-8MP - 16xChNVR+8x8MP Bullet+4TB
Reolink KIT: 16-channel NVR with 8x8MP bullet cameras and 4TB HDD for 24/7 4K surveillance.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Power | PoE |
| IP Cameras - Audio | Mic |
| IP Cameras - Storage | NVR Only |
Smart 24/7 Surveillance in 4K Ultra HD
- Power over Ethernet
- Person/Vehicle Detection
- With 16-Channel NVR
- 4TB HDD Built-In
Hardware
- 4TB HDD: N6MB01
Video/Audio Input
- IP Video Input : PoE IP Camera x 16
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
- Audio output : 1-channel, RCA
Decoding
- Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Video Format : H.265, H.264
- Synchronous Playback : Up to 4 channels
HDD
- SATA : 2 x SATA interface (1 x 4TB HDD included)
- Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
- External HDD : No
External Interface
- USB Interface : 2 x USB 2.0
- Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
- PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3 af/at
Network
- Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported : Edge, Firefox, Chrome, Safari
- OS Supported : Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~54V
- Power Consumption : <10W (without HDD&PoE)
- Working Environment : Temperature: -10°C~+45°C Humidity: 10%~90%
- Dimensions : 330 x 45 x 285mm
- Weight : 2.4kg
Note: The cameras of the kit cannot work without the NVR.
B800
Video & Audio
- Image Sensor : 1/2.49" CMOS Sensor
- Video Resolution : Default: 3840X2160 (8 megapixels) @20FPS
- Lens : f=4.0 mm fixed, F=2.0, with IR cut
- Video Format : H.265
- Field of View : Horizontal: 87° / Vertical: 44°
- Day & Night : IR-cut filter with auto-switching
- Night Vision : 30 meters (100ft) (LED: 18pcs/14mil/850nm)
- Frame Rate : Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 15fps (default: 10fps)
- Code Rate : Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Audio : Audio recording
Detection/Recording Modes
- Smart Alarms : Person detection/vehicle detection/motion detection
- Recording Modes : Motion-triggered recording (default); scheduled recording, 24/7 recording
Power
- PoE : IEEE 802.3af, 48V Active
- DC Power : DC 12.0V⎓ 1A, <12W
Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps RJ45
- Audio : Built-in microphone
Working Environment
- Operating temperature: -10°C~+55°C (14°F~131°F)
- Operating humidity: 10% ~ 90%
- Waterproof : IP67
Size & Weight
- Dimension : Φ66 x 192mm
- Weight : 485g
| AI Features | Person,Vehicle Detection |
| Camera Resolution | 8.0MP |
| Housing Type | Bullet |
| Channels | 16 |
| PoE Ports | 16 |
| HDD | 2 Disk Up to 6TB |
| Lens | Fixed |
| Lens Size | 4.0mm |
| IR Distance | Up to 30m |
| Audio | Built-in Mic |
