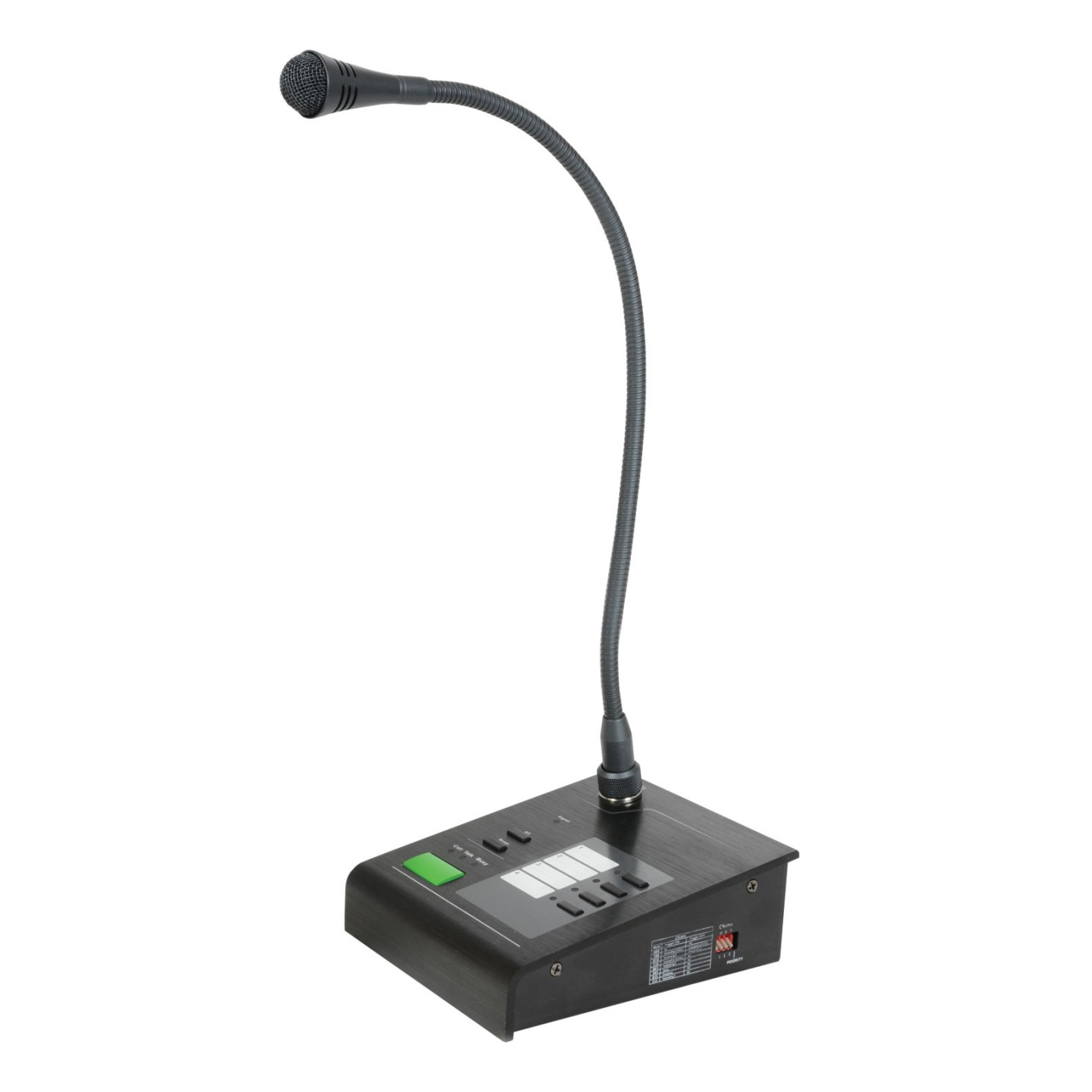

Adastra CS4 Call Station - 953.146UK - for RM244V and RM4460
Adastra CS4 Call Station compatible with RM244V and RM4460; supports 4-zone assignment, 8 chime settings, 3.5 mm aux input, and up to 1 km CAT5 wiring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Headsets & Microphones - Headset Connection | 3.5 mm analog |
|---|---|
| Headsets & Microphones - Microphone Type | Condenser |
- For use with the RM244V amplifier (953.144UK) and RM4460 (953.446UK)
- Assignable to individual or all 4 zones
- 8 selectable chime settings
- 3.5mm aux input
- Up to 1km remote wiring over CAT5
- Supplied with 1m RJ45 patch lead
- Power supply 24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- Capsule back electret condenser
- Polar pattern Cardioid

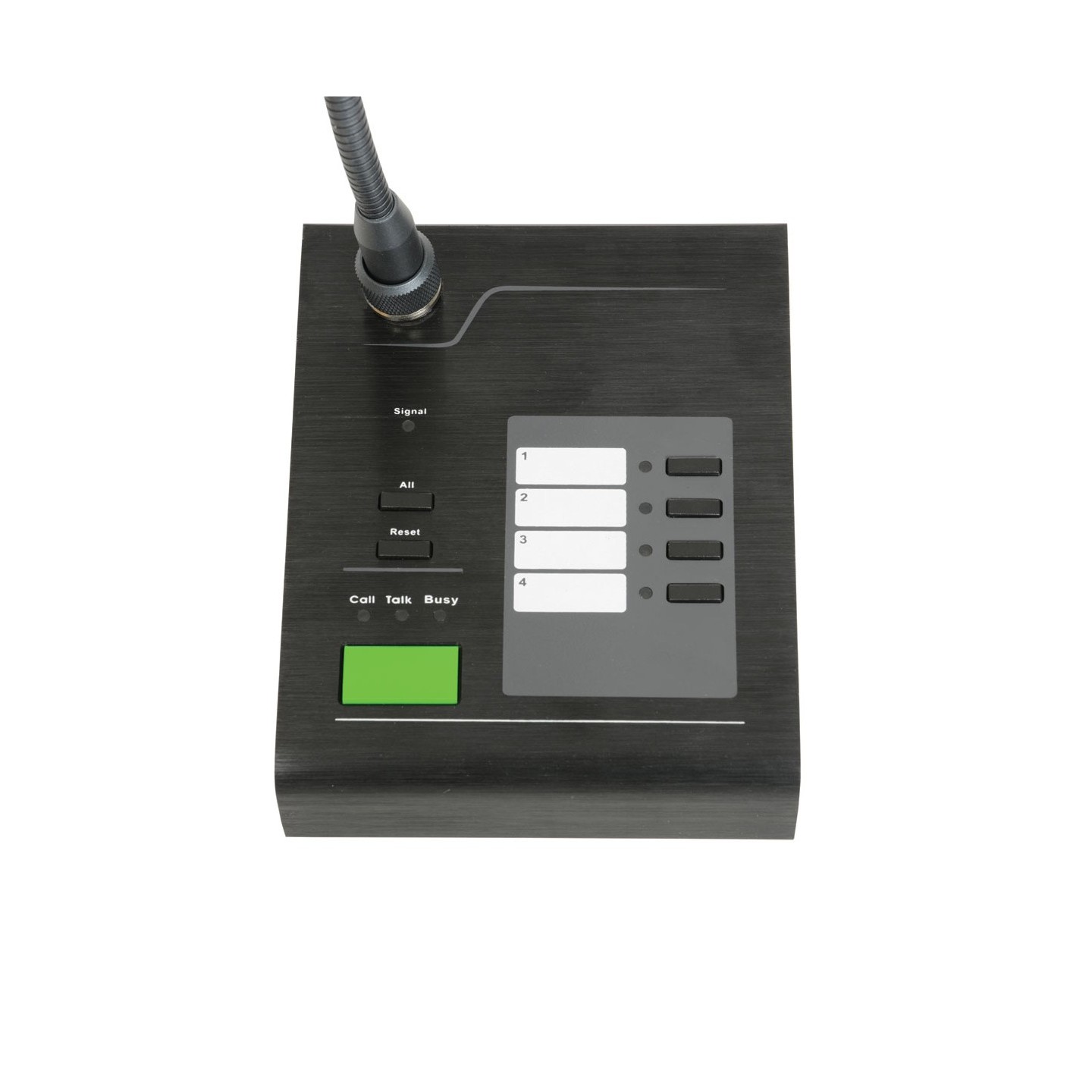

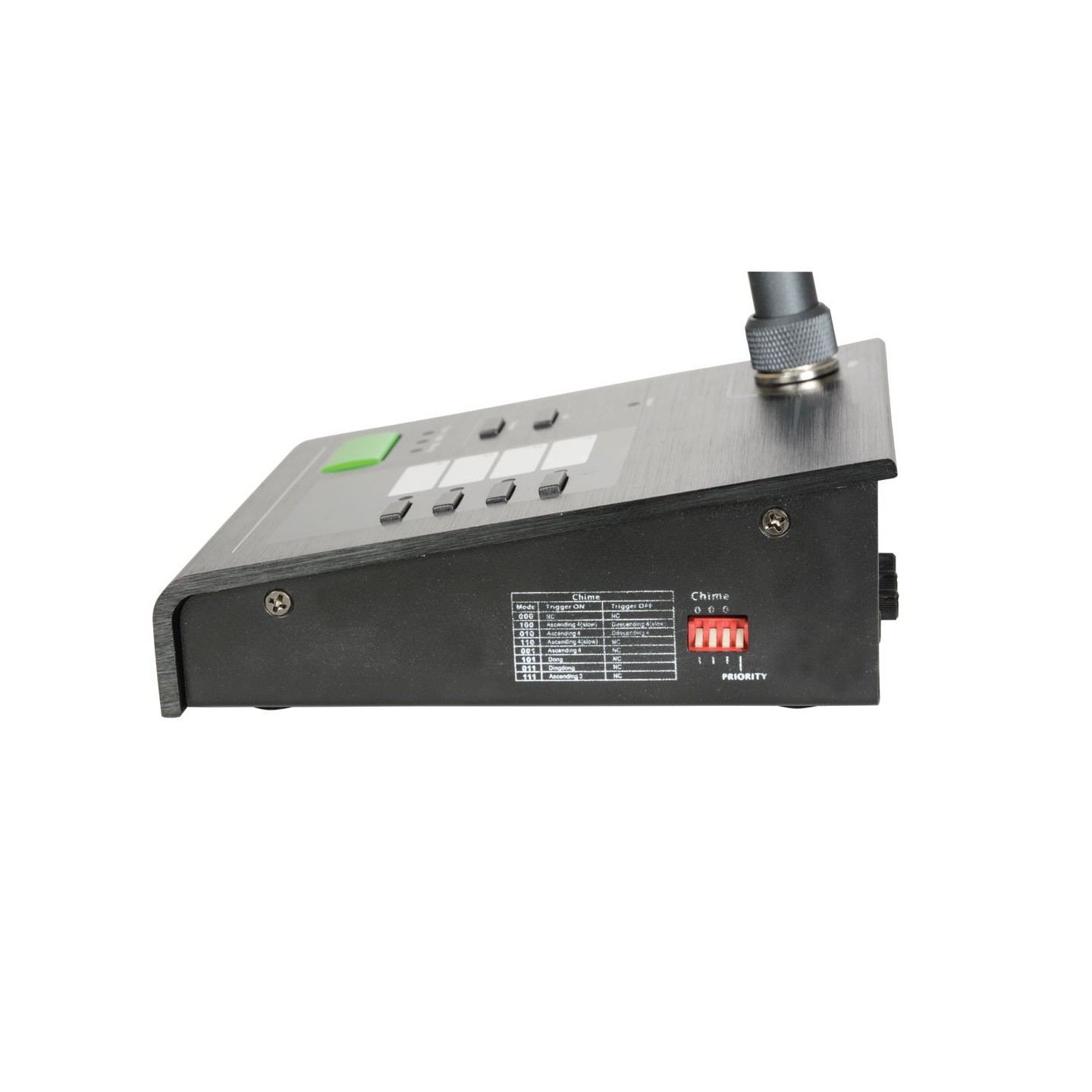

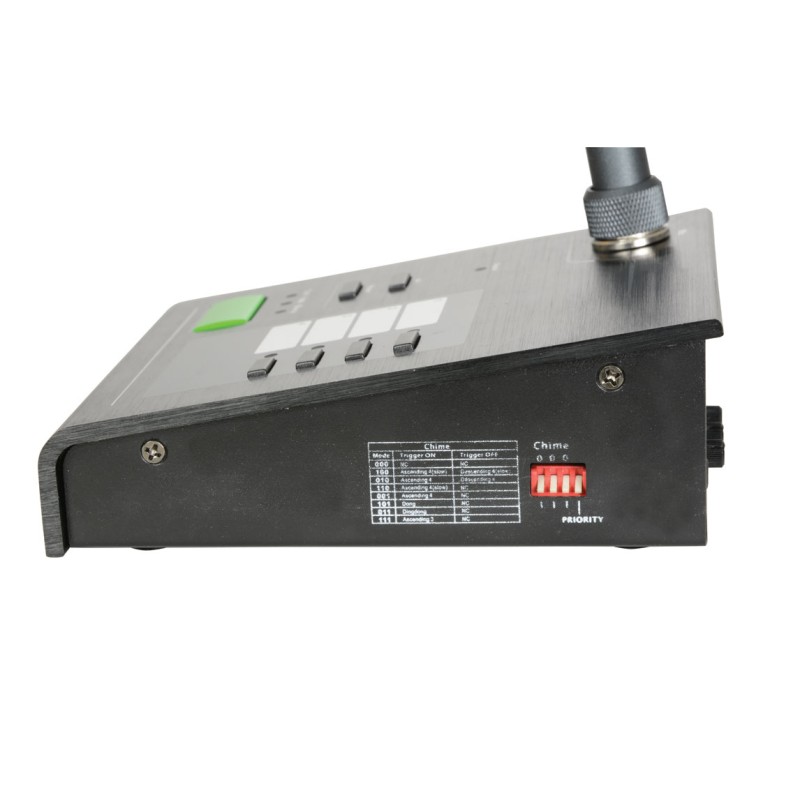

- Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

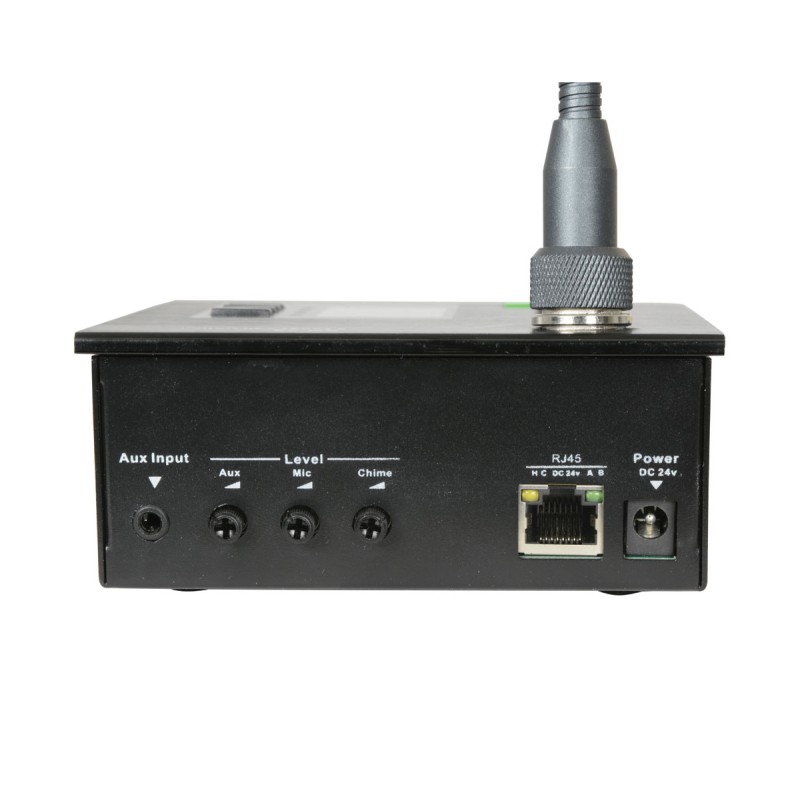

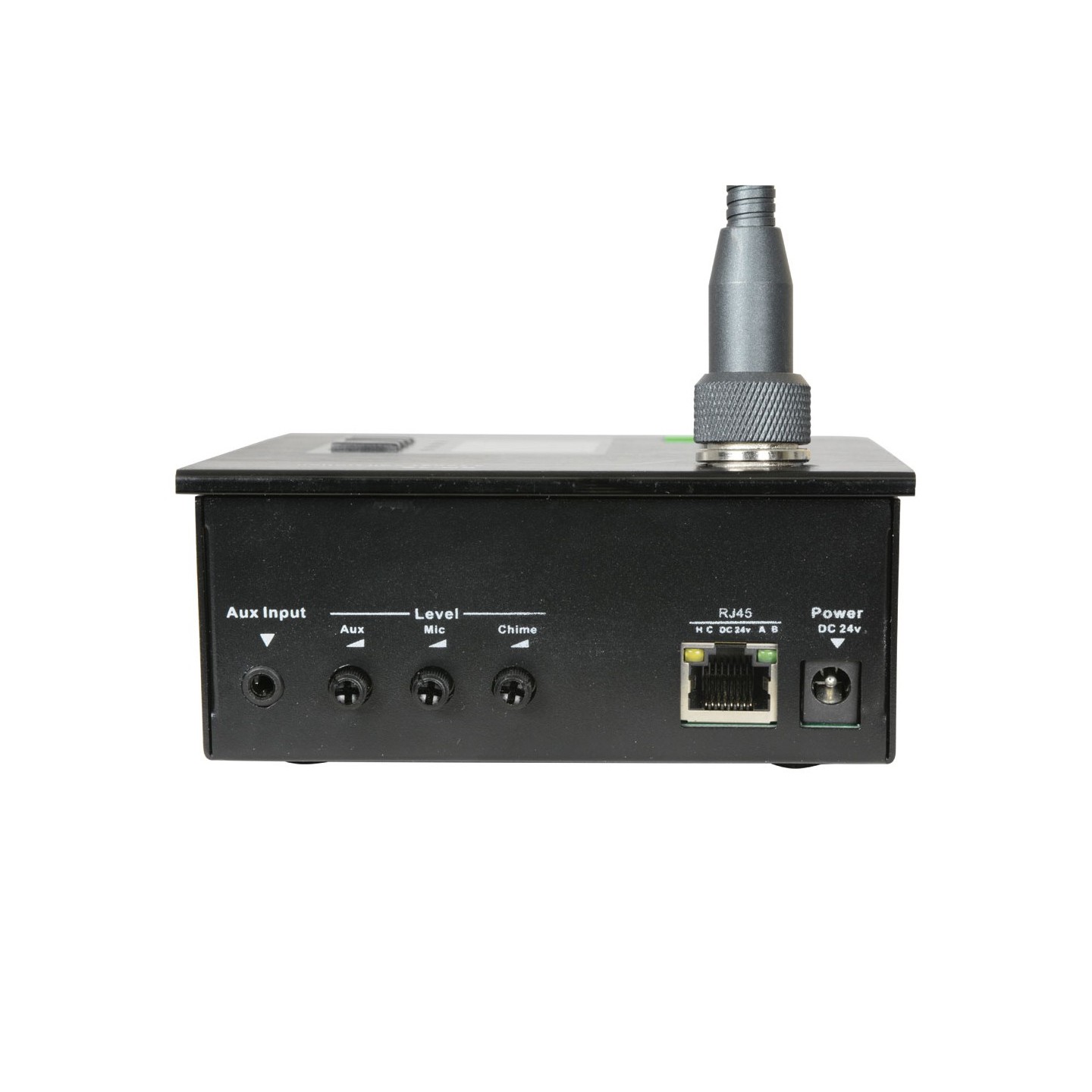

- Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
- Frequency response : -3dB 150Hz - 22kHz
- Input level Mic: -46dBV, Aux: -10dBV
- Input impedance Mic: 600 Ohms, Aux: 50k Ohms
- Output level 10dBV
- Output impedance : balanced 600 Ohms
- S/N ratio -60dB (all channels selected)
- Interface RS-485 control
- Zone assign 4 zones or all selectable
- Dimensions 460 x 140 x 115mm
- Weight 670g
| Type | Condenser |
| Chime | Yes |
