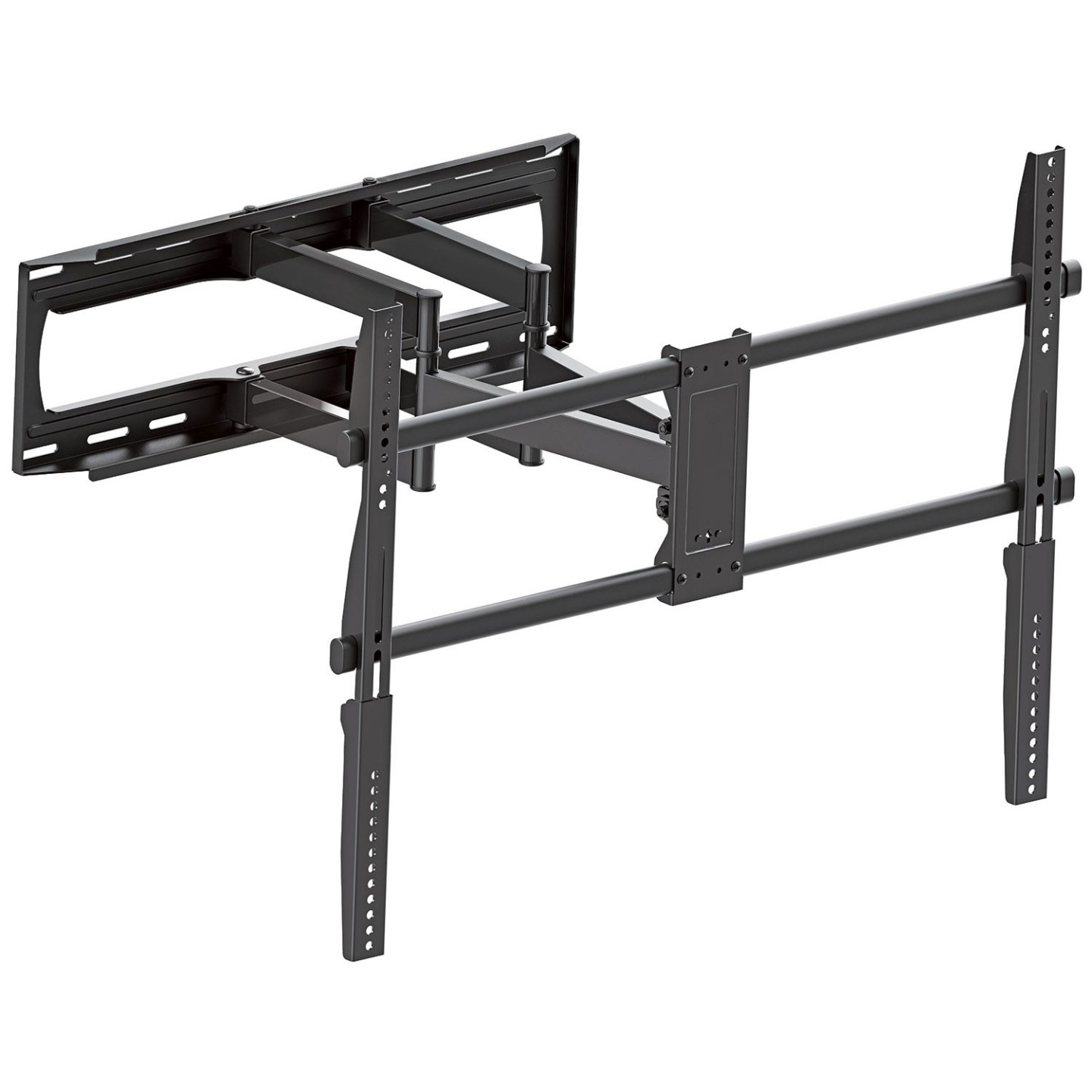

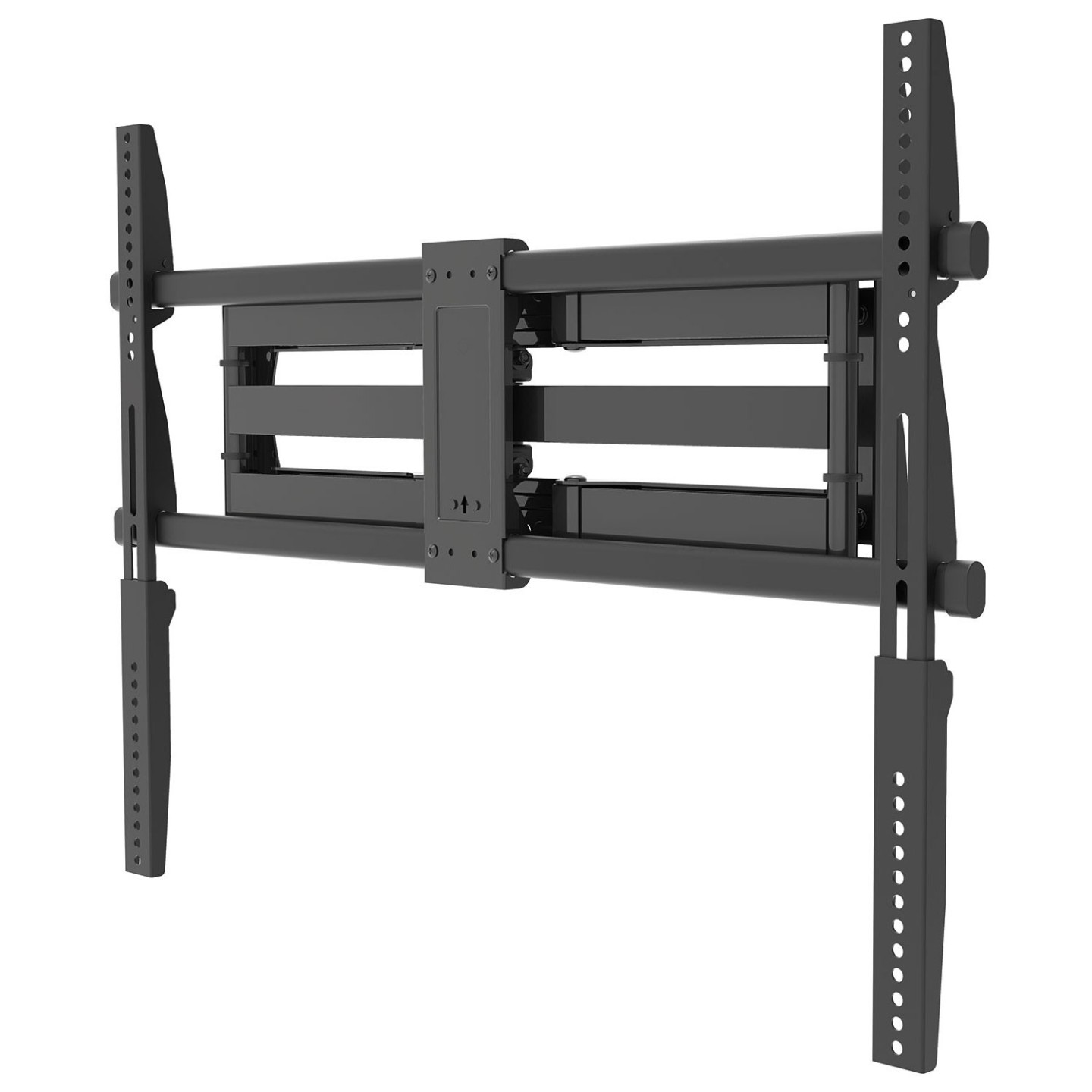

AV:Link TV Wall Bracket - SFMXL800 - 800x600 Turn 70kg 4arms 129.569UK
Ideal for large screens with 800x600 VESA mounts; supports up to 90 inch displays; heavy-duty twin-arm full-motion design for strength and flexibility; easy to assemble.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| TV Wall Mounts - VESA | 800x600 |
|---|
Ideal for larger screens with 800 x 600 VESA mounts and up to 90" in screen size, this full motion bracket has a heavy duty twin arm design providing both strength and flexibility. Easy to assemble and install this bracket is perfect for both domestic and business applications where viewing from different angles is required.
- Suitable for larger LED/LCD screen sizes 47" to 90" and up to 70kg in weight
- Compatible with VESA hole patterns up to 800 x 600
- Tilt mechanism from -5° to 10°
- 90° Swivel range
- Installation hardware included
- Screen size : 47" to 90"
- Max. VESA : 800 x 600
- Max. weight load : 70kg
- Distance from wall : 77-609mm
- Tilt range : -5° to 10°
- Swivel : +45° to -45°
- Wall plate dimensions : 667 x 225mm
- Weight : 10kg
In the Box
- TV Bracket
- Assembly spanner
- Bubble level
- 4pcs M8 x 50mm
- 4pcs M8 x 35mm
- 4pcs M8 x 15mm
- 4pcs M6 x 35mm
- 4pcs M6 x 15mm
- 4pcs L22m spacer
- 4pcs L10mm spacer
- 8pcs L2.5mm spacer
- 4pcs 8mm washer
- 4pcs Wall studs
- 4pcs Wall plugs
- 4pcs Wall washer
| Function | Turn |
| Max Vesa | 800x600 |
| Max. Weight | 70kg |
| Arm Extension | 61cm |
