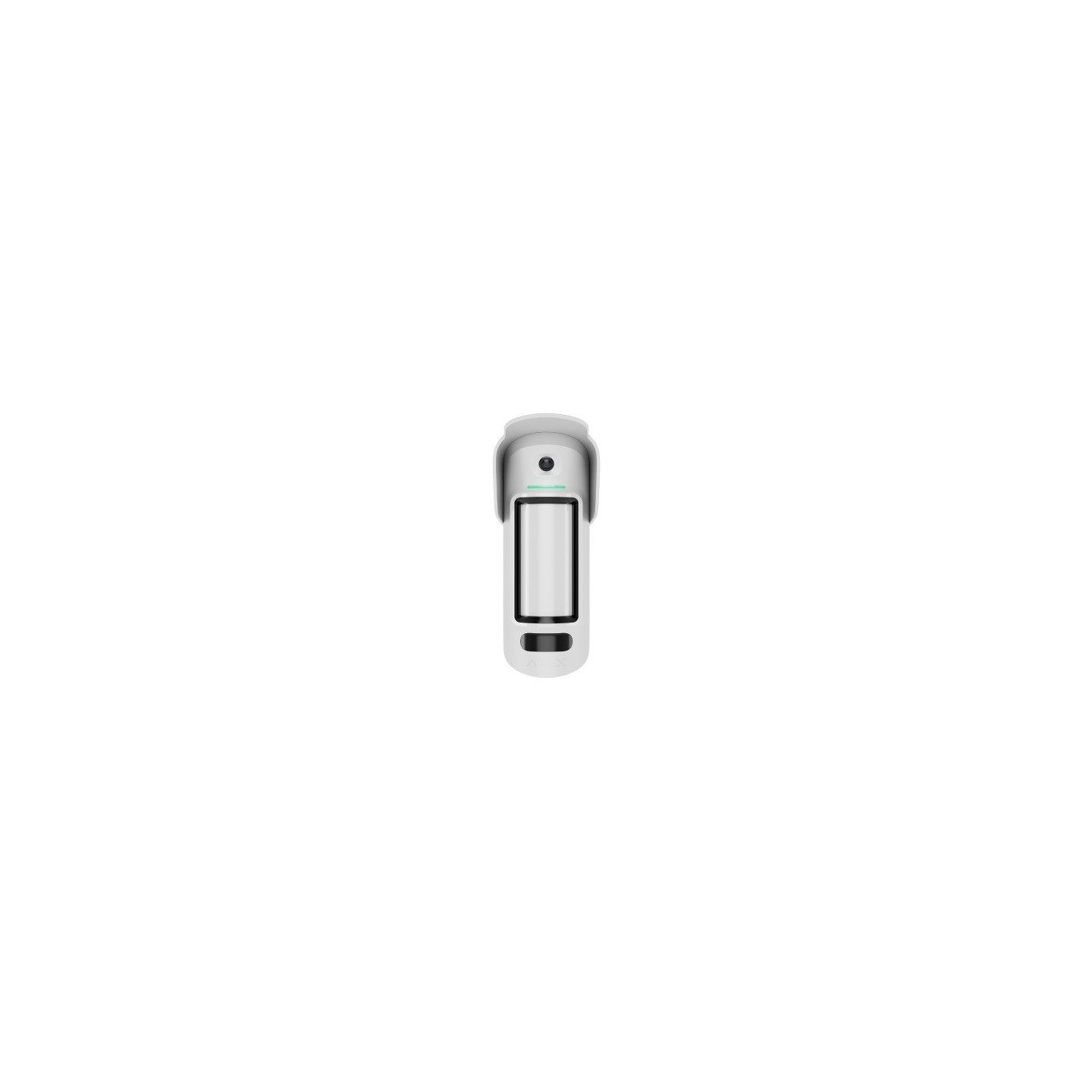

AJAX Baseline PIR Outdoor MotionCam HighMount White

Wireless PIR motion detector with extended photo verification possibilities. For outdoor installation at a height of 2–4 m.

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

It is recommended to install the detector at a height of 2–4 m.

The pet immunity feature is not available for this device.

The device is designed for outdoor and indoor use.

Wireless Communication

• Frequency Bands : 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz

Depends on the sales region.

• Maximum Effective Radiated Power : Up to 25 mW

Automatic power control to reduce power consumption and radio interference.

• Radio Signal Modulation : GFSK
• Radio Communication Range : Up to 1,700 m
• Between the device and a hub (or a range extender) in an open space.

Encrypted Communication

• All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency Hopping

• Prevents radio interference and jamming.

Wings Communication Technology

• Proprietary wireless communication technology to transmit photo verifications.

Detection

• Sensitive Elements : 2 × PIR sensor / 1 × K-band microwave sensor
• Operating frequency: 24 GHz
• Motion Detection Distance : Up to 15 m

When installed at a height of 2–4 m. Depends on the sensitivity level adjusted in the device settings.

• Motion Detection Angle : Horizontal: 90°
• Motion Detection Speed : From 0.3 to 2.0 m/s

Sensor direction should be perpendicular to the likely intrusion path.

• Sensitivity : 3 levels

Adjusted by a PRO or user with admin rights in Ajax apps.

• False Alarm Prevention : SmartDetect (software algorithm)
• Temperature Compensation : Effective movement detection in temperatures from −25 °C to +60 °C
• Photo Verification
• Photo by Alarm
• The built-in camera is activated if the detector is armed and movement is detected.
• Photo on Demand
• A user can take pictures at any time or when the detector is armed (depending on settings).
• Disabled by default.

Photo by Scenario

• Automatically takes pictures when other Ajax detectors are triggered.

Not configured by default.

Photo by Schedule

• Automatically takes pictures at a specified time.

Not configured by default.

Photo by Arming/Disarming

• Automatically takes pictures when the security state changes.
• Adjustable Photo Resolution : 640 × 480 px / 320 × 240 px (default)

Adjusted by a PRO or user with admin rights in Ajax apps.

• Camera Viewing Angles : Horizontal: 115° / Vertical: 84°
• HDR Image : Improves accuracy of details in bright and dark scenes.
• IR Backlight : Supports night photography and low light conditions.

Series of Pictures

• 1 to 5 images (320 × 240 px resolution)
• 1 to 3 images (640 × 480 px resolution)

Configured in Ajax apps.

Photo Delivery Time

• Up to 9 s (320 × 240 px)
• Up to 20 s (640 × 480 px)

Depends on selected resolution in device settings.

Sabotage protection

• Tamper alarm
• Notifications of attempts to remove the detector from the mounting panel.
• Magnetometer : detects attempts to tilt or shift the detector or detach it from the surface
• Anti-masking system : detects attempts to block the detector view

Main power supply

• Battery : 6 × CR123A(Pre-installed.)
• Type : type C
• Calculated battery life : up to 3 years
• Detector operating voltage range : 3.8−6.5 V⎓
• Detector nominal operating voltage : 6 V⎓
• Quiescent detector current consumption at nominal voltage : 45 μA
• Maximum detector current consumption at nominal voltage : 1,200 mA
• Full battery capacity : 4,800 mAh
• Low battery voltage : 4.2 V⎓
• Low battery recovery voltage : 5.0 V⎓
• End-of-life battery voltage : 3.8 V⎓
• The device is switched off.
• End-of-life battery capacity : 300 mAh

Optional power supply

• External supply operating voltage : 12−24 V⎓

The batteries serve as a backup when an external power supply is connected.

Enclosure

• Dimensions with the swivel mount : 234 × 98 × 230 mm
• Dimensions without the swivel mount : 234 × 98 × 137 mm
• Weight with the swivel mount : 1,010 g
• Weight without the swivel mount : 620 g
• Operating temperature range : from −25 °C to +60 °C
• Operating humidity : up to 95%
• Protection class : IP55
